Intel® Desktop board DH61AG
Media Series
Thin Mini-ITX Form Factor
Intel® Desktop Board
DH61AG Media Series
Supports the 2nd generation
Intel® Core™ processors in the
LGA1155 package
The Intel® Desktop Board DH61AG is based
on the Intel® H61 Express Chipset and
supports 2nd generation Intel® Core™
processors, including the Intel® Core™ i5,
Intel® Core™ i3, and other Intel® processors in
the LGA1155 package.
1
The 2nd generation
Intel Core processors feature optimized
Intel® Turbo Boost Technology
2
and
enhanced Intel® Hyper-Threading Technology,
3
which provide smarter performance and a
seamless visual experience. The innovative
low z-height Thin Mini-ITX form factor with
external power supply support provides
maximum design flexibility to support
system designs ranging from slim high
performance AIO systems to Tiny FF
systems and Home Theatre PC systems.
connectors for flexible dual independent
displays. In addition, the DH61AG also
provides second generation internal flat
panel display support for LVDS as well as
eDP. Maximum flexibility is provided for
18/24 bits/pixel, panel and inverter voltage
selection, single cable connectivity (for
panels with integrated inverter), brightness
control, custom EDID payloads, and more.
Powered by 2nd generation Intel Core
processors with Intel® HD Graphics, the Intel
Desktop Board DH61AG delivers a superb
visual performance for sharper images,
richer color, and lifelike audio and video as
well as best-in-class media processing
features. Enjoy a rich, immersive, liquid-
smooth visual experience on your AIO
system or monitor or HDTV.
max), SuperSpeed USB 3.0, and fast charging
hi-current USB 2.0 connectors. There is also
support for one full size PCI Express*
mini-card and one half size PCI Express*
mini-card connectors. The mini-card
connectors are ideal for support of Intel®
mSATA modules as well as Intel® WiFi and
third party TV Tuner modules. In addition,
the DH61AG board supports Intel® High
Definition Audio
5
with 7.1 surround sound
and multi-streaming capability, and an
integrated Intel® PRO 10/100/1000
Network Connection in a low-power design.
The Intel Desktop Board DH61AG supports
1.5 V (standard voltage) as well as 1.35 V (low
voltage) JEDEC-compliant SO-DIMM memory.
Two back panel SuperSpeed USB 3.0 ports
address the needs of higher performance
connections between the PC and increas-
ingly sophisticated peripherals by offering a
higher transferring rate of 5.0 Gb/s. There
are also two USB 2.0 connectors which are
designed to support Hi-Current and fast
charging of external devices.
Premium features
The Intel Desktop Board DH61AG supports
low profile SO-DIMM and PCI Express*
mini-card connectors and offers premium
features such as dual-channel DDR3 1333
MHz memory with two SO-DIMMs (16 GB
4
Dual independent display for
processors with Intel® HD Graphics
The Intel Desktop Board DH61AG is
equipped with DVI-I and HDMI* display
Intel® Desktop Board DH61AG Media Series

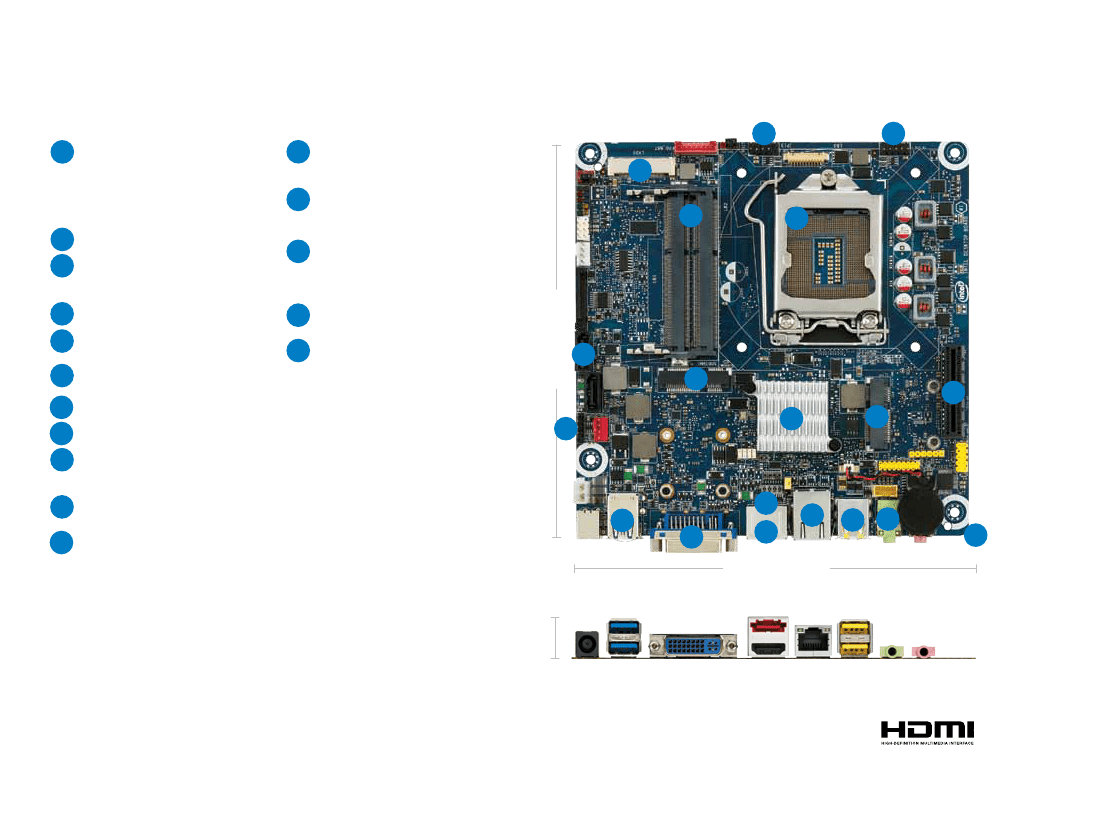

Features and Benefits
11
1
Supports the 2nd generation
Intel® Core™ processors, including
the Intel® Core™ i5, Intel® Core™ i3,
and other Intel® processors in the
LGA1155 package up to 65W tDP
for exceptional performance.
1
Intel® H61 express Chipset PCH.
Dual-channel DDr3 with two
connectors for 1333/1066 MHz
memory support (16 Gb
4
max).
PCI express* 2.0 x4 connector.
one half size PCI express*
mini-card connector.
one full size PCI express*
mini-card connector.
two SAtA 3.0 Gb/s ports.
one eSAtA 3.0 Gb/s port.
two SuperSpeed uSb 3.0 ports:
5.0 Gb/s signaling rate for high speed
connections to peripherals.
8
9
14
14
6.7¨ (17.2 cm)
12
10
13
16
11
12
Integrated Intel® Pro 10/100/1000
Network Connection for high speed
and low power consumption.
ten-channel Intel® High
Definition Audio
5
with
multi-streaming capability.
DVI-I + HDMI*:
Supports dual
independent display and allows for the
most flexible display output for Intel
processors with Intel® HD Graphics.
flexible eDP/LVDS flat panel
display support.
thin Mini-ItX form factor.
6.7¨ (17.2 cm)
15
3
11
13
1
2
3
14
4
5
6
7
8
9
15
16
7
6
2
5
4
10
two Hi-Current/fast Charging
uSb 2.0 ports.
11
eight Internal uSb 2.0 ports (5 via
headers, 1 via HMC, 2 via fMC).
<20mm
®
3
Intel® Desktop Board DH61AG Media Series
Technical Specifications
ProCeSSor
Processor Support
• ntel® Core™ i5, Intel® Core™ i3, and other Intel®
I
processors in the LGA1155 package
1
with up to
65W TDP
• upports Intel® 64 architecture
7
S
CHIPSet
Intel® H61 Express Chipset
• ntel® BD82H61 Platform Controller Hub (PCH)
I
PerIPHerAL CoNNeCtIVIty
• Two SATA 3.0 Gb/s ports with one SATA ports
• wo SuperSpeed USB 3.0 ports with 5.0 Gb/s
T
link speed
• ight internal USB 2.0 ports
E
(5 via headers, 1 via HMC, 2 via FMC)
SySteM bIoS
• 2 MB Flash EEPROM with Intel® Platform
3
Innovation Framework for EFI Plug and Play
• dvanced configuration and power interface
A
V3.0b, SMBIOS 2.5
• Intel® Express BIOS update support
HArDWAre MANAGeMeNt feAtureS
• Processor fan speed control
• Front and rear system chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management support
INteL® Pro 10/100/1000
NetWork CoNNeCtIoN
• Low-power design
Using the Intel
®
Desktop Board DH61AG with a 95W TDP Core and the
supplied standard Intel thermal solution may not meet thermal require-
ments if used in a mini-ITX chassis. For specific processor compatibility,
please visit http://processormatch.intel.com.
2
Intel
®
Turbo Boost Technology—maximum single-core turbo frequency
(GHz). Intel Turbo Boost Technology requires a PC with a processor with
Intel Turbo Boost Technology capability. Intel Turbo Boost Technology
performance varies depending on hardware, software, and overall system
configuration. Check with your PC manufacturer on whether your system
delivers Intel Turbo Boost Technology. See www.intel.com/technology/
turboboost for more information.
3
Intel
®
Hyper-Threading Technology requires a computer system with a
processor supporting HT Technology and an HT Technology-enabled
chipset, BIOS, and operating system. Performance will vary depending
on the specific hardware and software you use. See www.intel.com/info/
hyperthreading for more information.
4
Based on availability of 8 GB SO-DIMMs. Also, system resources and
hardware (such as PCI and PCI Express*) require physical memory
address locations that can reduce available addressable system memory.
1
eXPANSIoN CAPAbILItIeS
• One PCI Express* 2.0 x4 connector
AuDIo
7.1 Intel® HD Audio via HDMI*
7.1+2 Intel® HD Audio via codec
• Digital/analog stereo line-out (back panel jack)
• In-chassis stereo speakers output (internal header)
• AV-compliant 7.1 surround (internal header)
• Secondary S/PDIF output (internal header)
• DMIC digital microphone input (internal header)
• Analog line-in (back panel jack)
• Front panel HD Audio/AC’97 (internal header)
VIDeo
• DVI-I + HDMI*: supports dual independent display
• Flexible eDP/LVDS for flat panel display support
SySteM MeMory
Memory Capacity
• Two SO-DIMM connectors
• aximum system memory up to 16 GB
4
using
M
8 GB
4
double-sided SO-DIMMs
Memory Types
• DDR3 1333/1066 SDRAM memory support
• Non-ECC Memory
• Dual- or single-channel operation support
Memory Voltage
S
• upport for 1.5 V and 1.35 V JEDEC-compliant
SO-DIMM memory
JuMPerS AND froNt PANeL CoNNeCtorS
Jumpers
• Jumper access for BIOS maintenance mode
Front Panel Connectors
• Reset, HD LED, Power LEDs, power on/off
• Front-panel mic/headphone header
Other Connectors
• Consumer IR receiver header
• HTPC header (for DVR usage models)
MeCHANICAL
Board Style
• Thin Mini-ITX
Board Size
• 6.7¨ x 6.7¨ (17.2 cm x 17.2 cm), 20 mm height
Power Requirements
• External 19VDC power supply
eNVIroNMeNt
Operating Temperature
• 0° C to +55° C
Storage Temperature
• -20° C to +70° C
reGuLAtIoNS AND SAfety StANDArDS
United States
UL 60950-1
Canada
CAN / CSA-C22.2 No. 60950-1
Europe
(Low Voltage Directive 2006/95/EC)
EN 60950-1
International
IEC 60950-1
eMC regulations (Class b)
United States
FCC CFR Title 47, Chapter I, Part 15, Subparts A/B
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION
WITH INTEL
®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY
RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PROD-
UCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL
DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO
SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY
OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,
COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT.
Actual Intel
®
Desktop Board may differ from the image on the box.
Intel products are not intended for use in medical, life-saving, or life sus-
taining applications. Intel may make changes to specifications and product
descriptions at any time, without notice. All products and dates specified
are preliminary based on current expectations and are subject to change
without notice. Availability in different channels may vary.
Canada
ICES-003
Europe
(EMC Directive 2004/108/EC)
EN 55022 and EN 55024
Australia/New Zealand
EN 55022
Japan
VCCI V-3, V-4
South Korea
KN-22 and KN-24
Taiwan
CNS 13438
International
CISPR 22
environmental Compliance
Europe
Europe RoHS (Directive 2002/95/EC)
WEEE (Directive 2002/96/EC)
China
China RoHS (MII Order # 39)
For ordering information, visit:
www.intel.com
For the most current product
information, visit:
http://developer.intel.com/products/
desktop/motherboard/
This could result in a reduction of as much as 1 GB or more of physical
addressable memory being available to the operating system and applica-
tions, depending on the system configuration and operating system.
5
Intel
®
High Definition Audio requires a system with an appropriate
Intel
®
chipset and a motherboard with an appropriate codec and the
necessary drivers installed. System sound quality will vary depending
on actual implementation, controller, codec, drivers, and speakers. For
more information about Intel
®
HD Audio, refer to www.intel.com/design/
chipsets/hdaudio.htm.
6
The Intel
®
Core Utilities Bundle includes Intel
®
Integrator Assistant,
Intel
®
Integrator Toolkit, Intel
®
Express Installer, and Intel
®
Express
BIOS Update.
7
64-bit computing on Intel
®
architecture requires a computer system with
a processor, chipset, BIOS, operating system, device drivers, and ap-
plications enabled for Intel
®
64 architecture. Processors will not operate
(including 32-bit operation) without an Intel 64 architecture-enabled
BIOS. Performance will vary depending on your hardware and software
configurations. See http://developer.intel.com/technology/intel64/index.
htm for more information.
Copyright © 2011 Intel Corporation. All rights reserved. Intel, the Intel logo,
and Intel Core are trademarks of Intel Corporation in the U.S. and other
countries.
*Other names and brands may be claimed as the property of others.
0611/FB/HBD/PDF 325629-002US
MCU
京公网安备 11010802033920号
EEWORLD
