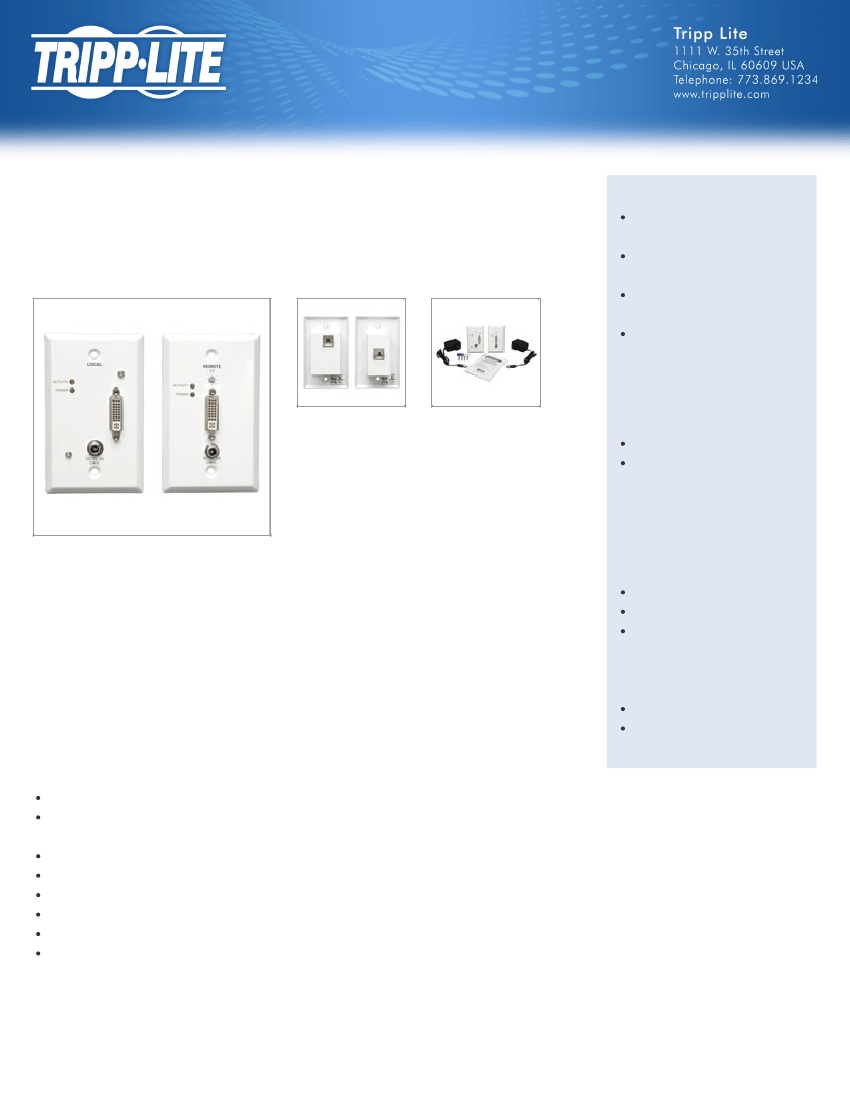

DVI over Cat5/Cat6 Active Extender Kit, Wallplate
Transmitter and Receiver, 1920x1080 at 60Hz, Up to
200-ft., TAA
MODEL NUMBER:
B140-1A1-WP
Highlights
DVI Single-Link video over Cat5e
or Cat6 cabling
Easy RJ45 connection on back of
wallplates
Equalization control for the sharp
display quality
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
System Requirements
DVI Video card and DVI Monitor
For international use, the
B110-INT power supply can be
purchased separately; it features
plugs for the UK, Europe, and
Australia.
Description
Tripp Lite's B140-1A1-WP DVI over Cat5 Active Extender Kit is perfect for those who need a wallplate solution
that extends a DVI-D Single-Link signal up to 200 ft. from the source. When using 24Awg, solid wire Cat5e/6
cabling (Tripp Lite N202-Series patch Cables), the B140-1A1-WP can extend a 1024 x 768 (60Hz) signal up to
200 ft., or a 1920 x 1200 (60Hz) signal up to 150 ft. Installation is quick and easy: Simply plug a pre-terminated
RJ45 patch cable between the two wallplates and connect the wallplates to the source and monitor using
standard DVI-D Single-Link cables (Tripp Lite P561-Series). The signal will be sent with perfect video quality with
equalization control at the receiver end, which allows adjustment for the sharpest image. Wallplates mount in
standard in-wall electrical boxes or surface mount boxes. Compliant with the Federal Trade Agreements Act
(TAA) for GSA Schedule purchases.
Package Includes
B140-1A1-WP Local Wallplate
B140-1A1-WP Remote Wallplate
(2) External Power Supplies with
NEMA 1-15P Plug (Input:
100-240V, 50/60Hz, 0.5A;
Output: 5V, 2A)
Wallplate screws
Screwdriver for Equalization
adjustment
Features
2 piece kit includes both local transmitter and remote receiver wallplates
Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1200 (60Hz), when using 24Awg, solid wire Cat56 cabling.
(Tripp Lite N202 Series Patch Cables)
Built in equalization control for the sharp display quality
Easy RJ45 patch cable connections
No software or drivers required
HDCP and DDC compatible
Compatible with all operating systems
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
1/2
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
The LED on the local unit illuminates to indicate it is connected to, and receiving power from, the source. The LED
on the remote unit illuminates to indicate it is connected to, and receiving power from, the monitor.
PHYSICAL
Color
White
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
200
200
200
150
150
200
200
200
200
200
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
Side B - Connector 1
Side B - Connector 2
1
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
RJ45 (FEMALE)
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
RJ45 (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
2/2
