Solar system - RAD-SOL-SET-24-40 - 5605941
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

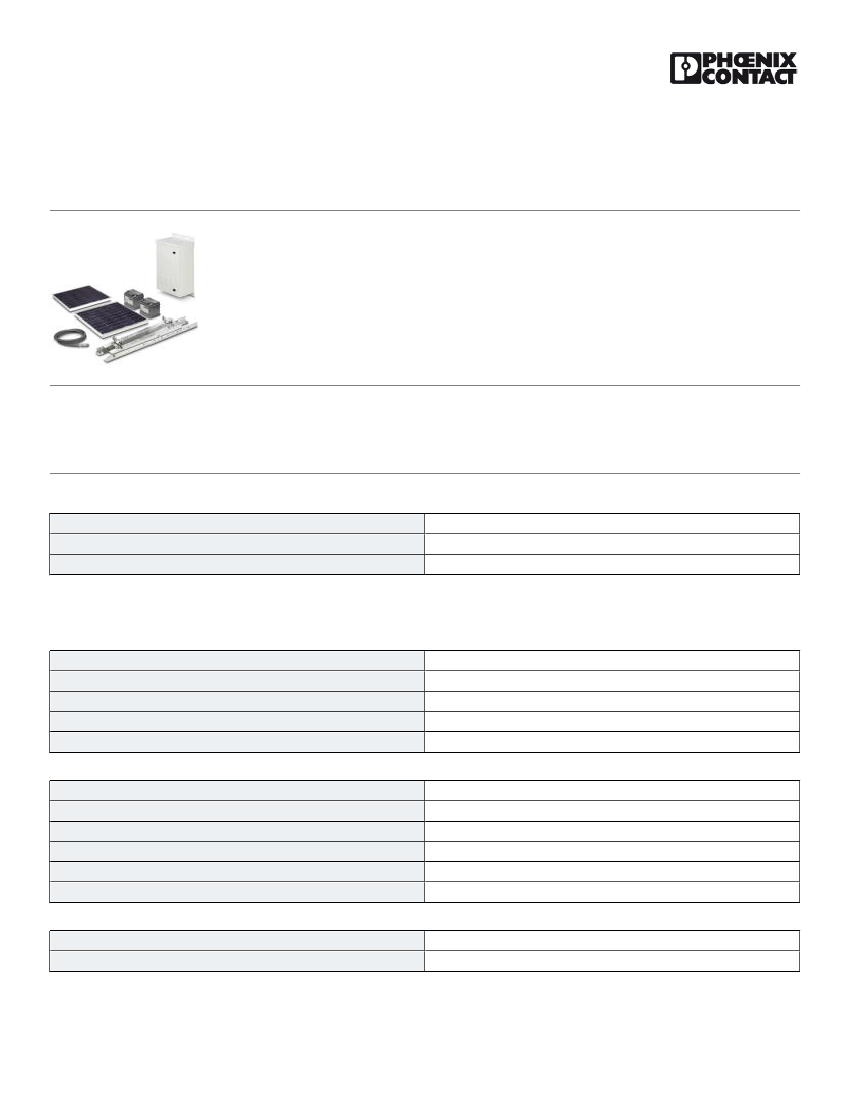

Complete solar system, consisting of solar panel and control cabinet with charge controller, solar battery, surge
protection, fuses and mounting material.
Product Features
■
■
Prewired control cabinet including charge controller, solar battery, surge protection, and fuses
Optional wall or mast mounting
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85013100
Germany
Technical data
Control cabinet / System
System voltage
Max. load
Width
Height
Depth
24 V DC
1 W ... 4.7 W
489 mm
822.4 mm
337.7 mm
Solar panel
Voltage
Short-circuit current
Nominal capacity
Width
Height
Depth
typ. 16.9 V DC (voltage at maximum output)
max. 2.34 A
40 Wp ±10 %
652 mm
639 mm
36 mm
Solar battery
Nom. voltage
Nominal capacity
12 V DC
40 Ah
04/25/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/5605941
Solar system - RAD-SOL-SET-24-40 - 5605941
Technical data
Solar battery
Width
Height
Depth
Net weight
168 mm
175 mm
197 mm
15 kg
Charge controller
System voltage
Current consumption
Nominal load
Solar input current
Width
Height
Depth
24 V DC
typ. 10 mA
10 A
10 A
152 mm
55 mm
34 mm

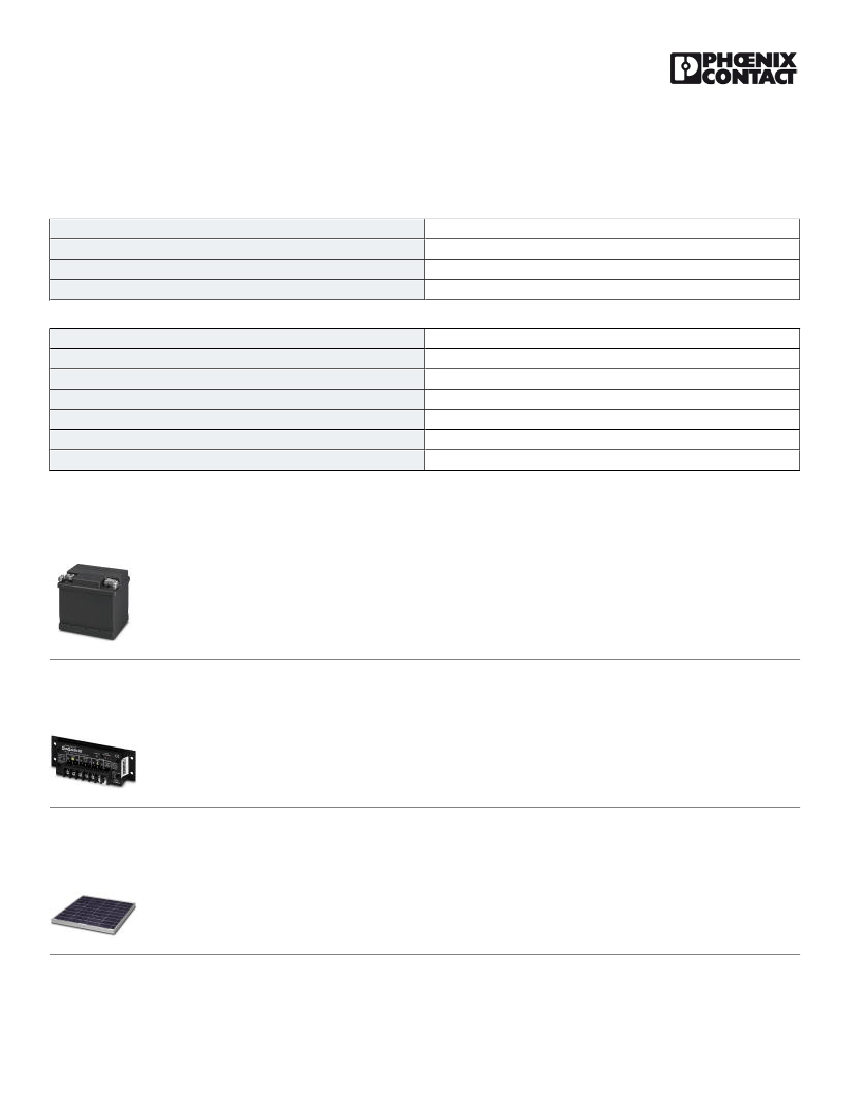

Articles in set
Solar battery - RAD-SOL-BAT-12- 40 - 2885469
12 V/40 Ah gel solar battery, designed for use in the RAD-SOL-SET-24-100 solar system. Two batteries are required to
operate the solar system.
Charge controller - RAD-SOL-CHG-24- 10 - 2885443
Fully automatic charge controller with electronic protection functions, for photovoltaic systems with a system voltage of 24
V.
Solar module - RAD-SOL-PAN-12- 50 - 2885456
12 V/50 Wp solar module, designed for use in the RAD-SOL-SET-24-100 or RAD-SOL-SET-24-200 solar system. Two or
four modules are required to operate the solar system.
04/25/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/5605941
Solar system - RAD-SOL-SET-24-40 - 5605941
Articles in set

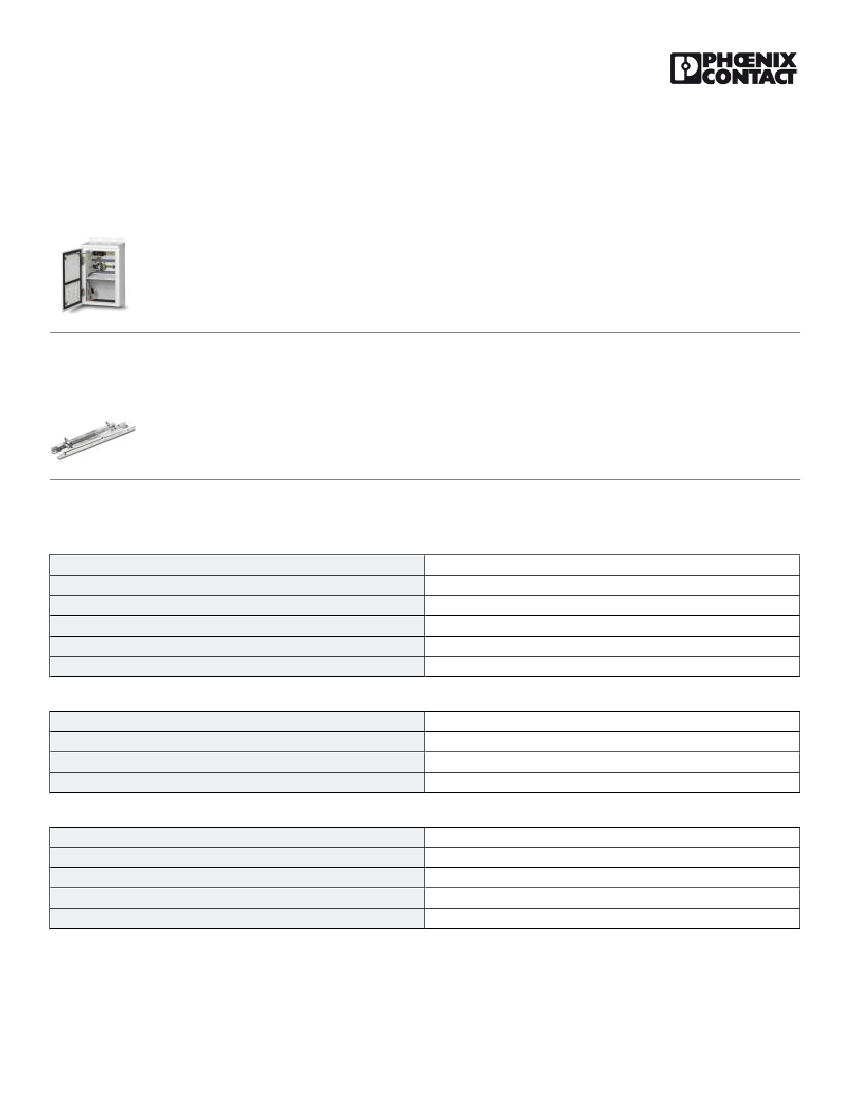

Control cabinet - RAD-SOL-BOX-24V - 2917353
Pre-wired aluminum cabinet for use outdoors, with charger, surge protection and fuses. Designed for use in the solar set
RAD-SOL-SET-24-...
Solar panel bracket - RAD-SOL-MKT-100 - 2917735
Solar panel bracket for mounting 2 x RAD-SOL-PAN-12-50 solar panels on the wall or on a mast
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27060805
27060805
27061805
27061805
27061805
27061805
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000019
EC000019
EC000019
EC000019
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121608
26121608
26121608
26121608
26121608
04/25/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/5605941
Solar system - RAD-SOL-SET-24-40 - 5605941
Accessories
Spare parts
Charge controller - RAD-SOL-CHG-24- 10 - 2885443
Fully automatic charge controller with electronic protection functions, for photovoltaic systems with a system voltage of 24
V.
Solar module - RAD-SOL-PAN-12- 40 - 2885553
Solar module, designed for use in the solar set RAD-SOL-SET-24-40 and RAD-SOL-SET-24-80. One/two modules are
necessary to operate the solar set.

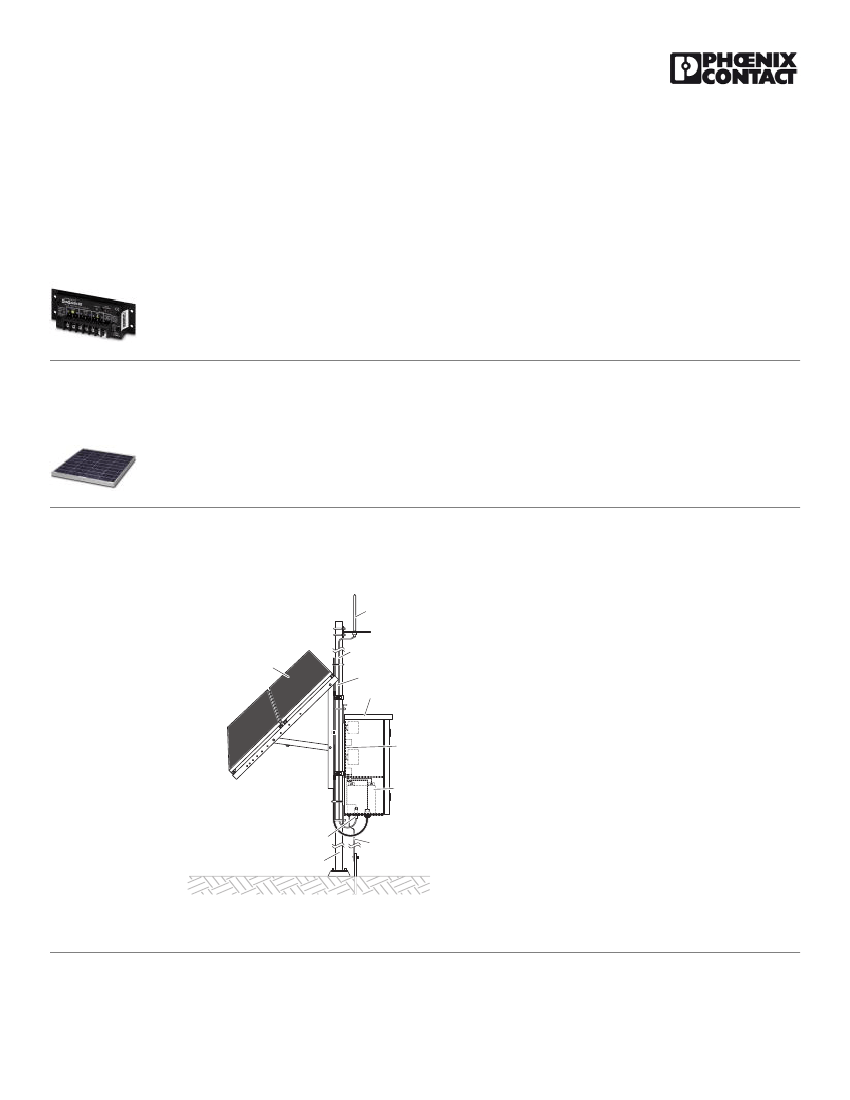

Drawings
Schematic diagram
2
3
1
4
5
6
7
8
10
9
2 solar panels (conn. in series)
Antenna
Antenna cable
Flexible protective tubing
Control cabinet
Control cabinet electronics
Batteries
Surge protection for antenna cable
and control cabinet electronics
9
Mast (e.g. signpost with 76 mm diameter
10
Protective earth (PE), grounding cable
1
2
3
4
5
6
7
8
Example for a typical assembly of a solar system
04/25/2016 Page 4 / 5
