Industrial Grade 10/100/1000 Miniature
Media Converters
IE-Giga-MiniMc

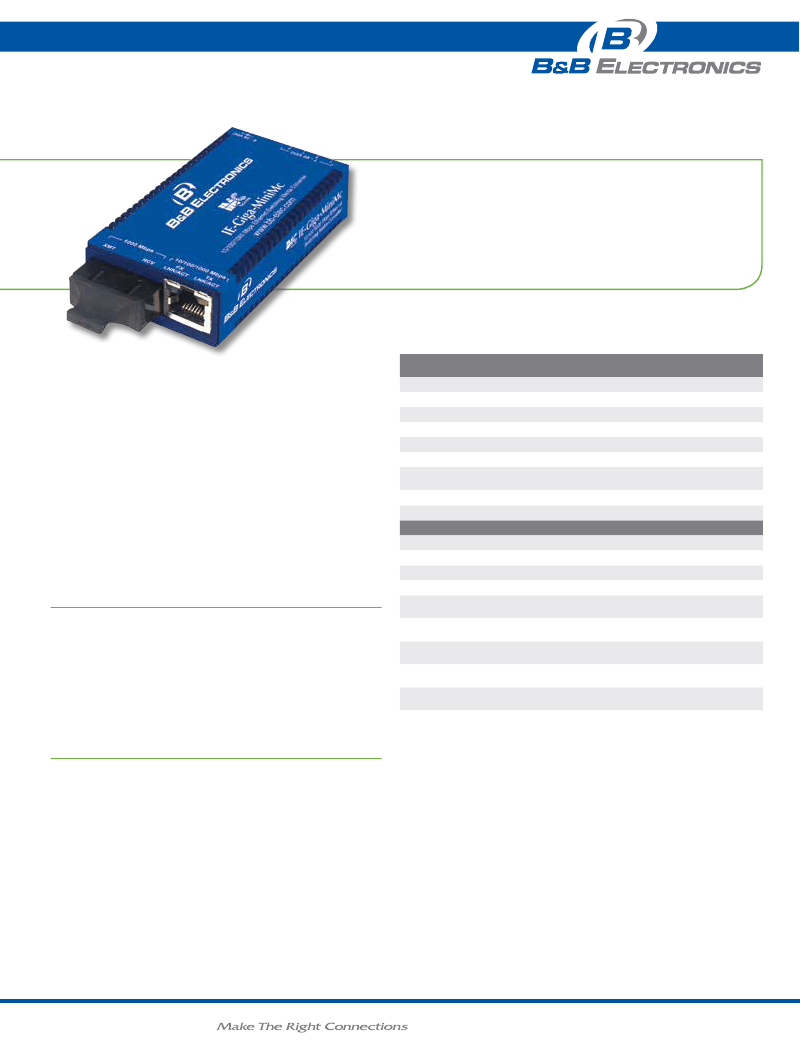

PRODUCT FEATURES
•
•
•
•
•
Connects 10/100/1000 Mbps copper to 1000 Mbps fiber
For use in extended temperature environments
Cascading power on DIN rail installations
Dual USB power cable (optional)
NEMA TS2 (select models)
Media conversion is the most cost-effective and flexible solution
for implementing new technologies on legacy wiring plants and
equipment. But even reasonably-priced media converters can tack on
a substantial sum to networking costs. And space constraints can also
be an issue when hundreds of conversions are required.
Measuring less than 3.5 inches deep and 2 inches wide, and
having both data connections on the same side of the unit — the
IE-Giga-MiniMc is the industry’s smallest media converter at a fraction
of the cost of other alternatives.
With Plug-and-Play, Auto Negotiation and AutoCross operation,
extreme operating temperatures (-25° to +85° C), DC or AC power, the
IE-Giga-MiniMc miniature media converter is easy and convenient
to use.
ACCESSORIES
806-39105
- DIN Rail Clip
806-39638 - Double-USB Power Cable, 36”/.9m
806-39650 - 12”/.3m Barrel-Connector Power Cable
850-13086 - IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
806-39753 - IE-Power/5V Module, AC to DC DIN Rail Power Adapter
ORDERInG InFORMATIOn
Model
Fiber raNge
Fiber
NuMber
Ports
ie-giga-MiniMc tX/FX sX or lX
856-18830 MM850-SC
1
220/550 m
856-18831 SM1310-SC
1
15 km
30 km
856-18832 SM1310/PLUS-SC 1
856-18833 SM1550/LONG-SC 1
80 km
856-18834 SM1550/XLONG-SC 1
100 km
ie-giga-MiniMc tX/FX sX or lX
- NEMA TS2 rated; modular versions without AC adapter
854-18830 MM850-SC
1
220/550 m
854-18831 SM1310-SC
1
15 km
siNgle straNd Fiber *
856-18835 SSLX-SM1310-SC 1
15 km
856-18836 SSLX-SM1550-SC 1
15 km
856-18825 SSBX-SM1310-SC 1
10 km
856-18826 SSBX-SM1490-SC 1
10 km
SSLX-SM1310/
856-18837 PLUS-SC
1
40 km
856-18838 SSLX-SM1550/
1
40 km
PLUS-SC
SSBX-SM1310/
856-18827 PLUS-SC
1
30 km
856-18828 SSBX-SM1490/
1
30 km
PLUS-SC
856-18839 SSLX-SM1510/
1
70 km
LONG-SC
856-18840 SSLX-SM1570/
1
70 km
LONG-SC
etherNet etherNet
Ports
CoNNeCtor
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
IE-Giga-MiniMc also available in CWDM Fiber. Call for details.
www
.
bb
-
elec
.
com
|
IE-Giga-MiniMc_0214ds
Industrial Grade 10/100/1000
Miniature Media Converters
IE-Giga-MiniMc
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports Jumbo Frames up to 10240 bytes
Extended temperature range (DC configuration)
Plug-and-play operation
Accepts RJ45 and SC connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber Single-strand fiber and CWDM models
4-terminal DC power with a pair of input terminals and a pair of output terminals
for cascading power on DIN installations
Country-specific, high-reliability power adapter
Auto Negotiation, Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for
10 Mbps, 148,810 pps for 100 Mbps, 1,488,096 pps for 1000 Mbps)
Status LEDs
Supports DIN Rail mounting
Mechanical
Dimensions
Shipping Weight
Power
AC Adapter
DC Input Voltage
environMental
Operating Temperature:
DC terminal block
Operating Temperature:
AC Adapter
Storage Temperature:
Operating Humidity
regulatory aPProvals
FCC Class B
UL/cUL, CSA, CE
NEMA TS2 (select models)
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.7 lbs (.317 kg)
100 to 240 ±10% VAC input, 5 VDC @ 2.0 A
max
7 to 50 VDC @ 2.5 watts,
Chassis grounded to negative terminal
-13°F to +185°F (-25°C to +85°C)
+14°F to +122°F (-10°C to +50°C)
-31° F to +167° F (-35° C to +75° C);
5% to 95% (non-condensing)

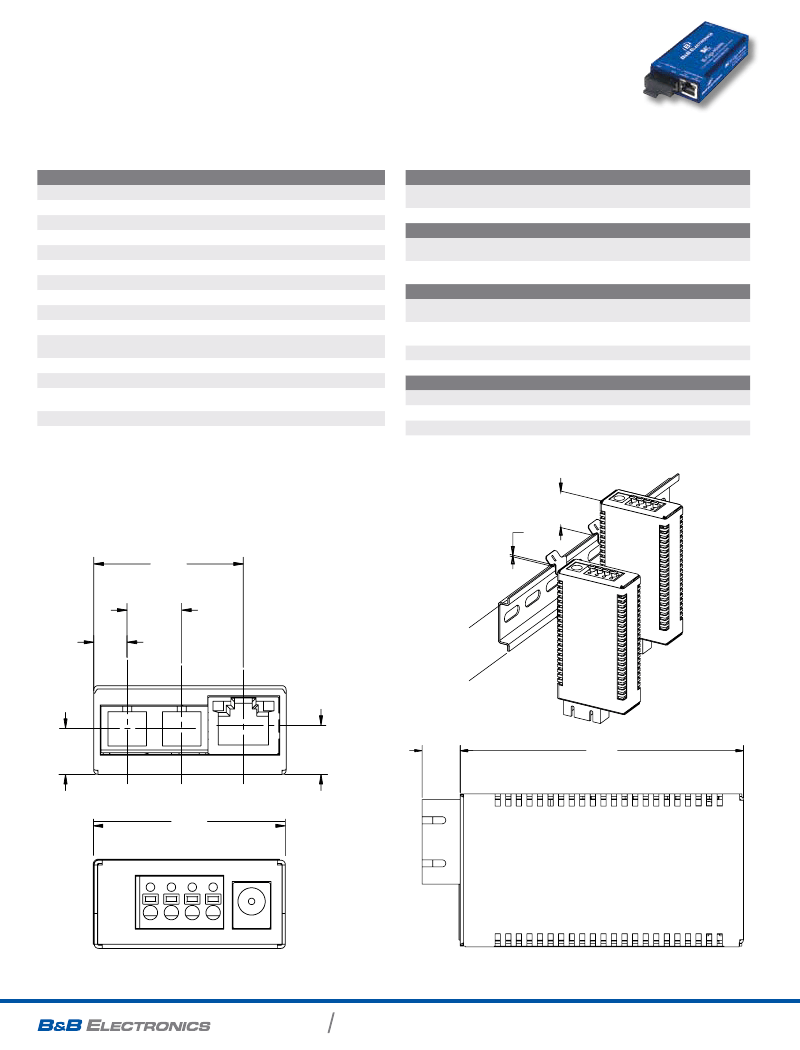

MEChAnICAl DIAGRAM
(dimensions in inches & millimeters)
.04
(1.0)
1.04
(26,4)
1.40
(35,6)
.51
(12,9)
REF
.31
(7,9)
1.25
(31,75)
.43
(11,0)
.46
(11,7)
.45
(11,4)
3.35
(85,1)
1.81
(46,0)
orders@bb-elec.com
support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
