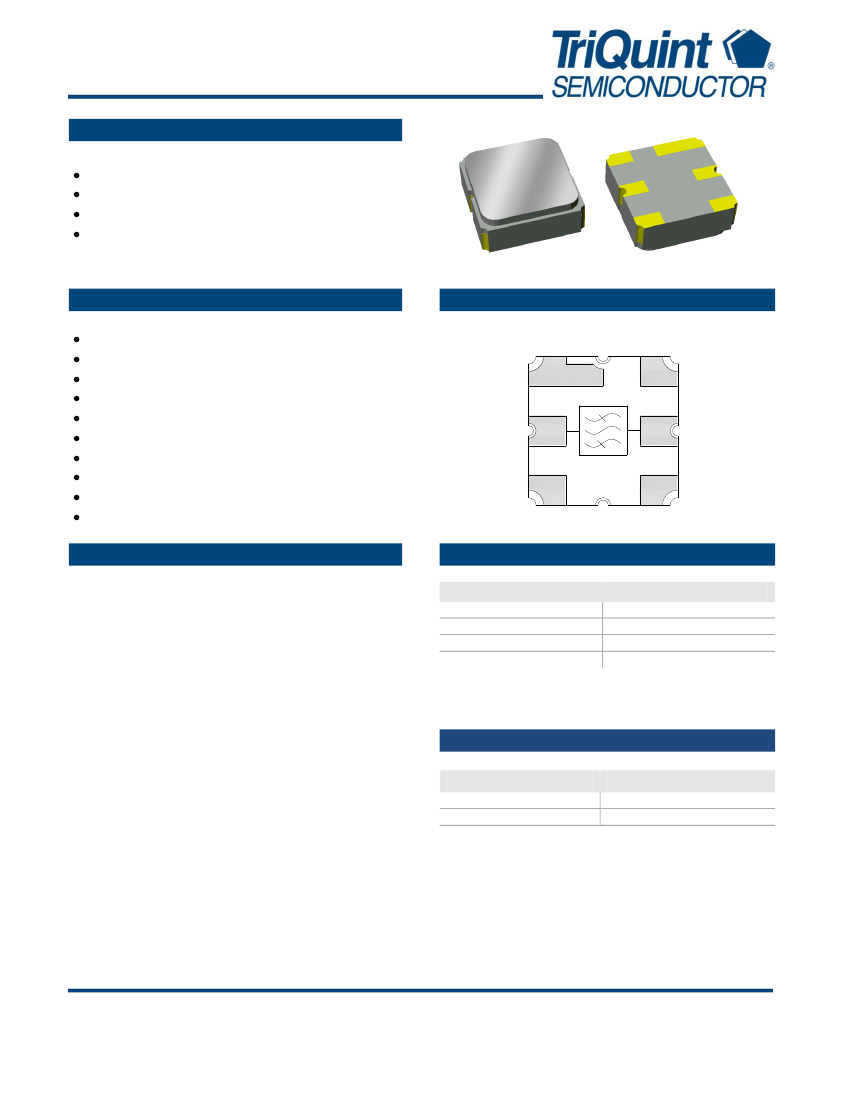

737 MHz SAW Filter
Applications
General purpose wireless
Wireless infrastructure
3G, 4G, Multi-standard
Repeaters
Product Features
Usable bandwidth 18 MHz
High attenuation
Low Loss
Excellent power handling
Single-ended operation
No matching required for operation at 50Ω
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically Sealed
RoHS
compliant,
Pb-free
Functional Block Diagram
Top view
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
General Description
856883 is a general purpose Downlink filter for band 12.
This filter was specifically designed in a 3x3mm hermetic
package for base station applications and is part of our wide
portfolio of RF filters in the same package.
Low insertion loss, coupled with high attenuation and
excellent power handling, makes this filter a natural choice
for our customers Downlink RF filtering needs.
Pin Configuration
Pin # Balanced
2
5
1,3,4,6
Description
Input
Output
Case Ground
Ordering Information
Part No.
856883
856883-EVB
Description
packaged part
evaluation board
Standard T/R size = 5000 units/reel.
Data Sheet: Rev C 4/05/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856883
737 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Lower 3 dB Band Edge
(5)
Upper 3 dB Band Edge
(5)
Absolute Attenuation
(5)
Conditions
728 – 746 MHz
Min
-
-
-
746
40
37
40
30
10
10
-
-
Typical
(4)
737
1.8
722.3
751.8
50
46
43
35
12.5
12.5
50
50
Max
-
2.25
728
-
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
dB
dB
dB
dB
dB
dB
Input Return Loss
Output Return Loss
Source Impedance
(6)
Load Impedance
(6)
10 – 700 MHz
700 – 708 MHz
766 – 1500 MHz
1500 – 2000 MHz
728 – 746 MHz
728 – 746 MHz
Single-ended
Single-ended
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to zero dB
6. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Input Power
(7)
7.
Rating
-40 to +85
o
C
-40 to +85
o
C
+20 dBm
Input Power is targeted for an applied CW modulated RF in the 728-746 MHz band at 55 °C for a minimum of 10000 hrs
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev C 4/05/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856883
737 MHz SAW Filter

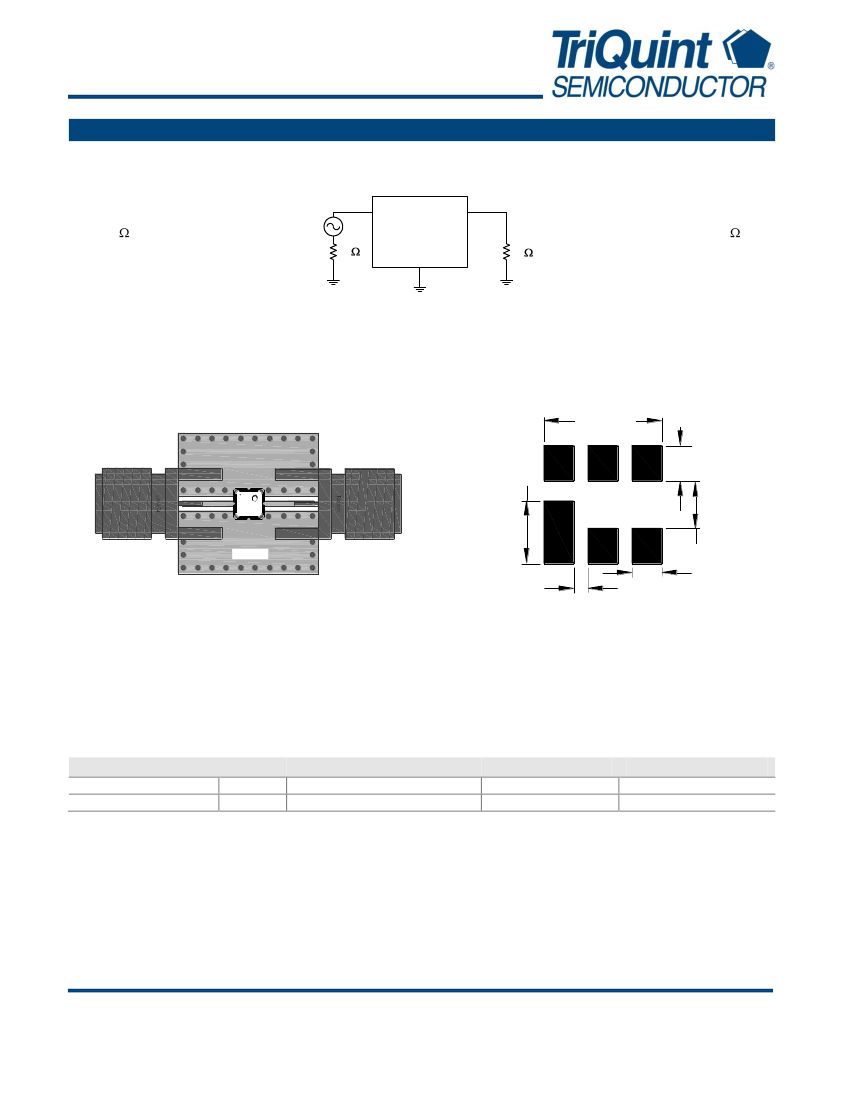

Reference Design
Schematic
2
5
50
Single-ended
Input
50
1,3,4,6
50
50
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
3.20 SQ
.96
1.70
JJJYM
FU
960700
1.27
.81
.38
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
SMA
PCB
Value
N/A
N/A
Description
SMA connector
3-layer
Manufacturer
Radiall USA Inc.
multiple
Part Number
9602-1111-018
960700
Data Sheet: Rev C 4/05/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856883
737 MHz SAW Filter

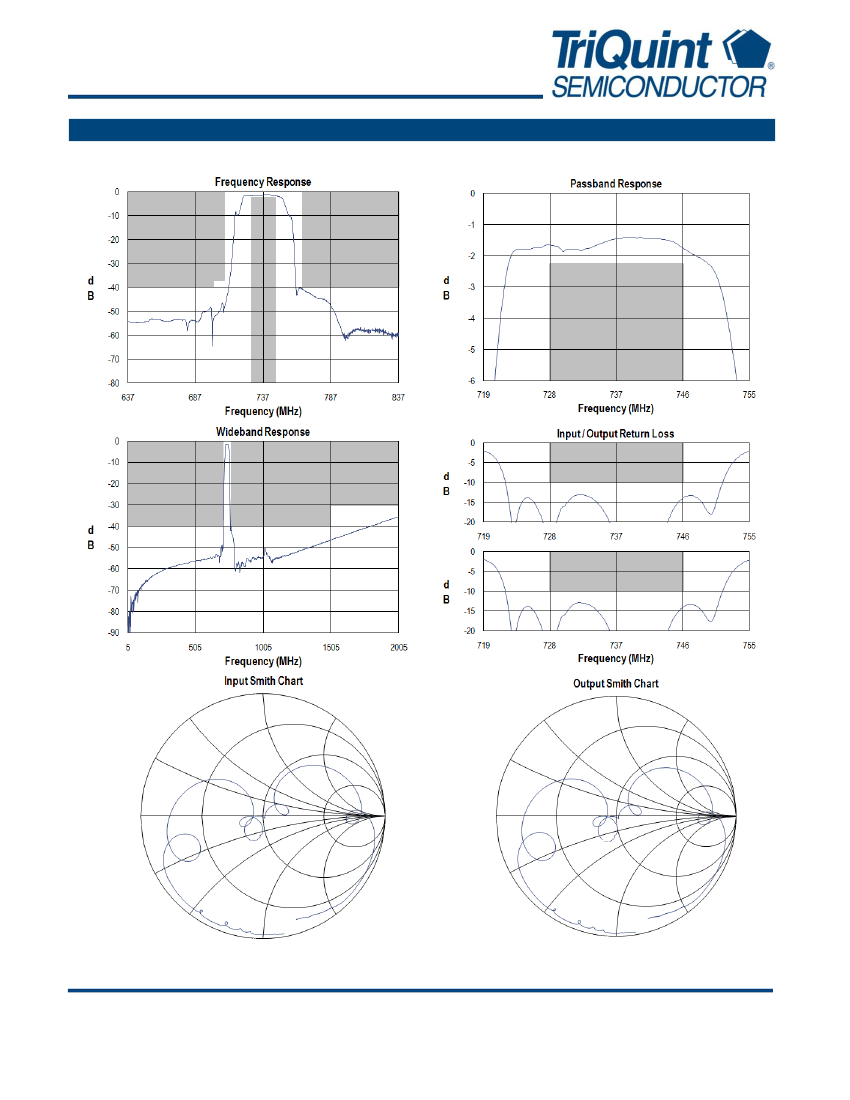

Typical Performance
(at room temperature)
Data Sheet: Rev C 4/05/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856883
737 MHz SAW Filter

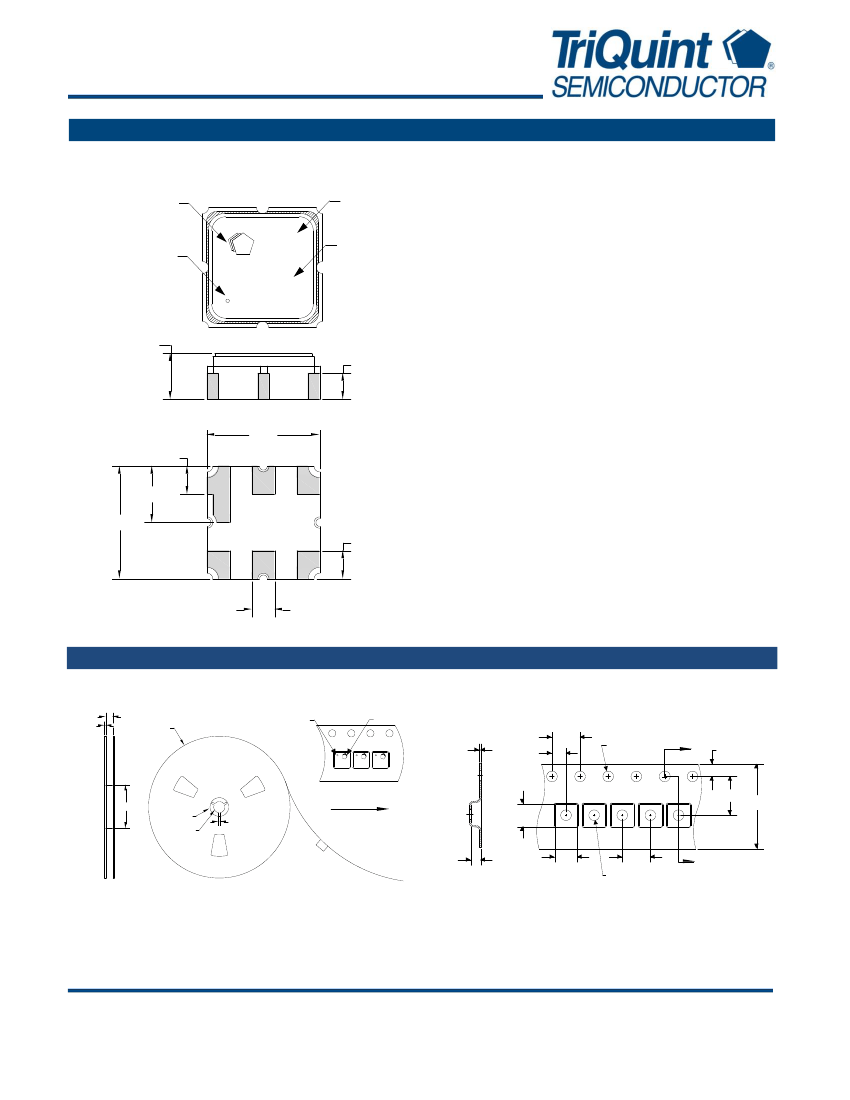

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
logo
Marking
code
Package Style: SMP-12A
Dimensions: 3.00 x 3.00 x 1.22 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
ID dot
FU
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
0.75
1.50
3.00
0.75
0.60
Tape and Reel Information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
2.7
12.8
Ø330
ID dot
TriQuint
logo
Section A-A
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
12.0
1.4 3.25
4.0
Ø1.5
A
Data Sheet: Rev C 4/05/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
