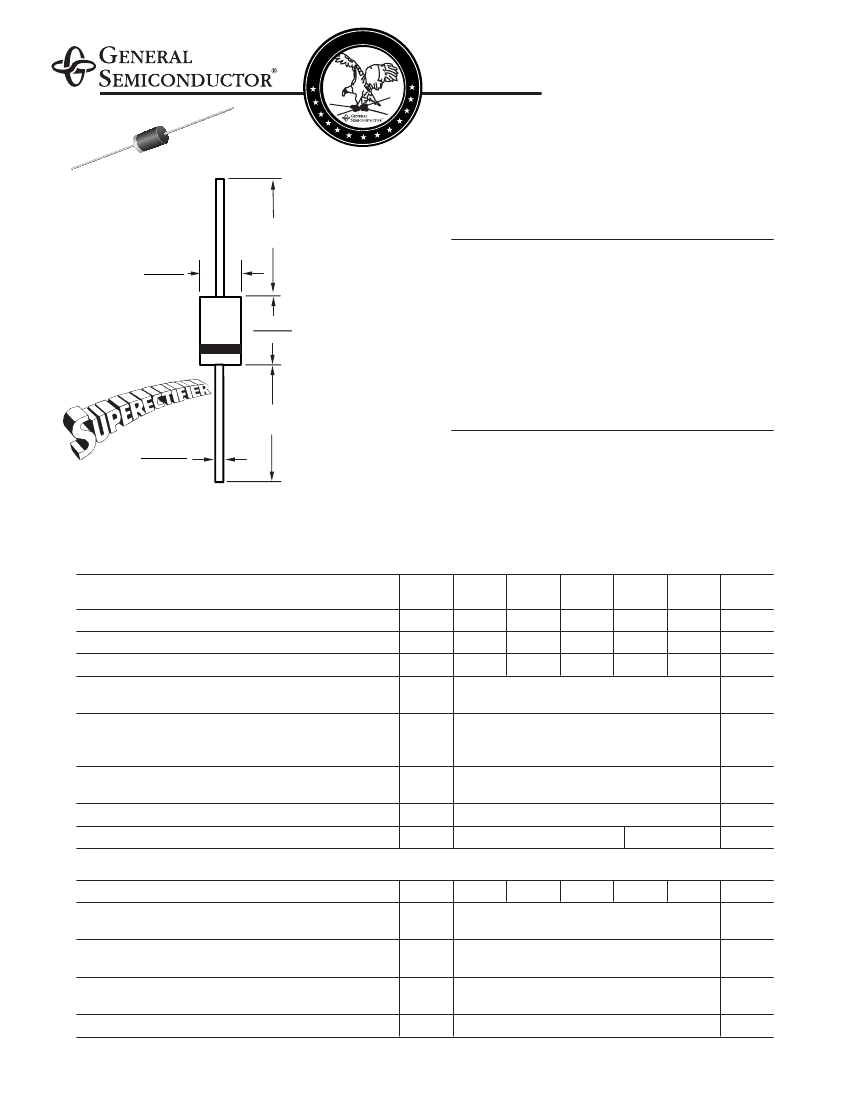

JAN1N5614EG1 thru
JAN1N5622EG1
Glass Passivated Rectifiers
Reverse Voltage
200 to 1000V
Forward Current
1.0A
DO-204AL (EG1)
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
Features
•
Qualified to MIL-PRF-19500/427
• Class 1 high temperature metallurgically bonded
construction brazed > 600°C
• 1.0 ampere operation at T
A
=55°C with no thermal runaway
• Typical I
R
less than 0.1µA
• Cavity-free, glass passivated junction. In epoxy over
hermetic glass.
• High temperature soldering guaranteed:
350°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
0.205 (5.2)
0.160 (4.1)
®
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
d*
Mechanical Data
nte
ate
P
Dimensions in inches and (millimeters)
* Glass-plastic encapsulation technique is covered by Patent No.
3,996,602 and brazed-lead assembly by Patent No. 3,930,306
Case:
DO-204AL, molded epoxy over glass body (EG1)
Terminals:
Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.015 ounce, 0.4 gram
Flammability:
Epoxy is rated UL 94V-0.
Maximum Ratings & Thermal Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375” (9.5mm) lead length at T
A
=55°C
Peak forward surge current 10 surges of 8.3ms each at
1 min. intervals super-imposed on I
O
= 750mA DC;
V
R
= rated V
RRM
T
A
= 100°C (per MIL-STD-750 m 4066)
Typical thermal resistance
(NOTE 1)
Operating junction and storage temperature range
Barometric Pressure
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
JAN
JAN
JAN
JAN
JAN
1N5614 1N5616 1N5618 1N5620 1N5622
200
140
200
400
280
400
600
420
600
1.0
800
560
800
1000
700
1000
Unit
V
V
V
A
I
FSM
R
ΘJL
R
ΘJA
T
J
, T
STG
Hg
8
25
38
45
–65 to +175
33
A
°C/W
°C
mm
Electrical Characteristics
Maximum instantaneous forward voltage
Tp = 300
µs
Maximum DC reverse current
at rated DC blocking voltage
Maximum reverse recovery time at
I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A
Ratings at 25°C ambient temperature unless otherwise specified.
Minimum reverse breakdown voltage at 50µA
at 1.0A
at 3.0A
T
A
= 25°C
T
A
= 100°C
V
BR
V
F
I
R
t
rr
C
J
220
440
660
1.1
1.3
0.5
25
2.0
15
880
1100
V
V
µA
µs
pF
8/7/01
Maximum junction capacitance at 4V, 1MHz
Notes:
(1) Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted
JAN1N5614EG1 thru
JAN1N5622EG1
Ratings and
Characteristic Curves
Glass Passivated Rectifiers
(T
A
= 25°C unless otherwise noted)
Average Forward Rectified Current (A)
Fig. 1 – Forward Current
Derating Curve
60 Hz Resistive
or Inductive Load
0.375" (9.5mm)
Lead length
Fig. 2 – Typical Instantaneous
Forward Characteristics
Instantaneous Forward Current (A)
10
1.0
0.75
T
J
= 150°C
1
T
J
= 25°C
0.5
0.1
Pulse Width = 300µs
1% Duty Cycle
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.25
0
25
50
75
100
125
150
175
Ambient Temperature (¡C)
Instantaneous Forward Voltage (V)
Fig. 3 – Typical Reverse
Characteristics
Instantaneous Reverse Current (µA)
10
30
Fig. 4 – Typical Junction
Capacitance
Junction Capacitance (pF)
T
J
= 25°C
f = 1.0 MHz
Vsig = 50m Vp-p
10
T
J
= 125°C
1
0.1
T
J
= 75°C
T
J
= 25°C
0.01
0
20
40
60
80
100
1
1
10
100
Rated Peak Reverse Voltage (%)
Reverse Voltage (V)
