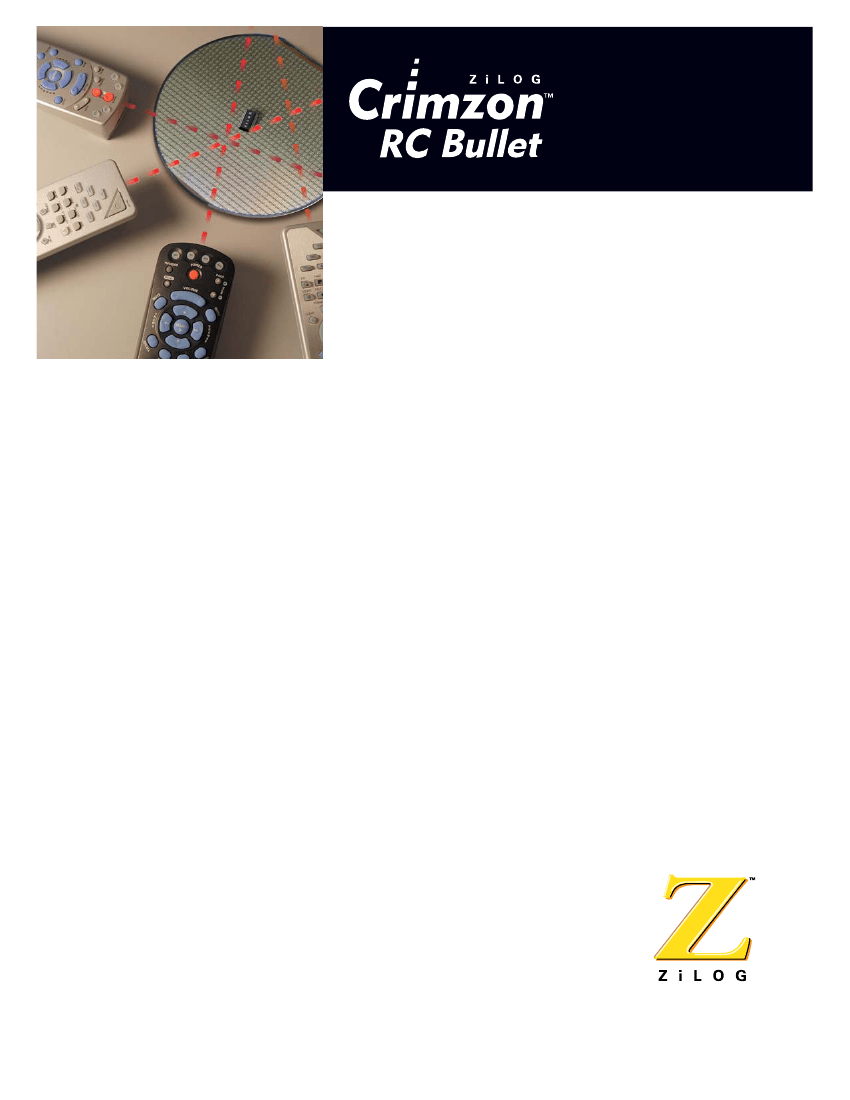

Turnkey Universal
Remote Control Kit
Six-Member Family Ready to Manufacture
The Crimzon™ RC Bullet Turnkey Universal Remote Control
Kits provide a ready-to-manufacture, six-member family of
universal remote control platforms. Built on the ZLx16300
and ZLx32300, ZiLOG’s latest Z8-based IR microcontrollers,
the Crimzon™ RC Bullet kits give you everything you need to
start manufacturing your branded universal remote control
today. And since more design engineers choose ZiLOG IR
components than any other, you know you’re getting the sup-
port and experience of the industry leader.
Features
• Volume punch-through eliminates user
mode-switching.
• Direct code entry makes selecting
manufacturer codesets a snap.
• Learning and non-learning models are
avail able, giving you a complete range of
products.
• The ZiLOG universal IR database gives you up
to 600 codesets, providing support for most
manufacturers’ consumer entertainment
equipment.
• Low-battery indication (ZLP32300 units only).
• Complete schematics are included, so all you
need is a board layout and case design.
Rich Feature Sets
The Crimzon™ RC Bullet Turnkey Universal Remote Control
Kits feature both learning and non-learning models with both
three-in-one (Cable/Satellite, DVD/VCR, and TV) and six-in-
one feature sets (Cable, Satellite, Audio, TV, DVD, VCR) for
the North American and European marketplaces. You bring
the packaging; we bring the technology to make it work for
you.
Convenient Pre-Programmed Features
With the Crimzon™ RC Bullet kits, there’s nothing to pro-
gram. What you get is a ready-to-manufacture universal
remote with preprogrammed database, application codeset
and schematic. Built-in volume punch-through eliminates
user mode switching, and direct code entry makes selecting
manufacturer codesets fast and easy. Support for Up to 600
Codesets ZiLOG’s extensive IR codeset database options give
you the flexibility to offer support for most manufacturer’s
consumer entertainment equipment.
Turnkey Universal
Remote Control Kit
• Ready-to-manufacture, six-member universal
remote product family
• Rich feature sets
• Convenient pre-programmed user features
• Support for up to 600 codesets
• Basic universal remote control operation
Ordering Information
North American
ZLP16300US3KIT
ZLP32300US6KIT
ZLP32300USLKIT
Model Description
Non-learning kit with three-function control: Cable/Satellite, DVD/VCR, and TV
Non-learning kit with six-function control: Cable, Satellite, DVD, VCR, Audio, and TV
Learning kit with six-function control: Cable, Satellite, DVD, VCR, Audio, and TV
European
ZLP16300EU3KIT
ZLP32300EU6KIT
ZLP32300EULKIT
Model Description
Non-learning kit with three-function control: Cable/Satellite, DVD/VCR, and TV
Non-learning kit with six-function control: Cable, Satellite, DVD, VCR, Audio, and TV
Learning kit with six-function control: Cable, Satellite, DVD, VCR, Audio, and TV
For more information on ZiLOG Crimzon RC Bullet™
visit us on the web at:
www.zilog.com
FL005601-0104
