RoHS Recast Compliant
SATA-Disk Module 5A
SDM5A 7P/90D MP2 Product Specifications
March 29, 2016
Version 1.0
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
SATA-Disk Module 5A
APSDMxxxGQ2XN-CXX
Features:
Standard Serial ATA 3.1 Revision
–
Serial ATA 3.1 Revision compliance
–
SATA 6.0 Gbps interface
–
ATA-8 command set
–
Backward compatible with SATA 1.5/3.0
Gbps
Capacity
–
2, 4, 8, 16, 32 GB
Performance*
–
Interface burst read/write: 600 MB/sec
–
Sustained read: up to 65 MB/sec
–
Sustained write: up to 105 MB/sec
Flash Management
–
Built-in hardware ECC
–
Static/dynamic wear-leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power failure management
–
ATA secure erase
–
TRIM
NAND Flash Type:
SLC
MTBF:
>2,000,000 hours
Temperature Range
–
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Supply Voltage
–
5.0 V
±
5%
Power Consumption*
–
Active mode: 215 mA
–
Idle mode: 85 mA
Connector Type
–
7-pin SATA signal connector
Form Factor
–
SATA Disk Module: 7-pin/90 degree Middle
Profile 2
–
Dimensions: 52.25x24.00x15.20, unit: mm
Shock & Vibration**
–
Shock:1,500 G
–
Vibration: 15 G
Write Protect Switch
(optional)
RoHS Recast Compliant
–
Complies with 2011/65/EU standard
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending on flash configurations
or platform settings. The term idle refers to the standby state of the device.
**Non-operating
1
© 2016 Apacer Technology Inc.
Rev. 1.0
SATA-Disk Module 5A
APSDMxxxGQ2XN-CXX
Table of Contents
1. GENERAL DESCRIPTIONS .................................................................................................. 3
2. PIN ASSIGNMENTS ............................................................................................................... 3
3. PRODUCT SPECIFICATIONS .............................................................................................. 4
3.1 C
APACITY
............................................................................................................................................................. 4
3.2 P
ERFORMANCE
.....................................................................................................................................................4
3.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................................4
3.4 M
EAN
T
IME
B
ETWEEN
F
AILURES
(MTBF) ...........................................................................................................5
3.5 C
ERTIFICATION AND
C
OMPLIANCE
.......................................................................................................................5
4. FLASH MANAGEMENT ........................................................................................................ 6
4.1 E
RROR
C
ORRECTION
/D
ETECTION
.........................................................................................................................6
4.2 B
AD
B
LOCK
M
ANAGEMENT
.................................................................................................................................6
4.3 W
EAR
L
EVELING
..................................................................................................................................................6
4.4 P
OWER
F
AILURE
M
ANAGEMENT
........................................................................................................................... 6
4.5 ATA S
ECURE
E
RASE
............................................................................................................................................6
4.6 TRIM ...................................................................................................................................................................7
4.7 SATA P
OWER
M
ANAGEMENT
.............................................................................................................................. 7
5. SOFTWARE INTERFACE ..................................................................................................... 8
5.1 C
OMMAND
S
ET
.....................................................................................................................................................8
5.2 S.M.A.R.T............................................................................................................................................................ 8
6. ELECTRICAL SPECIFICATIONS ..................................................................................... 10
7. MECHANICAL SPECIFICATIONS ................................................................................... 11
7.1 D
IMENSIONS
....................................................................................................................................................... 11
7.2 W
RITE
P
ROTECT
S
WITCH
(
OPTIONAL
) ................................................................................................................ 12
8. PRODUCT ORDERING INFORMATION ......................................................................... 13
8.1 P
RODUCT
C
ODE
D
ESIGNATIONS
......................................................................................................................... 13
8.2 V
ALID
C
OMBINATIONS
....................................................................................................................................... 14
2
© 2016 Apacer Technology Inc.
Rev. 1.0
SATA-Disk Module 5A
APSDMxxxGQ2XN-CXX
1. General Descriptions
Apacer’s SDM5A (SATA Disk Module 5A) is our next generation disk-on-module (DOM) series that offers
elevated speed boost and higher error correction capabilities. Built with SATA 6.0 Gb/s interface, SDM5A
delivers exceptional performance in data transfer.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal
balance of performance, capacities, reliability and cost. SDM5A is effective in boot industrial applications
and light operating systems for specific operations, while with some extra memory space for data storage.
The architectural nature of SATA disk module provides higher resistance to external environmental
influences and better flexibility for motherboard space.
Regarding data reliability, SDM5A is built in with powerful ECC engine that can correct up to 40-bit per
1KB data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power
failure management for data integrity. Wit its trustable reliability, performance and cost effectiveness,
Apacer’s SDM5A is definitely the ideal storage or cache solution for embedded and industrial computers,
servers and thin clients.

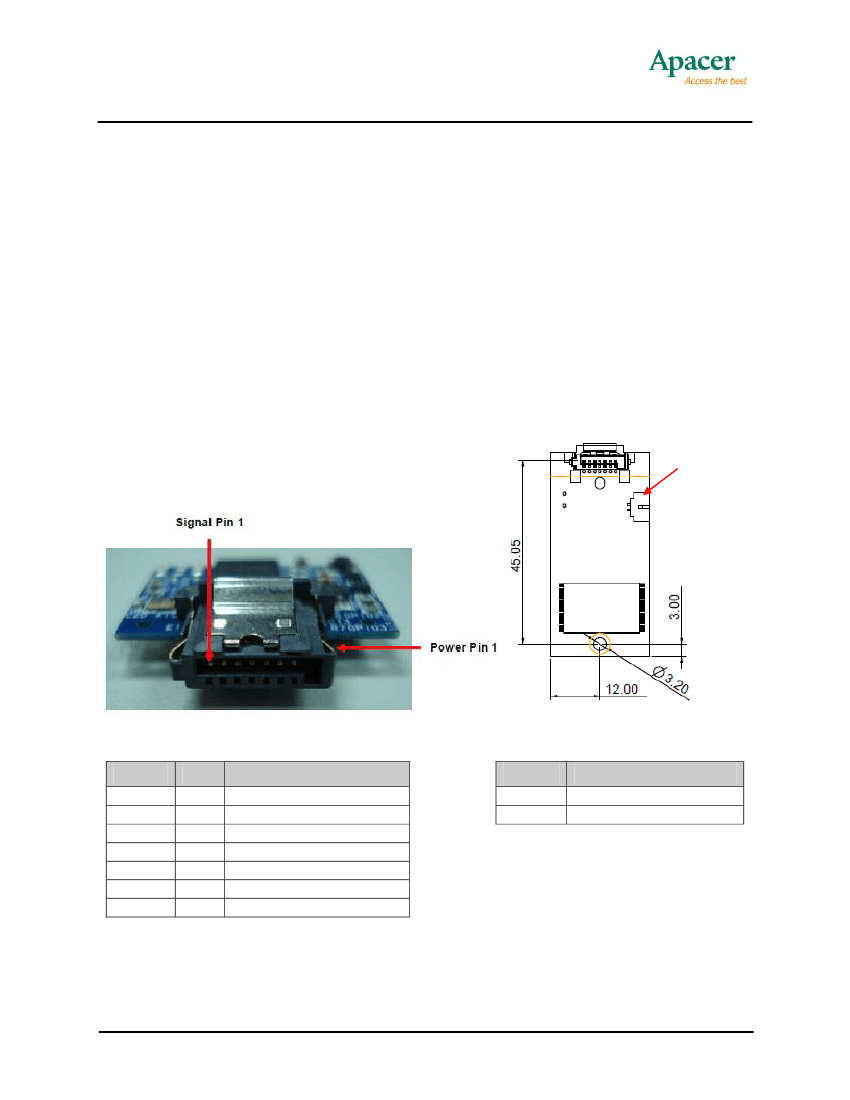

2. Pin Assignments
Power P1 of
power cable
connector
Table 2-1
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Table 2-2
Power Segment
Pin
P1
P2
Type
GND
RxP
RxN
GND
TxN
TxP
GND
Description
+ Differential Receive Signal
- Differential Receive Signal
- Differential Transmit Signal
+ Differential Transmit Signal
Signal/Description
VCC (5V)
GND
3
© 2016 Apacer Technology Inc.
Rev. 1.0
SATA-Disk Module 5A
APSDMxxxGQ2XN-CXX
3. Product Specifications
3.1 Capacity
Capacity specifications of SDM5A are available as shown in Table 3-1. It lists the specific capacity and
the default numbers of heads, sectors and cylinders for each product line.
Table 3-1
Capacity Specifications
Capacity
2 GB
4 GB
8 GB
16 GB
32 GB
Total bytes*
2,011,226,112
4,011,614,208
8,012,390,400
16,013,942,784
32,017,047,552
Cylinders
3,897
7,773
15,525
16,383
16,383
Heads
16
16
16
16
16
Sectors
63
63
63
63
63
Max LBA
3,928,176
7,835,184
15,649,200
31,277,232
62,533,296
*Display of total bytes varies from file systems, which means not all of the bytes can be used for storage.
**Notes: 1 GB = 1,000,000,000 bytes; 1 sector = 512 bytes.
LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of the
device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a small portion
of the capacity is reserved for device maintenance usages.
3.2 Performance
Performance of SDM5A is listed below in Table 3-2.
Table 3-2
Performance
Capacity
Performance
Sustained read (MB/s)
Sustained write (MB/s)
55
30
65
60
65
65
65
105
65
105
2 GB
4 GB
8 GB
16 GB
32 GB
Note: Results may differ from various flash configurations or host system setting.
3.3 Environmental Specifications
Environmental specifications of SDM5A product follow MIL-STD-810 standards as shown in Table 3-3.
Table 3-3
Environmental Specifications
Item
Operating temp.
Non-operating temp.
Operating vibration
Non-operating vibration
Operating shock
Non-operating shock
-40
°
C to 100
°
C
20~2000(Hz), 7.69 (Grms), random wave, X, Y, Z axis
10~2000(Hz), 15(G), sine wave, X, Y, Z axis
50(G), 11(ms), half-sine wave
1500(G), 0.5(ms), half-sine wave
Specification
0
°
C to 70°C (Standard); -40
°
C to 85
°
C (Extended)
4
© 2016 Apacer Technology Inc.
Rev. 1.0
