BitsyXb™
Low Power Embedded SCB with
Comprehensive Graphics and I/O
FEATURES
• Compact and battery operated
• Comprehensive I/O
on a single board
• An expandable, scalable engine
• Graphics galore including LCD to XGA and
touchscreen interface
• Operating System options:
from Windows CE to Linux
• Power and power management
The BitsyXb delivers low power in a small form factor and at a low cost
with proven success in a wide range of vertical markets.

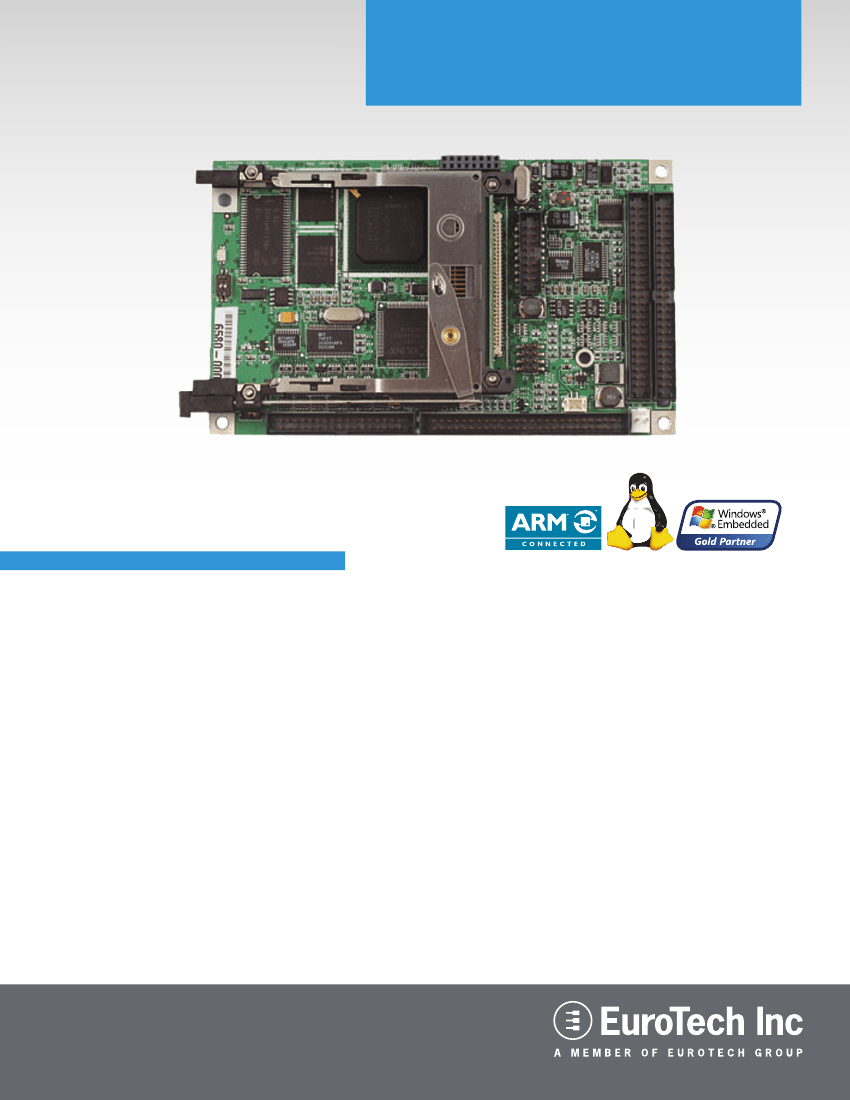

The BitsyXb,
based on the Marvell PXA270, offers a rich set of graphics, communications,
and I/O capabilities. The BitsyXb can be used as a stand-alone single board
computer or can be integrated with a standard or custom adapter board for
further feature expansions, including Power over Ethernet. The Bitsy Xb is
designed as low-cost, application-ready platform that can reduce the product-
to-market cycle from years to several months. To date, the Bitsy family
of embedded computers from Eurotech Inc. has been quickly and readily
“reconfigured” to satisfy dozens of application requirements.
Eurotech’s quick-turn capabilities are based on a world class engineering
house with expertise in quickly and successfully reconfiguring systems using
a deep reserve of hardware and software device technologies.
BitsyXb™
Specifications*
PrOCESSOr
GRAPHICS/vIDEO
AUDIO
MEMOrY
OPERATING ENvIRONMENTS
COMPREHENSIvE COMMUNICATIONS
32-bit Marvell PXA270 RISC processor at 520 MHz
video interface up to SvGA (800x600) color LCD interface (driven by the PXA270)
Backlight connector with PWM + ON/OFF controlled by software
4 or 5 wire resistive touchscreen
AC’97, 16 bit stereo Codec
Program/Frame Buffer SDRAM to 128 Mbytes
Flash Memory to 64 (Synchronous) Mbytes (32 asynchronous)
One PCMCIA (Type II, also available for devices such as Ethernet, 802.11, etc.
Windows CE 6.0
Linux
Others (contact factory for all options)
One USB host port, one USB function port (personality board required for connectors)
Three Serial Ports
10 digital I/Os
SPI port
I2C bus with I2C master controller
ADSmartIO, 9 configurable input/outputs
Support for PS2 keyboard (with personality board) - optional
Support for external interrupt inputs
Expansion slot (header) with 16 address and 11 data lines
Real Time Clock
Software controlled LED status indicator
3” x 5”
5v or 6 - 16v input
<1W in operation
Complete and partitioned on-board power supply
Compact Flash slot (Type II connector)
Ethernet 10/100bT
Power over Ethernet
BitsyXb
Power
supply
SPI
I2C
NSSP
PERIPHERALS
DIMENSIONS / POWER REQUIREMENTS
ADAPTER BOARD EXPANDABILITy
*Specifications and features subject to change without notice
See our website for latest updates and more information
www.eurotech-inc.com
