2150R-24F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 2150R-24F

2150R-24F: DescriptionFixed Inductors 10uH 1% .26ohm Unshield Molded Coil; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

2150R-24F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2150R-24F	-	-	View	Buy Now

2150R-24F Overview

Fixed Inductors 10uH 1% .26ohm Unshield Molded Coil

2150R-24F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Molded
core material	IRON
DC Resistance	0.26 Ω
Nominal inductance(L)	10 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.635 mm
Lead length	36.58 mm
Manufacturer's serial number	2150R
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package diameter	5.59 mm
Package length	14.22 mm
Package form	Axial
method of packing	TR
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.735 A
Guideline	MS14052
self resonant frequency	42 MHz
series	2150
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	7.9 MHz
Tolerance	1%
Base Number Matches	1

Preview

Download Datasheet

View All

±1

(µ

SERIES

2150R

2150

TI )

RA A

T (m

EN UM

RR IM

CU X

MA TAN S)

SI HM

RE (O

DC MU

)

ROVE

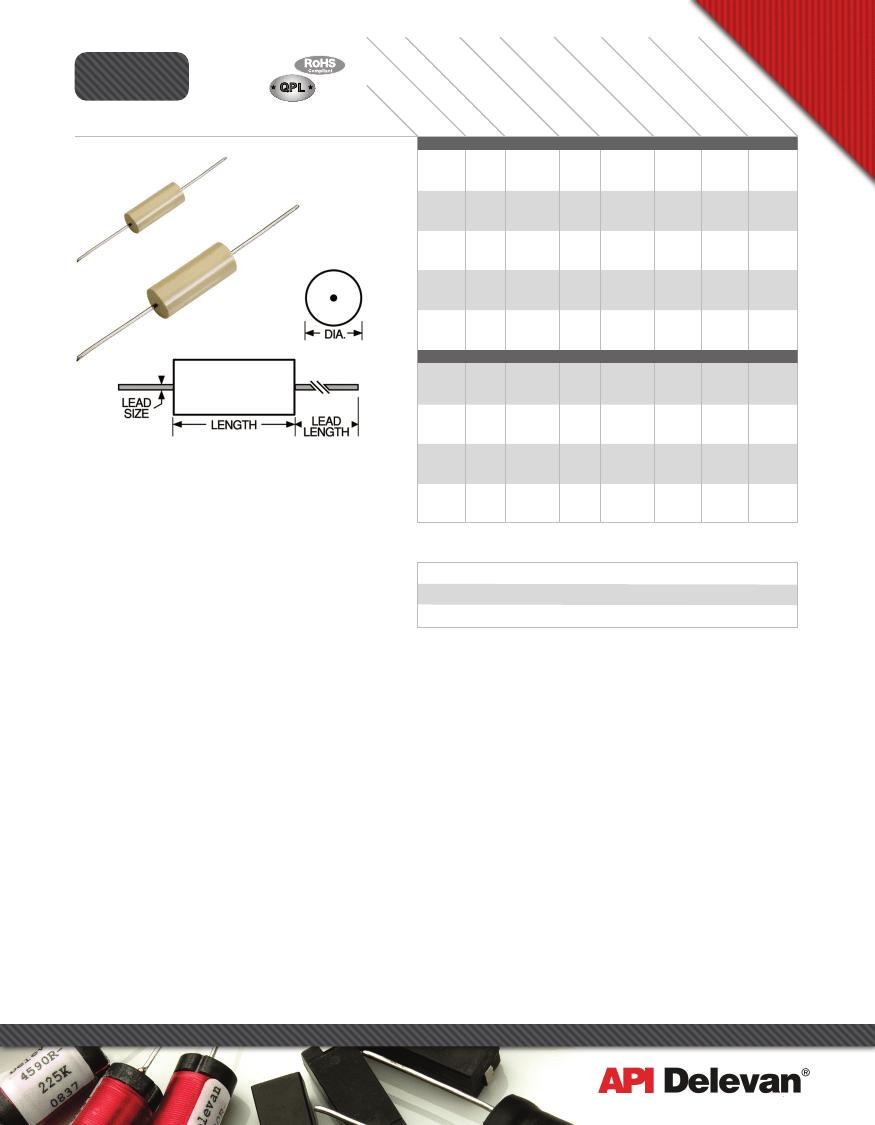

Molded Unshielded RF Coils

Actual Size

-00K

-01K

-02K

-03K

-04K

-05K

-06K

-07K

-08K

-10K

-12K

-14K

-16K

MS90542– SERIES 2150 PHENOLIC CORE (LT4K)

0.47

25.0

300

0.06

0.56

25.0

270

0.07

0.68

25.0

240

0.08

0.82

25.0

220

0.11

1.00

25.0

200

0.14

1.20

7.9

180

0.19

1.50

7.9

160

0.28

1.80

7.9

150

0.37

2.20

7.9

135

0.50

2.70

7.9

120

0.65

3.30

7.9

105

1.00

3.90

7.9

100

1.20

4.70

7.9

1.80

2270

2100

1960

1670

1480

1270

1050

915

785

690

555

505

415

Military Speciﬁcations

MS90542 (LT4K); MS14052(LT10K)

Physical Parameters

Inches

Length

0.560 ± 0.010

Diameter

0.220 ± 0.010

Lead Size

AWG #22 TCW

0.025 ± 0.002

Lead Length

1.44 ± 0.12

Current Rating at 90°C Ambient

LT4K 35°C Rise

LT10K 15°C Rise

Operating Temperature

LT4K –55°C to +125°C

LT10K –55°C to +105°C

Maximum Power Dissipation at 90°C

LT4K .427 W

LT10K .183 W

Weight Max.

(Grams) 1.5

Marking

DELEVAN; inductance with units and tolerance;

date code (YYWWL). Note: An R before the date code

indicates a RoHS component.

Example: 2150R-28K

Front:

DELEVAN

15uH±10%

Reverse:

15uH±10%

R 0904A

-18K

-20K

-22K

-24K

-26K

-28K

-30K

-32K

-34K

-36K

-38K

MS14052– SERIES 2150

5.60

6.80

8.20

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

IRON CORE (LT10K)

7.9

0.13

7.9

0.20

7.9

0.22

7.9

0.26

2.5

0.45

2.5

0.52

2.5

0.70

2.5

1.00

2.5

1.30

2.5

1.50

2.5

2.00

1040

835

795

735

560

520

445

375

330

305

264

Millimeters

14.22 ± 0.25

5.59 ± 0.25

0.635 ± 0.051

36.58 ± 3.05

Parts listed above are QPL/MIL qualiﬁed

Optional Tolerances: J = 5% H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

Packaging

Tape & reel: 12" reel, 1000 pieces max.; 14" reel, 1500

pieces max.

Made in the U.S.A.

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

7/2017
