PE30
www.vishay.com
Vishay Sfernice
Fully Sealed Potentiometer Professional Grade

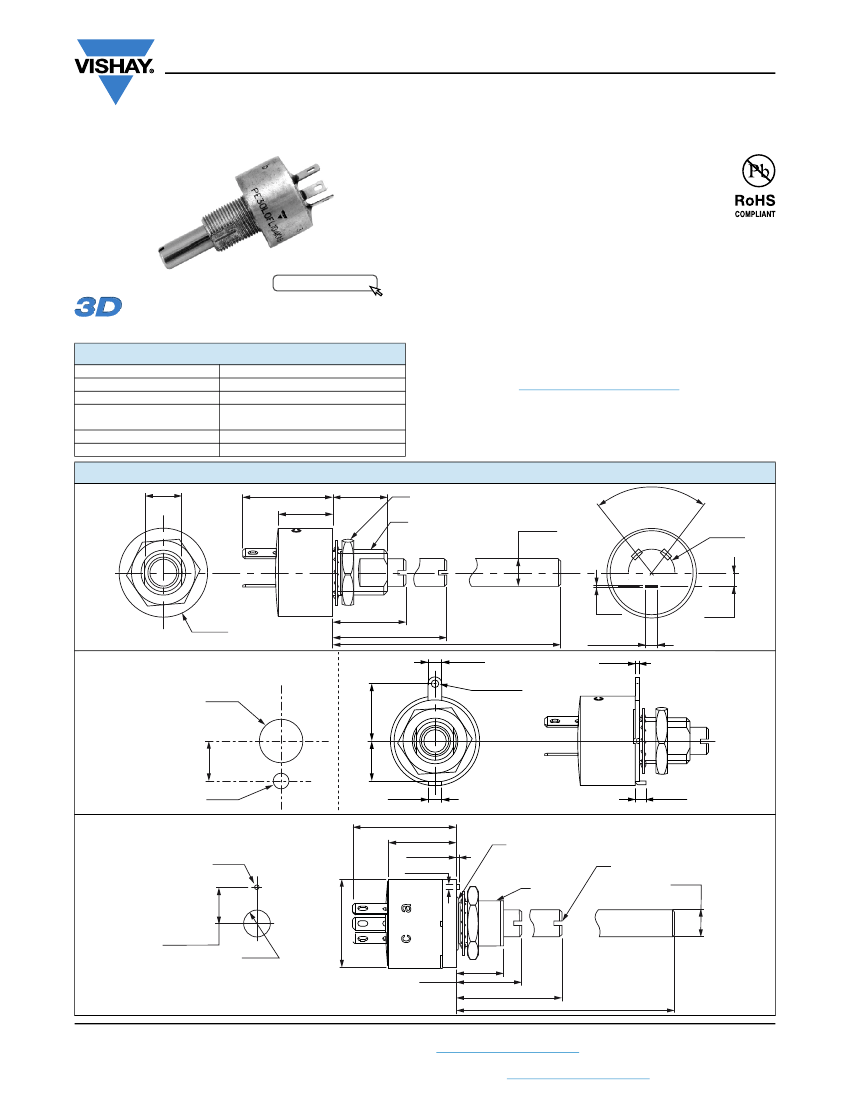

FEATURES
• High power rating 3 W at 70 °C
• Low temperature coefficient (150 ppm/°C
typical)
• Cermet element
• Full sealing
• Use of faston 2.86 connections
• Tests according to CECC 41000 or IEC 60393-1
• Wires and connectors available
Models
Available
DESIGN SUPPORT TOOLS
click logo to get started
• Custom design on request
• Center detent option
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
No
n/a
Yes
A: linear, L: logarithmic, F: reverse
logarithmic
IP 67
25K cycles
QUICK REFERENCE DATA
Multiple module
Switch module
Detent module
Special electrical laws
Sealing level
Lifespan
DIMENSIONS
in millimeters (inches) ± 0.5 mm (± 0.02")
PE30L
8
(0.31)
20 (0.79) max.
13 (0.51)
max.
12 (0.47)
14 wrench
Thread M10 x 0.75
Ø6
(0.24)
a
76°
c
R 5.2
(0.20)
FG = 16 (0.63)
Ø 19.7
(0.78)
FL = 25 (0.99)
FR = 50 (1.97)
3
(0.12)
Ø 1.8 (0.07)
Ø 10.5
(0.41)
12.5
(0.49)
0.5
(0.02)
2.85 (0.11)
0.8
(0.3)
b
3
(0.12)
PE30LL: LPRP - Locating Peg
9.2
(0.36)
Ø 3.5
(0.14)
8.8
(0.35)
3
(0.12)
23 (0.91) max.
16 (0.63) max.
Ø 1.2
(0.05)
0.7 (0.03)
Ø 1 (0.4)
Flats
located
Sealing ring
Slot
1 x 1.8
deep
Ø6
(0.24)
2.3
(0.9)
PANEL MOUNT
PE30ME: Panel Sealed
8 ± 0.2
(0.31 ± 0.01)
Ø 10.5
(0.41)
Ø 19.7
(0.78)
9 (0.35)
FD = 13
(0.61)
FJ = 22 (0.87)
FP = 47 (1.85)
PANEL MOUNT
Revision: 01-Feb-18
Document Number: 51037
1
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PE30
www.vishay.com
Vishay Sfernice
Cermet
270° ± 10°
linear taper
22
to 10 M
100
to 2.2 M
1 - 2.2 - 4.7 and on request 1 - 2 - 5
standard
on request
100
ELECTRICAL SPECIFICATIONS
Resistive element
Electrical travel
Resistance range
Standard series E3
Tolerance
logarithmic taper
± 20 %
± 10 % to ± 5 %
% TOTAL RESISTANCE
80
60
40
20
0
F
A
L
Taper
0
20
40
60
80
100
% CLOCKWISE SHAFT ROTATION
3
LIN. TAPER A
POWER IN W
2
Power rating
linear
logarithmic
3 W at 70 °C
1.5 W at 70 °C
1
LOG. TAPER
L and F
0
0
20
40
60 70 80
100
120 140
AMBIENT TEMPERATURE IN °C
a
c
(3)
b
(2)
cw
Circuit diagram
(1)
Temperature coefficient (typical)
Limiting element voltage
Contact resistance variation (typical)
End resistance (typical)
Dielectric strength (RMS)
Insulation resistance (300 V
DC
)
Independent linearity (typical)
± 150 ppm/°C
300 V
3 % Rn or 3
1
2500 V
10
5
M
±5%
Revision: 01-Feb-18
Document Number: 51037
2
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PE30
www.vishay.com
Vishay Sfernice
LINEAR TAPER
LOGS TAPER
MAX. CUR.
THROUGH
WIPER
mA
369
252
173
116
79
54
37
25
17
11
6.3
3
1.36
0.63
0.30
0.13
0.06
0.03
MAX.
POWER
AT 70 °C
W
MAX.
WORKING
VOLTAGE
V
MAX. CUR.
THROUGH
WIPER
mA
STANDARD RESISTANCE ELEMENT DATA
STANDARD
RESISTANCE
VALUES
22
47
100
220
470
1K
2.2K
4.7K
10K
22K
47K
100K
220K
470K
1M
2.2M
4.7M
10M
MAX.
POWER
AT 70 °C
W
3
3
3
3
3
3
3
3
3
3
1.91
0.90
0.41
0.19
0.09
0.04
0.02
0.01
MAX.
WORKING
VOLTAGE
V
8.1
11.9
17.3
25.7
37.5
54.8
81.2
119.9
173
257.7
300
300
300
300
300
300
300
300
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
0.9
0.41
0.19
0.09
0.04
12.2
18.2
26.6
38.7
57.4
83.9
122
181.6
265
300
300
300
300
300
122
82.6
56.6
38.7
26.1
17.9
12.2
8.25
5.64
3
1.36
0.63
0.30
0.13

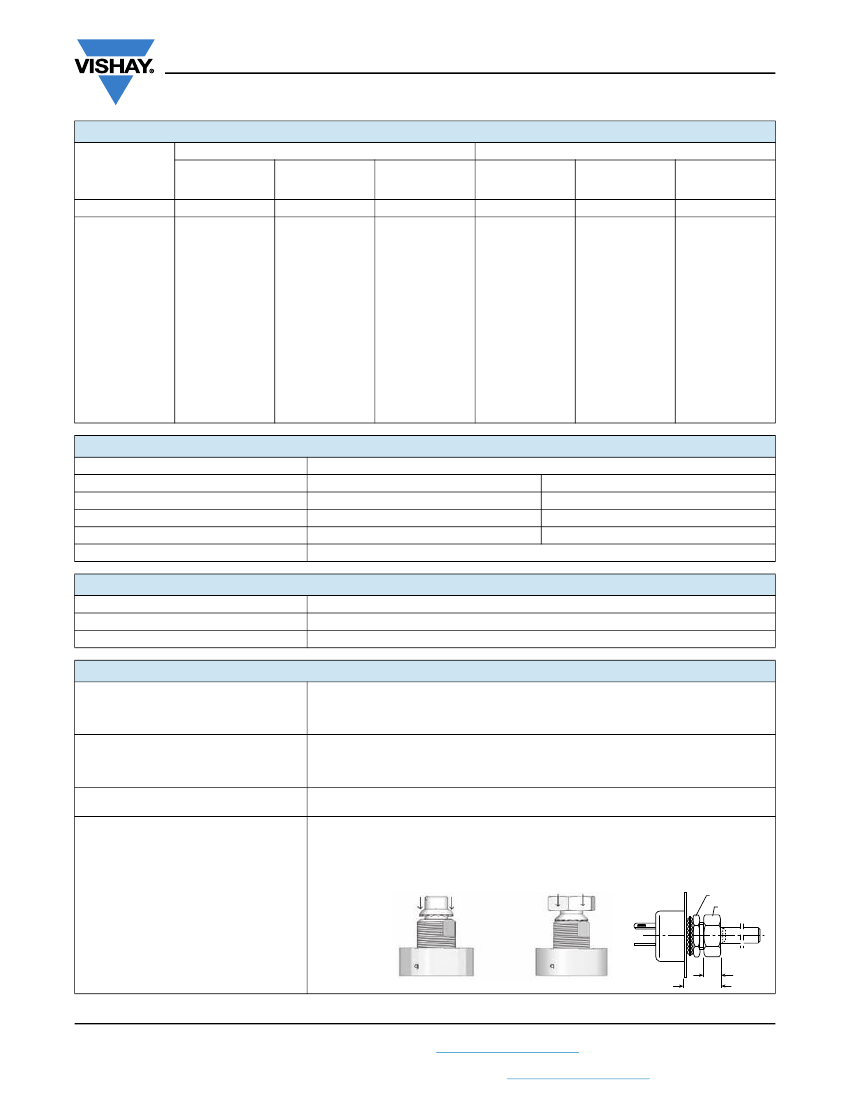

MECHANICAL SPECIFICATIONS
Mechanical travel
Operating torque / typical value
End stop torque
Tightening torque of mounting nut
Unit weight
Terminals
3 Ncm
120 Ncm max.
250 Ncm max.
23 g to 32 g max.
e3: pure Sn
300° ± 5°
4.25 oz.-inch
10.51 lb oz.-inch max.
22 lb-inch max.
0.8 oz. to 1.13 oz.
ENVIRONMENTAL SPECIFICATIONS
Temperature range
Climatic category
Sealing
-55 °C to +125 °C
55/125/56
Fully sealed - container IP67
OPTIONS
Special feature command shaft
Length is measured from the mounting surface to the free end of the shaft. The screwdriver
slot is aligned with the wiper within ± 10°. Special shafts are available, in accordance to
drawings supplied by customers. We recommend that customers should not machine tool
shafts, in order to avoid damage. Bending or torsion of terminals should also be avoided.
The panel sealing device consists of a ring located in a groove on the potentiometer face.
Sealing is obtained by tightening the ring against the panel when mounting the
potentiometer.
Old code: PE30P
Location is obtained by fitting a special washer on the mounting face of the potentiometer.
Old code: LPRP
The shaft locking device consists of a tapered nut tightening a slotted notched washer
against both bushing and shaft.
DBAN tightening torque is 200 Ncm, shaft locking torque being 30 Ncm.
DBAN is also available with all special types.
This device is normally supplied in a separate bag. Can be pre-mounted on request.
Shaft locking (PE30LD)
Assembling
Method
6.5
15
1)
2)
14 wrench
12 wrench
Panel sealing (PE30M)
Locating peg (PE30LL)
Revision: 01-Feb-18
Document Number: 51037
3
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PE30
www.vishay.com
Vishay Sfernice
CENTER DETENT
• Stable position in mid mechanical travel
• Output ratio 50 % ± 10 %
• Rotational life: 10 000 actuations
ORDERING INFORMATION
(First order only)
Full CW
Full CCW
CV1M
MARKING
•
•
•
•
Vishay trademark
Part number (including ohmic value and tolerance code)
Manufacturing date code
Marking of terminals 3, and a, b, c
PERFORMANCE
TESTS
Electrical endurance
CONDITIONS
1000 h at rated power
90'/30' - ambient temp. 70 °C
Phase A dry heat 125 °C
Phase B damp heat
Phase C cold -55 °C
Phase D damp heat 5 cycles
56 days
40 °C 93 % HR
5 cycles
-55 °C at +125 °C
25 000 cycles
50
g’s
at 11 ms
3 successive shocks
in 3 directions
10 Hz to 55 Hz
0.75 mm or 10
g’s
during 6 h
TYPICAL VALUES AND DRIFTS
R
T
/R
T
(%)
±1%
R
1-2
/R
1-2
(%)
-
OTHER
Contact res. variation: < 3 % Rn
Climatic sequence
± 0.5 %
±1%
-
Damp heat, steady state
Change of temperature
Mechanical endurance
Shock
± 0.5 %
± 0.5 %
±3%
± 0.1 %
±1%
-
-
± 0.2 %
Insulation resistance: > 10
4
M
-
Contact res. variation: < 2 % Rn
-
Vibration
± 0.1 %
± 0.2 %
-
Note
• Nothing stated herein shall be construed as a guarantee of quality or durability
Revision: 01-Feb-18
Document Number: 51037
4
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PE30
www.vishay.com
Vishay Sfernice
ORDERING INFORMATION
(part number)
P
E
3
0
L
B
F
G
2
0
4
M
A
B
MODEL BUSHING
PE30
L=
M10 x 0.75
OPTION
0 = none
SHAFT
OHMIC
VALUE
TOLERANCE
M = ± 20 %
On request:
K = ± 10 %
J=±5%
TAPER
A = linear
L = clockwise
logarithmic
F = clockwise
inverse
logarithmic
PACKAGING
B = box of
10 pieces
SPECIAL
NUMBER
(if applicable)
Given by
Vishay
for custom
design
or
E105
CV1M
A law =
For L bushing (= old codes:)
from 22
FG 16 mm, slotted = AC
to 10 M
FL 25 mm, slotted = AM
For L bushing
FR 50 mm, plain = AL
D = DBAN
M = panel
L and F
L = LPRP
sealed
laws =
For M bushing
B = DBAN
M10 x 0.75
FD = 13 mm, slotted = AC from 100
and LPRP
to 2.2 M
FJ = 22 mm, slotted = AM
FP = 47 mm, plain = AL
For M bushing
E = peg
A = peg
and DBAN
PART NUMBER DESCRIPTION
(for information only)
PE30
LPRP
AC
200K 20 %
A
DBAN
CV1M
BO
e3
CUSTOM
LEAD
SPECIAL
SHAFT
(Pb)-FREE
MODEL FEATURES OPTION SHAFT VALUE TOL. TAPER OPTION SPECIAL DETENT PACKAGING
RELATED DOCUMENTS
APPLICATION NOTES
Potentiometers and Trimmers
Guidelines for Vishay Sfernice Resistive and Inductive Components
www.vishay.com/doc?51001
www.vishay.com/doc?52029
Revision: 01-Feb-18
Document Number: 51037
5
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
