SMD CERAMIC WIRE-WOUND CHIP INDUCTORS
AISC-0805-xxx
2.3 x 1.27 x 1.55mm
FEATURES:
APPLICATIONS:
| | | | | | | | | | | | | | |
• Ceramic construction assures the utmost
• Widely applied in VCO, SAW circuit for GSM, & CDMA communications
thermal stablity & high SRF
• Used in hard disk, notebook computers & other electronic equipment
• Exceptionally high Q compared to non-wirewound
inductors, especially at high frequencies
• Inductance options from 2.2nH to 1000nH
ELECTRICAL SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
Part
Numbe
AISC-0805
2R2
3R3
6R8
8R2
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
621
681
751
821
911
102
AISC-0805-xxx Series
-25°C to + 125°C
-25°C to + 85°C, 70% RH max.
Tolerance
(±%)
10,20
5,10,20
5,10,20
5,10,20
2,5,10,20
5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
L(nH)
@Test Freq.
2.2 @ 250 MHz
3.3 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 100 MHz
180 @ 100 MHz
220 @ 100 MHz
270 @ 100 MHz
330 @ 100 MHz
390 @ 100 MHz
470 @ 50 MHz
560 @ 25 MHz
620 @ 25 MHz
680 @ 25 MHz
750 @ 25 MHz
820 @ 25 MHz
910 @ 25 MHz
1000 @ 25 MHz
Q, Min
@Test Freq.
40 @ 1500 MHz
30 @ 1500 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
60 @ 500 MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
45 @ 250 MHz
40 @ 250 MHz
40 @ 250 MHz
35 @ 250 MHz
33 @ 100 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
22 @ 50 MHz
20 @ 50 MHz
SRF
Min
(MHz)
>6000
>6000
5000
4800
4100
2900
3300
2600
2500
2200
2100
1750
1650
1500
1400
1200
1200
1000
950
850
680
660
560
430
350
330
300
280
250
230
200
R
DC
Max
(Ω)
0.1
0.08
0.11
0.19
0.15
0.17
0.2
0.22
0.25
0.27
0.29
0.31
0.32
0.38
0.42
0.46
0.51
0.56
0.64
0.7
1
1.4
1.5
1.72
1.9
1.95
2.05
2.1
2.3
2.4
2.5
I
DC
Max
(mA)
600
600
600
600
600
600
600
500
500
500
500
500
500
500
400
400
400
400
400
400
350
310
290
250
230
200
190
180
180
160
150
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
AISC - 0805 -
Inductance Code
Please refer to the Table
above.
-
-
Packaging
T
Tape & Reel
Tolerance Code
G
±2%
J
K
M
±5%
±10%
±20%
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 10.10.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD CERAMIC WIRE-WOUND CHIP INDUCTORS
AISC-0805-xxx
2.3 x 1.27 x 1.55mm
| | | | | | | | | | | | | | |

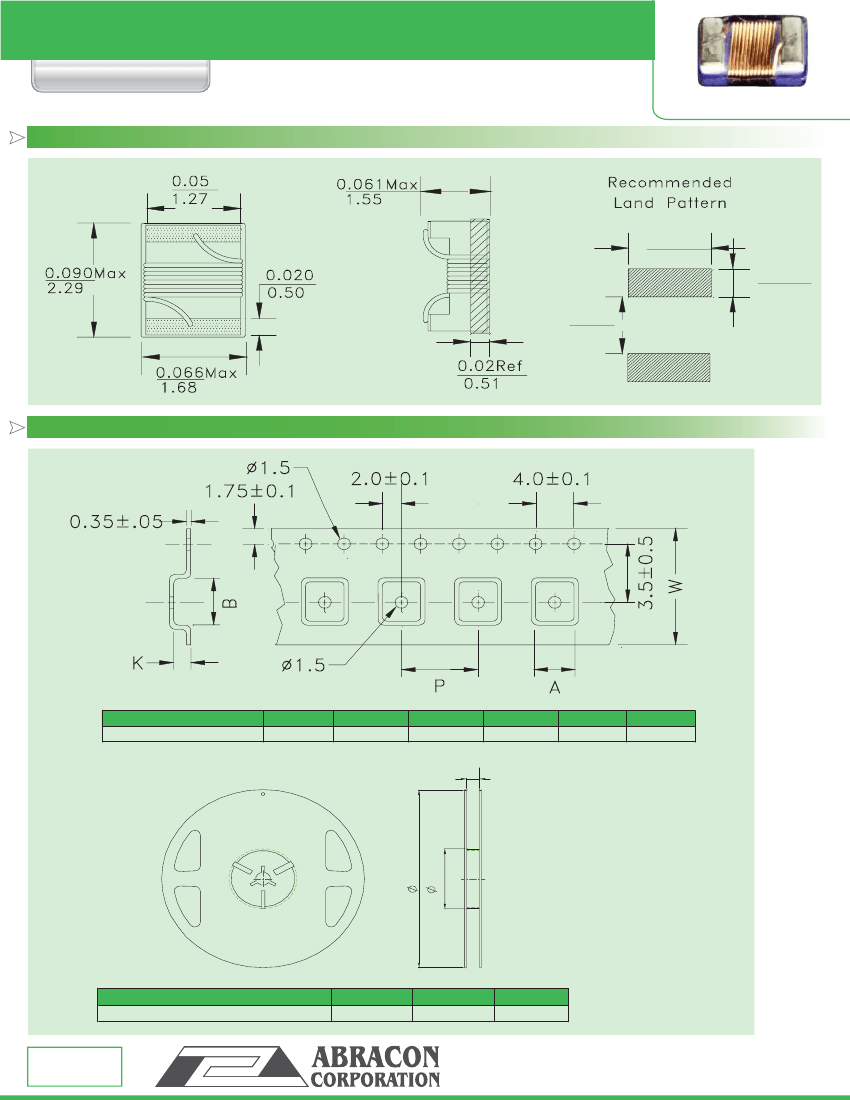

OUTLINE DRAWING:
0.07
1.78
0.03
0.76
0.04
1.02
TAPE & REEL:
ABRACON P/N
AISC-0805
A (mm)
1.8
B (mm)
2.5
K (mm)
1.45
P (mm)
4
W (mm)
8
PCS/REEL
2,000
series
AISC-0805-xxx
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
A
178±2.0
A
Z
C
8.4+1.5
C
Z
60±1.0
Dimensions: mm
Revised: 10.10.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
