194D105X9020B2B datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 194D105X9020B2B

194D105X9020B2B: DescriptionTantalum Capacitors - Solid SMD 1uF 20volts 10% B case Conformal; CategoryPassive components capacitor; File Size308KB，22 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

194D105X9020B2B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	194D105X9020B2B	-	-	View	Buy Now

194D105X9020B2B Overview

Tantalum Capacitors - Solid SMD 1uF 20volts 10% B case Conformal

194D105X9020B2B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 1505
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	1.27 mm
JESD-609 code	e4
leakage current	0.0005 mA
length	3.81 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	Tray
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
size code	1505
surface mount	YES
Delta tangent	0.04
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
width	1.27 mm

Preview

Download Datasheet

View All

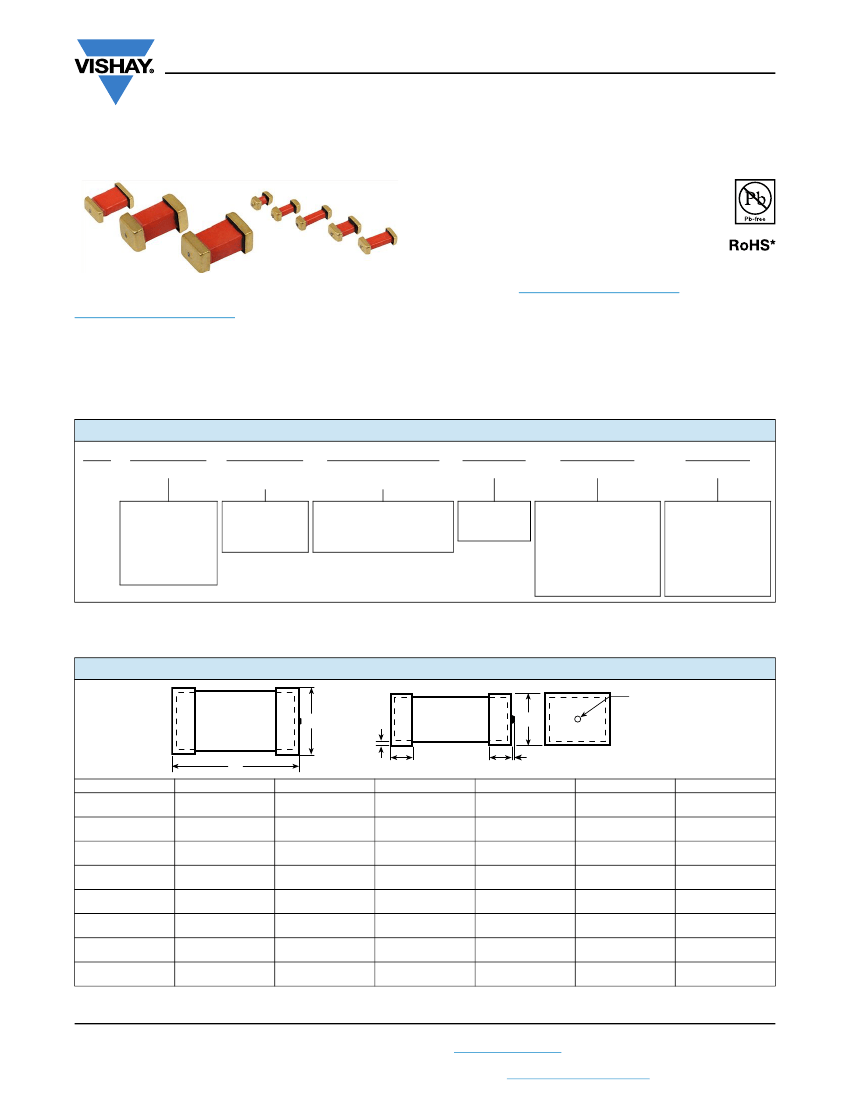

194D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors,

ANTAMOUNT

™, Conformal Coated

FEATURES

• 8 mm, 12 mm, 16 mm tape and reel packaging

available per EIA-481 and reeling per

IEC 60286-3, 7" [178 mm] standard

• Mounting: surface mount

Available

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40194

Operating Temperature:

-55 °C to +125 °C

(above 85 °C, voltage derating is required)

Capacitance Range:

0.10 μF to 330 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 50 V

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

ORDERING INFORMATION

194D

TYPE

225

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

X5 = ± 5 %

Special order

004

DC VOLTAGE RATING

AT +85 °C

This is expressed in volts.

To complete the

three-digit block, zeros

precede the voltage rating

CASE CODE

TERMINATION

PACKAGING

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third

is the number of

zeros to follow.

See Ratings

and Case

Codes table

2 = gold plated

(50 μ inch minimum)

standard

(RoHS compliant)

8 = 60/40 solder plated

6 = 60/40 solder plated,

fused

7 = hot solder dipped

T = T/R (full reel)

7" [178 mm] reel

standard

H = T/R (half reel)

7" [178 mm]

U = T/R (partial reel)

7" [178 mm]

B = bulk

Note

• Preferred tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size

DIMENSIONS

in inches [millimeters]

Weld and

dimple

projection

identifies

anode (+)

terminal

max.

CASE CODE

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.135 ± 0.015

[3.43 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.220 ± 0.015

[5.59 ± 0.38]

0.265 ± 0.015

[6.73 ± 0.38]

0.285 ± 0.015

[7.24 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.070 ± 0.015

[1.78 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

MAX.

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

Note

• When solder coated terminations are required, add 0.015" [0.381 mm] to termination dimension tolerances

Revision: 21-Jun-17

Document Number: 40000

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
