NOTES:
1. ELECTRICAL:
A. IMPEDANCE: 50
(NOMINAL)
B. FREQUENCY RANGE: DC-3.0 GHz
C. CONTACT RESISTANCE: CENTER: 20m
MAX.: MEASURED AT 10mA MAX. 25 m
MAX AFTER CYCLING
OUTSIDE: 10m
MAX. 15 m MAX AFTER CYCLING
D. INSULATION RESISTANCE: 500M
MIN.: MEASURED AT 100 VDC.
E. D.W.V.: NO LINE OR INSULATION BREAKDOWN: 200 VAC FOR 1 MIN.
F. VSWR: 1.300 MAX. (DC TO 3.0 GHz)
G. TYPICAL INSERTION LOSS : [0.00178 x (L in mm) x Freq. in GHz] + [0.078 x
Freq. in GHz]
2. PHYSICAL:
A.
B.
C.
D.
E.
F.
FEMALE CONTACT HOLDING FORCE: 0.15N MIN. : MEASURED WITH A
0.475mm PIN GAUGE.
DURABILITY:
30 CYCLES
TEMPERATURE RANGE:
-40 C TO +90 C.
$
$
AMC CONNECTOR MATING FORCE:
15N TYPICAL
AMC CONNECTOR DEMATING FORCE: 10N TYPICAL - 20N MAX
AMC INTERFACE IS FULLY COMPATIBLE WITH "U.FL" SERIES PRODUCT.
(1-2u)
NICKEL (2-3u)
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
9/4/14
DATE
50043
ECO
APPR
BCG
A-1PAC178-XXXN2
SCALE
3.000
EXAMPLE SHOWN:
CABLE ASSEMBLY TOLERANCES
OVERALL LENGTH
STANDARD
L (mm)
TOLERANCE (mm)
50<L<100
# 4
# 4
# 12
# 8
90 $- "C"
90 $ #
$
180 $- "F"
101 < L 200
501 < L 1000
1001 < L
201 < L 500
ANGULAR
TOLERANCE
#
$
# 30 $
# 45 $
# 45 $
# 45 $
# 45 $
3. MATERIALS AND FINISHES (in micrometers):
CONNECTOR BODY: PHOSPHOR BRONZE, SILVER PLATED (0.76u MIN.) OVER COPPER
CONNECTOR CENTER CONTACT: PHOSPHOR BRONZE, GOLD PLATED (0.13u MIN.) OVER
CONNECTOR INSULATOR: HIGH TEMP PLASTIC UL 94V-0, BLACK
CABLE JACKET: FEP
CABLE DIELECTRIC: FEP
CABLE CENTER CONDUCTOR: ANNEALED COPPER WIRE STRANDED, SILVER PLATED
CABLE OUTER CONDUCTOR: ANNEALED COPPER WIRE BRAID, TIN PLATED
4. PACKAGING:
A. BAGS OF 100 PIECES
#1.5 %
180 $ #
$
CABLE ASSEMBLY LENGTH "L" (SEE TABLE FOR TOLERANCE)

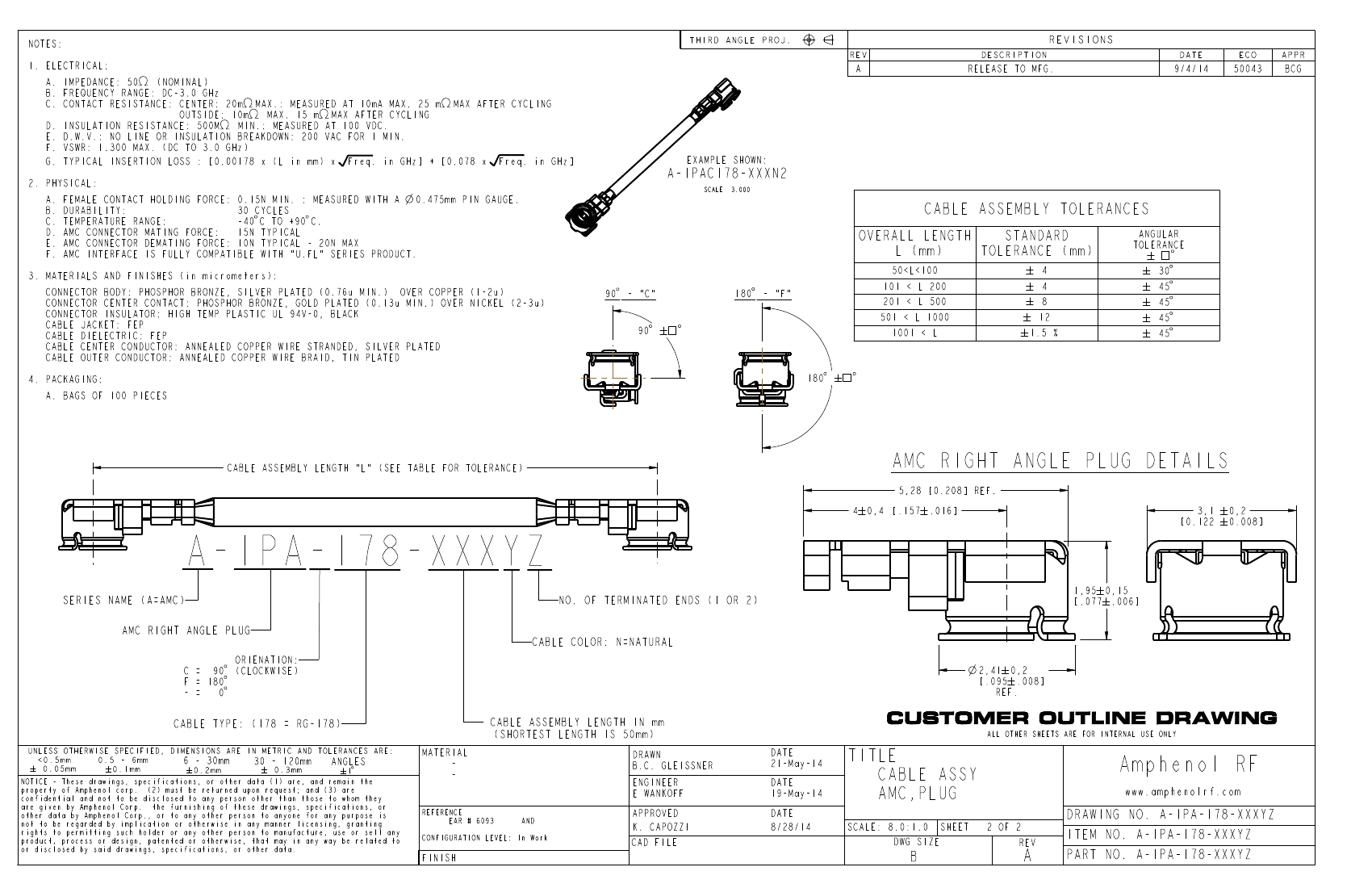

AMC RIGHT ANGLE PLUG DETAILS
5,28 [0.208] REF.
4 #
0,4 [.157 #
.016 ]
3,1
[0.122
#
0,2
#
0.008]
A-1PA-178-XXXYZ
SERIES NAME (A=AMC)
AMC RIGHT ANGLE PLUG
ORIENATION:
C = 90 $(CLOCKWISE)
F = 180 $
- =
0 $
NO. OF TERMINATED ENDS (1 OR 2)
CABLE COLOR: N=NATURAL
2,41 #0,2
[ .095 #.008 ]
REF.
1,95 #
0,15
[.077 #
.006 ]
CABLE TYPE: (178 = RG-178)
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
CABLE ASSEMBLY LENGTH IN mm
(SHORTEST LENGTH IS 50mm)
MATERIAL
-
-
REFERENCE
EAR # 6093
DRAWN
B.C. GLEISSNER
ENGINEER
E WANKOFF
AND
DATE
21-May-14
DATE
19-May-14
DATE
8/28/14
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
APPROVED
K. CAPOZZI
TITLE
CABLE ASSY
AMC,PLUG
SCALE: 8.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. A-1PA-178-XXXYZ
B
REV
A
ITEM NO. A-1PA-178-XXXYZ
PART NO. A-1PA-178-XXXYZ
