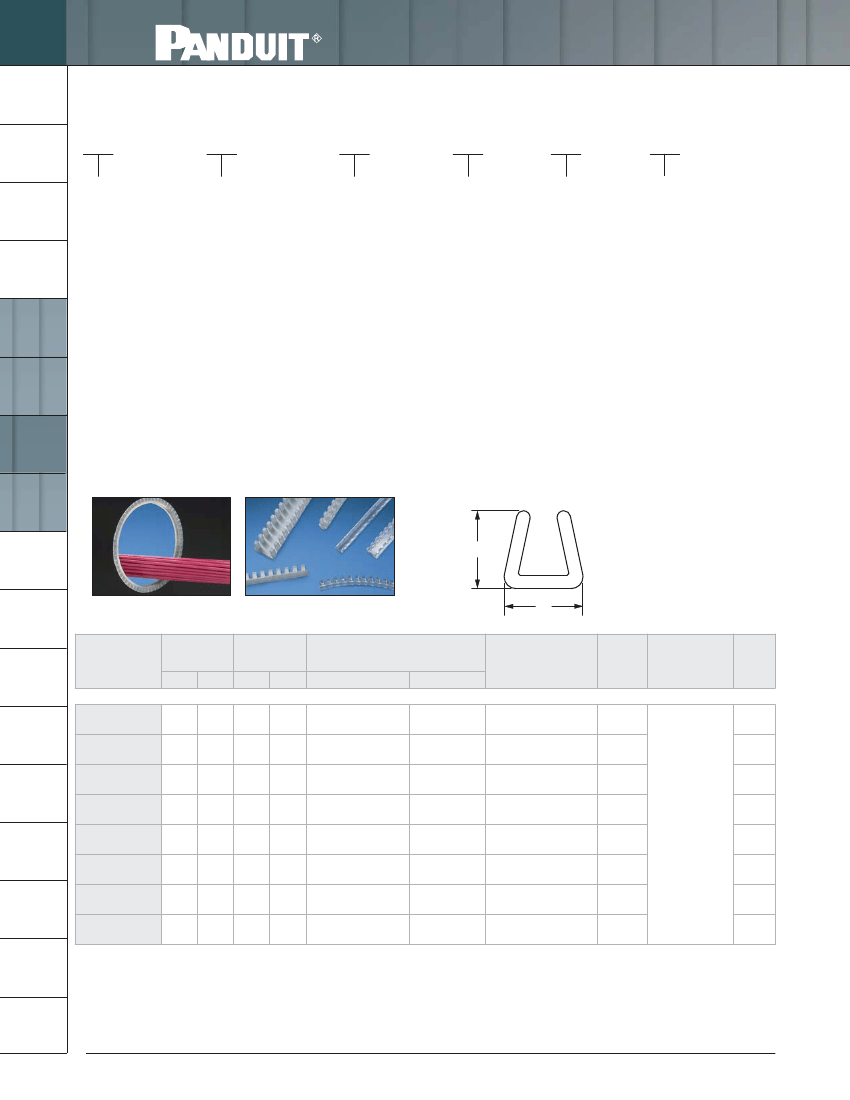

Part Number System for Grommet Edging
GEE
Type
B1.
Cable Ties
36
Max. Panel
Thickness
36 = 0.036" thickness
= 0.062" thickness
= 0.099" thickness
= 0.144" thickness
= 0.189" thickness
F
Material
–
A
Adhesive
A = Adhesive
Lined
–
C
Package Size
Q = 25'
L = 50'
C = 100'
0
Color Suffix
0 = Weather
Resistant Black
Leave Blank = Natural
B2.
Cable
Accessories
GE = Grommet
Edging Strips
F = Polyethylene
N = Nylon 6.6
FR = Flame
Retardant
Polyethylene
B3.
Stainless
Steel Ties
62
GEE = Slotted
99
Grommet Edging
144
GES = Solid
Grommet Edging 189
Leave Blank =
Non-Adhesive
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
Grommet Edging
• Use slotted product on irregularly shaped and round panel holes
• Solid product is used only on straight edges
• Provided in 0.030" (0.8mm) thick material making it highly flexible
C4.
Cable
Management
D1.
Terminals
B
D2.
Power
Connectors
A
D3.
Grounding
Connectors
Part Number
Width
A
In.
mm
0.11
0.11
0.13
0.13
0.17
0.17
0.21
0.21
2.7
2.7
3.3
3.3
4.3
4.3
5.4
5.4
Height
B
In.
mm
0.12
0.12
0.16
0.16
0.19
0.19
0.22
0.22
3.0
3.0
4.1
4.1
4.7
4.7
5.6
5.6
Panel Thickness Range
In.
mm
0.026 – 0.036
0.026 – 0.036
0.036 – 0.062
0.036 – 0.062
0.062 – 0.099
0.062 – 0.099
0.099 – 0.144
0.099 – 0.144
0.7 – 0.9
0.7 – 0.9
0.9 – 1.6
0.9 – 1.6
1.6 – 2.5
1.6 – 2.5
2.5 – 3.7
2.5 – 3.7
Material
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Color
Natural
Black
Natural
Black
Natural
Black
Natural
Black
Temperature
Range
Std.
Pkg.
Qty.‡
1
1
1
1
Slotted
GEE36F-C
E1.
Labeling
Systems
GEE36F-C0
GEE62F-C
E2.
Labels
GEE62F-C0
GEE99F-C
GEE99F-C0
GEE144F-C
GEE144F-C0
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
-40°F – 122°F
(-40°C – 50°C)
1
1
1
1
‡Reel packaging may contain splices. Contact Panduit Customer Service for further information.
Order number of pieces required, in multiples of Standard Package Quantity.
ELECTRICAL SOLUTIONS
Grommet Edging (continued)
Width
A
In.
mm
0.11
0.11
0.13
0.13
0.17
0.17
0.21
0.21
0.30
0.30
2.7
2.7
3.3
3.3
4.3
4.3
5.4
5.4
7.6
7.6
Height
B
In.
mm
0.12
0.12
0.16
0.16
0.19
0.19
0.22
0.22
0.30
0.30
3.0
3.0
4.1
4.1
4.7
4.7
5.6
5.6
7.6
7.6
Panel Thickness Range
In.
mm
0.026 – 0.036
0.026 – 0.036
0.036 – 0.062
0.036 – 0.062
0.062 – 0.099
0.062 – 0.099
0.099 – 0.144
0.099 – 0.144
0.144 – 0.189
0.144 – 0.189
0.7 – 0.9
0.7 – 0.9
0.9 – 1.6
0.9 – 1.6
1.6 – 2.5
1.6 – 2.5
2.5 – 3.7
2.5 – 3.7
3.7 – 4.8
3.7 – 4.8
Temperature
Range
Std.
Pkg.
Qty.‡
1
1
1
1
1
-40°F – 122°F
(-40°C – 50°C)
1
1
1
1
1
B3.
Stainless
Steel Ties
A.
System
Overview
B1.
Cable Ties
Part Number
GES36F-C
GES36F-C0
GES62F-C
GES62F-C0
GES99F-C
GES99F-C0
GES144F-C
GES144F-C0
GES189F-C
GES189F-C0
Material
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Polyethylene
Weather Resistant
Polyethylene
Flame Retardant
Polyethylene
Flame Retardant
Polyethylene
Flame Retardant
Polyethylene
Flame Retardant
Polyethylene
Color
Natural
Black
Natural
Black
Natural
Black
Natural
Black
Natural
Natural
Solid – Use on straight edges only
B2.
Cable
Accessories
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
Slotted Adhesive Lined
GEE62F-A-C
GEE62F-A-C0
GEE99F-A-C
GEE99F-A-C0
GEE144F-A-C
0.13
0.13
0.17
0.17
0.21
3.3
3.3
4.3
4.3
5.4
5.4
0.16
0.16
0.19
0.19
0.22
0.22
4.1
4.1
4.7
4.7
5.6
5.6
0.036 – 0.062
0.036 – 0.062
0.062 – 0.099
0.062 – 0.099
0.099 – 0.144
0.099 – 0.144
0.9 – 1.6
0.9 – 1.6
1.6 – 2.5
1.6 – 2.5
2.5 – 3.7
2.5 – 3.7
Natural
Black
Natural
Black
Natural
Black
-40°F – 122°F
(-40°C – 50°C)
1
1
1
1
1
1
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
GEE144F-A-C0
0.21
Solid Adhesive Lined – Use on straight edges only
GES62F-A-C
GES62F-A-C0
GES99F-A-C
GES99F-A-C0
GES144F-A-C
0.13
0.13
0.17
0.17
0.21
3.3
3.3
4.3
4.3
5.4
5.4
0.16
0.16
0.19
0.19
0.22
0.22
4.1
4.1
4.7
4.7
5.6
5.6
0.036 – 0.062
0.036 – 0.062
0.062 – 0.099
0.062 – 0.099
0.099 – 0.144
0.099 – 0.144
0.9 – 1.6
0.9 – 1.6
1.6 – 2.5
1.6 – 2.5
2.5 – 3.7
2.5 – 3.7
Natural
Black
Natural
Black
Natural
Black
-40°F – 122°F
(-40°C – 50°C)
1
1
1
1
1
1
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
GES144F-A-C0
0.21
Slotted Flame Retardant
GEE36FR-CY
GEE62FR-CY
GEE99FR-CY
GEE144FR-CY
0.11
0.13
0.17
0.21
2.7
3.3
4.3
5.4
0.12
0.16
0.19
0.22
3.0
4.1
4.7
5.6
0.026 – 0.036
0.036 – 0.062
0.062 – 0.099
0.099 – 0.144
0.7 – 0.9
0.9 – 1.6
1.6 – 2.5
2.5 – 3.7
Natural
Natural
Natural
Natural
-4°F – 167°F
(-20°C – 75°C)
1
1
1
1
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
‡Reel packaging may contain splices. Contact Panduit Customer Service for further information.
Table continues on page C3.10
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
ELECTRICAL SOLUTIONS
A.
System
Overview
Grommet Edging (continued)
Width
A
In.
mm
0.11
0.13
0.17
0.21
2.7
3.3
4.3
5.4
Height
B
In.
mm
0.12
0.16
0.19
0.22
3.0
4.1
4.7
5.6
Panel Thickness Range
In.
mm
0.026 – 0.036
0.036 – 0.062
0.062 – 0.099
0.099 – 0.144
0.7 – 0.9
0.9 – 1.6
1.6 – 2.5
2.5 – 3.7
Temperature
Range
Std.
Pkg.
Qty.‡
1
1
-4°F – 167°F
(-20°C – 75°C)
1
1
B1.
Cable Ties
Part Number
B2.
Cable
Accessories
Material
Flame Retardant
Polyethylene
Flame Retardant
Polyethylene
Flame Retardant
Polyethylene
Flame Retardant
Polyethylene
Nylon 6
Nylon 6
Nylon 6
Nylon 6
Nylon 6
Color
Natural
Natural
Natural
Natural
Solid Flame Retardant – Used on straight edges only
GES36FR-CY
GES62FR-CY
B3.
Stainless
Steel Ties
GES99FR-CY
GES144FR-CY
C1.
Wiring
Duct
Slotted Nylon
GEE47N-C
0.13
0.13
0.15
0.18
0.21
3.2
3.4
3.8
4.6
5.3
0.14
0.14
0.14
0.14
0.14
3.6
3.6
3.6
3.6
3.6
0.039 – 0.055
0.047 – 0.063
0.063 – 0.079
0.091 – 0.106
0.126 – 0.142
1.0 – 1.4
1.2 – 1.6
1.6 – 2.0
2.3 – 2.7
3.2 – 3.6
Natural
Natural
Natural
Natural
Natural
-40°F – 149°F
(-40°C – 65°C)
1
1
1
1
1
C2.
Surface
Raceway
GEE55N-C
GEE71N-C
C3.
Abrasion
Protection
GEE98N-C
GEE134N-C
C4.
Cable
Management
Military Standard MS21266 in 12 3/4" Lengths
GE52-C
GE52-C69*
GE85-C
0.15
0.15
0.18
0.18
0.22
0.22
0.33
0.33
0.39
0.46
0.52
0.64
3.8
3.8
4.5
4.5
5.6
5.6
8.3
8.3
9.8
11.3
13.1
16.3
0.16
0.16
0.16
0.16
0.16
0.16
0.23
0.23
0.24
0.26
0.26
0.26
3.9
3.9
3.9
3.9
3.9
3.9
5.8
5.8
6.1
6.5
6.5
6.5
0.015 – 0.052
0.015 – 0.052
0.052 – 0.085
0.052 – 0.085
0.085 – 0.128
0.085 – 0.128
0.128 – 0.192
0.128 – 0.192
0.192 – 0.255
0.255 –0.318
0.318 – 0.380
0.380 – 0.510
0.4 – 1.3
0.4 – 1.3
1.3 – 2.2
1.3 – 2.2
2.2 – 3.3
2.2 – 3.3
3.3 – 4.9
3.3 – 4.9
4.9 – 6.5
6.5 – 8.1
8.1 – 9.7
9.7 – 13.0
Nylon 6.6
Flame Retardant
Nylon 6.6
Nylon 6.6
Flame Retardant
Nylon 6.6
Nylon 6.6
Flame Retardant
Nylon 6.6
Nylon 6.6
Flame Retardant
Nylon 6.6
Nylon 6.6
Nylon 6.6
Nylon 6.6
Nylon 6.6
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
-40°F – 149°F
(-40°C – 65°C)
100
100
100
100
100
100
50
50
50
50
25
25
D1.
Terminals
D2.
Power
Connectors
GE85-C69*
GE128-C
GE128-C69*
GE192-L
GE192-L69*
GE255-L
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
GE318-L
GE380-Q
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
GE510-Q
‡Reel packaging may contain splices. Contact Panduit Customer Service for further information.
*This material is not listed under Military Standard MS21266.
Order number of reels required, in multiples of Standard Package Quantity.
