Sensor/Actuator cable - SAC-3P-M8MS/0,30PUR/BI-1L-Z180 - 1420745
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M8, A-coded, on
Valve connector BI (11 mm), with 1 LED, connected with Z diode, Cable length: 0.3 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4055626233932
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
0.3 m
Ambient conditions
Ambient temperature (operation)
-20 °C ... 85 °C (valve plug)
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Overvoltage category
Degree of pollution
4A
24 V
3
≥ 100 MΩ
A - standard
M8 connector IEC 61076-2-104
Valve connector EN 175301-803
1 LED
III
3
Material
Flammability rating according to UL 94
Contact material
Contact surface material
HB
CuSn
Ni/Au
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1420745
Sensor/Actuator cable - SAC-3P-M8MS/0,30PUR/BI-1L-Z180 - 1420745
Technical data
Material
Contact carrier material
Material of grip body
Valve plug contact material
Valve plug contact surface material
Valve plug contact insert material
Material housing valve plug
Material, knurls
Sealing material
TPU GF
TPU, hardly inflammable, self-extinguishing
CuSn
Sn
PA 66
TPU
Zinc die-cast, nickel-plated
TPU (Seal molded)
Standards and Regulations
Standard designation
Standards/regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M8 connector
IEC 61076-2-104
Valve connector
EN 175301-803
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
PUR halogen-free black
PUR
Li9Y11Y
20549
3x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm (Core insulation)
brown, blue, black
3 wires, twisted
black-gray RAL 7021
approx. 0.8 mm
4.4 mm ±0.15 mm
22 mm
44 mm
4000000
44 mm
10 m
3 m/s
10 m/s²
26 kg/km
PUR
PP
Bare Cu litz wires
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1420745
Sensor/Actuator cable - SAC-3P-M8MS/0,30PUR/BI-1L-Z180 - 1420745
Technical data
Cable
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
≥ 100 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

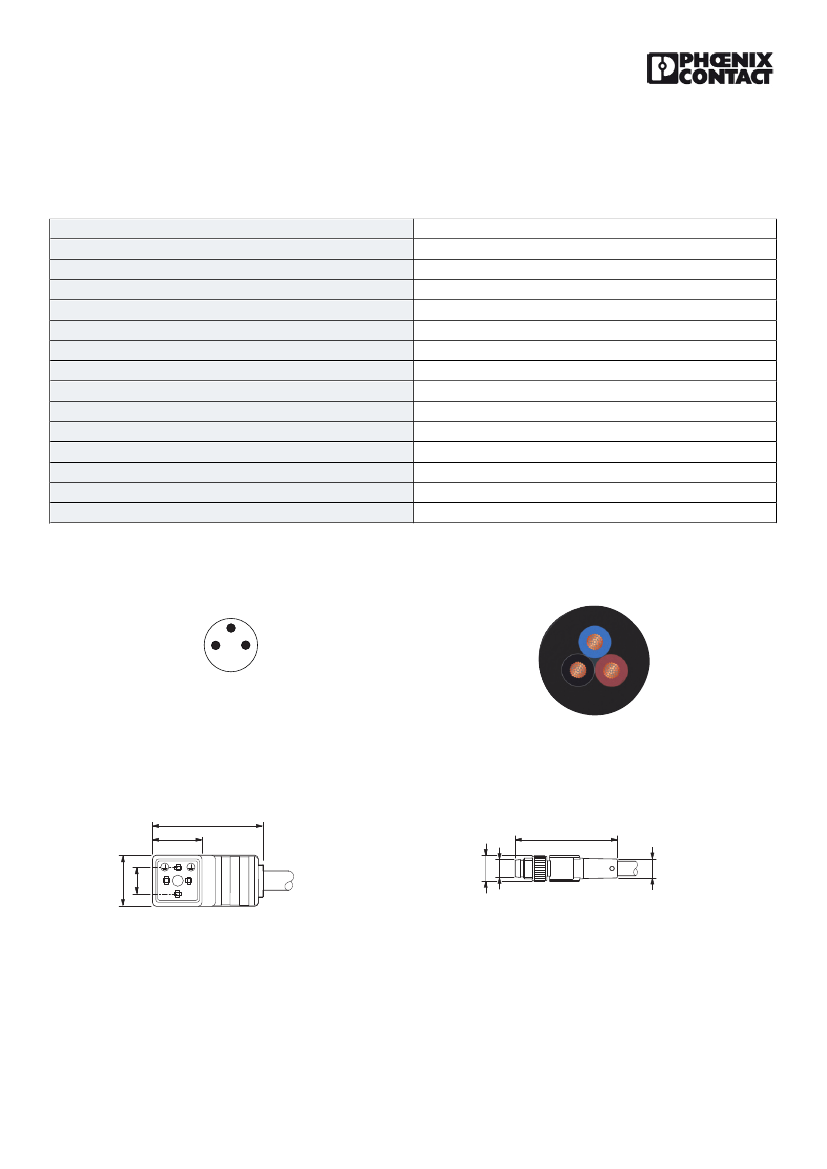

Drawings
Schematic diagram
4
Cable cross section
1
3
Pin assignment M8 male connector, 3-pos.
PUR halogen-free black [PUR]
Dimensional drawing
Dimensional drawing
35,5
16
38,7
16,1
9,4
1
2
Valve connector, type BI
M8 x 1 male plug, straight version
Approvals
Approvals
11/13/2016 Page 3 / 4
Ø7,5
Ø10
M8
https://www.phoenixcontact.com/hq/products/1420745
Sensor/Actuator cable - SAC-3P-M8MS/0,30PUR/BI-1L-Z180 - 1420745
Approvals
Approvals
CSAus
Ex Approvals
Approval details
CSAus http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
Nominal current IN
Nominal voltage UN
4A
24 V
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
