ADCS-1120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> ADCS-1120

ADCS-1120: DescriptionAgilent CMOS Monochrome Image Sensors; CategoryAnalog mixed-signal IC The signal circuit; File Size80KB，2 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric Compare View All

ADCS-1120 Overview

Agilent CMOS Monochrome Image Sensors

ADCS-1120 Parametric

Parameter Name	Attribute value
Parts packaging code	QFN
package instruction	WQCCJ,
Contacts	32
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	S-PQCC-J32
length	13.6 mm
Number of functions	1
Number of terminals	32
Maximum operating temperature	65 °C
Minimum operating temperature	-5 °C
Package body material	PLASTIC/EPOXY
encapsulated code	WQCCJ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Certification status	Not Qualified
Maximum seat height	3.8 mm
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	12.165 mm
Base Number Matches	1

Preview

Download Datasheet

View All

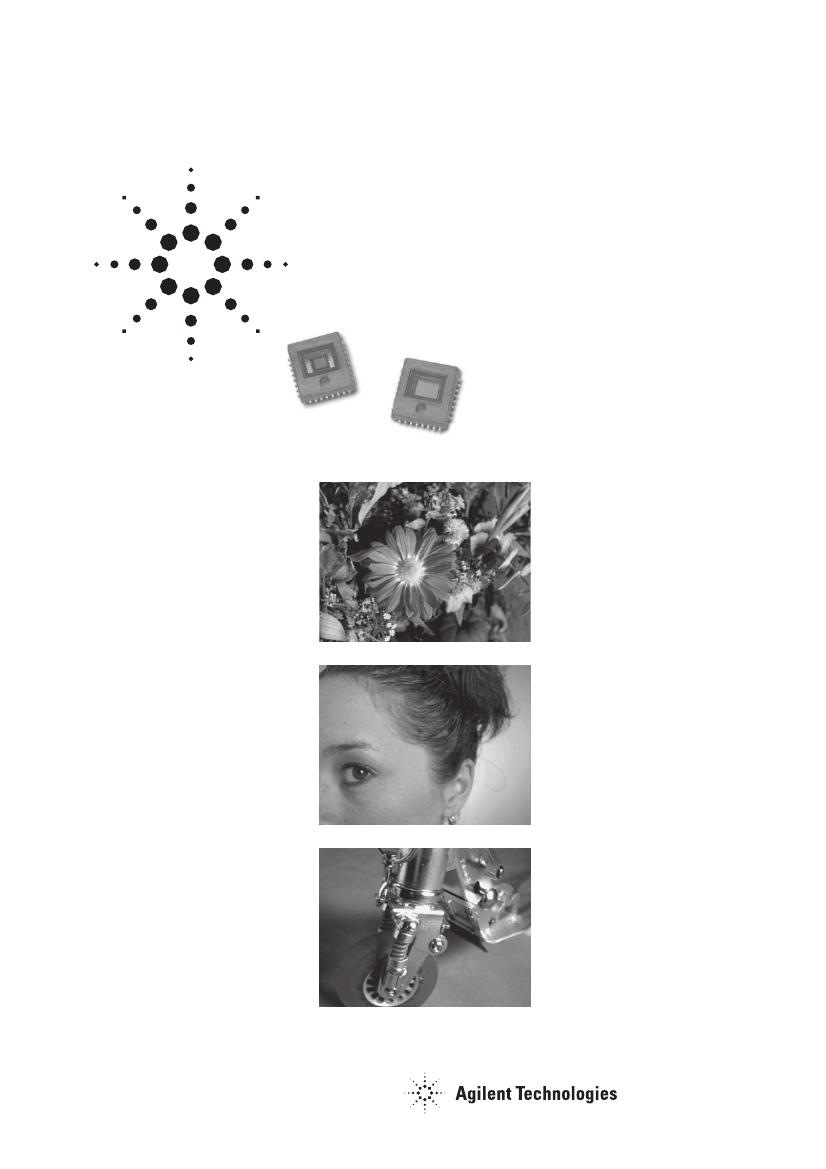

Agilent CMOS Monochrome

Image Sensors ADCS-1120 (CIF)

and ADCS-2120 (VGA)

Product Brief

Features

• High quality, low cost CMOS Image

Sensors

VGA resolution (640H x 480V) –

ADCS-2120

CIF resolution (352H x 288V) –

ADCS-1120

Description

The ADCS-1120 and ADCS-2120

CMOS Image Sensors capture high

quality images while consuming

very low power. These parts

integrate a highly sensitive active

pixel photodiode array with timing

control and onboard A/D conver-

sion. Available in either VGA

(640x480) or CIF (352x288)

resolution image arrays, the

devices are ideally suited for low

light environment.

The ADCS-2120 and ADCS-1120,

when coupled with Agilent’s

HDCP family of image-processors,

provide a complete imaging

system to enable rapid end-

product development. Designed

for low-cost consumer electronic

applications, the ADCS-2120 and

ADCS-1120 sensors deliver

unparalleled performance for

mainstream imaging applications.

• High frame rates for digital video

VGA: 15 frames/second

CIF: 30 frames/second

• High sensitivity, low noise design–

Ideal for capturing high-quality

images in a wide variety of lighting

conditions

• Integrated Analog-to-Digital

Converters

VGA (ADCS-2120): 10 bit, programmable

CIF (ADCS-1120): 8 bit, fixed

• Parallel and serial output

• Synchronous serial or UART

interface

• Automated, dark response

compensation

• Still image capability

Typical Applications

• Biometrics

• Surveillance

• Machine vision

• Bar code scanners

All images on this product sheet were

produced by Agilent Technologies’

sensors and processors.

ADCS-1120 Related Products

	ADCS-1120	ADCS-2120
Description	Agilent CMOS Monochrome Image Sensors	Agilent CMOS Monochrome Image Sensors
Parts packaging code	QFN	QFN
package instruction	WQCCJ,	WQCCJ,
Contacts	32	32
Reach Compliance Code	unknow	unknow
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	S-PQCC-J32	S-PQCC-J32
length	13.6 mm	13.6 mm
Number of functions	1	1
Number of terminals	32	32
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-5 °C	-5 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	WQCCJ	WQCCJ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.8 mm	3.8 mm
Maximum supply voltage (Vsup)	3.63 V	3.63 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
width	12.165 mm	12.165 mm
