Document 609-1

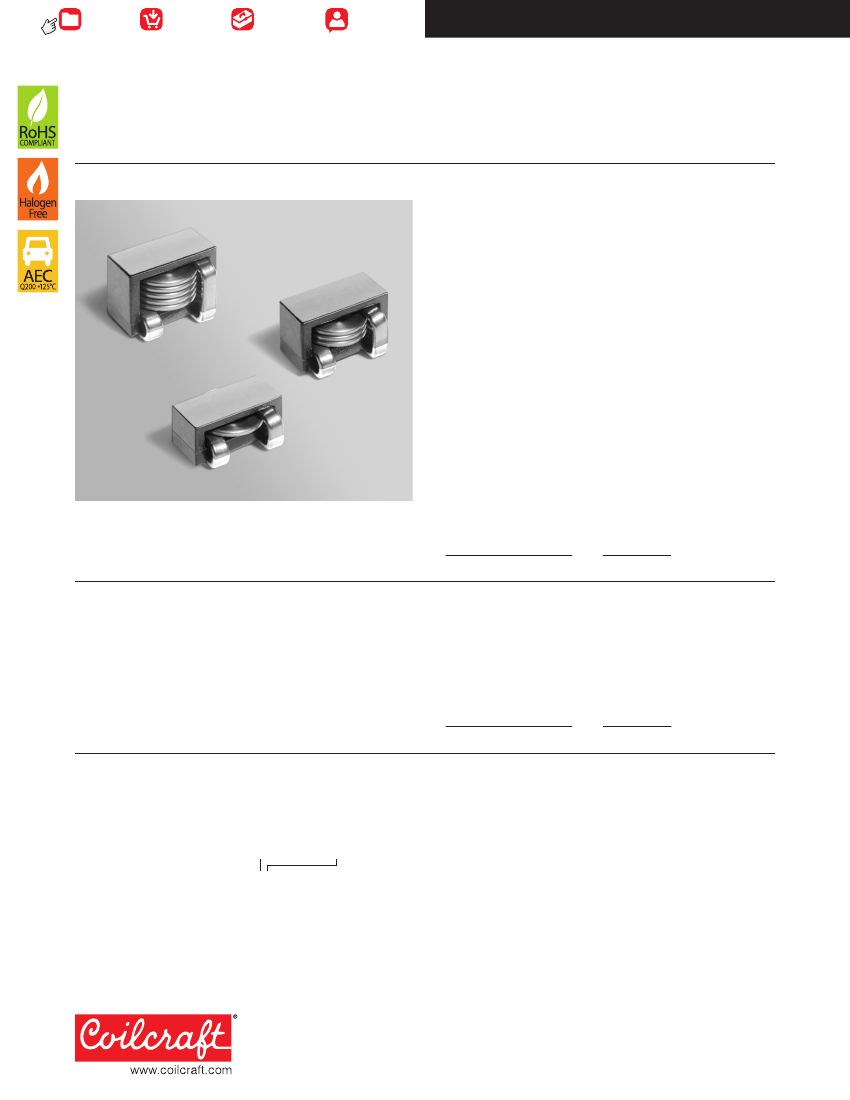

Shielded Power Inductors – SER1400
•
•
•
•
Designed for high current power supply applications
Flat wire windings provide exceptionally low DCR
Specially formed terminations provide small footprint
Isat
ratings as high as 105.9 A!
Designer’s Kit C427
contains 3 each of all values
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Environment
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Ambient temperature
–40°C to +125°C with (40°C rise)
Irms
current.
Maximum part temperature
+165°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
SER1412 only
High Isat for high peak current applications
Inductance
2
Part number
±20% (µH)
SER1412-301ME_
0.30
SER1412-501ME_
0.50
SER1412-681ME_
0.68
SER1412-102ME_
1.0
SER1412-152ME_
1.5
SER1412-202ME_
2.0
SER1412-362ME_
3.6
1
DCR typ
3
(mOhms)
1.30
1.30
1.30
1.30
1.30
1.30
1.30
DCR max
3
(mOhms)
1.43
1.43
1.43
1.43
1.43
1.43
1.43
SRF
typ
4
(MHz)
154
122
100
78
62
50
35
10%
drop
87.0
56.1
41.2
28.9
21.8
16.9
9.6
Isat
(A)
5
20%
30%
drop
drop
92.8
105.9
59.3
62.5
43.5
45.8
31.0
32.2
23.6
24.6
18.5
19.4
11.2
12.1
Irms
(A)
6
20°C 40°C
rise
rise
30
37
30
37
30
37
30
37
30
37
30
37
30
37
Height max
(inches / mm)
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
Low DCR for high average current applications
Inductance
2
Part number
±20% (µH)
SER1408-301ME_
0.30
SER1408-501ME_
0.50
SER1408-681ME_
0.68
SER1408-102ME_
1.0
SER1410-152ME_
1.5
SER1410-202ME_
2.0
1
DCR
typ
3
(mOhms)
0.48
0.48
0.48
0.48
0.90
0.90
DCR
max
3
(mOhms)
0.55
0.55
0.55
0.55
0.99
0.99
SRF
typ
4
(MHz)
140
83
63
48
53
45
10%
drop
43.2
25.8
18.8
12.1
16.8
12.1
Isat
(A)
5
20%
drop
49.6
29.6
21.6
14.2
18.9
13.9
30%
drop
53.0
31.4
23.2
16.1
20.3
15.0
Irms
(A)
6
20°C 40°C
rise
rise
38
42
38
42
38
42
38
42
33
39
33
39
Height max
(inches / mm)
0.325 / 8,26
0.325 / 8,26
0.325 / 8,26
0.325 / 8,26
0.416 / 10,56
0.416 / 10,56
1. When ordering, please specify
termination
and
packaging
codes:
SER1410-202MED
Termination: E
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape.
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP
4263B LCR meter or equivalent.
3. DCR measured on a Keithley 580 micro-ohmmeter or equivalent.
4. SRF measured using an Agilent/HP 4395A network analyzer and an
Agilent/HP 16193A test fixture.
5. Typical dc current at 25°C that causes the specified inductance drop
from its value without current.
Click for temperature derating information.
6. Typical current that causes the specified temperature rise from 25°C
ambient. This information is for reference only and does not represent
absolute maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 609-1
Revised 10/13/16
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

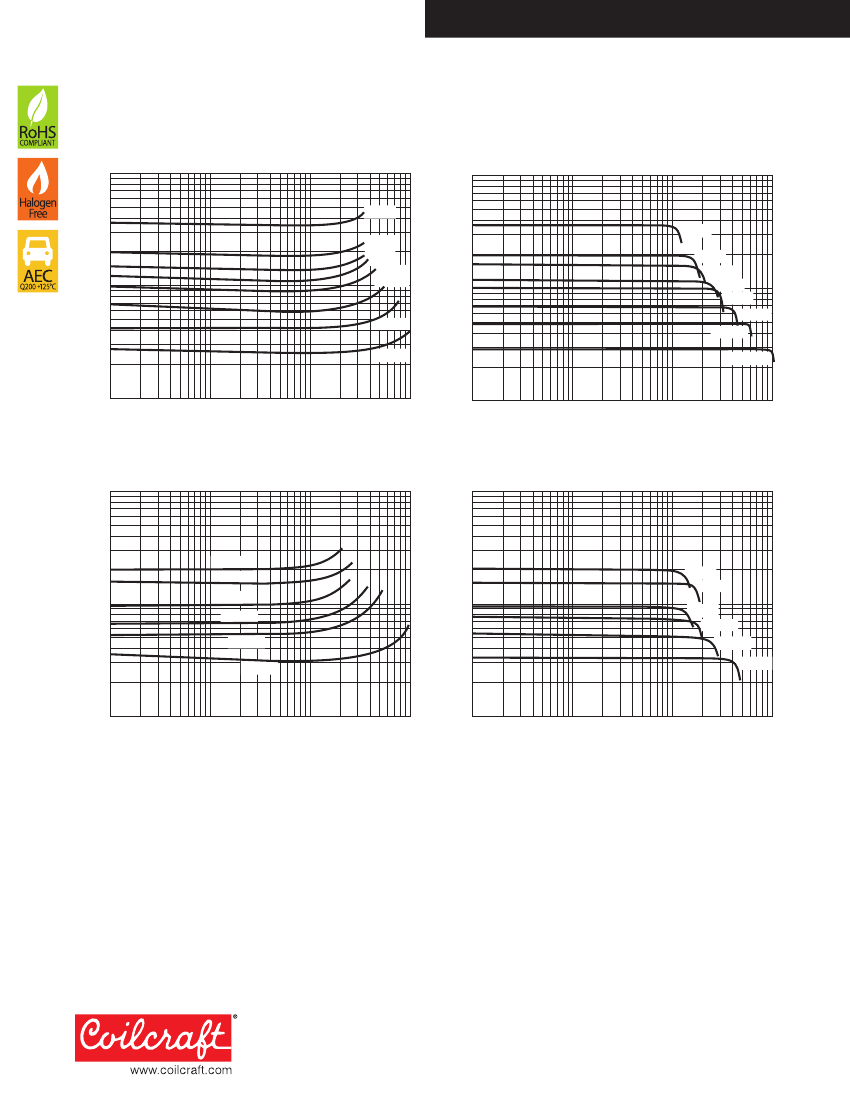

Document 609-2
Shielded Power Inductors – SER1400 Series
Part number
0.348
8,83
0.271 ±0.01
6,88 ±0,256
SER14XX-XXX
XXXX Y
C
L
0.221
5,60
0.130
3,30
0.355
9,02
Internal code
SER1412 only
Recommended
Land Pattern
0.60 max
15,24
0.473
max
12,00
Height
(see table)
0.218
min
5,53
0.100
2,54
0.004/0,102
0.397
max
10,09
Dimensions are in
inches
mm
Series
SER1408
SER1410
SER1412
Height max
(inches/ mm)
0.325 / 8,26
0.416 / 10,56
0.498 / 12,66
Weight
3.5 – 3.8 g
4.8 – 5.2 g
6.1 – 6.7 g
Packaging
SER1408
300/13″ reel Plastic tape: 32 mm wide,
0.5 mm thick, 20 mm pocket spacing, 8.6 mm pocket depth
SER1410
250/13″ reel Plastic tape: 32 mm wide,
0.5 mm thick, 20 mm pocket spacing, 10.8 mm pocket depth
SER1412
250/13″ reel Plastic tape: 32 mm wide,
0.5 mm thick, 20 mm pocket spacing, 12.8 mm pocket depth
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 609-2
Revised 10/13/16
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
