4606X-101-151 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 4606X-101-151

4606X-101-151: DescriptionResistor Networks & Arrays 6Pin 2% 150ohm Bussed; CategoryPassive components The resistor; File Size210KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4606X-101-151 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4606X-101-151	-	-	View	Buy Now

4606X-101-151 Overview

Resistor Networks & Arrays 6Pin 2% 150ohm Bussed

4606X-101-151 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Conformal
Component power consumption	0.2 W
The first element resistor	150 Ω
JESD-609 code	e0
Lead length	3.43 mm
lead spacing	2.54 mm
Installation features	THROUGH HOLE MOUNT
Network Type	BUSSED
Number of components	5
Number of functions	1
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.08 mm
Package length	15.19 mm
Package shape	RECTANGULAR PACKAGE
Package form	SIP
Package width	2.49 mm
method of packing	BULK
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
resistance	150 Ω
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

RoHS compliant*

■

Low proﬁle is compatible with DIPs

■

Wide assortment of pin packages enhances

■

Marking on contrasting background for

permanent identiﬁcation

design ﬂexibility

■

Ammo-pak packaging available

■

Recommended for rosin ﬂux and solvent

clean or no clean ﬂux processes

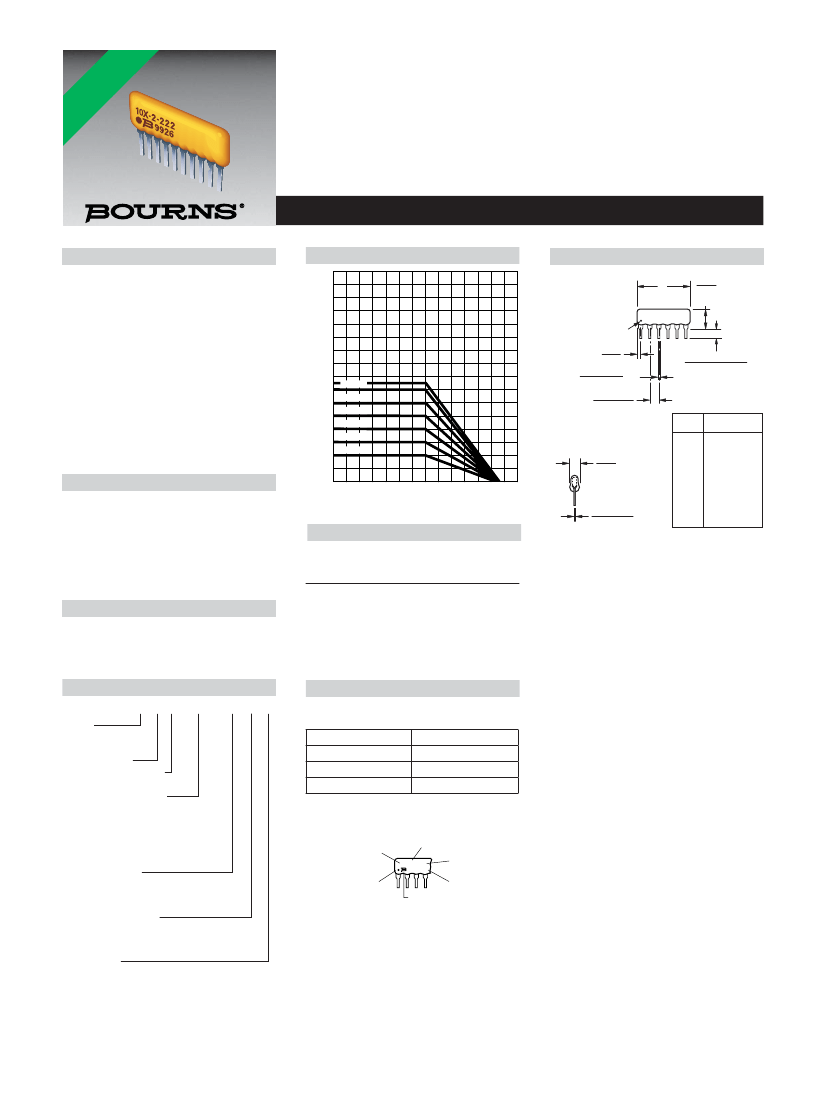

4600X Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

....................10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 megohms ... ±100 ppm/°C

below 50

.................... ±250 ppm/°C

above 2.2 megohms ..... ±250 ppm/°C

TCR Tracking ........................ 50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Operating Temperature

............................... -55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202 ........ΔR MAX.

Short Time Overload ................ ±0.25 %

Load Life................................... ±1.00 %

Moisture Resistance ................. ±0.50 %

Resistance to Soldering Heat

.............................................. ±0.50 %

Terminal Strength ..................... ±0.25 %

Thermal Shock ......................... ±0.25 %

Physical Characteristics

Flammability ........Conforms to UL94V-0

Body Material ...................... Epoxy resin

Standard Packaging

..................Bulk, Ammo-pak available

How To Order

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

5.08

(.200)

MAX.

3.50

3.00

2.50

2.00

4614X

1.50

1.00

.50

4612X

4610X

4608X

4606X

4604X

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.3 +0.5/-0.3

(.130 +.020/ -.012)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

Package Power Ratings (Watts)

Ambient

Temp.

Pkg.

70 °C

Pkg.

70 °C

4604X

0.50

4610X

1.25

4605X

0.63

4611X

1.38

4606X

0.75

4612X

1.50

4607X

0.88

4613X

1.63

4608X

1.00

4614X

1.75

4609X

1.13

Typical Part Marking

Represents total content. Layout may

vary.

Part Number

4606X-101-RC

4608X-102-RC

4610X-104-RC/RC

Marking

6X-1-RC

8X-2-RC

10X-4-RC/RC

.254

.050

MAX.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

46 06 X - 101 - 222 __ LF

Model

(46 = Conformal

SIP)

Number of Pins

Physical Conﬁguration

(X = Thick Film Low Proﬁle)

Electrical Conﬁguration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo**

• AP2 = Isolated Ammo**

• AP4 = Dual Ammo**

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 5 megohms)

Terminations

• All electrical conﬁgurations EXCEPT 104 & AP4:

LF = Sn/Ag/Cu-plated (RoHS compliant)

• ONLY electrical conﬁgurations 104 & AP4:

L = Sn/Ag/Cu-plated (RoHS compliant)

Consult factory for other available options.

**Available for packages with 10 pins or less.

RC = ohmic value, 3-digit resistance

code.

NUMBER OF PINS

CIRCUIT

6X-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
