MULTILAYER CERAMIC CHIP CAPACITORS
C Series
Commercial Grade
Mid Voltage (100 to 630V)
Type:
C1005 [EIA CC0402]
C1608 [EIA CC0603]
C2012 [EIA CC0805]
C3216 [EIA CC1206]
C3225 [EIA CC1210]
C4532 [EIA CC1812]
C5750 [EIA CC2220]
Issue date:
Mar 2015
20150309 / mlcc_commercial_midvoltage_en
MULTILAYER CERAMIC CHIP CAPACITORS
REMINDERS
Please read before using this product
SAFETY REMINDERS
REMINDERS
1.
2.
3.
If you intend to use a product listed in this catalog for a purpose that may cause loss of life or other damage,
you must contact our company’s sales window.
We may modify products or discontinue production of a product listed in this catalog without prior notification.
We provide “Delivery Specification” that explain precautions for the specifications and safety of each product
listed in this catalog. We strongly recommend that you exchange these delivery specifications with customers
that use one of these products.
If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according
to the “Foreign Exchange and Foreign Trade Control Law”. In such cases, it is necessary to acquire export
permission in harmony with this law.
Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our
company.
We are not responsible for problems that occur related to the intellectual property rights or other rights of our
company or a third party when you use a product listed in this catalog. We do not grant license of these rights.
This catalog only applies to products purchased through our company or one of our company’s official agencies.
This catalog does not apply to products that are purchased through other third parties.
4.
5.
6.
7.
Notice: Effective January 2013, TDK will use a new catalog number which adds product thickness and packaging
specification detail. This new catalog number should be referenced on all catalog orders going forward, and
is not applicable for OEM part number orders. Please be aware the last five digits of the catalog number will
differ from the item description (internal control number) on the product label. Contact your local TDK Sales
representative for more information.
(Example)
Catalog Issued date
Prior to January 2013
January 2013 and Later
Catalog Number
C1608C0G1E103J
C1608C0G1E103J080AA
Item Description (On Delivery Label)
C1608C0G1E103JT000N
C1608C0G1E103JT000N
Page 1
20150309 / mlcc_commercial_midvoltage_en
MULTILAYER CERAMIC CHIP CAPACITORS
C Series
Mid Voltage (100 to 630V)
Type: C1005 [EIA CC0402], C1608 [EIA CC0603], C2012 [EIA CC0805],
C3216 [EIA CC1206], C3225 [EIA CC1210], C4532 [EIA CC1812], C5750 [EIA CC2220]
Features
•
• High capacitance has been achieved through precision technologies
that enable the use of multiple thinner ceramic dielectric layers.
• Low residual inductance assures superior frequency characteristics.
• Excellent DC Bias properties.
• A lineup with wide-ranging rated voltages that enables selections that
are suitable for needs.
Applications
•
•
•
•
•
•
Snubber in power supply
Electric flash circuits in digital still camera
Power factor improvement
Input-output filter in power supply
Driver circuit in plasma display
Noise bypass
L
W
T
B
G
Body Length
Body Width
Body Height
Terminal Width
Terminal Spacing
Shape &
Dimensions
Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
C1005
C1608
C2012
C3216
C3225
C4532
C5750
Length
1.00 ± 0.05
1.60 ± 0.10
2.00 ± 0.20
3.20 ± 0.20
3.20 ± 0.40
4.50 ± 0.40
5.70 ± 0.40

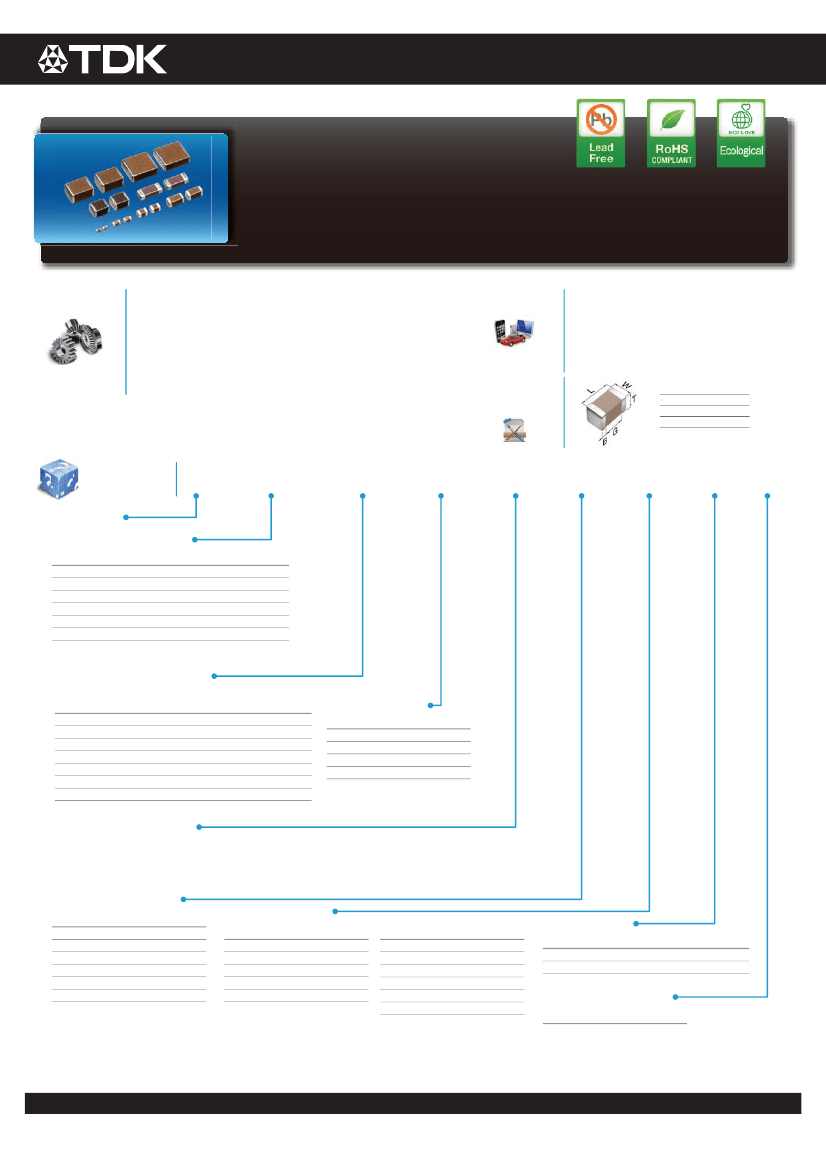

C • 3225 • X7R • 2A • 105 • K • 200 • A • A
Width
0.50 ± 0.05
0.80 ± 0.10
1.25 ± 0.20
1.60 ± 0.20
2.50 ± 0.30
3.20 ± 0.40
5.00 ± 0.40
Terminal
0.10 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
*Dimension tolerance are typical values
Temperature Characteristics
Temperature
Temperature Coefficient or
Characteristics
Capacitance Change
0±60 ppm/°C
CH
0±30 ppm/°C
C0G
±10%
JB
±15%
X5R
±22%
X6S
±15%
X7R
±22%
X7S
X7T
+22/-33%
Temperature
Range
-25 to +85°C
-55 to +125°C
-25 to +85°C
-55 to +85°C
-55 to +105°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
Rated Voltage (DC)
Code
2A
2E
2V
2W
2J
Voltage (DC)
100V
250V
350V
450V
630V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units of pico Farads (pF).
The first and second digits identify the first and second significant figures of the
capacitance. The third digit identifies the multiplier. R designates a decimal point.
Ex. 0R2 = 0.2pF; 103 = 10,000pF; 105 = 1,000,000pF = 100nF
Capacitance Tolerance
Code
C
D
F
G
J
K
M
Tolerance
± 0.25pF
± 0.50pF
± 1%
± 2%
± 5%
± 10%
± 20%
Nominal Thickness
Code
050
060
080
085
115
125
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
Code
130
160
200
230
250
280
320
Thickness
1.30 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
Packaging Style
Code
A
B
K
Style
178 mm Reel, 4 mm Pitch
178 mm Reel, 2 mm Pitch
178 mm Reel, 8 mm Pitch
Special Reserved Code
Code
Description
A, B, C TDK Internal Code
Page 2
• All specifications are subject to change without notice.
20150309 / mlcc_commercial_midvoltage_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart

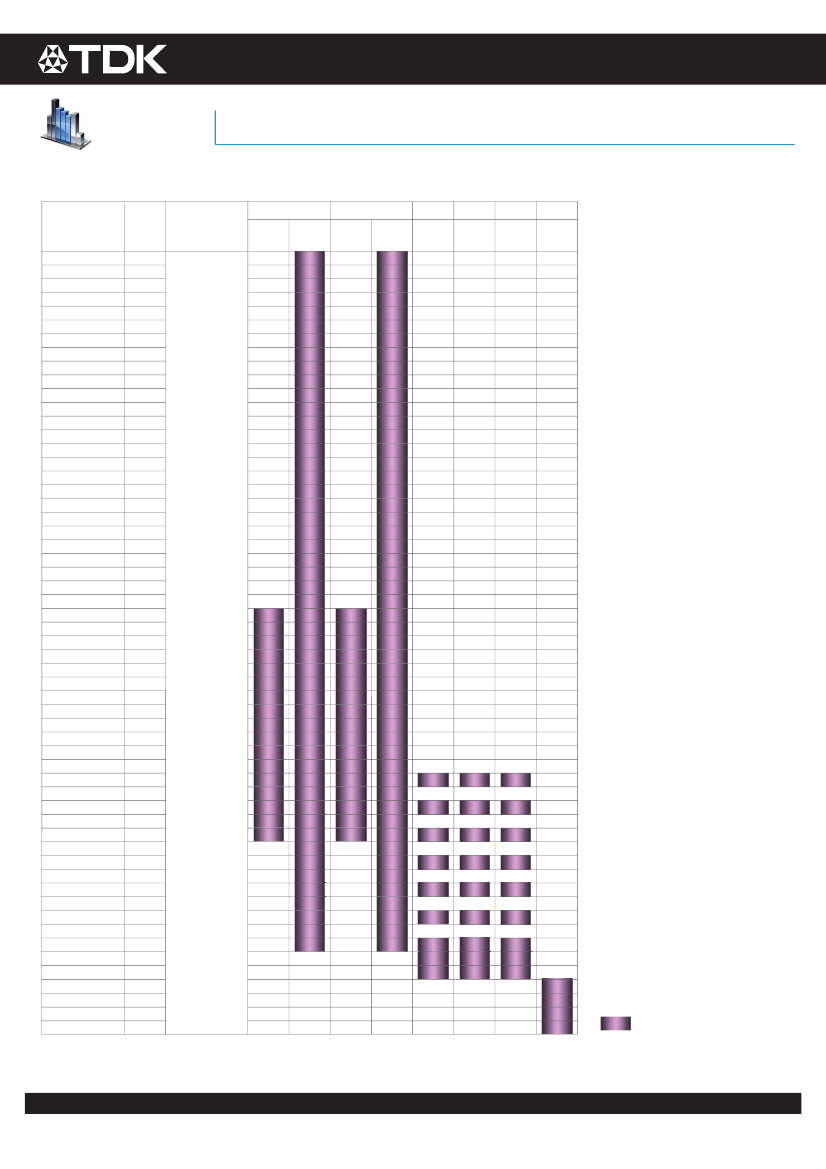

Capacitance Range Chart
Temperature Characteristics: C0G (0 ± 30ppm/ºC), CH (0 ± 60ppm/ºC), X7S
Rated Voltage: 100V (2A)
Capacitance
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,500
2,200
3,300
4,700
6,800
10,000
C0G
Code
101
121
151
181
221
271
331
391
471
561
681
821
102
152
222
332
472
682
103
Tolerance
J: ± 5%
K: ± 10%
M: ± 20%
CH
X7S
EIA CC0402 [C1005]
2A
2A
2A
(100V) (100V) (100V)
Standard Thickness
0.50 mm
Page 3
• All specifications are subject to change without notice.
20150309 / mlcc_commercial_midvoltage_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
EIA CC0603 [C1608]
C0G
CH
JB
X5R
X7R
X7S
Capacitance Range Chart
Temperature Characteristics: C0G (0 ± 30ppm/ºC), CH (0 ± 60ppm/ºC), JB ( ±10%), X5R (±15%), X7R (±15%), X7S (±22%)
Rated Voltage: 250V (2E), 100V (2A)
Capacitance
(pF)
1
1.5
2
2.2
3
3.3
4
4.7
5
6
6.8
7
8
9
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
15,000
22,000
33,000
47,000
68,000
100,000
Code
010
1R5
020
2R2
030
3R3
040
4R7
050
060
6R8
070
080
090
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
153
223
333
473
683
104
Tolerance
C : ± 0.25pF
D : ± 0.50pF
F : ± 1%
G : ± 2%
J : ± 5%
K : ± 10%
M : ± 20%
2E
2A
2E
2A
2A
2A
2A
2A
(250V) (100V) (250V) (100V) (100V) (100V) (100V) (100V)
Standard Thickness
0.80 mm
Page 4
• All specifications are subject to change without notice.
20150309 / mlcc_commercial_midvoltage_en
