C0805C752JAGALTU datasheet, PDF

Datasheet> All Categories > Passive components> C0805C752JAGALTU

C0805C752JAGALTU: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 250volts 7.5nF 5% C0G; CategoryPassive components; File Size1MB，20 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0805C752JAGALTU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C0805C752JAGALTU	-	-	View	Buy Now

C0805C752JAGALTU Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 250volts 7.5nF 5% C0G

C0805C752JAGALTU Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KEMET
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	N
Termination	Standard
Capacitance	7500 pF
Voltage Rating DC	250 VDC
Dielectric	C0G (NP0)
Tolerance	5 %
Case Code - in	0805
Case Code - mm	2012
Height	-
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Product	General Type MLCCs
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Length	2 mm
Package / Case	0805 (2012 metric)
Termination Style	SMD/SMT
Voltage Rating AC	-
Width	1.2 mm
Capacitance - nF	7.5 nF
Capacitance - uF	0.0075 uF
Class	Class 1
Factory Pack Quantity	2500
Unit Weight	0.000194 oz

Preview

Download Datasheet

View All

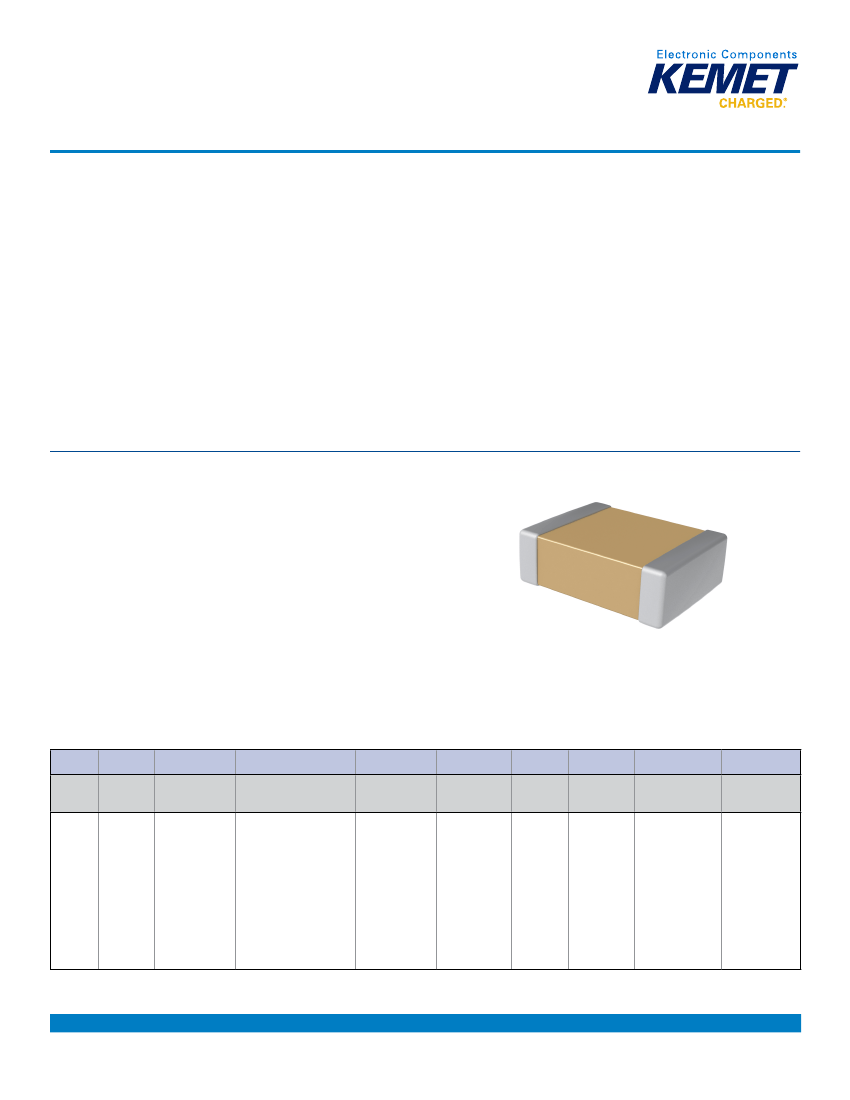

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Commercial “L” Series, SnPb Termination, C0G Dielectric

10 – 250 VDC (Commercial Grade)

Overview

KEMET’s Commercial “L” Series with Tin/Lead Termination

surface mount capacitors in C0G dielectric are designed to

meet the needs of critical applications where tin/lead end

metallization is required. KEMET’s tin/lead electroplating

process is designed to meet a 5% minimum lead content

and address concerns for a more robust and reliable

lead containing termination system. As the bulk of the

electronics industry moves towards RoHS compliance,

KEMET continues to provide tin/lead terminated products

for military, aerospace and industrial applications and will

ensure customers have a stable and long-term source of

supply.

KEMET’s C0G dielectric features a 125°C maximum

operating temperature and is considered “stable.”

The Electronics Components, Assemblies & Materials

Association (EIA) characterizes C0G dielectric as a Class I

material. Components of this classification are temperature

compensating and are suited for resonant circuit

applications or those where Q and stability of capacitance

characteristics are required. C0G exhibits no change in

capacitance with respect to time and voltage and boasts a

negligible change in capacitance with reference to ambient

temperature. Capacitance change is limited to ±30 ppm/ºC

from −55°C to +125°C.

Benefits

• −55°C to +125°C operating temperature range

• Reliable and robust termination system

• EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825,

2220, and 2225 case sizes

• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V

and 250 V

• Capacitance offerings ranging from 0.5 pF up to 0.47 μF

• Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5

pF, ±1%, ±2%, ±5%, ±10%, and ±20%

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

Ceramic

1206

104

Capacitance

Code (pF)

Two significant

digits +

number of zeros.

Use 9 for 1.0 – 9.9 pF

Use 8 for 0.5 – .99 pF

ex. 2.2 pF = 229

ex. 0.5 pF = 508

Termination

Finish

L = SnPb

(5% Pb

minimum)

Packaging/

Grade (C-Spec)

See

“Packaging

C-Spec

Ordering

Options

Table” below

Case Size

Specification/

(L" x W")

Series

0402

0603

0805

1206

1210

1808

1812

1825

2220

2225

C = Standard

Failure Rate/

Capacitance Rated Voltage

Dielectric

Tolerance

(VDC)

Design

B = ±0.10 pF

C = ±0.25 pF

D = ±0.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

8 = 10

4 = 16

3 = 25

5 = 50

1 = 100

2 = 200

A = 250

G = C0G

A = N/A

Additional capacitance tolerance offerings may be available. Contact KEMET for details.

Additional termination finish options may be available. Contact KEMET for details

One world. One KEMET

C1019_C0G_SnPb_SMD • 8/11/2016
