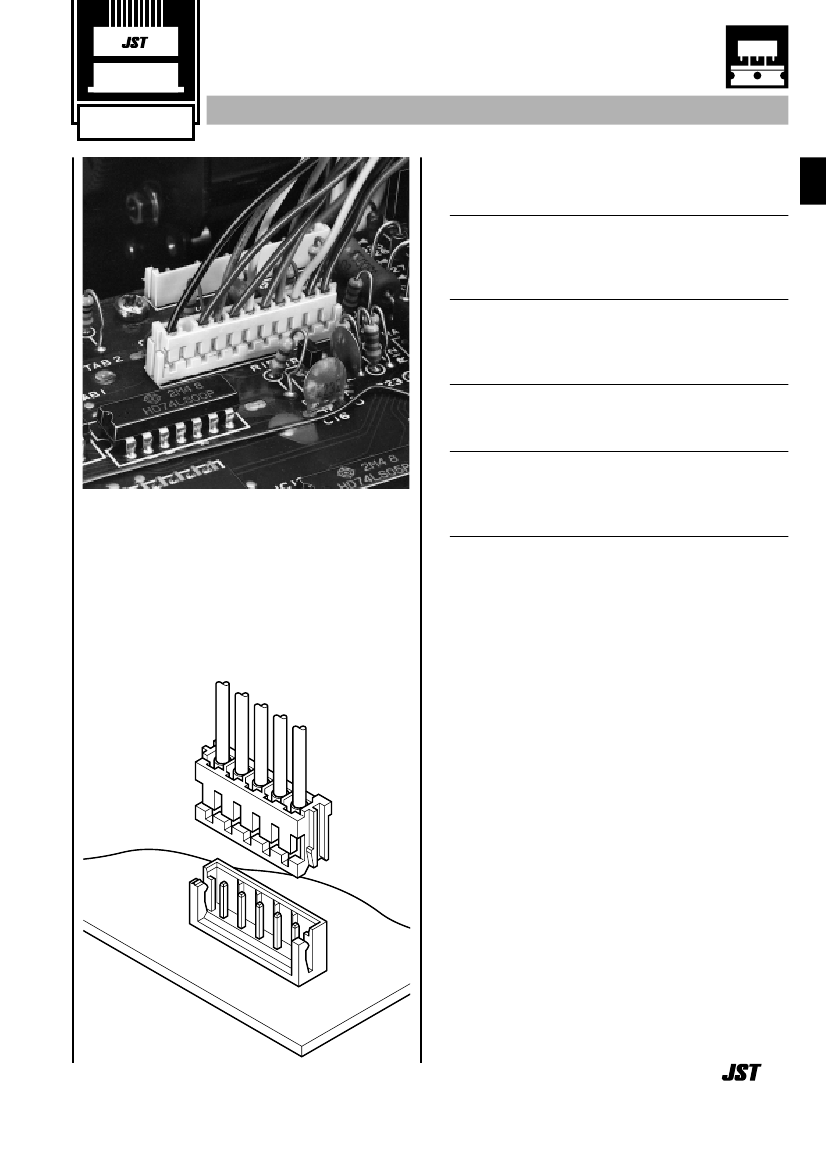

The shrouded headers are interchangeable with those of the HR crimp style and insulation displacement connectors.

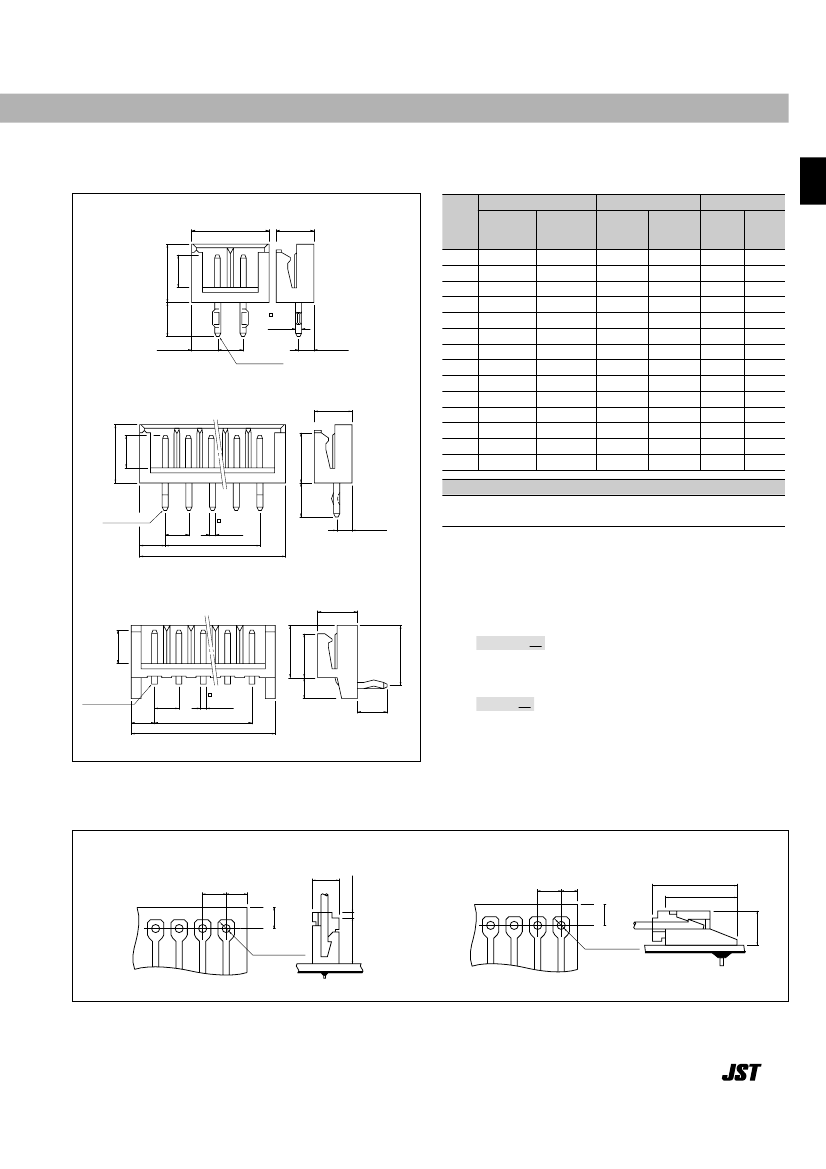

Top entry type
(2 circuits)
6.0(.236)
3.3(.130)
Model No.
B
3.8(.150)
Dimensions mm.(in)
A
2.5( .098)
5.0( .197)
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .866)
25.0( .984)
27.5(1.083)
30.0(1.181)
32.5(1.280)
35.0(1.378)
Q'ty / box
Top entry
type
1,000
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
250
250
250
Cir-
cuits
2
3
4
5
Top entry
type
B 2B-EH-A
B 3B-EH-A
B 4B-EH-A
B 5B-EH-A
B 6B-EH-A
B 7B-EH-A
B 8B-EH-A
B 9B-EH-A
B10B-EH-A
B11B-EH-A
B12B-EH-A
B13B-EH-A
B14B-EH-A
B15B-EH-A
Side entry
type
S 2B-EH
S 3B-EH
S 4B-EH
S 5B-EH
S 6B-EH
S 7B-EH
S 8B-EH
S 9B-EH
S10B-EH
S11B-EH
S12B-EH
S13B-EH
S14B-EH
S15B-EH
B
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .886)
25.0( .984)
27.5(1.083)
30.0(1.181)
32.5(1.280)
35.0(1.378)
37.5(1.476)
40.0(1.575)
Side entry
type
1,000
1,000
1,000
1,000
500
500
500
500
500
250
250
250
250
250
3.2(.126)
0.64
(.025)
A
Circuit No.1
1.6(.063)
6
7
8
9
2.5(.098)
(3 to 15 circuits)
3.8(.150)
10
11
12
6.0(.236)
3.3(.130)
13
5.1(.201)
14
15
3.2(.126)
Material and Finish
Post: Brass, copper-undercoated, tin/lead plated
Wafer: Nylon 66, UL94V-0, natural (white)
Circuit No.1
2.5
2.5 (.098)
(.098)
0.64
(.025)
A
B
1.6(.063)
Note:
1. Also available and identified as model BxxB-EH is a top entry type having a
post extension length of 4.0mm(.157")
¨
2. Top entry type headers are not TUV approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
<Top entry type>
6.7(.264)
Side entry type
4.2(.165)
4.0(.157)
6.0(.236)
2.2
(.087) 5.2(.205)
ex.
B2B-EH-A-o o-
(blank)…natural (white)
K…black R…red E…blue Y…yellow M…green
S2B-EH-o o-
(blank)…natural (white)
K…black R…red TR…tomato red E…blue Y…yellow
L…lemon yellow M…green O…orange N…brown P…purple
PK…pink H…gray LE…light blue FY…vivid yellow
Circuit No.1
2.5
(.098)
2.5
(.098)
A
B
0.64
(.025)
<Side entry type>
3.2
(.126)
ex.
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
0.6(.024)
2.5±0.05
2.5
(.098±.002) (.098)
min.
2.2
(.087)
min.
3.8
(.150)
Side entry type
2.5±0.05
(.098±.002)
1.9
(.074)
min.
6.7
(.264)
min.
10.3(.406)
8.2(.323)
4.2
(.165)
7.5(.295)
0.1
0.9
+ 0
(.035
+.004
)dia.
0
0.1
0.9
+ 0
(.035
+.004
)dia.
0
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material such as FR-4 are used, the hole dimensions
should be larger. The dimensions above should serve as a guideline. Contact JST for details.
53
EH
CONNECTOR

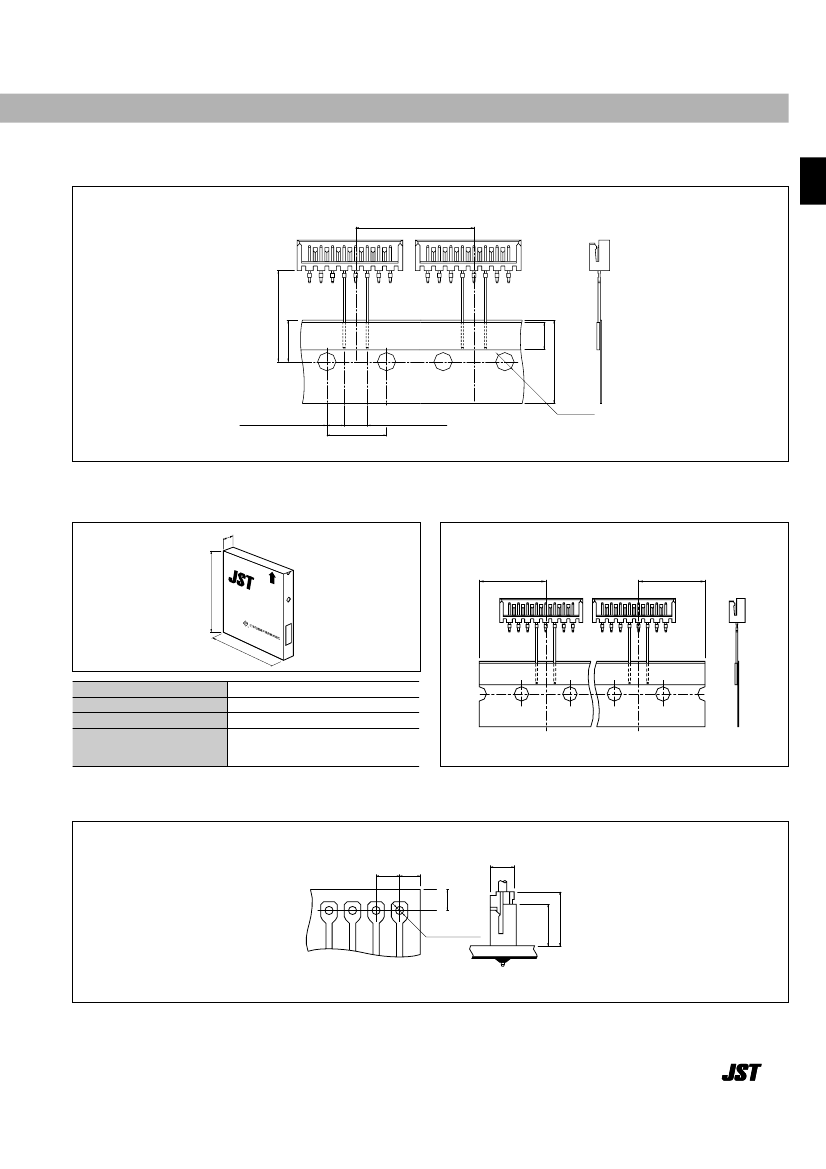

Shrouded header on radial-tape –––––––––––––––––––––––––––––––––––––––––––––
<Taping specifications conform to EIAJ-RC-1008B and JIS C0805.>
•The shrouded headers are interchangeable with those of the HR crimp style and insulation displacement connectors .
¨
•Shrouded
headers on radial-tape are not TUV approved.
TS type
(2 circuits)
7.5(.295)
2.5(.098)
5.4(.213)
[1.0(.039)]
6.5
1.5(.059) (.255)
4.4
(.173)
2.2(.087)
Cir-
cuits
2
3
4
5
6
7
Model No.
B2B-EH-TS
B3B-EH-TS
B4B-EH-TS
B5B-EH-TS
B6B-EH-TS
B7B-EH-TS
B8B-EH-TS
Dimensions mm(in.)
A
-
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
B
-
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
Q'ty /
box
1,400
1,400
700
700
700
700
700
0.64(.025) dia.
8
Material and Finish
Pin: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
Distance between the end of the tape and the first connector's center
line (either end)
Tail tape
H
TERMIN
ALS &
CONN
ECTOR
S
Lead tape
R
W
Package type
Distance between folds
Box size
Distance between the end of the
tape and the first connector´s
center line (either end)
Flat pack (zigzag folded)
24 indexing holes per fold (304.8mm/12")
(316x45x330mm)12.4"(W)x1.8"(D) x13.0"(H)
19.05mm(.750")
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
4.4
(.173)
2.5±0.05
2.5
(.098±.002) (.098)
min.
2.2
(.087)
min.
0.1
0.9
+ 0
.004
(.035
+0
)dia.
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material such as FR-4 are used, the hole dimensions
should be larger. The dimensions above should serve as a guideline. Contact JST for details.
