Technical Information
Edition: 05/2002 - subject to change
Status: preliminary
OSRAM PLANON
®
PLANON 21,3“/863
Technical Information for Systems:
Lamp
Inverter/ECG
Diffuser Set
PLANON 21,3”/863 2-5
PLANON 21,3”/863 2-5
+
+
QT PLANON 21,3”/90/100-240 5 +
(2x) QT PLANON 15,0”/50/24 2
+
D PLANON 21,3”/A
D PLANON 21,3”/A
Explanations/Nomenclature:
Lamp: PLANON lamp diagonal/colour code combinable ECG type(s)
ECG: QT PLANON lamp diagonal/system power/supply voltage ECG type

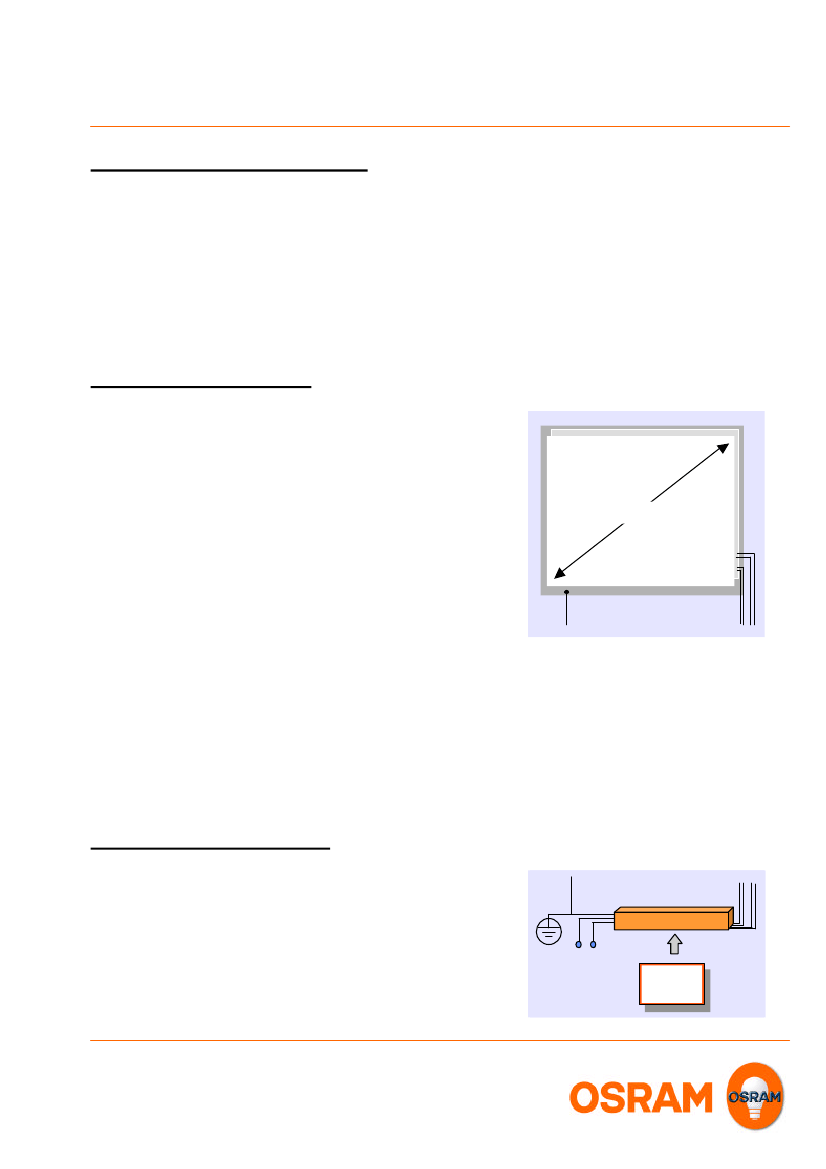

Product Features PLANON
®
§
§
§
flat, mercury free discharge lamp
for extremely flat fixtures < 20 mm
lamp size not limited by physical constraints
(5 inch to 30 inch)
unique lighting power
wide viewing and illumination angle
constant luminance from centre to edge
lamp with integrated reflector
mercury free
luminous flux not related to temperature (-30°C to +85°C)
instant light with high luminance
no ramp-on/ramp-off effects (power save mode)
no hazardous waste
extreme long lamp life, up to 100,000h
(meantime to half brightness/MTTH)
absence of damage susceptible electrodes
much less severe darkening
switching cycles show no influence on lifetime
soft illumination with virtually no shadow
dimmable down to 20%
21,3
“
§
§
§
§
§
§
Product Features QT PLANON
§
§
§
§
§
§
designed for optimising PLANON lamp performance
suitable for applications in which lamps are switched on
and off frequently
reliable system start-up at low temperatures
safe shutdown of the power supply to defective lamps
electromagnetic compatibility
dimming interface
24 V DC
or 100-240 V AC
Input
Inverter/ECG
®
Control
interface
Flat Panel Light Sources Marketing 05/2002
Technical Information
Edition: 05/2002 - subject to change
Status: preliminary
OSRAM PLANON
®
PLANON 21,3“/863
lamp
l2
w1
w2
metal plate
(thickness
min. 1mm)

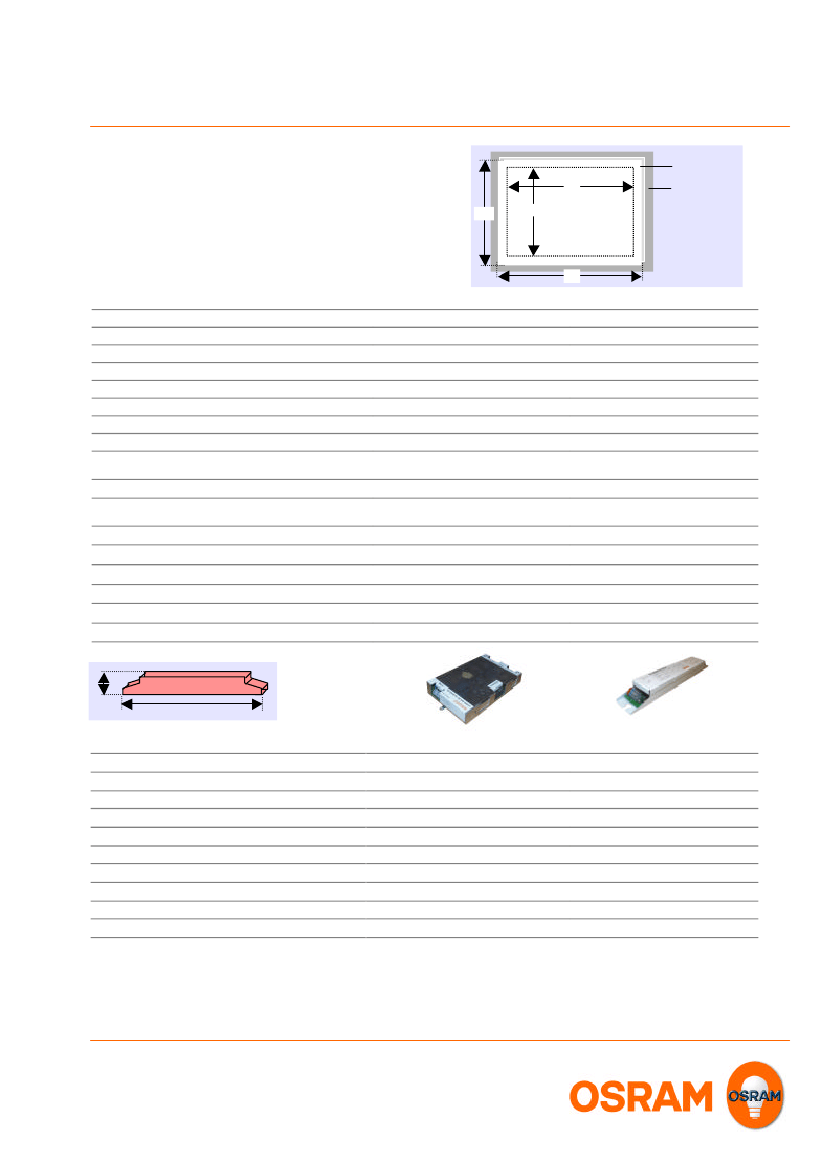

Technical Data
l1
PLANON 21,3"/863 2-5
Outer dimensions (l1 x w1 x h)
Illuminated area (l2 x w2)
Weight
Colour rendering
Colour temperature
Number of cables
Minimum length of cable
Contact between lamp and inverter/ECG
matched with inverter / ECG
Centre luminance typical after burn in (100h)
Centre luminance typical after burn in (100h)
with standard diffuser set
Luminous flux
System wattage
Line current
System efficiency
System lifetime @ 20% fraction failure
Maximum distance between lamp and ECG
7,7 cd/W
50,000 h
50 cm
452 mm x 353 mm x 8,5 mm
436 mm x 328 mm
1850 g
Ra86
6300 K
6
260 mm
clamps
QT PLANON 21,3"/90/100-240 5
5800 cd/m
2
5000 cd/m
2
2200 lm
108 W
PLANON 21,3"/863 2-5
452 mm x 353 mm x 8,5 mm
436 mm x 328 mm
1850 g
Ra86
6300 K
6
260 mm
clamps
(2x)
QT PLANON 15,0”/50/24 2
6000 cd/m
2
5100 cd/m
2
tbd
113 W
4,7 A
7,6 cd/W
50,000 h
50 cm
h
Inverter
l
QT PLANON 21,3”/90/100-240 5
QT PLANON 15,0"/50/24 2
*100...50%
24V DC
20V...30V DC
40...80 kHz
not applicable
not applicable
-20...70°C; 80% RH
tbd
280 mm x 42 mm x 29 mm
350 g
Linear dimming range
Supply voltage
Voltage range
Operating frequency
Harmonic content
Power factor
Ambient temperature range ta
Control temperature tc max
Dimensions (l x w x h)
100...20%
230V AC
100…240V AC
40...80 kHz
IEC 1000-3-2
0,9 @ 230V, full load
-20°C...50°C, 80% RH
tbd
211 mm x 132 mm x 33 mm
Weight
715 g
*For making use of the dimming capability of this type a separate potentiometer is necessary.
Safety
Radio interference suppression
Immunity to interference
acc. to EN 60950 / EN 60950 (in preparation)
acc. to EN 55022, Class B (in preparation)
acc. to EN 55024 (in preparation)
Flat Panel Light Sources Marketing 05/2002
