DTM110PW200C: DescriptionDesktop AC Adapters 110W 20V 5.5A; CategoryPower/power management; File Size134KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

DTM110PW200C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTM110PW200C	-	-	View	Buy Now

DTM110PW200C Overview

Desktop AC Adapters 110W 20V 5.5A

DTM110PW200C Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK-LAMBDA
Product Category	Desktop AC Adapters
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	110 W
Output Voltage-Channel 1	20 V
Output Current-Channel 1	5.5 A
Industry	Medical, Commercial
DC Output Connector	4 Pin DIN
DC Output Cord Length	1.05 m
Efficiency	Level V
AC Plug included/required	Required
Packaging	Bulk
Mounting Style	Desktop
Load Regulation	Regulated
Factory Pack Quantity	1
Unit Weight	1.345 lbs

Preview

Download Datasheet

View All

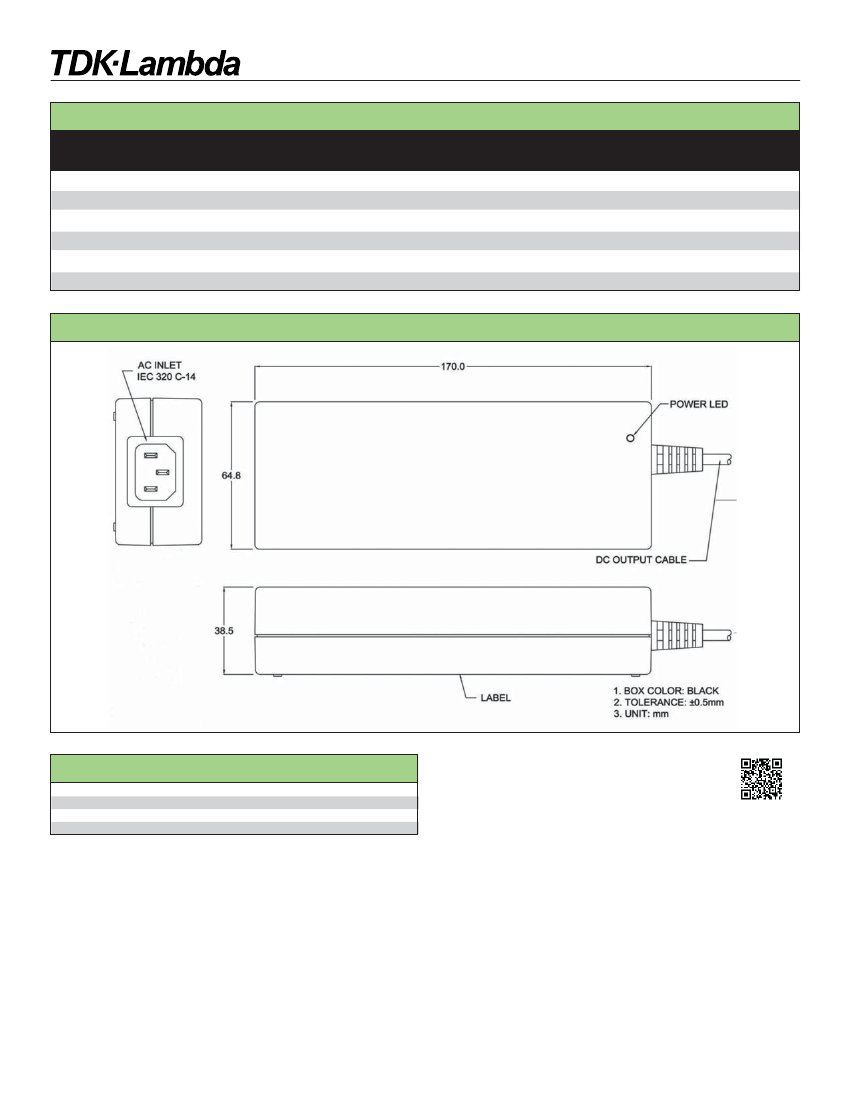

DTM110-C Series

90W to 110W Medical AC-DC External Power Supplies

Features



CEC, EISA

(1)

& ErP Stage 2 Compliant



Wide Range AC Input



Medical Certiﬁcations



> 87% Average Efﬁciency

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

Inrush Current

Input Current

Power Factor

Leakage Current (264VAC 60Hz)

Hold Up Time (Typ)

Temperature Coefﬁcient

Voltage Accuracy

Adjustment Range

Minimum Load

Total Regulation

Ripple & Noise

Short Circuit Protection

Overvoltage Protection

Efﬁciency

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

VAC

μA

%/°C

°C

%RH

VAC

DTM110PWxxx-C

90 - 264VAC (47 - 63Hz)

<100A at 230VAC input, 25°C ambient cold start

2A at 90VAC, Full Load

Meets EN61000-3-2. >0.9 PF

<300μA

>10ms

±0.05%/°C

±1%

None

12V to 15V Models:±5%, >15V models ±3%

<160% - hiccup mode

110 - 150% of nominal (Cycle input power to reset)

>87% average efﬁciency

0 to +40°C

-10 to +70°C

10 - 90%RH

Convection

Input to Ground 1.5kVAC, Input to Output 4kVAC (Reinforced)

(2 x MOPPS 3rd Edition) (Output is isolated from Ground)

23.52m/s

(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

< 196.1 m/s

(20G)

UL/CSA/IEC/EN 60601-1, ANSI/AAMI ES60601-1, CE Mark

See model selector

< 0.5W

EN55022, EN60601-1-1-2, FCC Part 18 Class B

EN55024

605g

2.55 x 6.7 x 1.51”

1050mm

IEC 320-C14 (Accepts IEC 320-C13)

Kycon KPPx-4P or equivalent Pins 1 & 2: -Vout, Pins 3 & 4: +Vout

Two Years

Vibration (non operating)

Shock

Safety Agency Approvals

California Energy Commission (CEC)

EISA

Ofﬂoad Power Consumption

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxLxH)

Inches

Cable Length

AC Input Connector

Output Connector

Warranty

yrs

(1) EISA - Energy Independence and Security Act of 2007

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

DTM110PW200C Related Products

	DTM110PW200C	DTM110PW240C	DTM110PW120C	DTM110PW190C	DTM110PW150C	DTM110PW135C
Description	Desktop AC Adapters 110W 20V 5.5A	Desktop AC Adapters 110W 24V 4.6A	AC/DC DESKTOP ADAPTER 12V 90W	AC/DC DESKTOP ADAPTER 19V 110W	AC/DC DESKTOP ADAPTER 15V 100W	AC/DC DESKTOP ADAPTER 13.5V 90W
Use area	-	-	internationality	internationality	internationality	internationality
form	-	-	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)
input type	-	-	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)
Voltage - input	-	-	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC	90 ~ 264 VAC
Voltage - Output	-	-	12V	19V	15V	13.5V
Current - Output (maximum)	-	-	7.5A	5.8A	6.67A	6.67A
Power (W)	-	-	90W	110W	100W	90W
application	-	-	Medical type	Medical type	Medical type	Medical type
efficiency	-	-	Class V	Class V	Class V	Class V
Operating temperature	-	-	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C
Output connector	-	-	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin
size/dimensions	-	-	6.70" long x 2.55" wide x 1.52" high (170.0mm x 64.8mm x 38.5mm)	6.70" long x 2.55" wide x 1.52" high (170.0mm x 64.8mm x 38.5mm)	6.70" long x 2.55" wide x 1.52" high (170.0mm x 64.8mm x 38.5mm)	6.70" long x 2.55" wide x 1.52" high (170.0mm x 64.8mm x 38.5mm)
input connector	-	-	IEC 320-C14	IEC 320-C14	IEC 320-C14	IEC 320-C14
Wire length	-	-	41.34"（1.05m）	41.34"（1.05m）	41.34"（1.05m）	41.34"（1.05m）
weight	-	-	1.3 pounds (589.7g)	1.3 pounds (589.7g)	1.3 pounds (589.7g)	1.3 pounds (589.7g)
