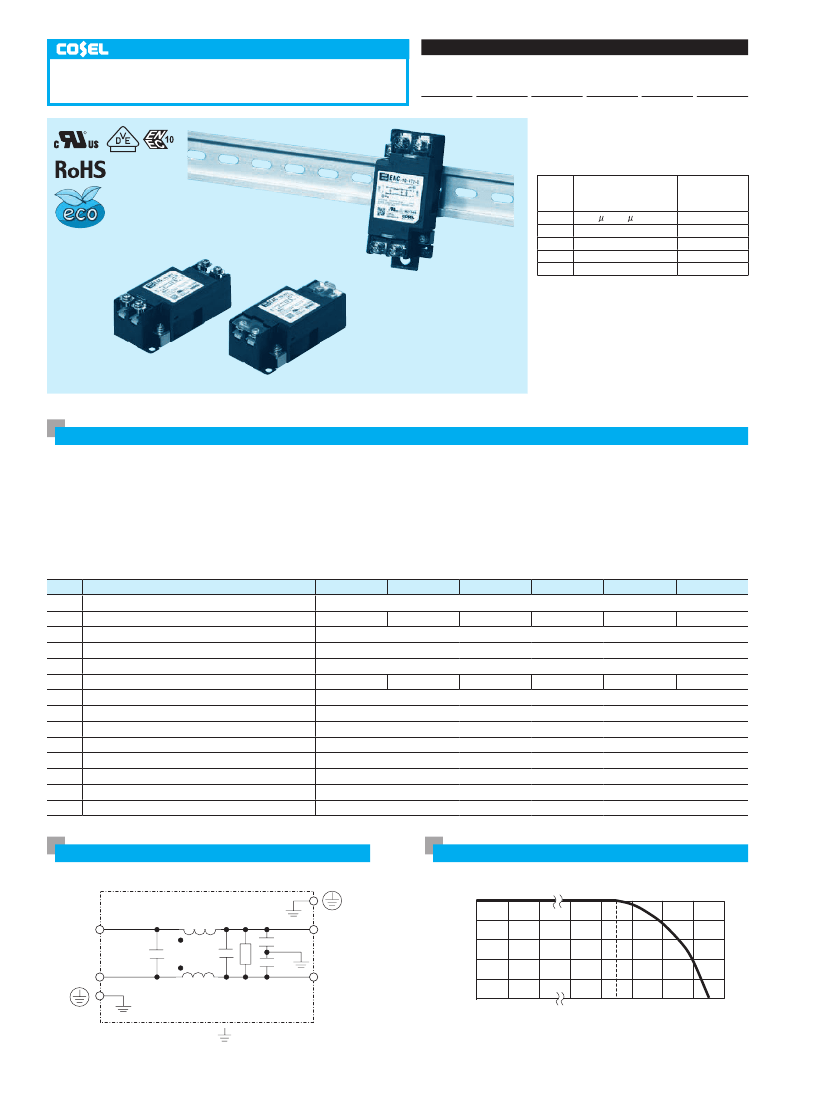

Small, common mode EMI/EMC Filters in 150kHz to 1MHz (1-Stage filter)
Ordering information
EAC series
EAC -10 -472
1
2
3
4
-O
R
1
Model Name
2
Rated Current
3
Line to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Code
681
102
222
332
472
*
Line to ground
Leakage Current
capacitor
(Input 125/250V 60Hz)
(nominal value)
75.5 A/150 A max
680pF
0.13mA/0.25mA max
1000pF
0.25mA/0.5 mA max
2200pF
3300pF
0.38mA/0.75mA max
0.5 mA/1.0 mA max
4700pF
When the line to ground capacitor code is
different, the attenuation characteristic is
different.
4
Options
D :DIN rail installation type
*
The dimensions change when the option is set.
Refer to External view.
The terminal cover is retracted inside the unit
DIN rail installation type is option
Features of EAC series
Small, common mode EMI/EMC Filters in 150kHz to 1MHz(1-Stage filter)
-
Single Phase 250 VAC
-Small-size
-Quick
and easy push-down terminal
Just connect the wires,push-down and tighten
the screws with a screwdriver
EAC-03-472
3
EAC-06-472
6
EAC-10-472
10
EAC-16-472
16
EAC-20-472
20
EAC-30-472
30
Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Items
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Isolation Resistance (Terminal-Mounting Plate)
Leakage current 125/250V 60Hz
DC resistance
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Weight
AC 1f 250 / DC250
2,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 500MW min at room temperature and humidity
0.5mA/1.0mA max
180mW max
110mW max
40mW max
20mW max
10mW max
6mW max
-25 to +85C (Refer to Derating Curve)
-40 to +85C (Refer to Derating Curve)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s
2
(2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s
2
(20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
39X30X85 mm [1.54X1.18X3.35 inches] (WXHXD) /170g max (Option : -D refer to external view)
Circuit Diagram
Case
Derating Curve
100
1
LINE
2
3
LOAD
4
Load Factor [%]
80
60
40
20
0
-40
CY : Line to ground capacitor
: Mounting Plate
-30
-20
40
50 55 60
70
80
90
CY
CY
Ambient Temperature [C]
EA/ES-1
EAC,EAM,EAP series

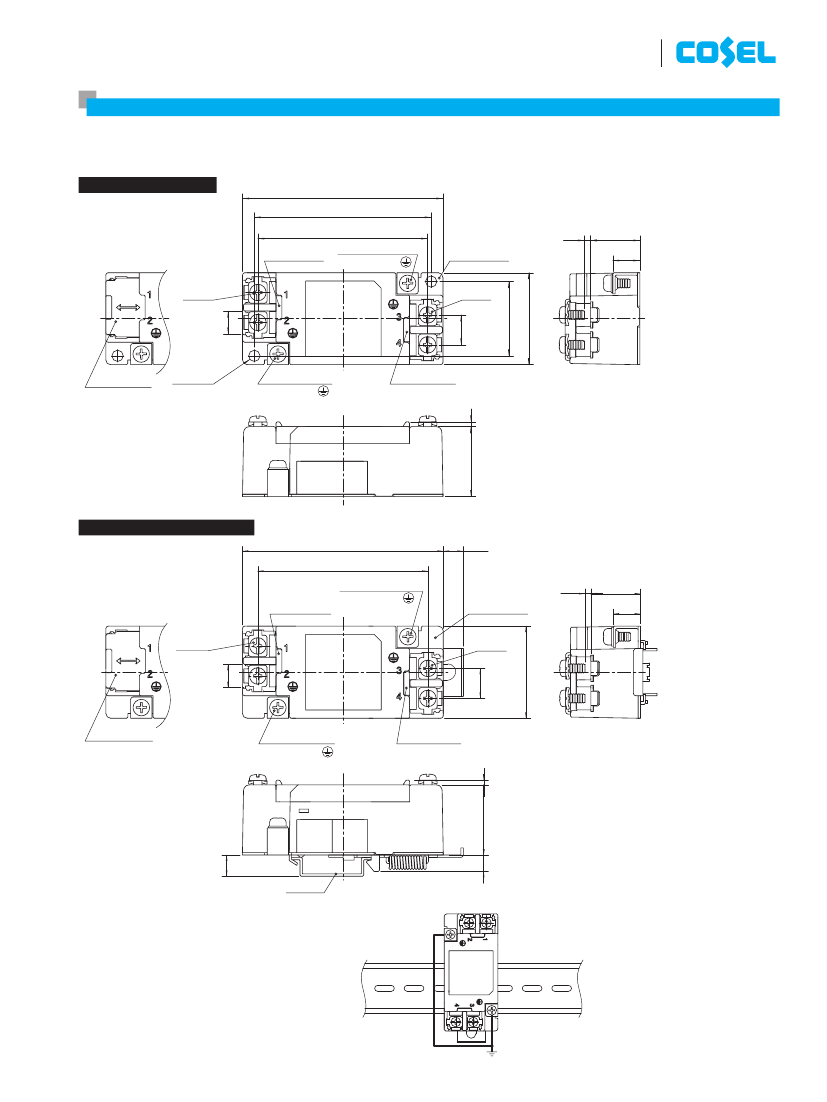

External view
This product is shipped in the following condition,because it is equipped with push-down terminals.
1The
terminal cover is retracted inside the unit.
2The
screws for connecting the terminals are held in the up right position.
Standard Type
75
±0.5
[2.95]
[2.83]
[3.35]
85
72
Terminal cover
M4
Protection Earth
Mounting Plate
[0.1]
2.5
[0.83]
21
[0.45]
11.5
2-M4
[0.38]
[1.24]
31.5
12.7
Terminal cover
2-f4.8
[0.19]
Mounting Hole
M4
Protection Earth
Terminal cover
[0.08]
¶
Closed the terminal cover
2
[0.5]
¶
Tolerance :
±1
[±0.04]
¶
Weight : 170g max
¶
Mounting Plate : Iron (surface finishing:nickel plating) =1.0 [0.04]
¶
Case PBT
¶
Dimensions in mm, [ ]=inches
¶
Terminal block screw tightening torque M4 1.6N m(16.9kgf cm)max
DIN rail installation Type
[3.35]
[2.83]
[1.18]
30
85
8.5
[0.33]
+2
-1
72
M4
Mounting Plate
[1.54]
9.7
39
Input
Terminal
±0.5
Name Plate
2-M4
Output
Terminal
Terminal cover
Protection Earth
2.5
[0.1]
[0.83]
21
[0.45]
11.5
[0.38]
9.7
12.7
Terminal cover
¶
Closed the terminal cover
M4
Protection Earth
Terminal cover
[0.08]
2
[0.5]
¶
Tolerance :
±1
[±0.04]
¶
Weight : 170g max
¶
Mounting Plate : Iron (surface finishing:nickel plating) =1.0 [0.04]
¶
Case PBT
¶
Dimensions in mm, [ ]=inches
¶
Terminal block screw tightening torque M4 1.6N m(16.9kgf cm)max
[0.35]
DIN rail
¡
Note when installing the EMI/EMC
Filter on a DIN rail.
When the EMI/EMC Filter is grounded through
the DIN rail, the proper noise attenuation may not
be achieved.
Be sure to connect the protection earth (PE) of
the EMI/EMC Filter body to the earth.
It can connect the ground to either one only.
DIN rail
Name Plate
[0.28]
(9)
7
[1.18]
30
[1.54]
39
2-M4
Input
Terminal
Name Plate
2-M4
Output
Terminal
EA/ES-4
