9600G PoH/PoE
95 W/Port Gigabit Midspan Family for High Power Terminals
Specifications
Feature
No. of Ports
Pass Through Data
Rates
Switch
Management
Station
Description
6/12
10/100/1000 Mbps
Pin Assignment and Polarity:
Data Pairs 1/2 (-) and 3/6 (+)
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 54-57 Vdc
User Port Power: 95 W guaranteed
Aggregate Power: 1000 W
AC Input Voltage: 100 to 240 Vac
DC Input: 57 V (another 9600G midspan)
Output Power
UPS
Data
Power
Data & Power
PoE Midspan
Input Power
Requirements
AC Input Current:
1000 W Unit 12A @ 110 Vac; 6A @ 220 Vac
AC Frequency: 50 to 60 Hz
438 mm x 272 mm x 44 mm
17.3 in. x 10.8 in. x 1.75 in or 1U
14.3 lbs (6.5 kg)
PowerView Pro included
System Indicator:
AC Power (Green)
Dimensions
Weight
Monitors
PTZ Dome Camera
Access Control
Thin Client
Management

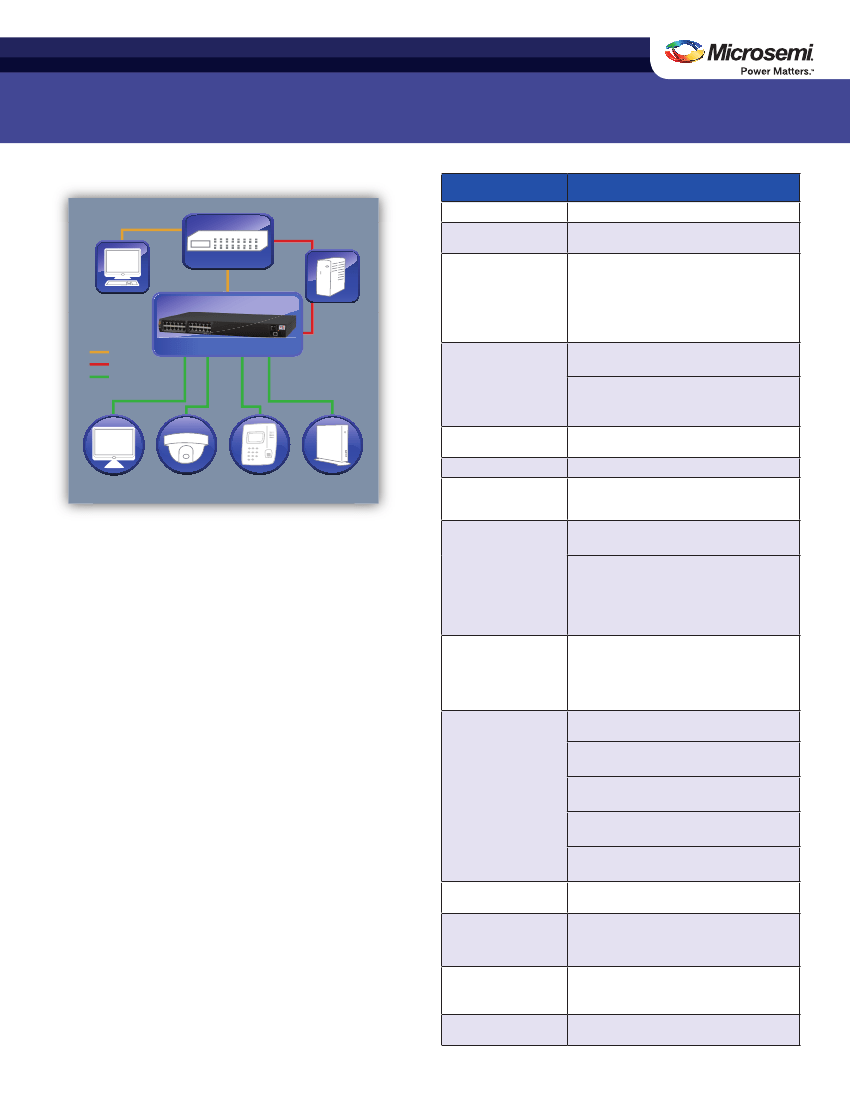

Figure 1: 9600G PoH/PoE
Features
• High Power over 4-pairs – 95 W per port
• PoH Compliant with 3-event classification
• PowerView Pro secure, remote SNMPv3 web-based
management
• Supports both IPv4 and IPv6 addressing
• Plug-and-play installation
• Guaranteed uptime
Indicators
Channel Power Indicators:
Green—Power supplied over data and
spare pairs
Yellow—Power supplied over data or
spare pairs
PoE ports and management port:
Shielded RJ-45, EIA 568 A and 568 B
Console Port: USB Connector Type B
DC Connector: DC Block Terminal
Com Connector: HD-D-sub-15
Operating Ambient Temperature:
32º to 104º F (0 to 40º C)
Operating Humidity:
10% to 90%, Non-condensing
Connectors
Overview
The Microsemi 9600G family is designed to power network
devices such as IP cameras, access control systems, thin clients
and other Ethernet powered devices (PD) that require up to 72W,
it also targeting emerging devices that use high power over
Ethernet infrastructure such as digital signage and monitors.
PD-9600G Energy Efficient PoE Midspans are PoH compliant
(Power Over HDBaseT), they are unique in their ability to
deliver power over all 4 pairs of the Cat 5E or better cable,
they are also backwards compatible to 802.3af and 802.3at,
including 4-pairs 802.3at. With the midspan’s plug-and-play
installation, they are easily and cost effectively implemented
leveraging an existing Ethernet infrastructure while at the
same time providing the assurance of a future proof network.
Environmental
Conditions
Storage Temperature:
–4º to 158º F (–20º to 70º C)
Storage Humidity:
5% to 95%, Non-condensing
Operating Altitude:
–1000 to 10,000 ft. (–304.8 to 3048 m)
Warranty
Regulatory
Compliance
Electromagnetic
Emission & Immunity
Safety Approvals
Limited lifetime (see Terms and
Conditions)
IEEE 802.3af (PoE, PoH Type1)
IEEE 802.3at (PoE+ including 2-event,
PoH Type 2), PoH Twin Type 3, RoHS
Compliant, VCCI, CE, C-Tick
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
UL/cUL Per EN 60950-1
GS Mark Per EN 60950-1
9600G PoH/PoE
Ordering Information
Part Number
PD-9606G/ACDC/M
PD-9612G/ACDC/M
95 W/Port Gigabit Midspan Family for High Power Terminals
Name
9606 G
9612 G
6-port
12-port
Ports
Total Watts
1000 W
1000 W
