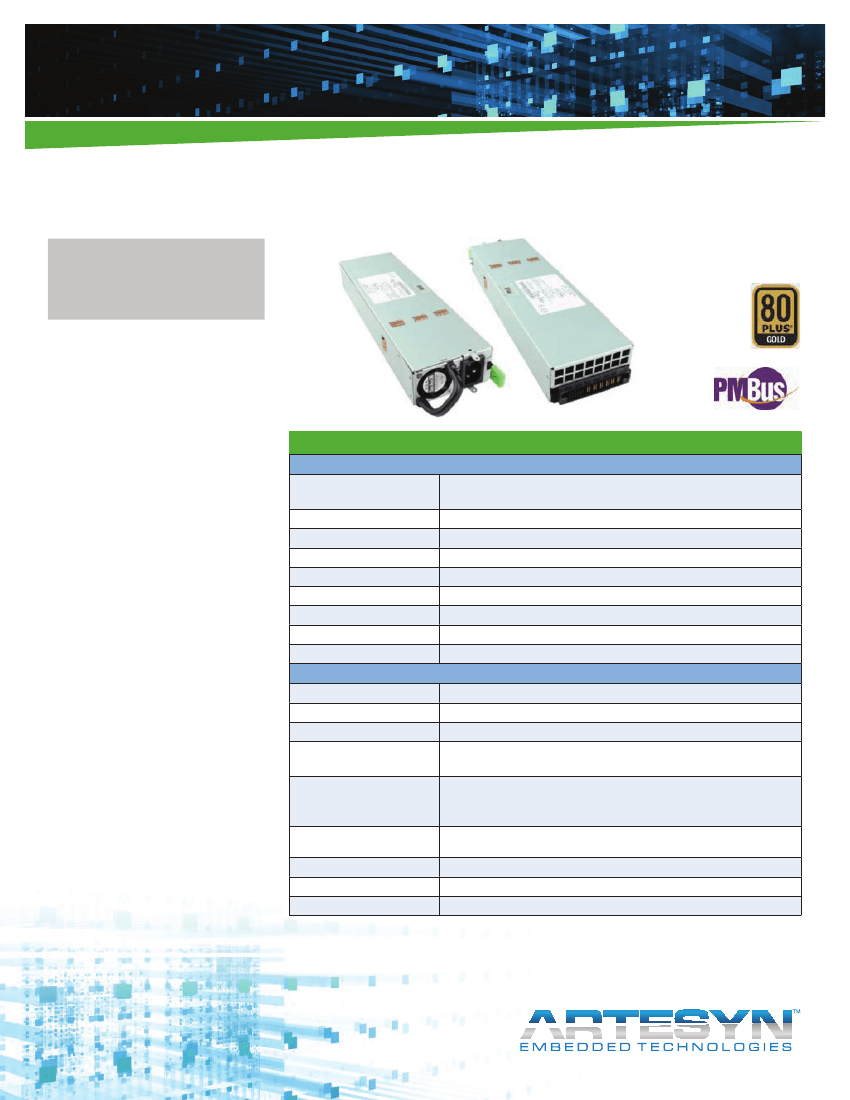

POWER
Data Sheet
Total Output Power:
1050 Watts
+3.3 or 5.0 Vdc Standby Output
Wide Range Input Voltage:
90 - 264 Vac
SPECIAL FEATURES
Active power factor correction
EN61000-3-2 harmonic compliance
Inrush control
1U X 2U form factor
19.0 W/in
3
+12 Vdc output
Available in +3.3 V and +5.0 V standby
output versions
No minimum load required
Hot plug operation
N + 1 redundant
Internal OR’ing fets
Active current sharing (10 - 100% load)
Built-in cooling fan (40 mm x 28 mm)
I
2
C communication interface bus
PMBus compliant
EEPROM for FRU data
Amber/green bi-color LED status
Internal fan speed control
Fan fail tach output signal
Full digital control
Two-year warranty
Distributed Power Bulk Front-End
DS1050
Electrical Specifications
Input
Input range
Frequency
Inrush current
Efficiency
Conducted EMI
Radiated EMI
Power factor
Leakage current
Hold up time
Output
Main DC voltage
Standby
Adjustment range
Regulation
Overcurrent
+12 V @ 87 A
+3.3 Vsb @ 4 A (5 V @ 2.5 A available)*
± 5% on +12V only using I
2
C
+12 Vdc; +5%/-5%
+3.3 Vsb; +5%/-5%
+12 Vdc; latches off if overcurrent lasts over 1 second, otherwise it is
auto recovery (See Table 1 next page) +3.3 Vsb, 6 A max (hiccup
mode)
+12 Vdc; 13.2 - 14.4 Vdc
+3.3 Vsb; 3.76 - 4.30 Vdc
+12 Vdc; 9 - 10.8 V (latch off)
2 second max, 5 - 50 mS, monotonic rise
5 - 50 mS, monotonic rise
180 - 264 (1050 W)
90 - 264 (1050 W)
47 - 63 Hz, single phase AC
40 Apk maximum inrush current
> 92% typical at high line 50% load (Climate Saver Gold)
FCC Subpart J EN55022 Class B
FCC Subpart J EN55022 Class B
0.99 typical
1.40 mA @ 240 Vac
12 ms minimum
SAFETY
UL/cUL 60950 (UL Recognized)
NEMKO+ CB report EN60950
EN60950
CE mark
China CCC
Overvoltage
Undervoltage
Turn-on delay
Main output rise time
*20 W standby available with derated efficiency
DS1050 Data Sheet
Logic Control
PS_SEATED (A4)
PWR GOOD (C3)
AC OK (B1)
PS_INHIBIT/PS_KILL (B4)
TTL logic LOW if power supply is seated into system connector. This is a short pin. A logic HIGH if the PSU is removed
Active TTL high when output is within regulation limits.
A low logic level if the input voltage is within allowable limits. A TTL logic HIGH level, and a 5mS early warning signal
before 12.0 V DC output loss of regulation.
This signal is connected to a short pin on the PSU
When left open power supply operation will be inhibited. When the power supply is inserted into the system, this pin
will be pull low by the system and turn the power supply on only after all other power supply pins have seated.
The output will be enabled when this signal is pulled low, below 0.8 V outputs disabled when pin is driven high or left
open.
PS ON (A1)
Environmental Specifications
Operating temperature
Storage temperature
Altitude, operating
Electromagnetic susceptibility/Input transients
-10 °C to 50 °C ; 50% power derating at 70 °C
-40 °C to +85 °C
10,000 ft
-EN61000-3-2, -3-3
-EN61000-4-2, 4.3, 4-4, -4-5, 4-11
-EN55024:1998
No tantalum caps.
20 to 90% RH, non-condensing
Standard operating/non-operating random shock/vibration
500K Hrs at full load, 40 °C
RoHS & lead-free compliant
Humidity
Shock and vibration specificatons
MTBF (Demonstrated)
Ordering Information
Model Number
DS1050-3
DS1050-3-001
DS1050-3-002
DS1050-3-003
Nominal Output
Voltage Set Point
12.0 Vdc
12.0 Vdc
12.0 Vdc
12.0 Vdc
Set Point
Total
Minimum Maximum Output Ripple
Tolerance Regulation Current
Current
P/P
±0.2%
±0.2%
±0.2%
±0.2%
±5%
±5%
±5%
±5%
0A
0A
0A
0A
87 A
87 A
87 A
87 A
120 mV
120 mV
120 mV
120 mV
Over Current
102.7 A - 128.4 A
102.7 A - 128.4 A
Standby**
3.3 V @ 4 A
3.3 V @ 4 A
Air Flow
STD
REV
STD
REV
102.7 A - 128.4 A 5.0 V @ 2.5 A
102.7 A - 128.4 A 5.0 V @ 2.5 A
*Overcurrent latches off if overcurrent lasts over 1 seconds, otherwise it is auto recovery.
** 3.3 V standby can operate at 6 A, but overall unit efficiency will fall slightly below Gold Standard.
DS1050 Data Sheet

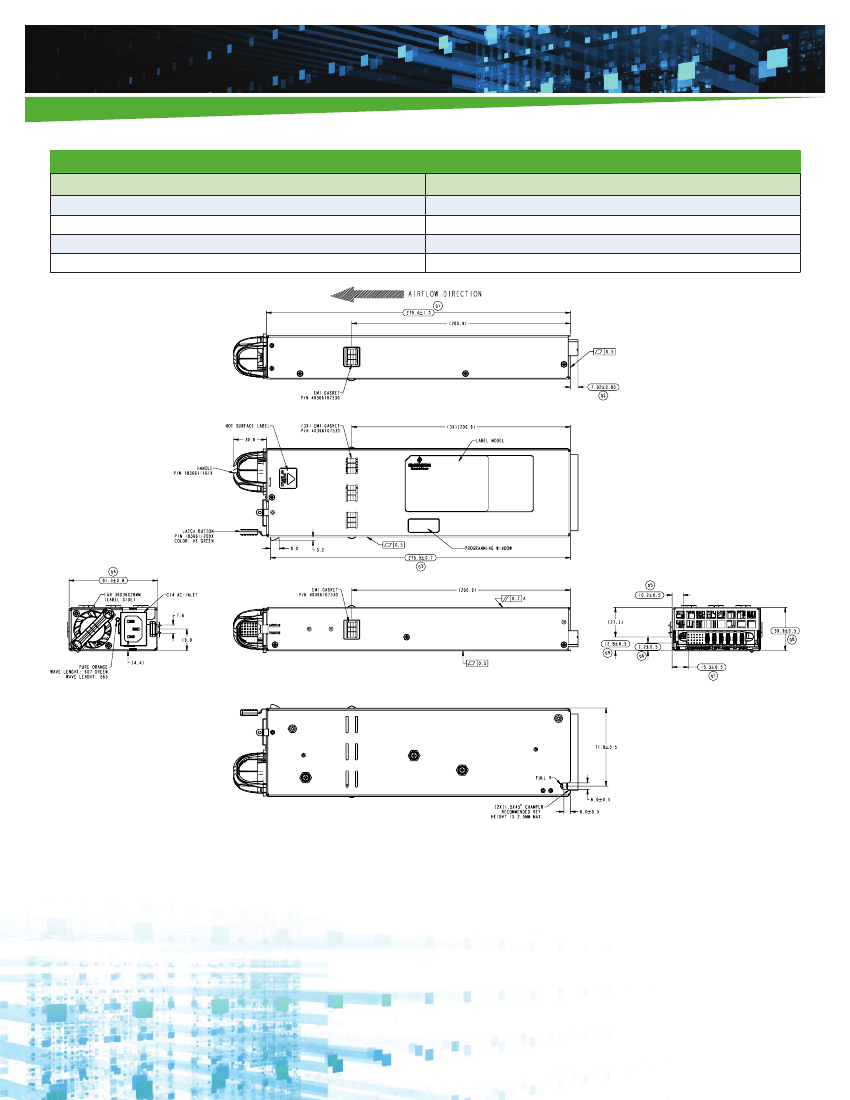

Mechanical Drawing
Condition
Standby - ON; Main output - OFF; AC PRESENT
Standby - ON; Main output - ON
Main output OCP, UVP, OVP
FAN_FAULT; OTP; Standby OCP/UVP
LED Status
Blinking green
Solid green
Blinking Amber
Amber
DS1050 Data Sheet
DC Output Connector Pinout Assignment
Male connector as viewed from the rear of the supply:
D1
C1
B1
A1
D2
C2
B2
A2
D3
C3
B3
A3
D4
C4
B4
A4
D5
C5
B5
A5
D6
C6
B6
A6
PB1
PB2
PB3
PB4
PB5
PB6
P1 - Power Supply Side
1
FCI Power Blade 51721 series
51721-10002406AA
Molex Power Connector
SD-87667 series
87667-7002
Mating Connector (System Side)
1
FCI Power Blade
51741-10002406CC
Strait Pins
FCI Power Blade
51761-10002406AALF
Right Angle
2
2
Pin Assignments
Pin
PB 1
PB 2
PB 3
PB 4
PB 5
PB 6
A1
A2
A3
A4
A5
A6
B1
B2
B3
B4
B5
B6
Signal Name
Main output return
Main output return
Main output return
+ Main output
+ Main output
+ Main output
PS_ON
Main output remote sense return
Spare
PS_SEATED (Power Supply Seated)
STANDBY
STANDBY RETURN
AC_OK (AC Input Present)
Main output remote sense
Main output current share
PS_INHIBIT/PS_Kill
STANDBY
STANDBY RETURN
Pin Assignments
Pin
C1
C2
C3
C4
C5
C6
D1
D2
D3
D4
D5
D6
Signal Name
SDA (I
2
C Data Signal)
SCL (I
2
C Clock Signal)*
POWER GOOD
Spare
STANDBY
STANDBY RETURN
A0 (I
2
C Address BIT 0 Signal)
A1 (I
2
C Address BIT 1 Signal)
S_INT (Alarm)
STANDBY RMT SENSE
STANDBY
STANDBY RETURN
*Supports I
2
C standard mode (100 kHz) only
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
DS1050-DS 25May2016
