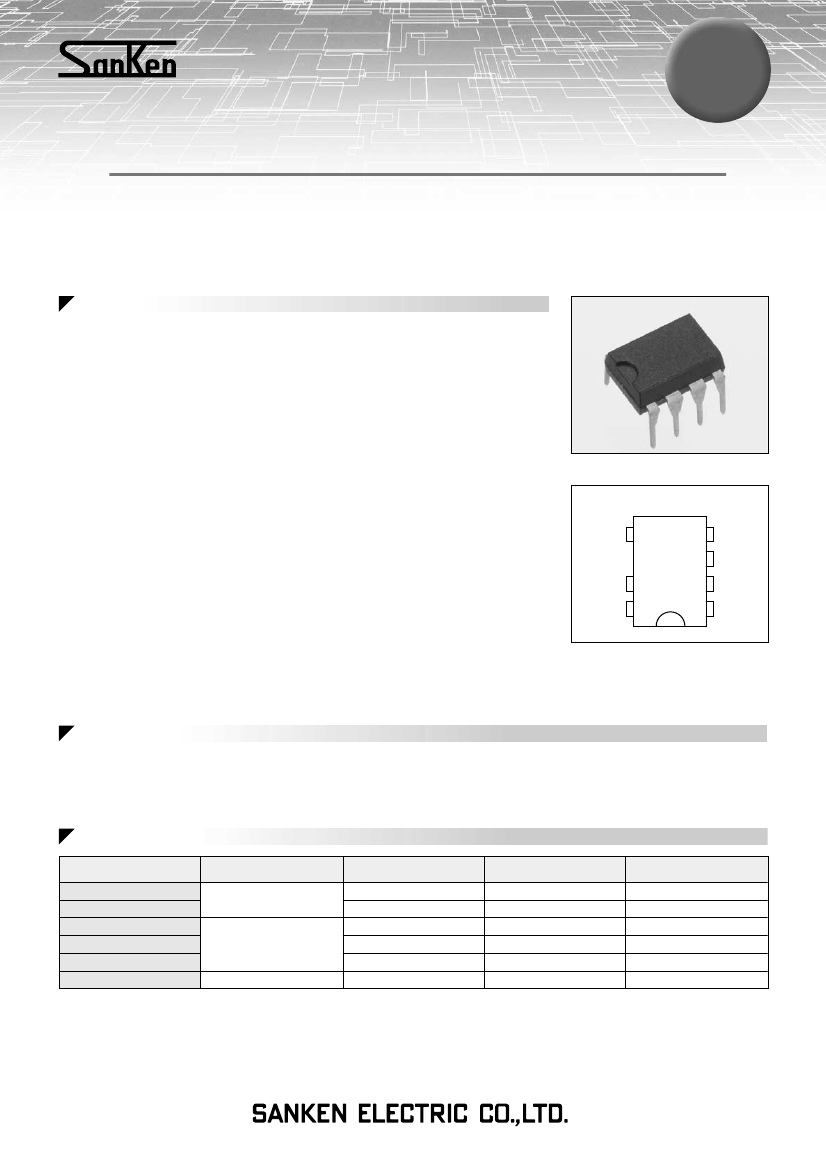

STR-A6100
Series
PRC, Auto Burst Standby, Current-Mode Control
Newuct
Newuct
rod
rod
P
P
Low Power Off-line SMPS Primary Switcher
Features
●
PRC
〔Pulse
Ratio Control〕 (8µs fixed off-time, variable on-time)
:
The switching frequency varies within an optimum range of 63kHz to 120kHz, according to load
variations, to create a quasi-jittering, low-EMI noise operation.
●
Auto burst standby:
(No Load Consumption < 100 mW at AC 264V)
Enables very low power consumption at no load.
Typical results of a 5W universal input power supply are 35mW at AC110V and 43mW at AC220V.
●
Auto bias function
This function stabilizes operation during Auto Burst Standby mode, by preventing a Hiccup mode.
The Auto Bias function forces the IC to turn on before the V
CC
voltage reaches V
CC (OFF)
, thereby
stabilizing the entire power supply operation.
●
Integrated startup circuit
600V BCD process allows direct connection of the STARTUP pin to the rectified high voltage
rail. This reduces component count and improves overall efficiency.
●
Current mode control
●
Leading edge blanking
Not required the external Low-pass filter circuit which prevent the malfunction due to the leading
edge spike current.
●
Avalanche energy guaranteed MOSFET with high V
DSS
The built-in power MOSFET simplifies the surge absorption circuit since the MOSFET guarantees
the avalanche energy.
No V
DSS
de-rating is required.
●
Various protecting functions
• Over current protection ------------ pulse by pulse
• Over voltage protection ------------ with latch
• Overload protection ---------------- Auto restart
• Thermal shutdown ------------------ with latch
Package (DIP-8)
Outline (TOP VIEW)
Startup
5
4
3
V
FB
/OLP
GND
V
CC
S/OCP
Drain
Drain
7
8
2
1
Applications
Battery Charger ----------------------
Standby Power Supply ---------------
S.M.P.S. --------------------------------
Controller Power Supply ------------
Cell Phone, Digital Still Camera, Camcorder, Shaver, Emergency light, Guidance light, and etc.
Various TV applications, PC, LBP, Audio system and etc.
Ink jet printer, DVD Player/ Recorder, VCR, Set Top Box and etc.
Air conditioner, Refrigerator, Washer, Dish Washer and etc.
Product Lineup
Part Number
V
DSS
500V
R
DS(ON)
3.95Ω
2.62Ω
1.90Ω
650V
800V
3.95Ω
6.00Ω
19.20Ω
V
IN(AC)
100V/120V
100V/120V
230V/85V∼264V
230V/85V∼264V
230V/85V∼264V
230V/85V∼264V
Pout
12W
16W
24W/20W
16W/12W
13W/10W
8W/5W
STR-A6131
STR-A6132
STR-A6153E
STR-A6151
STR-A6159
STR-A6169
STR-A6100
Series
■

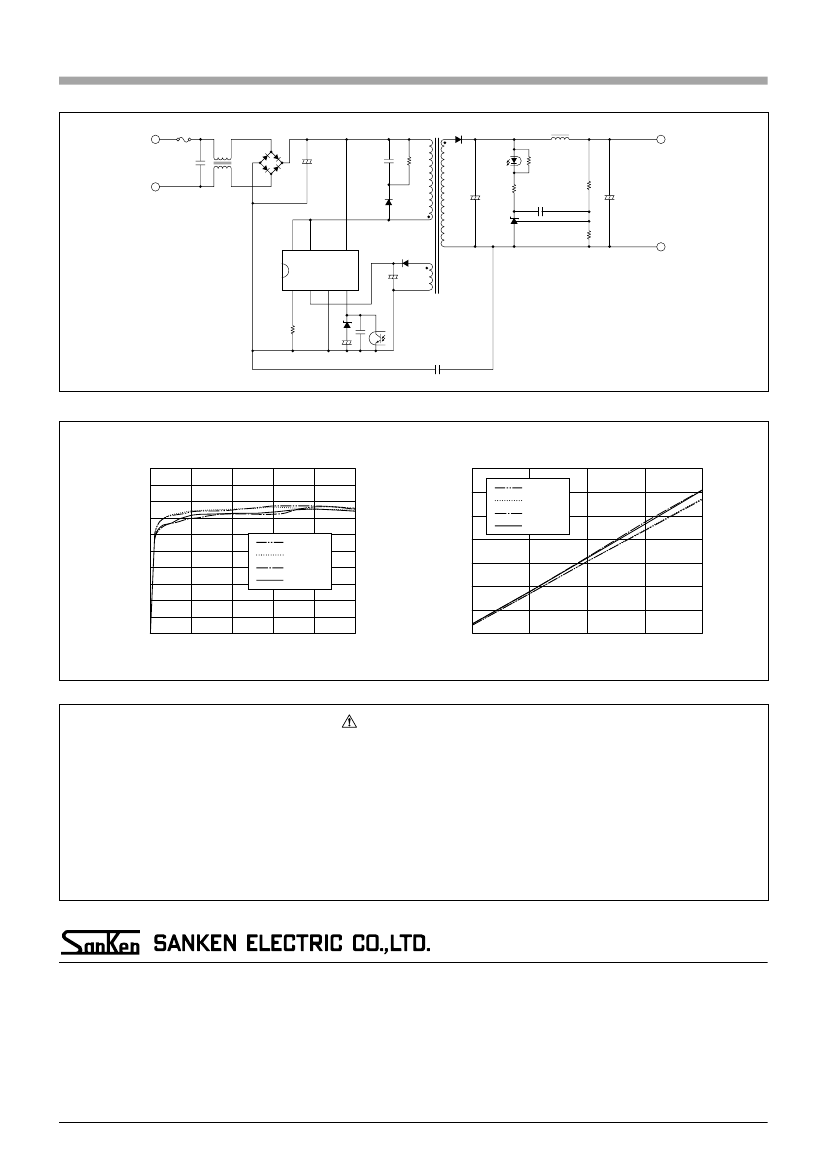

Design example (STR-A6159)
F1
L1
C1
D1
+
C2
400V
22µF
1000pF
630V
C91
100kΩ
R91
SFPB-76
D11
PC1
PC123
R11
220Ω
R12
1.5kΩ
50V
0.1µF
C13
27kΩ
R14
(5W Universal input-single output power supply)
L2
＋5V/1A
AC85∼264V
D91
EG01C
C11
10V
470µF
+
+
C12
10V
220µF
IC2
TL431
8
D
7
D
5
Start up
EG01Z
D2
+
C4
35V
22µF
T1
EI-16
27kΩ
R15
GND
IC1
STR-A6159
OCP V
CC
GND FB
1
2
3
4
4700pF
50V
C3
+
R3
2.2Ω
RD5.1 D3
C5
PC1
PC123
50V
2.2µF
2200pF
250V
C99
■
Electrical Characteristics of the above power supply design
Efficiency
η
vs Output Current I
O
100
90
80
0.7
0.6
AC85V
AC110V
AC220V
AC264V
Input Power Pin vs Output Power P
O
Input Power Pin (W)
1.0
Efficiency
η
(%)
70
60
50
40
30
20
10
0
0.0
0.2
0.4
0.6
0.8
AC85V
AC110V
AC220V
AC264V
0.5
0.4
0.3
0.2
0.1
0.0
0.0
0.1
0.2
0.3
0.4
Output Current I
O
(A)
Output Power P
O
(W)
