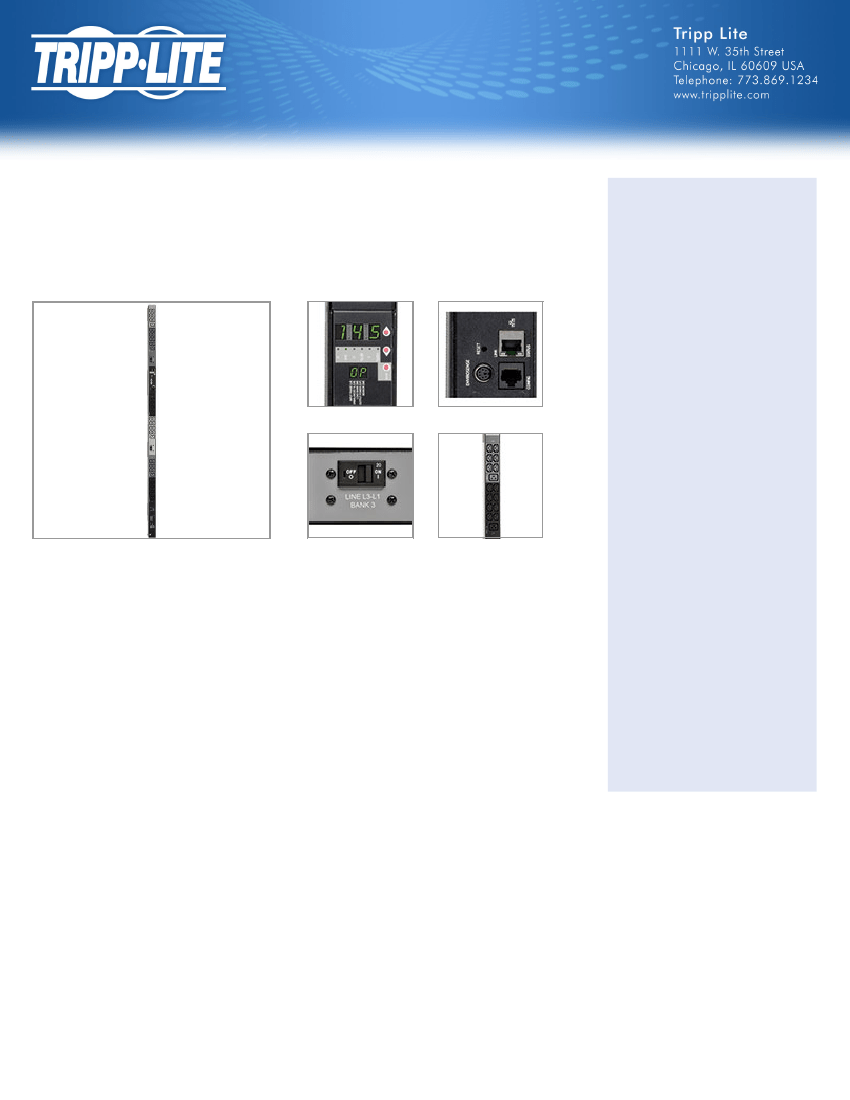

14.5kW 3-Phase Monitored PDU, 200/208/240V
Outlets (42-C13, 6-C19), Hubbell 50A CS8365C,
6ft Cord, 0U Vertical, TAA
MODEL NUMBER:
PDU3VN6H50B
Highlights
q
Monitored 14.5kW 3 Phase
200/208/240V PDU in 70 in. /
178cm 0U vertical mounting
format
q
Reports voltage and load per-
phase via built in ethernet
interface
q
1% billing-grade accuracy, Multi-
function digital display,
Environmental monitoring
options
q
Hubbell CS8365C 50A
200/208/240V 3 phase input; 6
ft. / 1.8m line cord
q
42 C13 & 6 C19 single phase
outlets; Plug-lock cable retention
Description
Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage
and load levels via built-in network connection. PowerAlert interface supports custom notification of user-
specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current
consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored
remotely to warn of potential overloads before critical IT mains breakers trip.
q
q
sleeves
TAA Compliant
Package Includes
q
Monitored rackmount PDU with
pre-installed mounting buttons
Spare installation buttons (2
9mm / 4 6mm)
Features
q
14.5kW 3 phase 200/208/240V Monitored Power Distribution Unit / PDU with built-in web/network
q
Rack mounting brackets
Owner's manual
interface
q
q
Hubbell CS8365C 50A 200/208/240V 3 phase input plug with 6 ft. / 1.8m cord
0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
48 total 200/208/240V outlets (42 C13, 6 C19) arranged in three breakered single phase output load
banks
q
q
q
Network interface provides PDU data regarding input voltage and per-phase load levels with +/-1%
billing-grade accuracy
q
Lighted display with scroll-button reports power consumption in amps for all 3 loading banks, IP-address
self-identification and 180 degree display rotation for overhead or raised floor power feeds
q
Built-in SNMP/ethernet interface reports voltage and PDU loading per-phase via network or secure web
browser interface with options for user specified alarm and notification thresholds
q
Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor
and rack access notification with up to 4 optional SRSWITCH door sensors
q
DHCP/Manual configuration support
1/4
q
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2,
SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
q
q
q
q
q
q
Fully compatible with FREE PowerAlert Network Management System / NMS Software
Included set of plug-lock inserts keep C14 & C20 power cords solidly connected to PDU outlets
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for
other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons
included)
q
q
q
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Specifications
OVERVIEW
UPC Carton UPC#
PDU Type
037332182968
Monitored
OUTPUT
Output Capacity Details
Frequency Compatibility
Output Receptacles
Output Nominal Voltage
Overload Protection
14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V) total capacity; 20A max per
breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
50 / 60 Hz
(42) C13; (6) C19
200; 208; 240
3 20A circuit breakers, 1 per outlet bank
INPUT
PDU Input Voltage
Recommended Electrical Service
Maximum Input Amps
PDU Plug Type
Input Cord Length (ft.)
Input Cord Length (m)
Input Phase
200; 208; 240
50A 208/240V with Hubbell CS8365C outlet
35
HUBBELL CS8365C 50A
6
1.83
3-Phase
USER INTERFACE, ALERTS & CONTROLS
2/4
Reported Load Segments
Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (20A balanced max
per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black
outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity*
information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large
display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V),
Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank
(B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED
FLASHING (Power OFF/breaker trip)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options;
Additional MODE button advances the LEDs to view the next measurement
Front Panel LCD Display
Front Panel LEDs
Switches
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Form Factors Supported
PDU Form Factor
6.200 x 9.800 x 75.500
15.75 x 24.89 x 191.77
23.9200
10.85
70 x 2.17 x 2.86
177.8 x 5.5 x 7.3
17.15
7.78
Metal
Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-
mount compatible racks
Vertical (0U)
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Operating Elevation (ft.)
Operating Elevation (m)
32 to 122F (0C to 50C)
5 to 140F (-15C to 60C)
5 to 95% non-condensing
0-10,000
0 - 3000 m
CERTIFICATIONS
Certifications
Tested to UL60950-1 (USA) CAN60950-1 (Canada), NOM (Mexico), Class A (Emissions), ROHS, TAA Compliant
WARRANTY
Product Warranty Period
(Worldwide)
2-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
3/4
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
