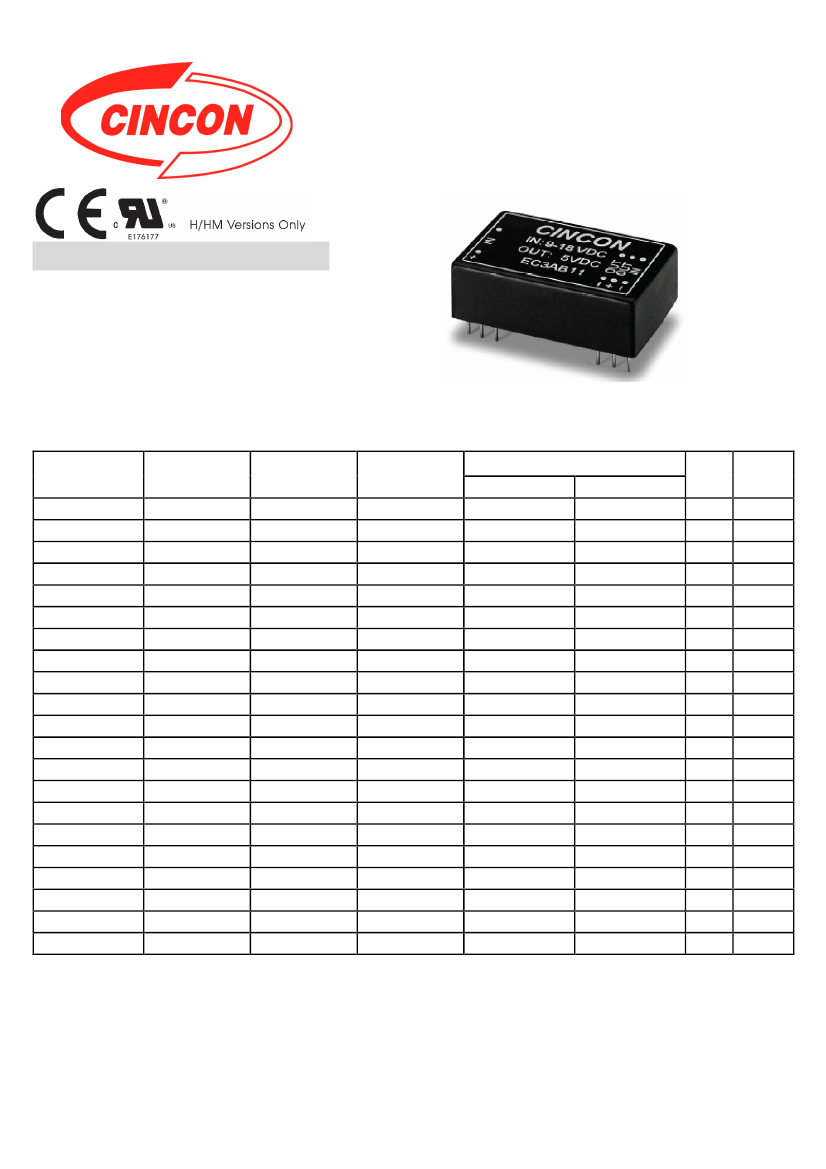

V15
SPECIFICATIONS
All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted
INPUT SPECIFICATIONS:
Input Voltage Range ....……………..........….......... 12V ........................ 9-18V
24V ...................... 18-36V
48V ...................... 36-72V
Positive Logic Remote ON/OFF ( see note 6 )
Input Filter ………………………………………………….…….……..... Pi Type
ISOLATION VOLTAGE:
500 VDC min. …………………………………………… Standard Models
3K VDC min. (note4) …………………………………… Suffix “H” Models
1.5K VDC min. ………………………………………… Suffix “HM” Models
CASE MATERIAL:
Standard Models …………….…………… Non-Conductive Black Plastic
Suffix “M” Models …………….……….. Black Coated Copper with Non-conductive Base
OUTPUT SPECIFICATIONS:
Voltage Accuracy .......................................................................... ±2.0% max.
Voltage Balance (Dual) .................................................................. ±1.0% max.
Temperature Coefficient …………………………………………… ±0.05%/℃
Ripple & Noise, 20MHz BW …………….… 3.3V/5V ……. 100mV pk-pk max.
12V/15V ……...… 1% pk-pk max.
Short Circuit Protection ……………………………………………… Continuous
Line Regulation Single/Dual (note1) …….………………….........…±0.5% max.
Load Regulation (note2) Single ………………….......……….... ±0.5% max.
Dual (note3) ………………………… ±1.0% max.
NOTE:
1. Measured from high line to low line.
2. Measured from full load to 10% load.
3. Measured from full load to 1/4 load.
4. Non-conductive black plastic only.
5. Suffix “T” to the model number with remote on/off for “H”/”HM”
versions only.
6. Logic Compatibility …. CMOS or open collector TTL, ref. to -Vin
Module on …………..……..……… >5.5VDC or open circuit
Module off ….………………….……………………. <1.8Vdc.
Shutdown Idle ………………………………………….. 10mA
Control common ……….…….. referenced to input minus
7. Suffix “S” to the model number with SMD packages.
8. Maximum case temperature under any operating condition should
not be exceeded 95℃(Plastic Case),100℃(Copper Case).
GENERAL SPECIFICATIONS:
Efficiency .......................................................................................... See Table
9
Isolation Resistance ............................................................…… 10 ohm min.
Switching Frequency ................................................................... 100KHz min.
Operating Ambient Temperature Range .................................. -25℃ to +71℃
De-rating, Above 71℃ (Plastic Case) ……… Linearly to Zero power at 95℃
De-rating, Above 71℃ (Copper Case) ….… Linearly to Zero power at 100℃
Case Temperature (Plastic case note 8) ...................................... 95℃ max.
(Copper case note 8) ………………………….. 100℃ max.
Cooling ………………………………………………….…….. Natural Convection
Storage Temperature Range ………....….......……........ -40℃ to +100℃
EMI/RFI ………………………..……. Conductive EMI Meet EN55022 Class B
Dimensions …… DIP ….…...… 1.25x0.80x0.50 inches(31.8x20.3×12.7 mm)
SMD …….… 1.25x0.80x0.55 inches(31.8x20.3×14.0 mm)
Typical Derating curve for Natural Convection
120%
100%
LOAD(%)
80%
60%
40%
20%
0%
-25
95
-25
71
Case A Dimensions:
NOTE:Pin Size is 0.02±0.002 Inch (0.5±0.05 mm) DIA
All Dimensions In Inches (mm)
Tolerances
Inches: X.XX= ±0.02 , X.XXX= ±0.010
Millimeters: X.X= ±0.5 , X.XX=±0.25
Plastic Case
Copper Case
100
0
25
50
75
Ambient Temperature(
o
C)
PIN CONNECTION
100
CASE AS
Pin
SEE NOTE
500 VDC
Single Output
DIP
1,24
SMD
+V Input
NC
NC
NP
NP
NP
NC
NC
NC
Dual Output
DIP
SMD
+V Input
-V Output
Common
NP
NP
NP
NC
NC
NC
Pin
1,24
2,3
4
5
9
10,15
11
12,13
14
16
20,21
22,23
NP
1.5K & 3K VDC
Single Output
DIP
NP
SMD
NC
Dual Output
DIP
NP
SMD
NC
TOP
VIEW
BOTTOM
VIEW
2,23
3,22
4
5
9
10,15
11,14
12,13
16
20
21
-V Input
NP
NP/
NC
NC
NC
NC
NC
NC/
-V Input
NP
NP/
NC
NC/
Common
NC
-V Output
NP
NC
-V Output
+V Output
-V Input
NP
NP
NP
NC
NC
NC
Common
+V Output
-V Input
NP
NP
NP
NC
NC
NC
+V Output
-V Output
NP
NC
+V Output
Common
NP
NC
+V Input
+V Input
* NC-NO CONNECTION WITH PIN
* NP-NO PIN
* Remote On/Off (Option)
