PDA150B Series
Brand Name
Description
Input Voltage
Input Frequency
Safety
IP Rating
Phihong LED Driver
150W, Non-Dimmable LED Driver
120 ~ 277VAC
50/60Hz
CE, UL, RoHS
IP66
Electrical Specifications:
Output
Power
(W)
150
150
150
150
150
150
Output
Voltage
(V)
0V~425V
0V~280V
0V~210V
0V~140V
0V~100V
0V~89V
Output
Current
(A)
0.35
0.53
0.7
1.05
1.5
1.68
Tcase
Max
(C)
Input
Current (A)
Input
Power
(W)
Inrush
Current
Max
THD
(%)
Min
Power
Factor
Surge
Protection
(KV)
Part Number
PDA150B-S350G-R
PDA150B-S530G-R
PDA150B-S700G-R
PDA150B-S1A0G-R
PDA150B-S1A5G-R
PDA150B-S1A7G-R
80
1.4A@120VAC
0.6A@277VAC
164
≤
30A
12
0.9
4.0

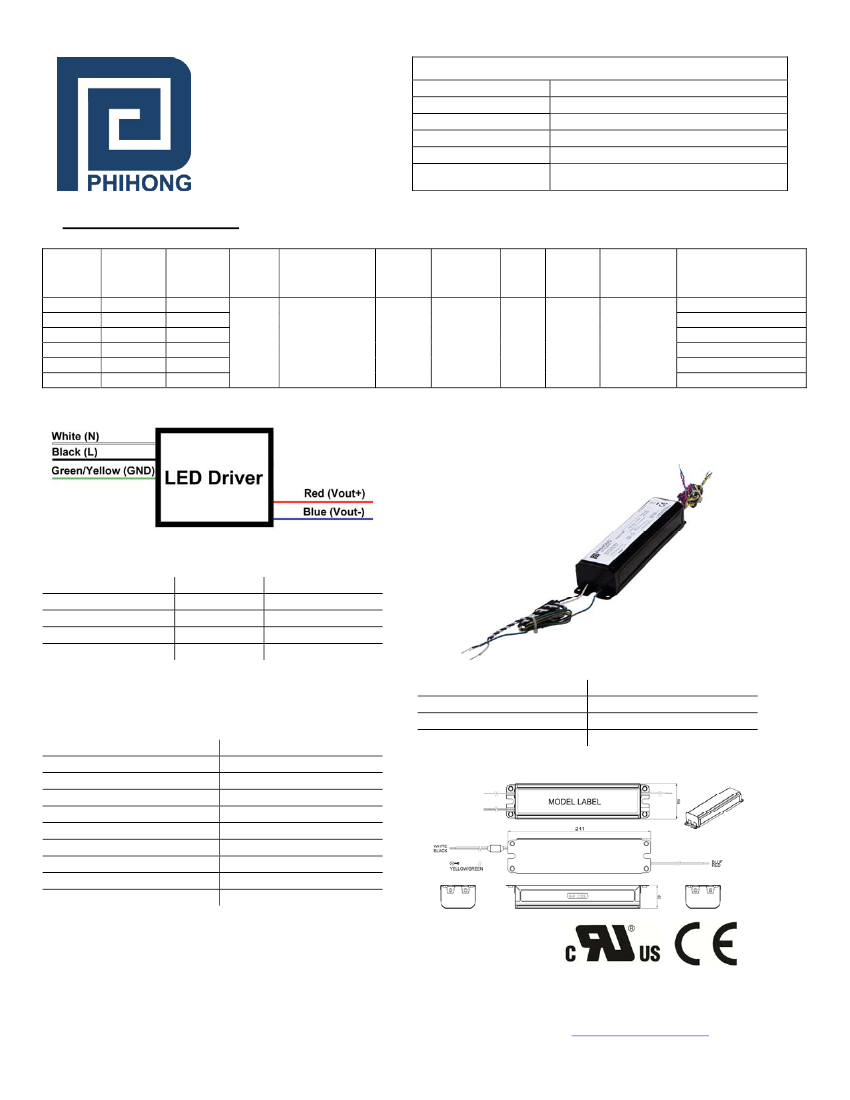

Wiring Diagram
Input, Output use lead-wires. Lead-wires are 18AWG
105C/600V solid Copper.
Standard Lead Length
Color
In.
Cm.
Black
10
25
White
10
25
Blue
10
25
Red
10
25
Length:
Width:
Height:
Weight
Dimension Diagram
241mm (9.49in)
59mm (2.32in)
39mm (1.54in)
1043g (2.3lbs)
Maximum Wiring Distance (at Full Load)
Wire Size (AWG)
Distance (Feet)
26
8
24
13
22
21
20
34
18
54
16
85
14
137
12
210
10
357
PHIHONG TECHNOLOGY CO., LTD.
47800 Fremont Blvd., Fremont, CA 94538 • T: 1-510-445-0100 •
www.phihong.com/LED
Revision 7/2/2014
PDA150B Series
Brand Name
Description
Input Voltage
Input Frequency
Safety
IP Rating
Phihong LED Driver
150W, Non-Dimmable LED Driver
120 ~ 277VAC
50/60Hz
CE, UL, RoHS
IP66
Installation & Application Notes:
Section I – Physical Characteristics
1.1
LED Driver shall be installed inside an electrical enclosure.
1.2
Wiring inside electrical enclosure shall comply with 600V/105°C rating or higher.
Section II – Performance
2.1
LED Driver complies with UL standard UL8750
2.2
LED Driver has Class A sound rating.
2.3
LED Driver has a minimum ambient operating temperature of -40°C.
2.4
LED Driver has a life expectancy of 50,000 hours at Tcase of
≤80°C.
2.5
LED Driver has a life expectancy of 100,000 hours at Tcase of
≤65°C.
2.6
LED Driver has a typical self rise of 25°C at maximum load in open air without heat sink.
2.7
LED Driver maximum allowable case temperature is 80°C – see product label for measurement location.
2.8
LED Driver reduces output power to LEDs if max allowable case temperature is exceeded.
2.9
LED Driver has a failure rate of
≤0.01%
per 1,000 hours at Tcase
≤70°C.
2.10
LED Driver tolerates sustained open circuit and short circuit output conditions without damage.
2.11
LED Driver complies with the requirements of the Federal Communications Commission (FCC) rules and
regulations, Title 47 CFR Part 15 Non-Consumer (Class B).
Section III – UL Conditions of Acceptability (File E321253)
When installed in the end-use equipment, the following are among the considerations to be made:
3.1
The equipment shall be installed in compliance with the enclosure, mounting, spacing, casualty and
segregation requirements of the ultimate application.
3.2
Consideration should be given to measuring the temperatures on electronic components of power circuits
and transformer windings when the unit is installed in the end-use equipment based upon mounting
orientation, operating ambient and ventilation.
3.3
These drivers should be used within the recognized ratings.
3.4
The driver is suitable for use in “DAMP” and “DRY” locations.
3.5
The maximum available output parameters from the (0-10V) dimming circuit provided on LED driver model
PDA150W Series were tested in accordance with supplement (SB) of UL935 and was found
permissible for connection via Class 2 wiring.
3.6
When the drivers are installed in the end-use application, the case temperature should not exceed the
temperature limit specified.
3.7
The maximum measured leakage current was 0.2mA while connected to a 277V source of supply.
PHIHONG TECHNOLOGY CO., LTD.
47800 Fremont Blvd., Fremont, CA 94538 • T: 1-510-445-0100 •
www.phihong.com/LED
Revision 7/2/2014
PDA150B Series
Brand Name
Description
Input Voltage
Input Frequency
Safety
IP Rating
Phihong LED Driver
150W, Non-Dimmable LED Driver
120 ~ 277VAC
50/60Hz
CE, UL, RoHS
IP66
Electrical Specifications
Input:
AC Input Voltage Range
90VAC to 305VAC
EMC
EN55015/CISPR 15/FCC 47 Part 15/18 Class B
Immunity
AC Input Frequency
47~63Hz
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
IEC61000-3-2
Maximum Input Current
≤
2A
Leakage Current
0.5mA maximum at 277VAC Input
Class C
Inrush Current
≤
30A
Output Over Current Protection
The power supply will withstand continuous output overload
OUTPUT:
Power Factor
≥
0.9
Short-Circuit Protection
The PSU will withstand a short circuit across the
outputs without damage
Ripple and Noise
≤5%
of the Output Current
Over Voltage Protection
Output is protected from no load and over voltage conditions

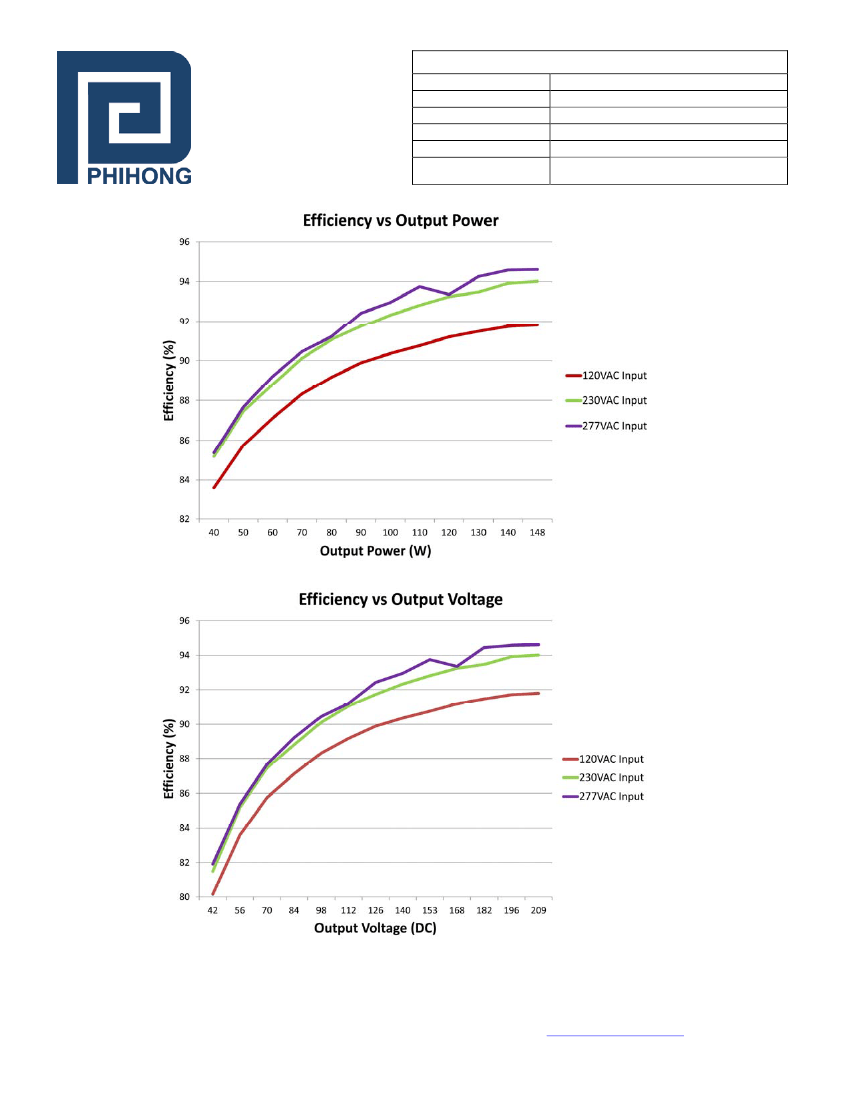

Efficiency (Typical)
94% at 230~ 277VAC
92% at 120VAC
Dielectric Withstand (Hi-pot) Test
Primary to secondary: 4242VDC for 1 minute, 5.5mA
Insulation Resistance
Primary to secondary: >5M Ohm 500VDC, 1 Minute
Turn-on Delay Time
<1s maximum at nominal AC Power ON
Lifespan
50K Hours at full output power, 50°C ambient, Tcase <80°C
Environmental:
Temperature
Operation
Non-operation
Operating Humidity
(*) Case Temperature
-40 to +85°C (*)
-40 to +85°C
10 to 95%
<80°C
Wire Connections
Position
Line
Neutral
Ground
Vout+
Vout-
Terminal Color
Black
White
Green/Yellow
Red
Blue
Specification
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
AWG18 Solid Wire
Warranty
5 Years
PHIHONG TECHNOLOGY CO., LTD.
47800 Fremont Blvd., Fremont, CA 94538 • T: 1-510-445-0100 •
www.phihong.com/LED
Revision 7/2/2014
