PM10-12S12 Overview

Isolated DC/DC Converters 10W 12V 0.83A

PM10-12S12 Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
package instruction	, MODULE,5LEAD,.8
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V
Minimum input voltage	9 V
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Maximum output current	0.83 A
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,5LEAD,.8
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	OTHER

Preview

Download Datasheet

View All

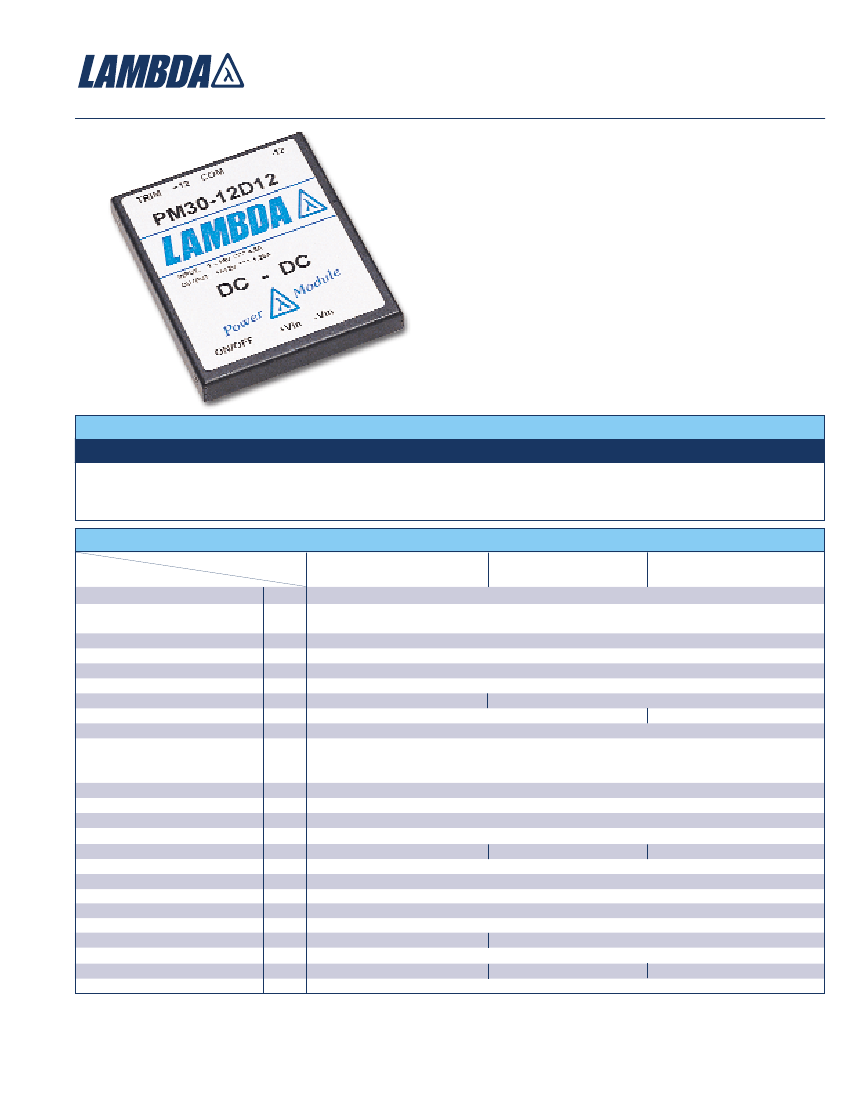

PM Series

Low Profile DC-DC Converters

Industry Standard Footprints

Less than .35" Profile

Wide Input Range 2:1

Agency Approved

12V, 24V and 48V Inputs

2 year Warranty

PM Features and Benefits

Feature

Meets UL, CSA, EN, CE, ETSI standards

100% SMT Technology

Fast delivery for production quantities

Benefit

Easier system approvals

High Reliability

Reduced Inventory

Specifications

MODELS

ITEMS

DC Input

Input Line Transients (100ms max)

No Load Input Power

Inrush Current Limiting

EMI (24V&48V I/P models) (1)

Output Voltage Accuracy

Output Voltage Adj. Range (Trim)

Line Regulation (typical)

Load Regulation (typical) (2)

Minimum Loading

Ripple and Noise (Peak to peak)

Overvoltage Protection

Short Circuit Protection

Cooling

Operating Temp. Range

Temperature Coefficient

Humidity (non condensing)

Isolation Resistance

Isolation Voltage (Input to output)

Vibration and Shock

Remote On / Off

Safety Agency Approval

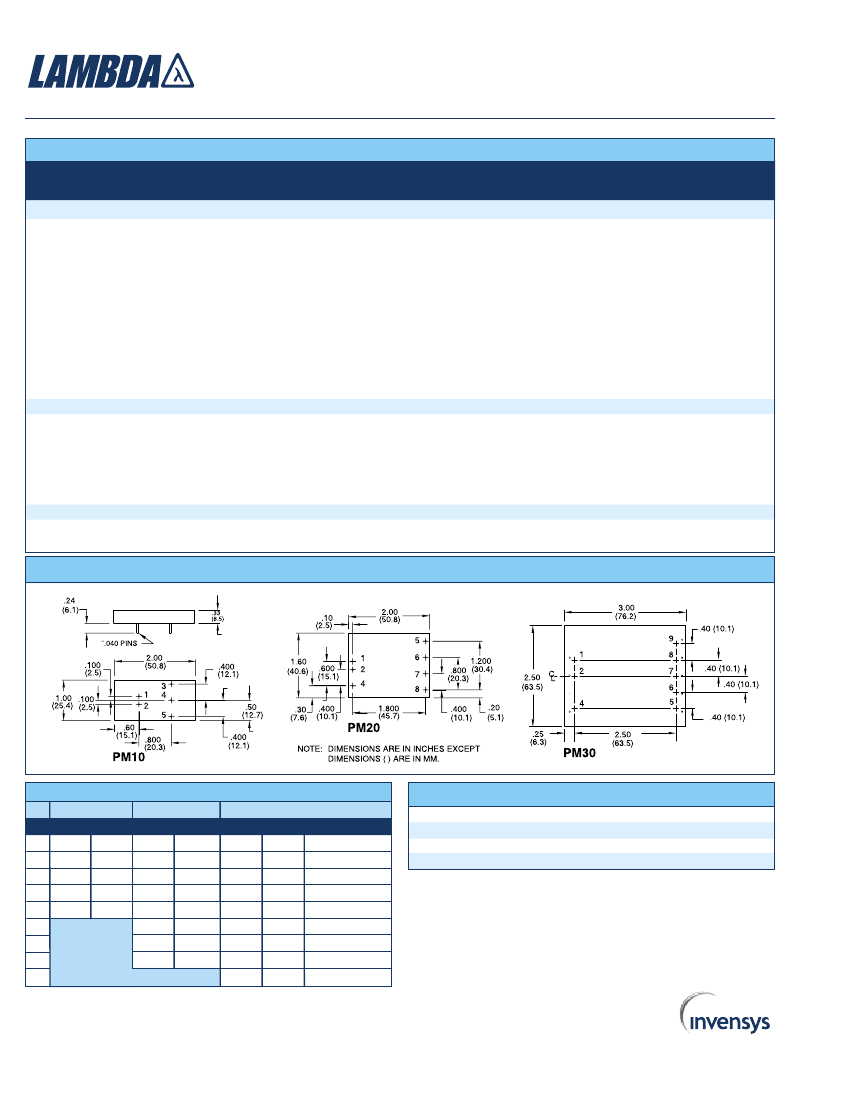

Size (L x W x H)

Warranty

VDC

Ohm

PM10

PM20

PM30

12V: 9-18V, 24V: 18-36V, 48V; 36-75V

12V input: 25V, 24V input models 50V

48V input: 100V ETSI Standard ETS 300132 (100V 10 joules)

0.4W

ETSI-300-132 (<50A peak)

EN55022 B, FCC B, ANSI 63.12-1987

Single output: ±1%, Dual output: ±1.5%

None

Output 1: ±10%

0.2%

Main 0.2%, Aux 3%

Single / main output: 1.0%, Dual: 2%, PM30xxT aux outputs: 8%

A minimum load of 0.1A is required on outputs 2 and 3 in order for the converter to turn-on.

Regulation values pertain to operation with output currents above 10% of rated load

current on main output and above 25% of rated current on auxiliary outputs.

3V & 5V Outputs: 75mV, 12V & 15V Outputs: 100mV(3)

Output is clamped at factory set level

Main output: Continuous, Aux outputs: 30ms max

Convection

-40ºC to +70ºC

-40ºC to +60ºC

-40ºC to +50ºC

Outputs 1 & 2: ±0.015%/ºC, PM30xxT aux outputs: ±0.03%/ºC

5% to 95% RH

10M

12V & 24V input models: 700VDC, 48V input: 1500VDC

2.5G, 10-50Hz, 10 minutes per axis

None

Low = OFF

UL, CSA, EN60950 and CE Mark

2x1x0.33

2x1.6x0.33

3x2.5x0.33

Two Years

(2) For a 25 to 100% load change, >5W load on output 1 for PM30xxT

(3) 120mV pk pk on outputs 2 & 3 of triple output PM30

Note: See Installation Manual for full details, test methods of parameters & app. notes

(1) With external filter

3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4
