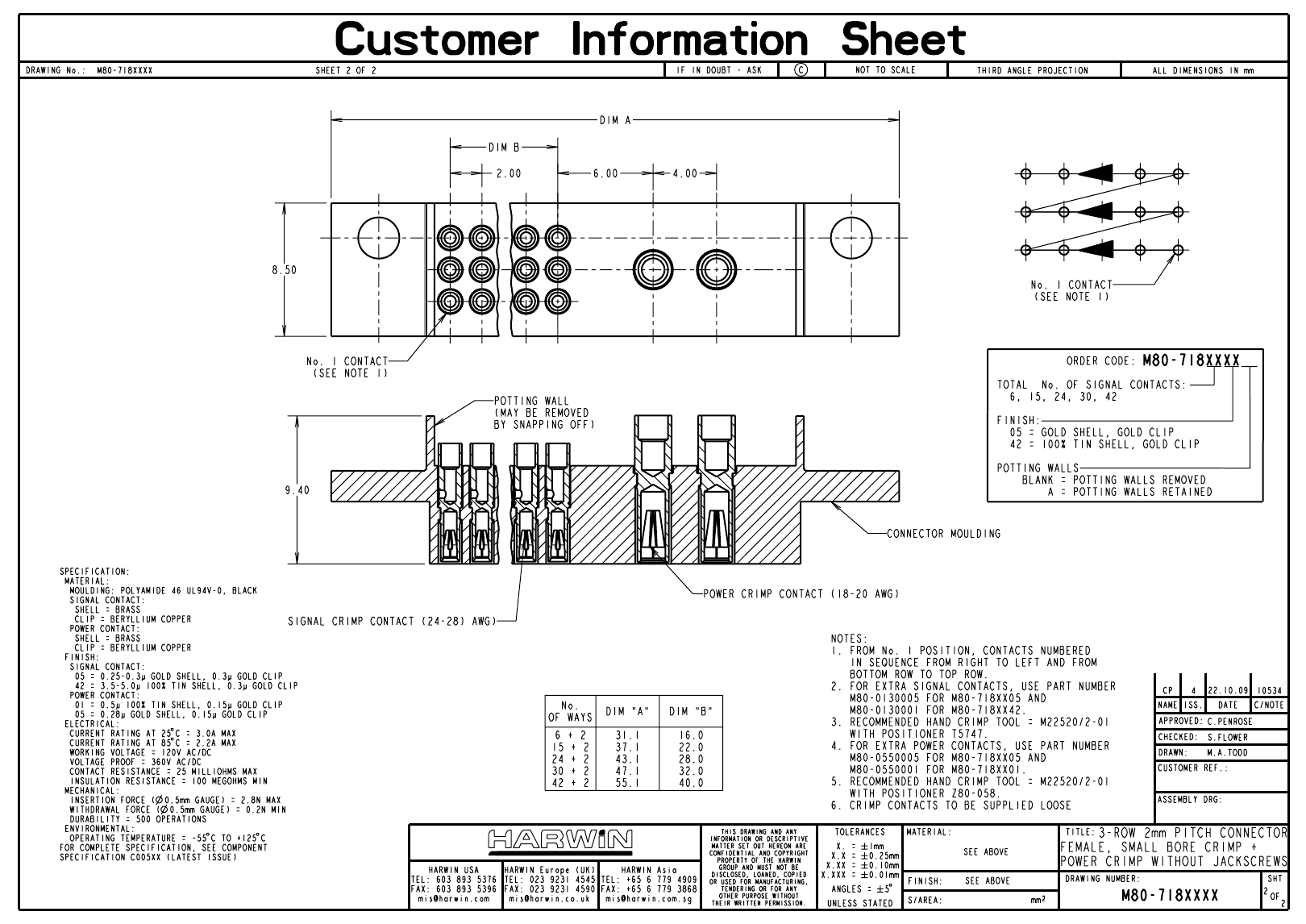

Preview

M80-7183042A

Description
Board Connector, 32 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug
CategoryThe connector    The connector
File Size124KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M80-7183042A Overview

Board Connector, 32 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug

M80-7183042A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.335 inch
subject depth0.37 inch
body length1.854 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact arrangementS30P2
Contact to complete cooperationGOLD (12)
Contact completed and terminatedGOLD (12)
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Contact resistance25 mΩ
Contact styleHYBRID
DIN complianceNO
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialPOLYAMIDE46
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberM80-718
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness12u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeCRIMP
Total number of contacts32
UL Flammability Code94V-0

Preview

Download Datasheet

M80-7183042A Related Products

M80-7183042A M80-7180642A M80-7180642 M80-7181542A M80-7181542 M80-7182442A M80-7182442 M80-7183042 M80-7184242A M80-7184242
Description Board Connector, 32 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 8 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 8 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 17 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 17 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 26 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 26 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 32 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 44 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug Board Connector, 44 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Harwin Harwin Harwin Harwin Harwin Harwin Harwin Harwin Harwin Harwin
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch
subject depth 0.37 inch 0.37 inch 0.244 inch 0.37 inch 0.244 inch 0.37 inch 0.244 inch 0.244 inch 0.37 inch 0.244 inch
body length 1.854 inch 1.224 inch 1.224 inch 1.461 inch 1.461 inch 1.697 inch 1.697 inch 1.854 inch 2.169 inch 2.169 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S30P2 S6P2 S6P2 S15P2 S15P2 S24P2 S24P2 S30P2 S42P2 S42P2
Contact to complete cooperation GOLD (12) GOLD (12) GOLD (12) GOLD (12) GOLD (12) GOLD (12) GOLD (12) GOLD (12) GOLD (12) GOLD (12)
Contact completed and terminated GOLD (12) GOLD (12) Matte Tin (Sn) GOLD (12) Matte Tin (Sn) GOLD (12) Matte Tin (Sn) Matte Tin (Sn) GOLD (12) Matte Tin (Sn)
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER
Contact resistance 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
DIN compliance NO NO NO NO NO NO NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
empty shell NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46
JESD-609 code e4 e4 e3 e4 e3 e4 e3 e3 e4 e3
MIL compliance NO NO NO NO NO NO NO NO NO NO
Manufacturer's serial number M80-718 M80-718 M80-718 M80-718 M80-718 M80-718 M80-718 M80-718 M80-718 M80-718
Mixed contacts YES YES YES YES YES YES YES YES YES YES
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 12u inch 12u inch 12u inch 12u inch 12u inch 12u inch 12u inch 12u inch 12u inch 12u inch
Rated current (signal) 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Shell material BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS
Termination type CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP
Total number of contacts 32 8 8 17 17 26 26 32 44 44
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
