PSA15R-150PV: DescriptionWall Mount AC Adapters Wall Mount - Interchangeable; CategoryPower/power management; File Size1MB，2 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric Compare View All

PSA15R-150PV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSA15R-150PV	-	-	View	Buy Now

PSA15R-150PV Overview

Wall Mount AC Adapters Wall Mount - Interchangeable

PSA15R-150PV Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHIHONG
Product Category	Wall Mount AC Adapters
Efficiency	Level VI
Mounting Style	Wall Mount

Preview

Download Datasheet

View All

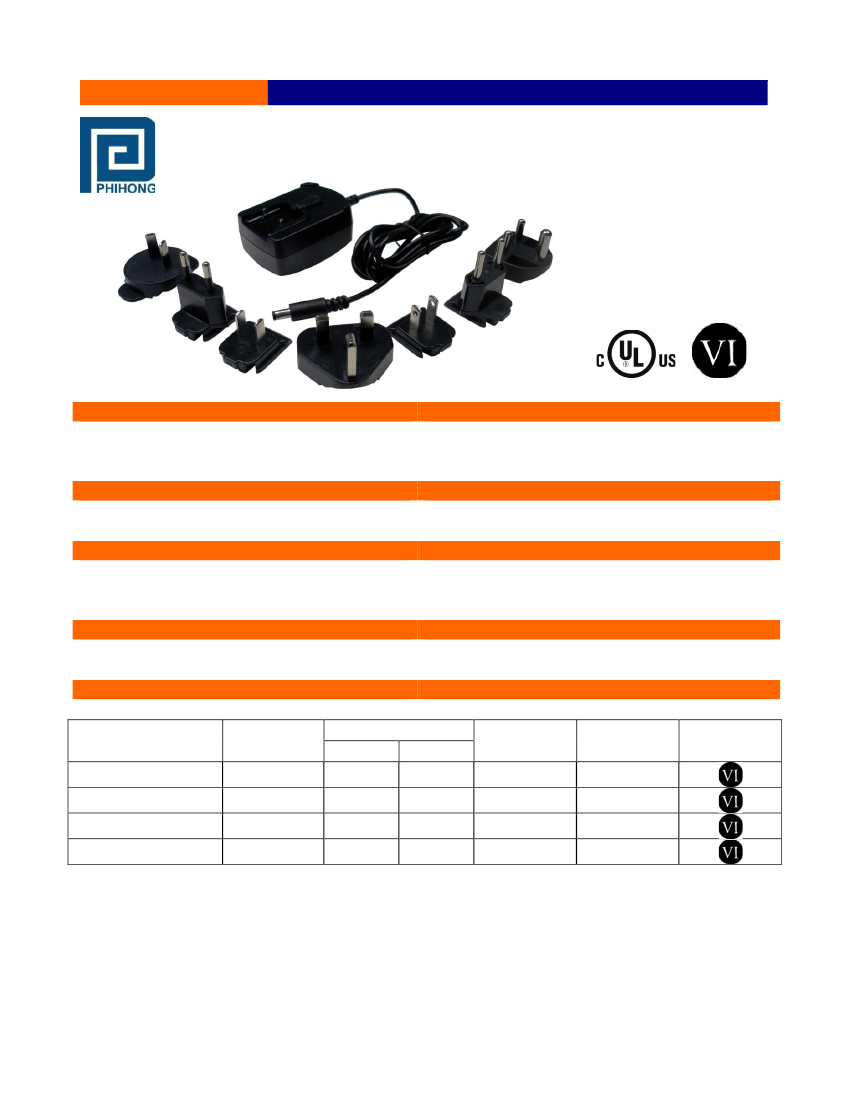

WWW.PHIHONG.COM

15 Watt Interchangeable Plug Series

PSA15R Wall Plug Adapter Meets Level VI Requirements

*clips sold separately

Features

•

Limited Power Source

•

Class B EMI

Applications

•

Wireless Communications

•

Peripherals

Safety Approvals

•

cUL/UL 60950-1

•

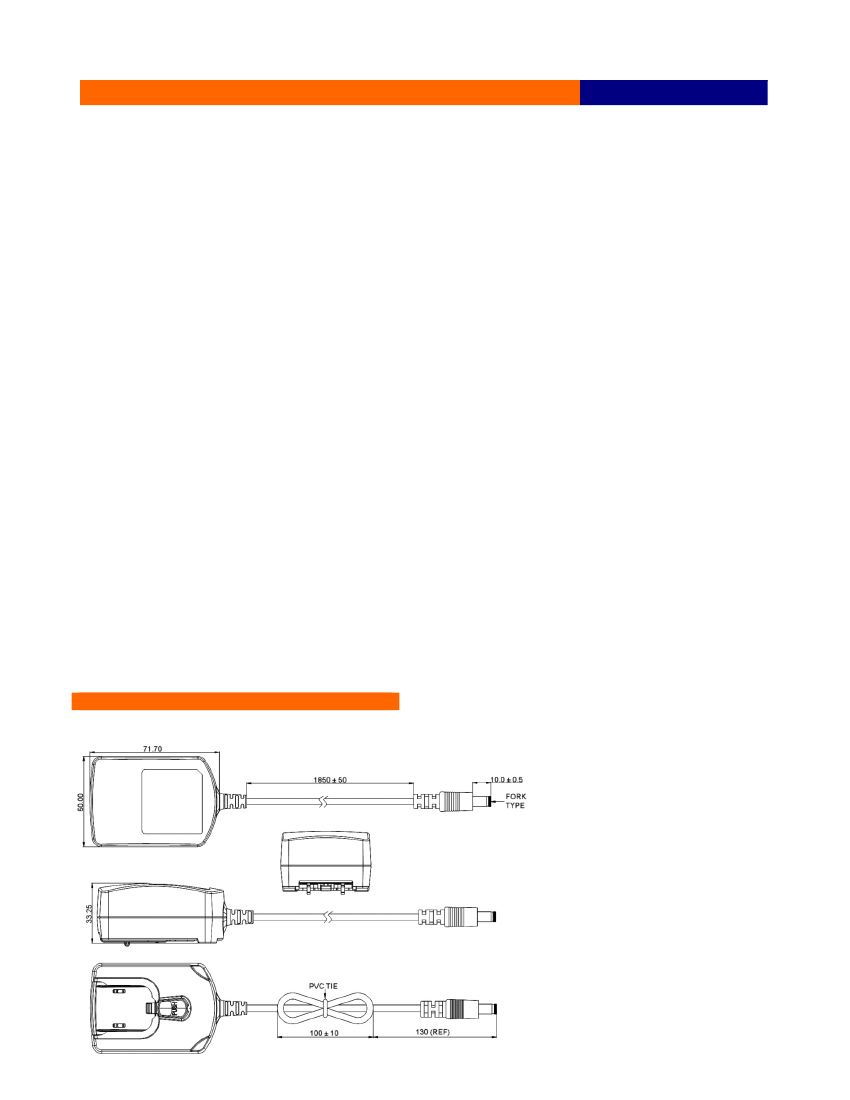

Mechanical Characteristics

•

Length: 71.7mm (2.82in)

•

Width: 50mm (1.91in)

Output Specifications

Model

PSA15R-120P6

PSA15R-150P6

PSA15R-240P6

PSA15R-480P6

DC Output

Voltage

12V

15V

24V

48V

Load

Min.

•

Class II Double Insulated

High Efficiency

Portable Equipment

PDA

•

Height: 33.2mm (1.31in)

Weight: 145g (5.12oz)

Ripple

(1)

P-P (max.)

100mV

200mV

400mV

Regulation

Line & Load

±5%

Efficiency

Level

Max.

1.25A

1.0A

0.625A

0.31A

(1) Measured after 30 minutes with by-pass capacitors 0.1uF/10uF at output connector terminal and oscilloscope set at 20MHz.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revision 1/12/2016

PSA15R-150PV Related Products

	PSA15R-150PV	PSA15R-060PV	PSA15R-480PV-R	PSA15R-050PV-R	PSA15R-150PV-R	PSA15R-060P	PSC15R-060	PSA15R-120PV	PSA15R-150P	PSA15R-075P
Description	Wall Mount AC Adapters Wall Mount - Interchangeable	Wall Mount AC Adapters Wall Mount - Interchangeable	Wall Mount AC Adapters 15W 48V 0.313A	Wall Mount AC Adapters 15W 5V 3A	Wall Mount AC Adapters 15W 15V 1A	Wall Mount AC Adapters Wall Mount - Interchangeable	Wall Mount AC Adapters 15W 6V 2.5A Level VI	Wall Mount AC Adapters Wall Mount - Interchangeable	Wall Mount AC Adapters 15W 15V 1A Level VI	Wall Mount AC Adapters Wall Mount - Interchangeable
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG	PHIHONG
Product Category	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters
Efficiency	Level VI	Level VI	Level V	Level V	Level V	Level IV	Level VI	Level VI	Level VI	Level IV
Mounting Style	Wall Mount	-	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount
Region	-	-	Universal	Universal	Universal	Universal	Universal	-	Universal	Universal
Product	-	-	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug	Interchangeable Plug	-	Interchangeable Plug	Interchangeable Plug
Input Voltage	-	-	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	-	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	-	-	1 Output	1 Output	1 Output	1 Output	1 Output	-	1 Output	1 Output
Output Power	-	-	15 W	15 W	15 W	15 W	15 W	-	15 W	15 W
Output Voltage-Channel 1	-	-	48 V	5 V	15 V	6 V	5.9 V	-	15 V	7.5 V
Output Current-Channel 1	-	-	310 mA	3 A	1 A	2.5 A	2.5 A	-	1 A	2.14 A
Industry	-	-	Commercial	Commercial	Commercial	Commercial	Commercial	-	Commercial	Commercial
DC Output Connector	-	-	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug	-	2.1 mm Barrel Plug	2.1 mm Barrel Plug
DC Output Cord Length	-	-	1.8 m	1.8 m	1.8 m	1.8 m	1.5 m	-	1.8 m	1.8 m
AC Plug included/required	-	-	Required	Required	Required	Required	Required	-	Required	Required
Load Regulation	-	-	Regulated	Regulated	Regulated	Regulated	-	-	Regulated	Regulated
Unit Weight	-	-	5.114724 oz	5.114724 oz	5.114724 oz	4.224000 oz	5.114724 oz	-	5.114724 oz	4.224000 oz
