DTC80-12SX-W6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DTC80-12SX-W6

DTC80-12SX-W6: DescriptionDesktop AC Adapters 80W 12V 6.67A LVL VI EXTERNAL PWR SUPPLY; CategoryPower/power management; File Size3MB，4 Pages; ManufacturerETA-USA; Environmental Compliance

Download Datasheet Parametric View All

DTC80-12SX-W6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTC80-12SX-W6	-	-	View	Buy Now

DTC80-12SX-W6 Overview

Desktop AC Adapters 80W 12V 6.67A LVL VI EXTERNAL PWR SUPPLY

DTC80-12SX-W6 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ETA-USA
Product Category	Desktop AC Adapters
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	80 W
Output Voltage-Channel 1	12 V
Output Current-Channel 1	6.67 A
Industry	Commercial

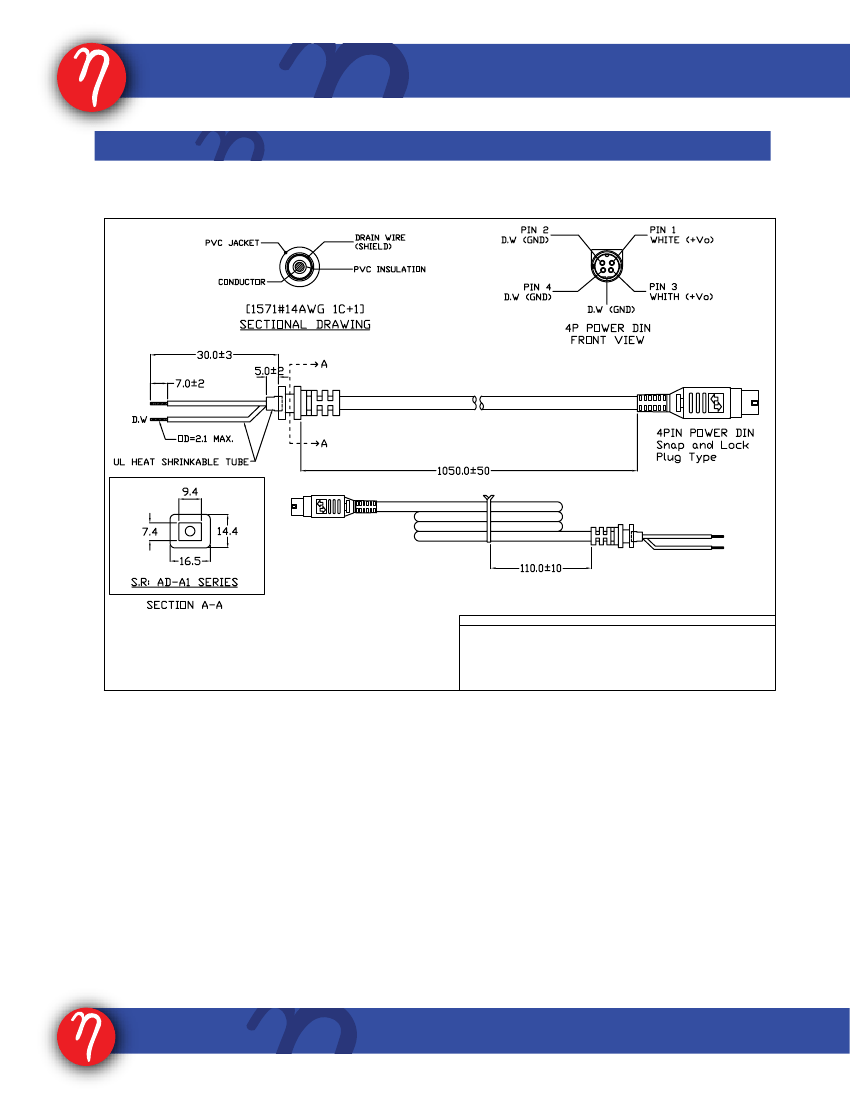

DC Output Connector	4 Pin DIN
DC Output Cord Length	1.05 m
Efficiency	Level VI
AC Plug included/required	Required
Height	40 mm
Length	132 mm
Width	69 mm
Mounting Style	Desktop
Load Regulation	Regulated
Factory Pack Quantity	1
Unit Weight	1 lb

Preview

Download Datasheet

View All

ETA-USA

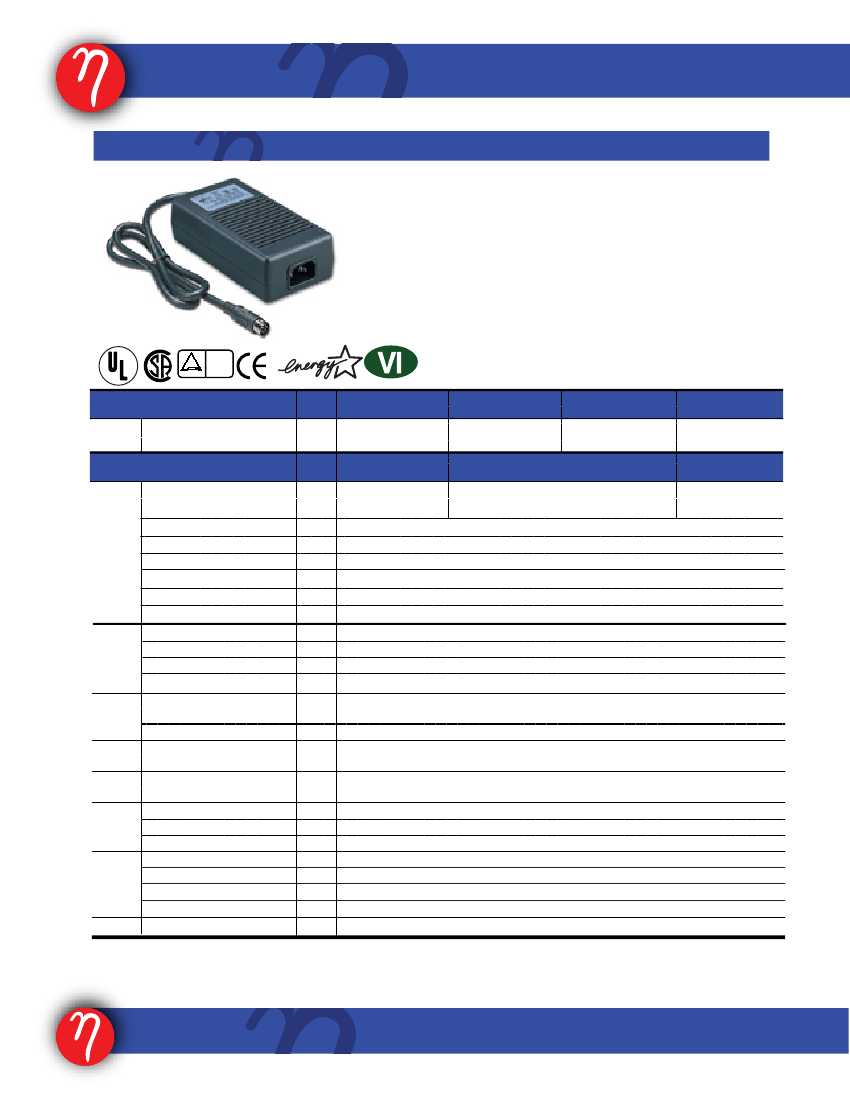

DTC-SX-W6

The Power Professionals

80W

FEATURES:

• High Reliability

• Meets CEC, CoC, EISA, RoHS, and DoE requirements

• Over voltage protection

• Short circuit protection

• Over load protection

• Meets UL, CSA, TUV, IEC60950-1 standards

• 100% burn-in test at max load under 35~45 centigrade

• Meets Energy Star level 6 requirements

TUV Rheinland

BAUART

GEPRÜFT

OUTPUT

Output Voltage

MODEL/CHANNEL

Output Regulation

Unit

Vdc

DTC80-09

SX-W6

DTC80-24

SX-W6

3.34

DTC80-12

SX-W6

6.67

DTC80-15

SX-W6

5.34

DTC80-18

SX-W6

4.45

DTC80-48

SX-W6

1.67

MODEL/CHANNEL

Output Regulation

Ripple & Noise(max) *3

O/P Regulation

Efficiency

Power

Output Voltage

Unit

Vdc

DTC80-28

SX-W6

2.86

<240mVpp

±5%

>88% @ full load, 115VAC

>0.9(115VAC100%Load)

>20ms typical at full load @ 115VAC

2.0A@ 90Vac max

47-63Hz

90-264VAC

Power Factor

Vac

INPUT

Input Voltage

Hold Up Time

Input Current

Input Frequency

Over Voltage Protection

Short circuit protection

Dielectric

Primary-Secondary

Withstand

Primary-Frame Ground

Insulation

Primary-Secondary

Resistance

Primary-Frame Ground

Environmental

Agencies

Protection

Over current Protection

Inrush Current Range

150A at 230VAC max at cold start

Auto Recover

LATCH AC Recycle after 110~130% of rated output

Auto Recover

4242VDC for 4 sec

2121VDC for 4 sec

20MOhm min 500VDC

Line Conducted

MTBF

Environment

Operating Temperature

Storage Humidity

Storage Temperature

Cooling

Safety

UL 60950-1 CSA 22.2-No.60950-1

EN55022 Class B, EN55024 Class B, FCC Class B

>120,000 hours at full load and 25 °C ambient temperature

0 to +60°C (derate linearly by 2.5% / °C from 41°C to 60°C)

10~90% RH non-condensing

-10 to +85°C

0.05%/°C max

TUV EN60950-1 CB IEC 60950-1

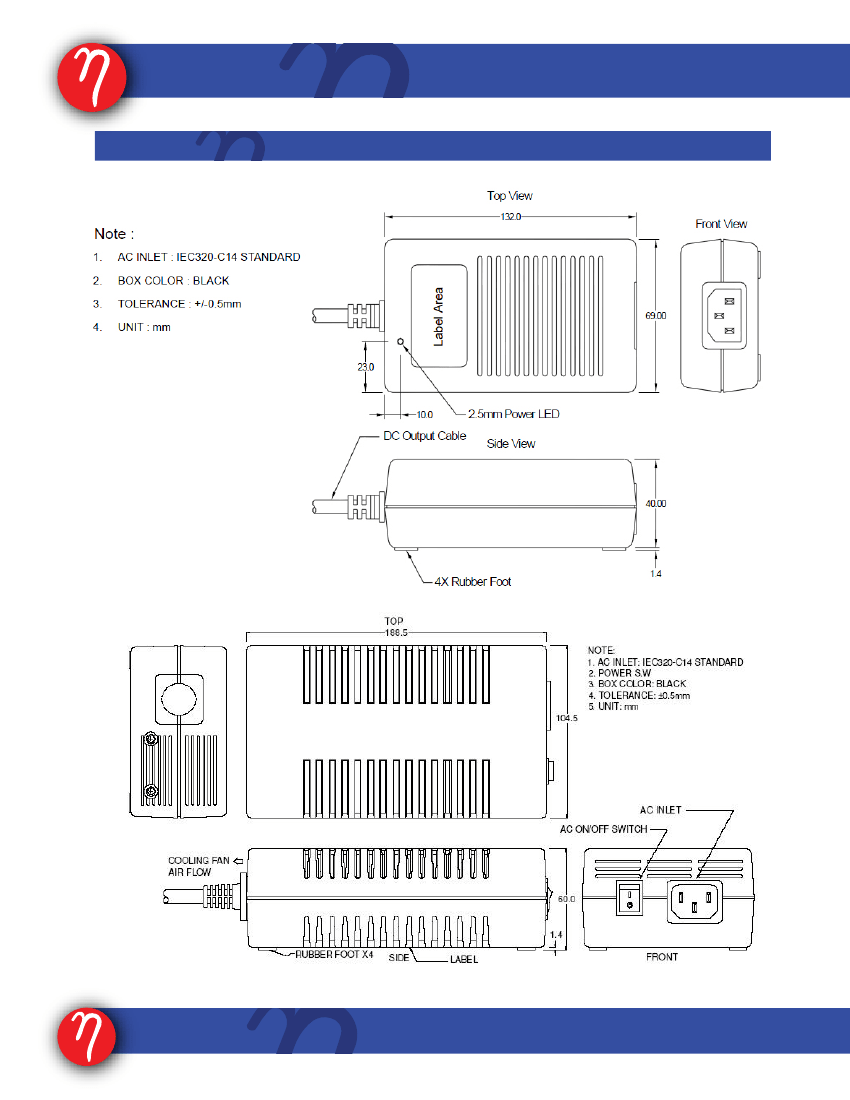

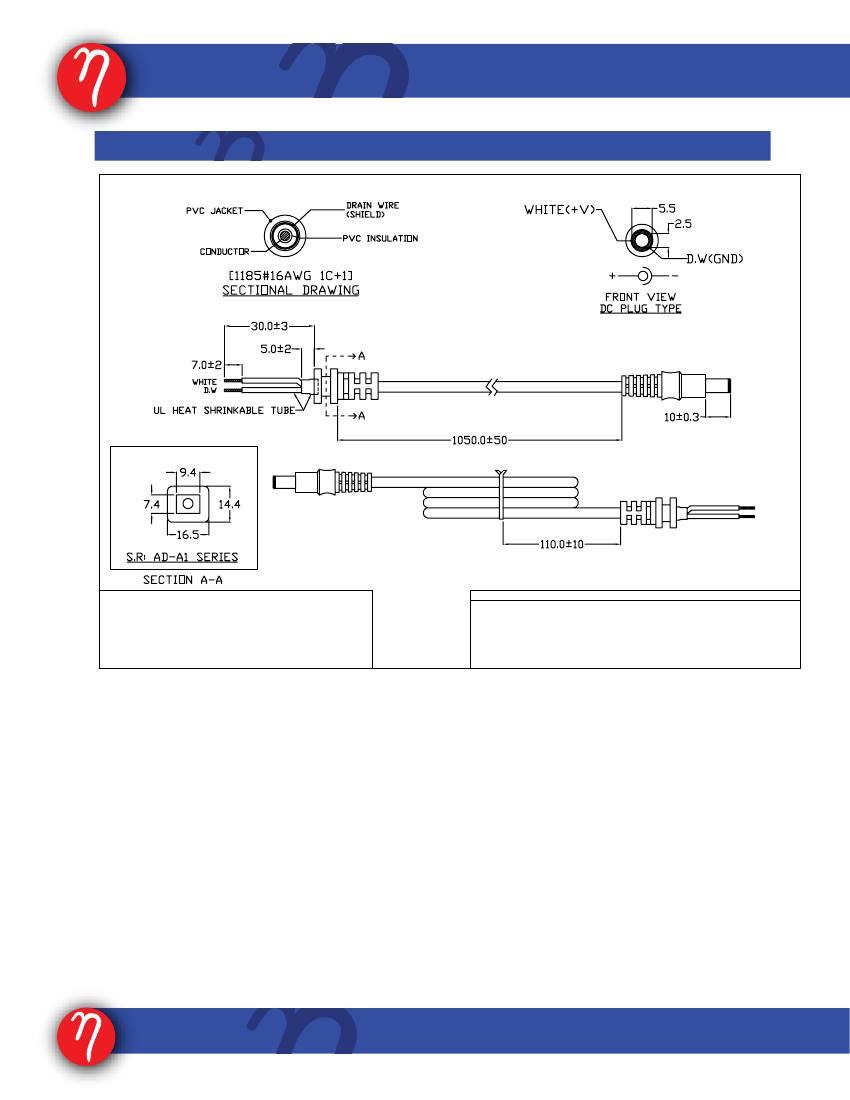

Dimension

Size(WxHxD) / Weight

mm/g

L132.0xW69.0xH40.0mm

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
