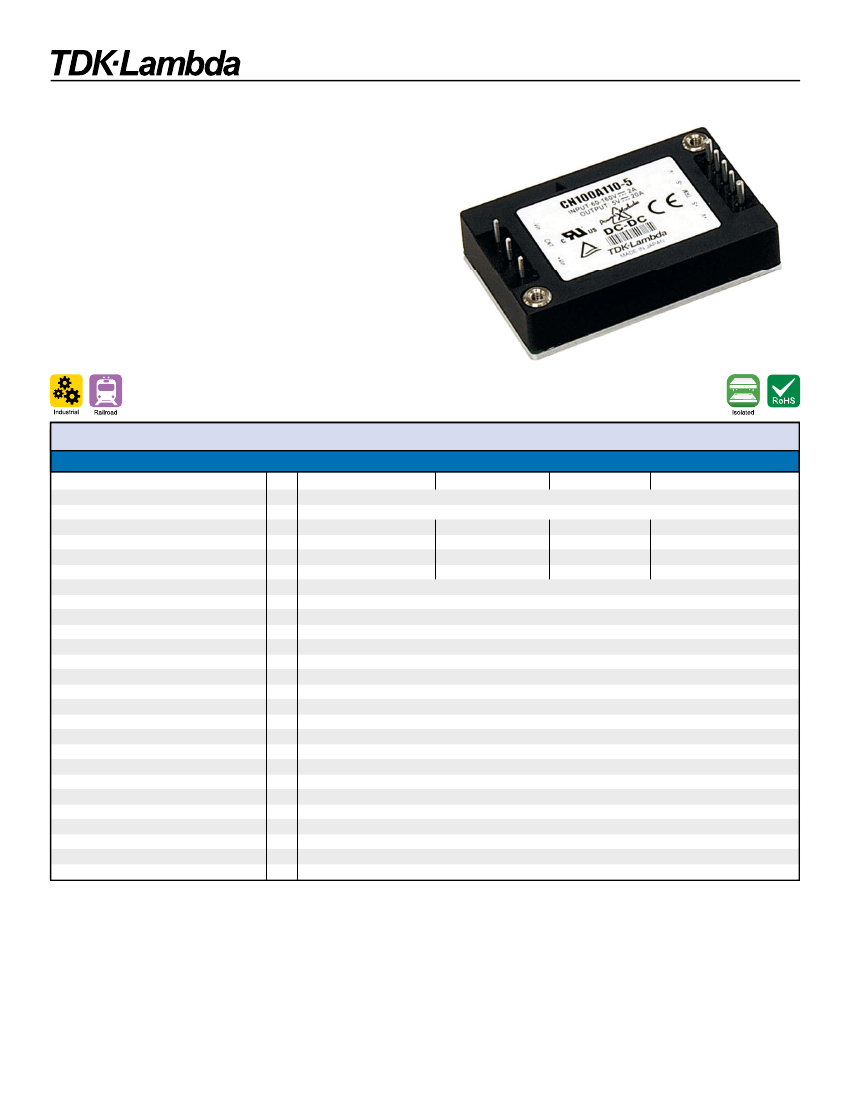

CN-A110 Series
30-200W, 60 to 160VDC Input DC-DC Converters
Features
60 - 160VDC Input
IEC 61373 Shock and Vibration
Base plate Cooled
Full Power at 100°C base plate
Parallel Operation (200W Only)
Small Size
Quarter / Half Brick Footprint
Full Power from -40 to +100°C
Parallel Function (CN200)
Key Market Segments & Applications
Specifications
Model
Nominal Output Voltage
Input Voltage Range
Input Current
Output Voltage Adjustment
Ripple & Noise (max) pk-pk
Line Regulation (max)
Load Regulation (max)
Overcurrent Protection
Overvoltage Protection
Remote Sense
Remote On/Off
Parallel Operation
Operating Temperature
Storage Temperature
Temperature Coefficient
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration
Shock
Safety Agency Certifications
Weight (Typ)
Size (WxHxD)
Warranty
VDC
VDC
A
VDC
mV
mV
mV
%
%
-
-
-
°C
°C
%/°C
%RH
-
VAC
-
-
-
-
g
in
yrs
5V
12V
15V
24V
60 - 160VDC
0.34 - 2.16A (model dependant)
4.5 - 6
10.8 - 13.2
13.5 - 16.5
21.6 - 26.4
100
150
150
240
20
48
60
96
40
96
120
192
105 - 140%
125 - 145% (Cycle input or remote on/off to reset)
Yes
Yes; Low = ON, Open = OFF
CN200A 12V, 15V & 24V only
-40°C to +100°C Baseplate
-40°C to +100°C
0.02%/°C
5 - 95% RH Operating and Non Operating
Conduction (See Installation Manual for heatsink selection)
Input to Baseplate: 1.5kVAC; Input to Output 3.0kVAC for I min.;
Output to Baseplate: 500VAC for 1 min
>100M at 25°C and 70%RH, Output to Base plate 500VDC
Non Operating, 10-55Hz (sweep for 1 min.) Amplitude 0.825mm
constant (Max 49 m/s
2
) X,Y,Z 1 hour each IEC61373 - Category 1, Grade B
196.1m/s
2
, IEC61373 - Category 1, Grade B
UL60950-1, CSA60950-1, EN60950-1, CE LVD
CN30A-100A: 70g, CN200A 150g
CN30A-100A: 1.45 x 0.5 x 2.28”, CN200A: 2.4 x 0.5 x 2.28”
5 Years
Note: See Installation Manual for full details, test methods of parameters and application notes
1-800-526-2324 • www.us.tdk-lambda.com/lp/
180
Disclaimer: us.tdk-lambda.com/lp/legal.htm
CN-A110 Series
Model Selector
Model
CN30A110-5
CN50A110-5
CN100A110-5
CN200A110-5
CN30A110-12
CN50A110-12
CN100A110-12
CN200A110-12
CN30A110-15
CN50A110-15
CN100A110-15
CN200A110-15
CN30A110-24
CN50A110-24
CN100A110-24
CN200A110-24
Voltage
(V)
5
5
5
5
12
12
12
12
15
15
15
15
24
24
24
24
Output
Current (A)
6
10
20
40
2.5
4.2
8.4
16.7
2
3.4
6.7
13.4
1.3
2.1
4.2
8.4
Maximum
Power (W)
30
50
100
200
30
50.4
100.8
200.4
30
51
100.5
201
31.2
50.4
100.8
201.6
Input
Current (A)
0.34
0.55
1.08
2.16
0.34
0.55
1.05
2.09
0.34
0.55
1.05
2.1
0.34
0.55
1.05
2.11
Efficiency (%)
(100% load, 110VDC In)
83
84
85
85
84
86
88
88
84
86
88
88
84
86
88
88

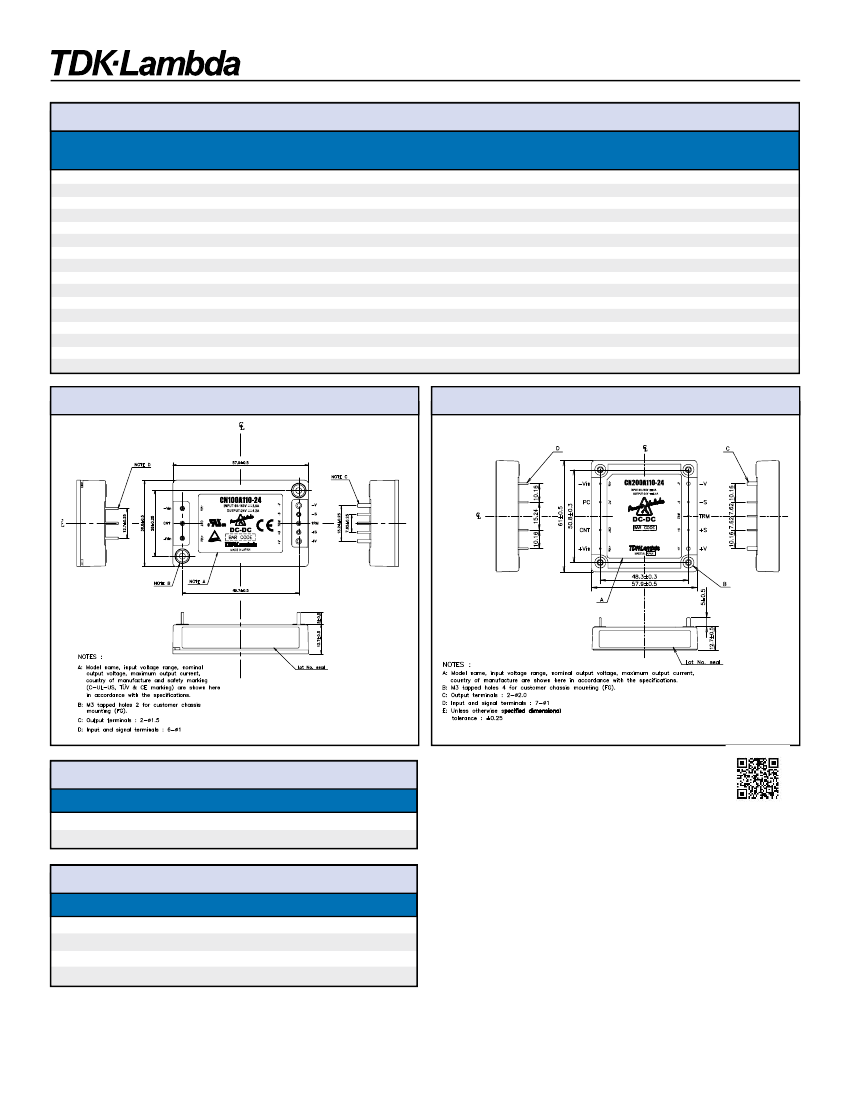

Outline Drawing CN30A to CN100A
Outline Drawing CN200A
Option
Suffix
Description
/CO
Pcb coating for EN50155 & IEC60571 compliance
Example CN50A110-5/CO
For Additional Information, please visit
us.tdk-lambda.com/lp/products/cn-series.htm
Heat Sink Accessories
Model
HAQ-10T
HAH-10T
HAH-15T
HAH-15L
Description
CN30A to 100A 25mm transverse fins
CN200A 25mm transverse fins
CN200A 38mm transverse fins
CN200A 38mm longitudinal fins
1-800-526-2324 • www.us.tdk-lambda.com/lp/
181
Revision B3: Mar 2018
