ZWS300BAF24/TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> ZWS300BAF24/TA

ZWS300BAF24/TA: DescriptionSwitching Power Supplies 300W 24Vout 12.5A Screw Trmnls & Cover; CategoryPower/power management; File Size2MB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

ZWS300BAF24/TA Overview

Switching Power Supplies 300W 24Vout 12.5A Screw Trmnls & Cover

ZWS300BAF24/TA Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK-LAMBDA
Product Category	Switching Power Supplies
RoHS	Details
Output Voltage-Channel 1	24 VDC
Number of Outputs	1 Output
Output Power	300 W
Open Frame/Enclosed	Open Frame
Input Voltage	85 VAC to 265 VAC, 120 VDC to 370 VDC
Output Current-Channel 1	12.5 A
Industry	Commercial
Mounting Style	Chassis
Length	7.09 in
Width	3.31 in
Height	1.65 in
Approvals	EN60950-1, UL60950-1
Factory Pack Quantity	1
Unit Weight	1.190 lbs

Preview

Download Datasheet

View All

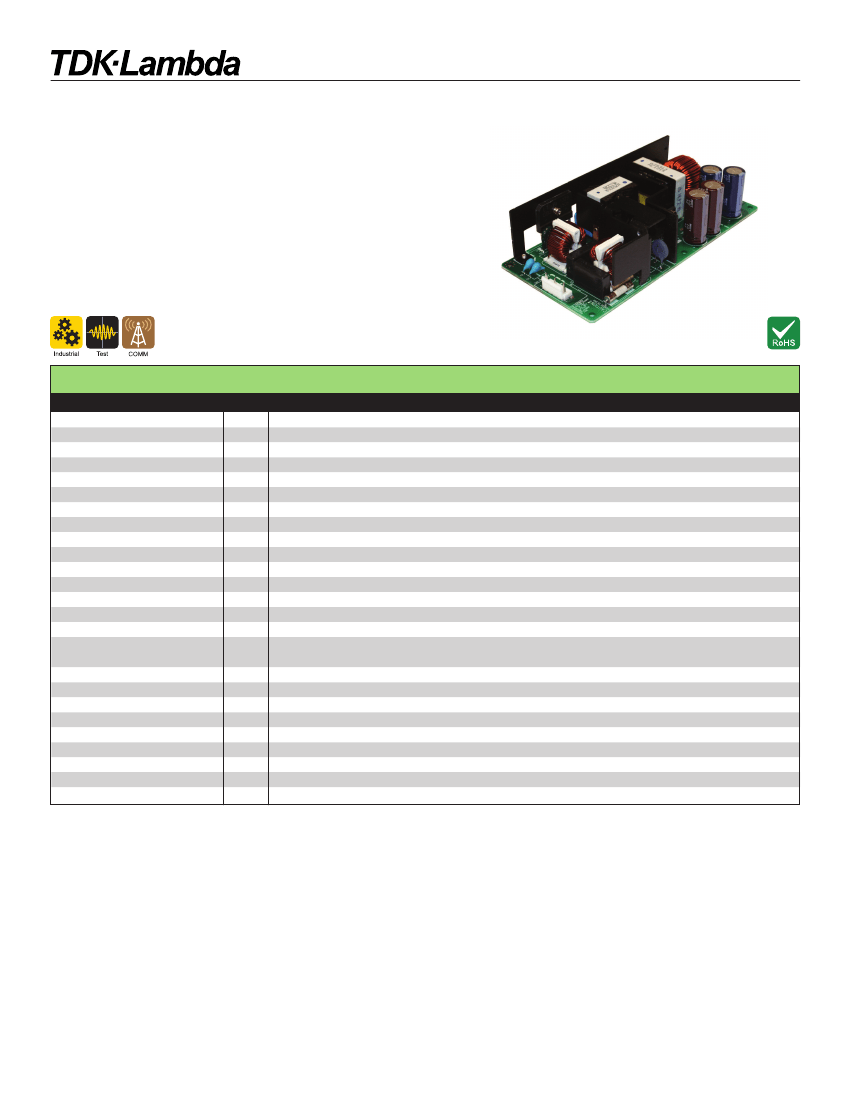

ZWS300BAF Series

300W Single Output, Convection Cooled Power Supplies

Features

Universal Input (85 - 265VAC)

Power Factor Corrected

Convection cooling

Five year warranty

Less than 0.5mA earth leakage current

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage

Input Current

Inrush Current

(1)(2)

Power Factor

Leakage Current

Temperature Coefﬁcient

Overcurrent Protection

(3)

Overvoltage Protection

Hold Up Time (Typ)

(1)

Efﬁciency

(1)

Remote On/Off

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

%/°C

°C

%RH

ZWS300BAF

85-265VAC (47-63Hz), 120-370VDC

3.5 / 1.8

15 / 30

0.98 at 100VAC, 0.93 at 200VAC, Meets EN61000-3-2

0.5mA Max. Typically 0.2mA (100VAC), 0.4mA (230VAC)

<0.02%/°C

>116% of rated output current

24V: 28.8-33.6V, 36V: 41.4-48.6V, 48V: 55.2-64.8V

18ms at 100VAC input

88 / 91%

Optional, contact factory

-10°C to +70°C, derate linearly to 40% load from 45°C to 70°C

-30 to +75°C

Operating: 30 - 90%RH, Storage: 10 - 90%RH

Convection

Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA), Output to Ground 500VAC

(20mA) for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour each

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 OV II, CE Mark

EN55011/EN55022-B, FCC Class B, VCCI-B

EN61000-4-2 (lvl2, 3), -3 (lvl 3), -4 (lvl 3), -5 (lvl 3, 4), -6 (lvl 3), -8 (lvl 4), -11; EN61000-6-2

540g

3.31 x 1.65 x 7.09” (84 x 42 x 180)

Five Years

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

in (mm)

Warranty

yrs

Notes:

(1) 100 / 200VAC Input

(2) 25°C ambient (cold start)

(3) Avoid prolonged operartion in overload

1-800-526-2324 • www.us.tdk-lambda.com/lp/

116

Disclaimer: us.tdk-lambda.com/lp/legal.htm

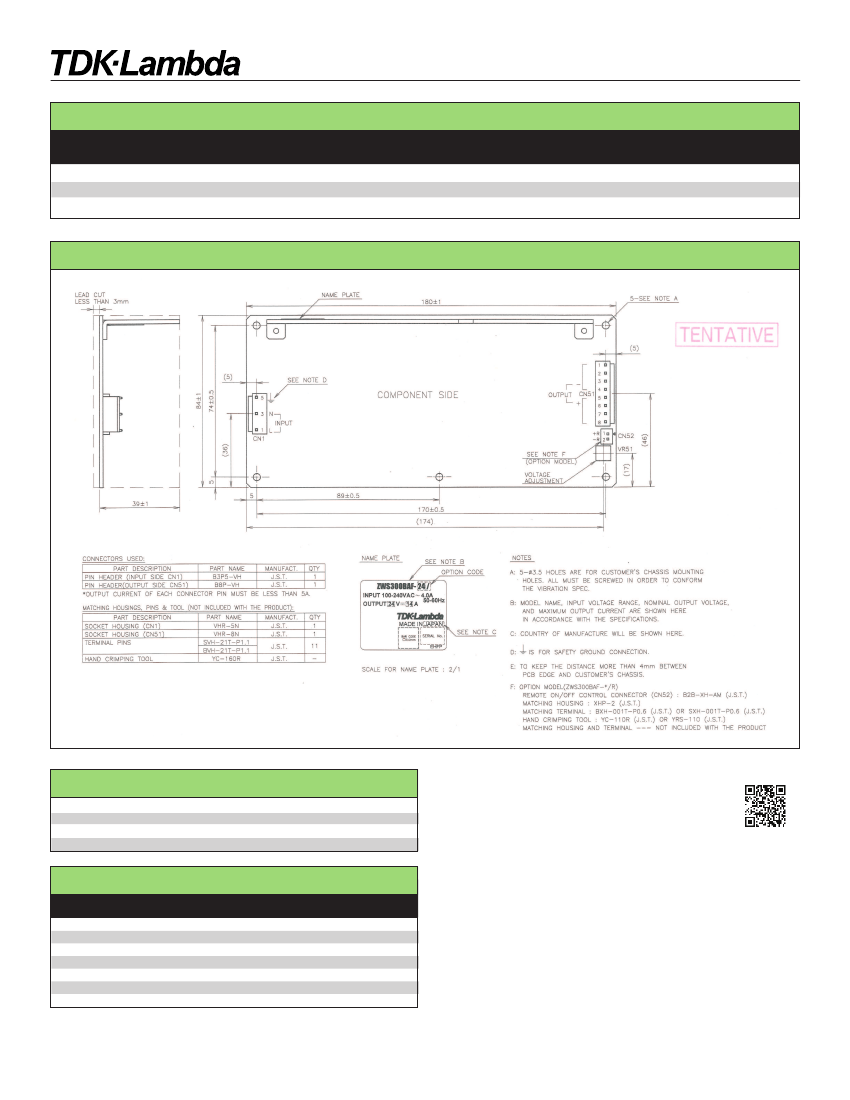

ZWS300BAF24/TA Related Products

	ZWS300BAF24/TA	ZWS300BAF36/R	ZWS300BAF48/R	ZWS300BAF24/R
Description	Switching Power Supplies 300W 24Vout 12.5A Screw Trmnls & Cover	Switching Power Supplies 302W 36Vout 8.4A With Remote On/Off	Switching Power Supplies 302W 48Vout 6.3A With Remote On/Off	Switching Power Supplies 300W 24Vout 12.5A With Remote On/Off
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
Product Category	Switching Power Supplies	Switching Power Supplies	Switching Power Supplies	Switching Power Supplies
RoHS	Details	Details	Details	Details
Output Voltage-Channel 1	24 VDC	36 VDC	48 VDC	24 VDC
Number of Outputs	1 Output	1 Output	1 Output	1 Output
Output Power	300 W	302.4 W	302.4 W	300 W
Open Frame/Enclosed	Open Frame	Open Frame	Open Frame	Open Frame
Input Voltage	85 VAC to 265 VAC, 120 VDC to 370 VDC	85 VAC to 265 VAC, 120 VDC to 370 VDC	85 VAC to 265 VAC, 120 VDC to 370 VDC	85 VAC to 265 VAC, 120 VDC to 370 VDC
Output Current-Channel 1	12.5 A	8.4 A	6.3 A	12.5 A
Industry	Commercial	Commercial	Commercial	Commercial
Mounting Style	Chassis	Chassis	Chassis	Chassis
Length	7.09 in	7.09 in	7.09 in	7.09 in
Width	3.31 in	3.31 in	3.31 in	3.31 in
Height	1.65 in	1.65 in	1.65 in	1.65 in
Approvals	EN60950-1, UL60950-1	EN60950-1, UL60950-1	EN60950-1, UL60950-1	EN60950-1, UL60950-1
Factory Pack Quantity	1	1	1	1
Unit Weight	1.190 lbs	1.190 lbs	1.190 lbs	1.190 lbs
