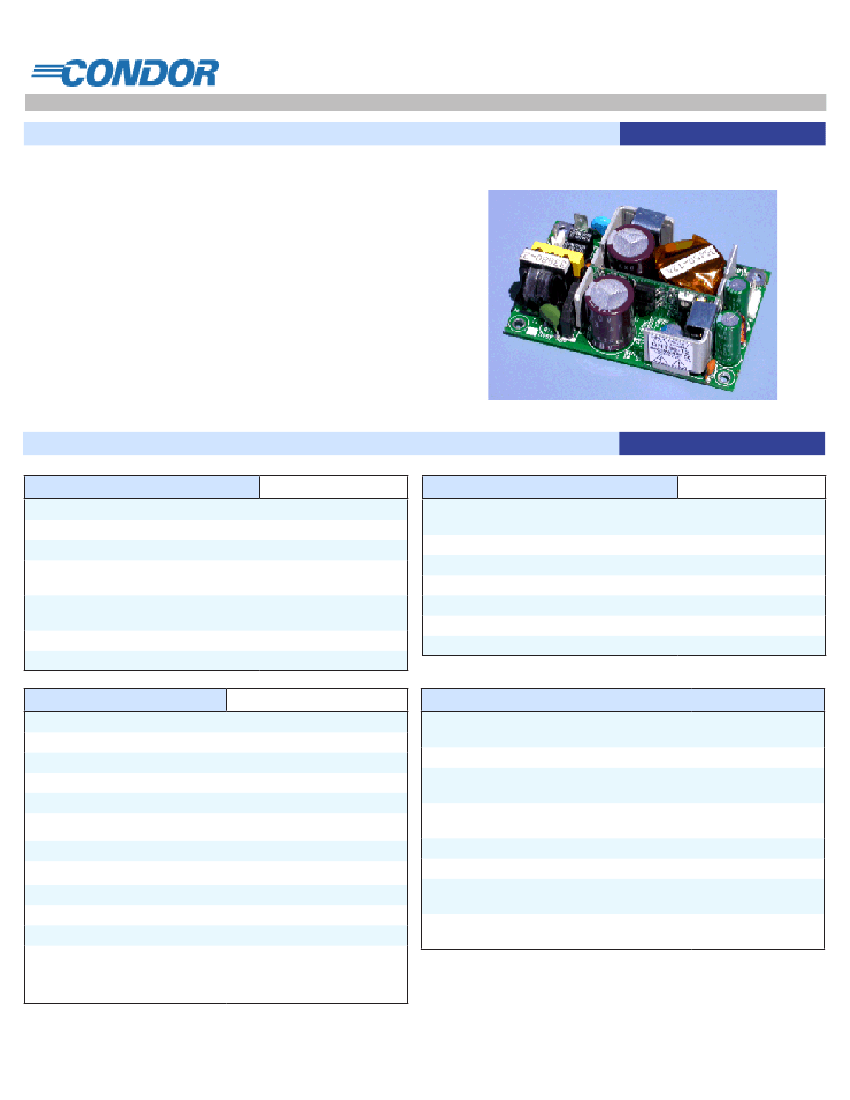

GNT30 MEDICAL SERIES
Low Power Medical Power Supplies 30 Watt AC/DC Universal Input Power Supply
SINGLE OUTPUT POWER SUPPLY
SUMMARY
• 90-264 Vac input range
• Overvoltage and short circuit protection
• Approved to UL, CSA and EN Standards
• Small 50 mm x 80 mm footprint
• Class II input available (G2T30)
The GNT30 Series is a 30 W universal input AC/DC Power
supply in a very small footprint. With the medical approvals
the GNT30 is ideal for a variety of medical device applications
including, small single board computers, battery charging, and
running small motors, pumps, and solenoids. The series with full
approval to EN60601-1 Standard improves design-in time, and
reduces end system compliance costs.
All specifications are typical at nominal input, full load at 25
O
C unless otherwise stated
SPECIFICATIONS
OUPUT SPECIFICATIONS
Output Power
Total Regulation
Turn-on time
Transient response
Temperature Coef-
ficient
Overvoltage protection
Short Circuit protection
Power cycling
0.25 A/ms 50% load
deviation
150 l.f.m. airflow
30 Watts max.(See note 4
See table
1.5 s max.
3.5% max. dev. 1 ms recovery
to 1%
+/-0.03%/oC
125% +/-10%
Yes
INPUT SPECIFICATIONS
Input Voltage range
Input frequency
Input surge current
Ground Leakage current
Input current
Input fuse
132 Vac 60 Hz
120 Vac
230 Vac
F1,F2
Universal input
100-240 nom (90 - 264 max)
Vac
55 Hz +/- 10 Hz
32 A max.
100
mA
(180
mA
single fault)
0.6 A
0.37 A
2.5 A
EMC INFORMATION
Conducted emissions
Radiated emissions
Line freq. harmonics
Voltage fluctuations
ESD Air
ESD Contact
Radiated immunity
Fast Transients (EFT)
Line surge immunity
Conducted immunity
Power freq. mag. field
Voltage dip immunity
EN55011
EN55011
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Level B
Level A
Complies
Complies
8 kV contact
6 kV air
3 V/m
2 kV
1 kV diff /2 kV cm
3 V
rms
3 A/m
5 cycles 40 % vnom 0.5 Watts.
25 cycles 70 % vnom 20 W
ENVIRONMENTAL SPECIFICATIONS
Thermal Performance
operating ambient
(see chart)
non-operating
0 - 50
o
C
150 l.f.m (See note 4.)
50 -70
o
C ambient
150 l.f.m
Relative Humidity
Maximum Altitude
Vibration
Shock
non-condensing
operating / non-operating
Operating
Non-operating
Operating
Non-operating
0-50
o
C
-40 to +85
o
C
30 Watts
derate 2% /
o
C
0% - 95% RH
10,000 ft. / 40,000 ft. max.
1.5 g
rms
20-2000 Hz
5 g
rms
20-2000 Hz
20 g
pk
10 ms, half-sine
40 g
pk
10 ms half-sine
GENERAL SPECIFICATIONS
Hold-up time
Efficiency
isolation voltage
Switching frequency
Safety Approvals
Maximum weight
120 Vac, 60 Hz
120 Vac 30 W output
input to ouput
input to ground
fixed
16 ms at 30 Watts output
>78 %
4000 Vac
1500 Vac
120 KHz, +/- 5 KHz
UL/EN/IEC 60601-1 CSA22.2 No.601
UL/EN/IEC 60950-1 CSA22.2 No.60950-1
100 g (0.22 lbs)
MODEL NUMBER 40
o
C Convection 50
o
C Convection
GNT30-5
GNT30-12
GNT30-15
GNT30-24
GNT30-28
GNT30-48
5 V 4.0 A
12 V 2.5 A
15 V 2.0 A
24 V 1.25 A
28 V 1.07 A
48 V 0.625 A
5 V 3.2 A
12 V 1.66 A
15 V 1.06 A
24 V 0.83 A
28 V 0.8 A
48 V 0.416 A
50
o
C Airflow
5 V 6.0 A
12 V 2.5 A
15 V 2.0 A
24 V 1.25 A
28 V 1.07 A
48 V 0.625 A
RIPPLE
50 mV
120 mV
150 mV
240 mV
280 mV
480 mV
REGULATION
2%
2%
2%
2%
2%
2%
NOTES
1. When the input voltage is less than 90 Vac the operating temperature range is 0
o
C to 40
o
C. The ripple and regulation
specs. may not be met.
2. Peak output current rating is for 1 minute and 10 % duty cycle.
3. Heatsink temperatures should not be allowed to exceed 90
o
C
4. Output Voltage is adjustable +/- 5% of nominal. See installation instructions (www.condorpower.com)

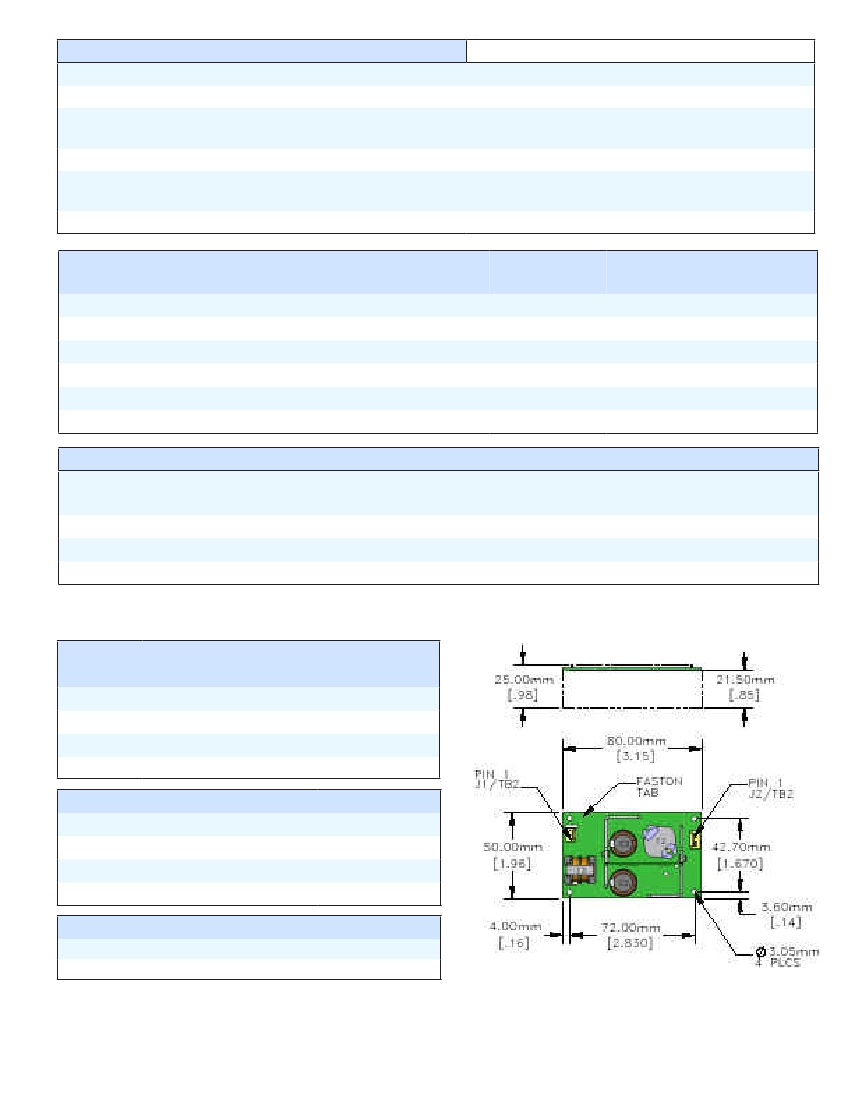

MECHANICAL NOTES
INPUT
J1 AMP P/N 640456-3 TB1
PIN 1 AC LINE
PIN 2 N/C
PIN 3 AC NEUTRAL
0.187 Faston
GROUND
GROUND
PIN 1 AC LINE
PIN 2 AC NEUTRAL
OUTPUT J2 AMP P/N 640456-4 TB2
PIN 1 COMMON
PIN 2 COMMON
PIN 3 OUTPUT 1
PIN 4 OUTPUT 1
PIN 1 COMMON
PIN 2 OUTPUT 1
MATING CONNECTORS
INPUT
OUTPUT
HOUSING 1375820-3
HOUSING 1375820-4
CONTACT
1375819-1
1375819-1
Condor DC Power Supplies Inc. 2311 Statham Parkway, Oxnard CA, 93033, USA. Phone:(805) 486 4565 Fax:(805) 487 8911 Email: condor@condordc.com
GNT30 Rev H 11/11/05.
Data Sheet © 2005 Condor DC Power Supplies Inc. The information and specifications contained in this data sheet are believed to be correct at time of publication. However, Condor accepts no
responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
