PSC12A-090-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PSC12A-090-R

PSC12A-090-R: DescriptionWall Mount AC Adapters 10W 9V 1.11A US Plug; CategoryPower/power management; File Size321KB，4 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PSC12A-090-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSC12A-090-R	-	-	View	Buy Now

PSC12A-090-R Overview

Wall Mount AC Adapters 10W 9V 1.11A US Plug

PSC12A-090-R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHIHONG
Product Category	Wall Mount AC Adapters
RoHS	Details
Region	North America
Product	Fixed Plug
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	10 W
Output Voltage-Channel 1	9 V
Output Current-Channel 1	1.11 A
Industry	Commercial
DC Output Connector	2.1 mm Barrel Plug
DC Output Cord Length	1.2 m
Efficiency	Level V
AC Plug included/required	Included
Height	49 mm
Length	71.7 mm
Width	45 mm
Mounting Style	Wall Mount
Load Regulation	Regulated
Factory Pack Quantity	1
Unit Weight	2.645547 oz

Preview

Download Datasheet

View All

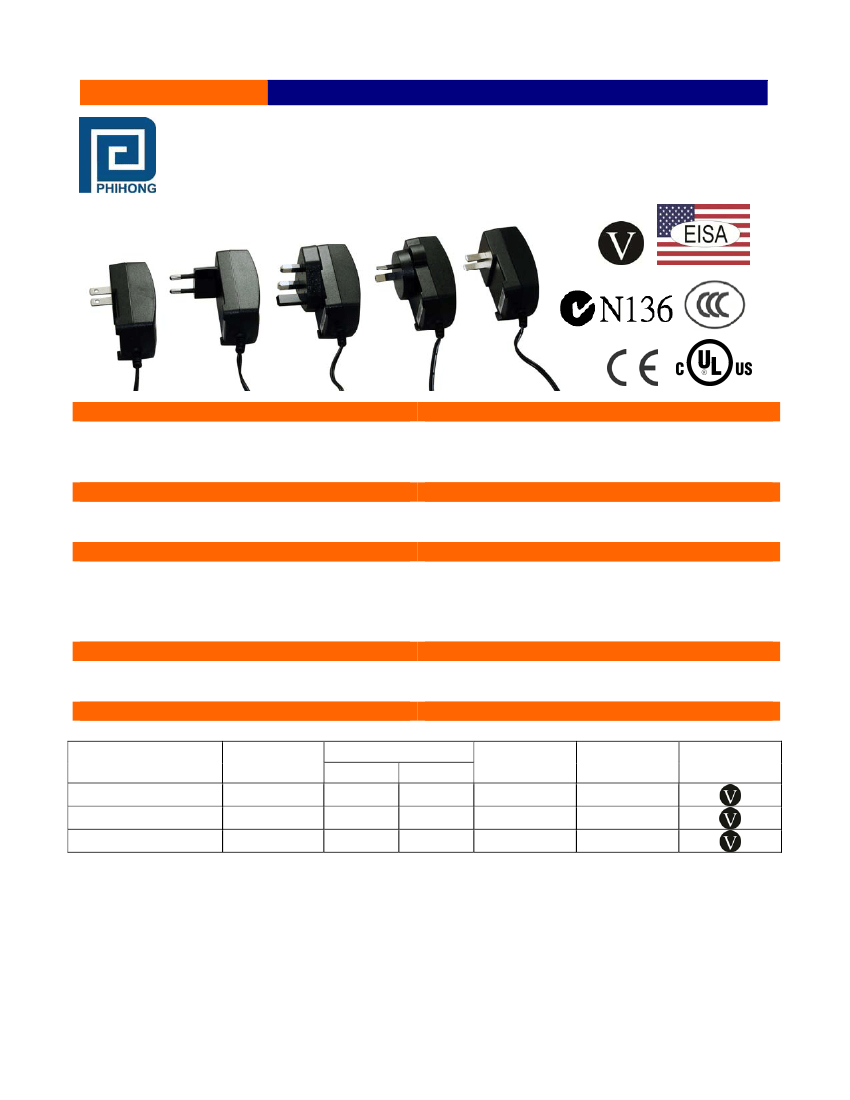

WWW.PHIHONG.COM

10W Wall Plug Series

PSC12x Adapter Series Meets EISA and Level V Efficiency

Features



Double Insulated



Less Than 0.3W No-Load Current



Efficiency Level V Compliance

Applications



Wireless Communications



Networking

Safety Approvals



cUL/UL (for PSC12A)



SAA (for PSC12S)



Ecodesign ErP Directive 2009/125/EC

(for PSC12E and PSC12K)

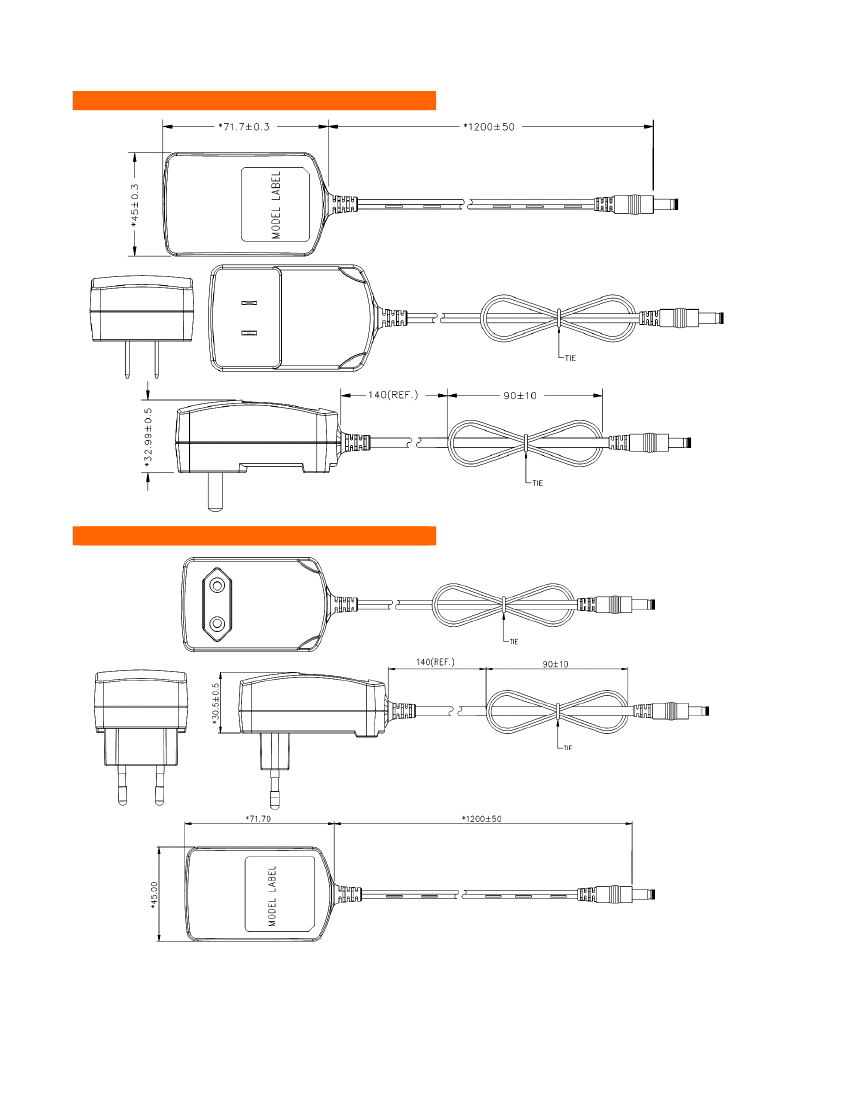

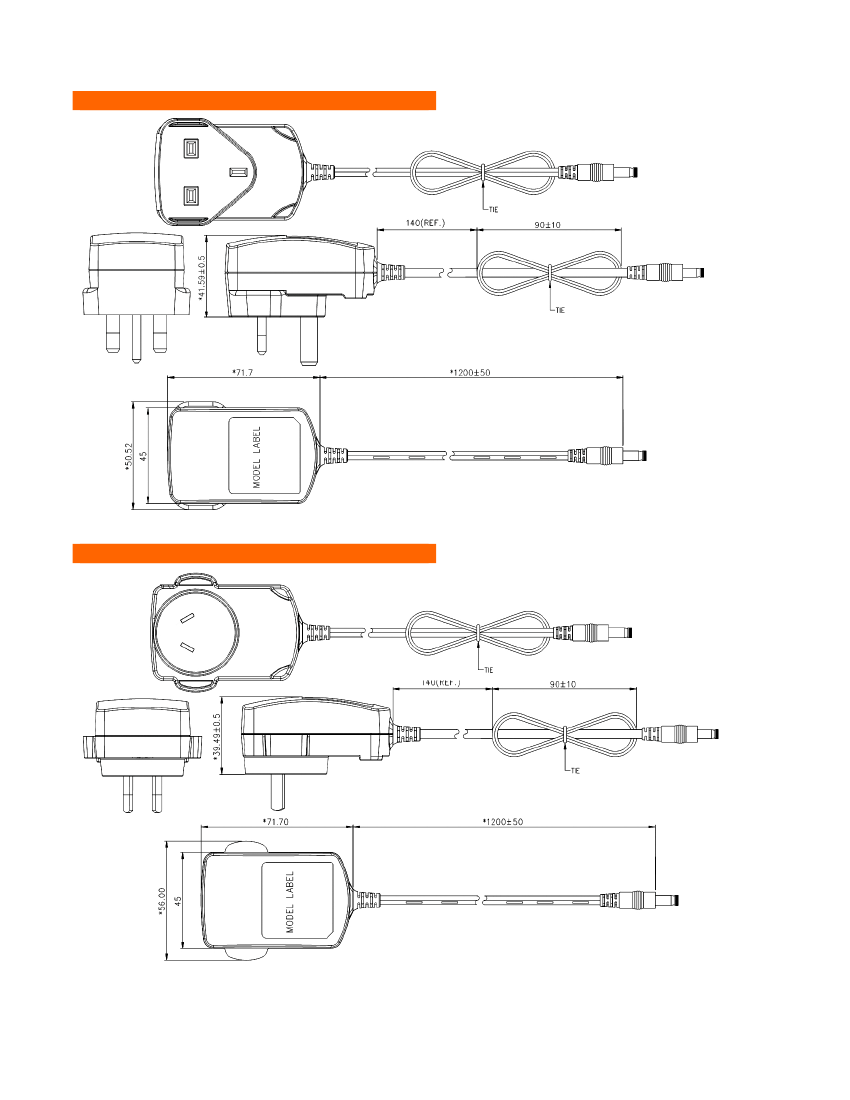

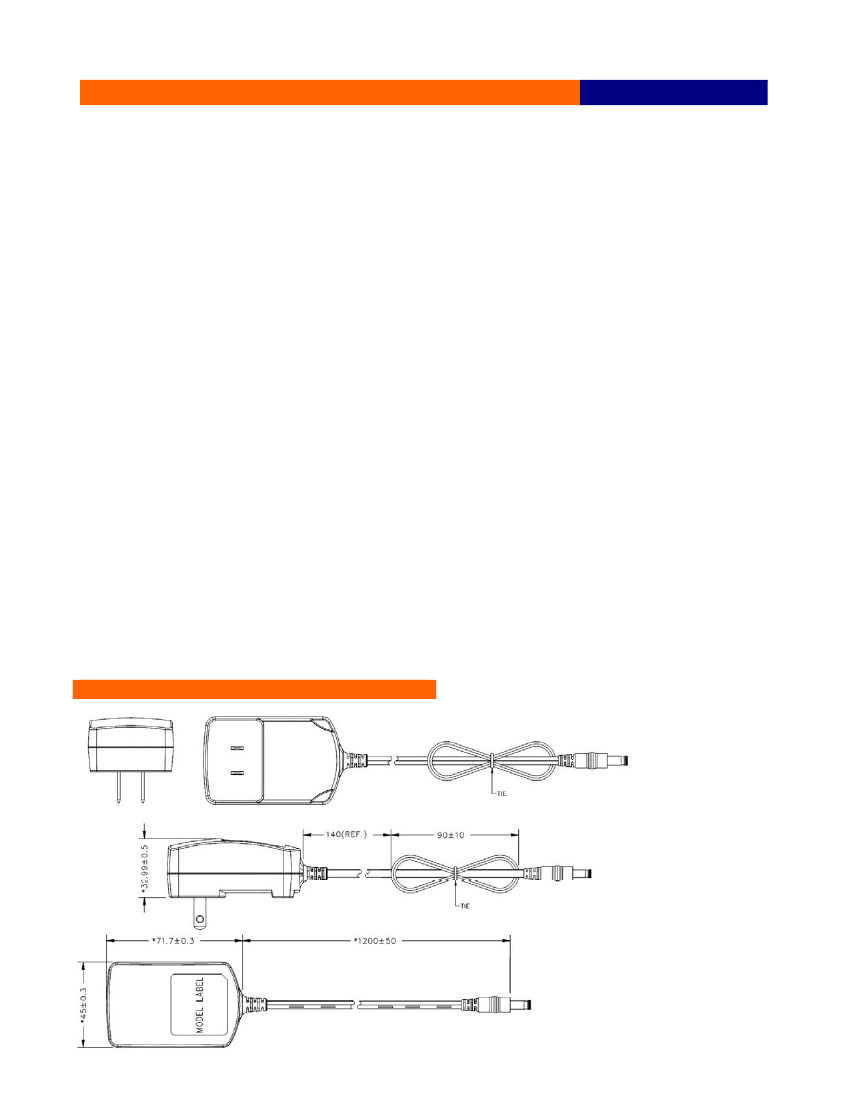

Mechanical Characteristics

(1)



Length: 71.7mm (2.82in)



Width: 45 (1.77in)

Output Specifications

Model

(4)



Class B EMI

Over Voltage Protection

Over Current Protection

Portable Equipment

Peripherals

CE (for PSC12E & PSC12K)

C-Tick (for PSC12S)

CCC (for PSC12C)

Height: 49.1mm (1.93in)

Weight: 75g (2.65oz)

Ripple

(2)

P-P (max.)

200mV

180mV

PSC12x-050

(3)

PSC12x-599

(3)

PSC12x-090

(3)

DC Output

Voltage

5.99V

Load

Min.

Max.

2.0A

1.669A

1.11A

Regulation

Line & Load

±5%

Efficiency

Level

(1) Mechanical characteristics for PSC12A models

(2) Measured with an oscilloscope with 20MHz (or over) bandwidth. Outputs should be bypassed at a connector with

a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor.

(3) X = A for US version, E for EU version, K for UK version, S for Australian version, C for Chinese version

(4) Minimum order quantities of 2500 pieces apply for all models.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revised 11/21/2011

PSC12A-090-R Related Products

	PSC12A-090-R	PSC12A-050-R	PSC12K-050-R
Description	Wall Mount AC Adapters 10W 9V 1.11A US Plug	Wall Mount AC Adapters 10W 5V 2A US Plug	Wall Mount AC Adapters 10W 5V 2A UK Plug
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	PHIHONG	PHIHONG	PHIHONG
Product Category	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters
RoHS	Details	Details	Details
Region	North America	North America	United Kingdom
Product	Fixed Plug	Fixed Plug	Fixed Plug
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	1 Output	1 Output	1 Output
Output Power	10 W	10 W	10 W
Output Voltage-Channel 1	9 V	5 V	5 V
Output Current-Channel 1	1.11 A	2 A	2 A
Industry	Commercial	Commercial	Commercial
DC Output Connector	2.1 mm Barrel Plug	2.1 mm Barrel Plug	2.1 mm Barrel Plug
DC Output Cord Length	1.2 m	1.2 m	1.2 m
Efficiency	Level V	Level V	Level V
AC Plug included/required	Included	Included	Included
Height	49 mm	49 mm	49 mm
Length	71.7 mm	71.7 mm	71.7 mm
Width	45 mm	45 mm	45 mm
Mounting Style	Wall Mount	Wall Mount	Wall Mount
Load Regulation	Regulated	Regulated	Regulated
Factory Pack Quantity	1	1	1
Unit Weight	2.645547 oz	2.645547 oz	2.645547 oz
