PA4342.472NLT: DescriptionFixed Inductors 4.7uH 10A 4mm 20% Low Prof; CategoryPassive components; File Size434KB，8 Pages; ManufacturerPulse; Environmental Compliance

Download Datasheet Parametric Compare View All

PA4342.472NLT Overview

Fixed Inductors 4.7uH 10A 4mm 20% Low Prof

PA4342.472NLT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	4.7 uH
Tolerance	20 %
Maximum DC Current	10 A
Maximum DC Resistance	15.5 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Termination	-
Mounting Style	PCB Mount
Length	11.5 mm
Width	10.3 mm
Height	4 mm
Application	High Current
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Fixed Inductors
Factory Pack Quantity	500

Preview

Download Datasheet

View All

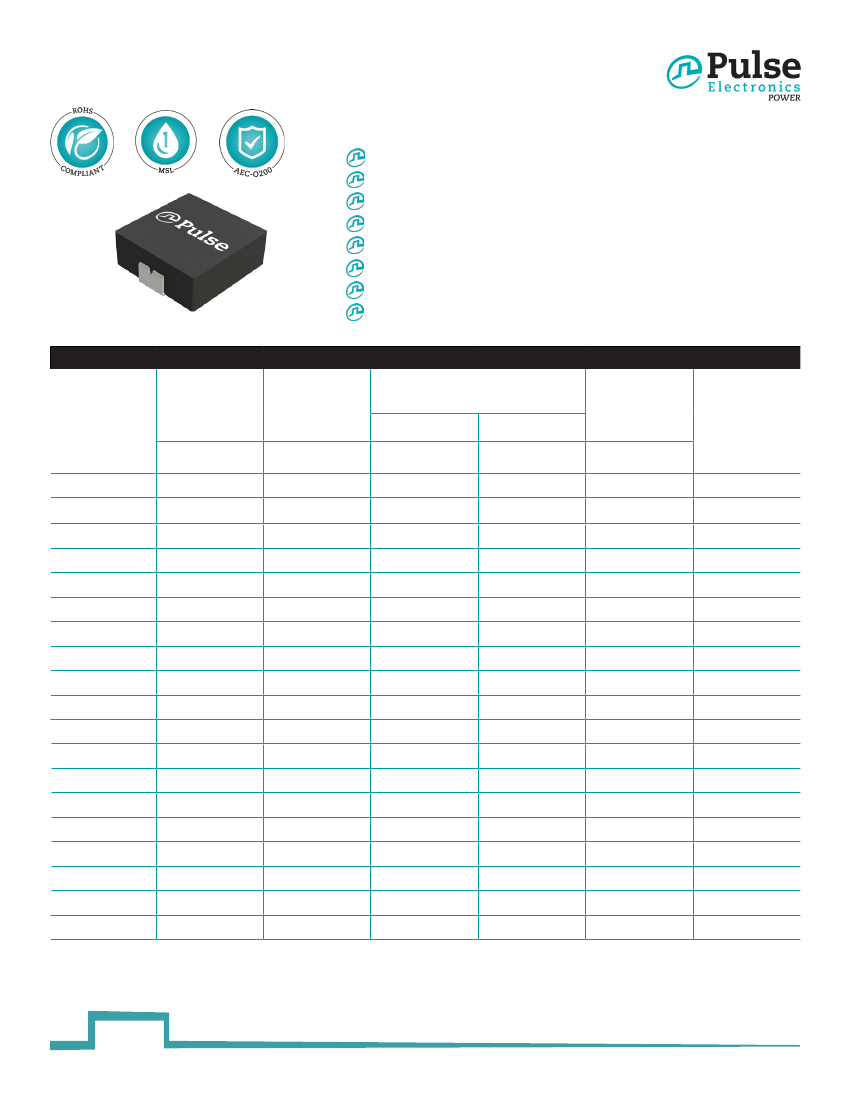

SMT Power Inductor

High Current Molded Power Inductor - PA4342.XXXNLT Series

Height: 4.0mm Max

Footprint: 11.5mm x 10.3mm Max

Current Rating: up to 43.0A

Inductance Range: 0.15uH to 68.0uH

Shielded construction and compact design

High current, low DCR, and high efficiency

Minimized acoustic noise and minimized leakage flux

200Vdc Isolation between terminal and core

Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C

Part

Number

PA4342.151NLT

PA4342.221NLT

PA4342.271NLT

PA4342.361NLT

PA4342.391NLT

PA4342.451NLT

PA4342.471NLT

PA4342.561NLT

PA4342.681NLT

PA4342.102NLT

PA4342.122NLT

PA4342.152NLT

PA4342.222NLT

PA4342.252NLT

PA4342.332NLT

PA4342.402NLT

PA4342.472NLT

PA4342.562NLT

PA4342.682NLT

Inductance

100KHz, 1V

0.15±30%

0.22±20%

0.27±20%

0.36±20%

0.39±20%

0.45±20%

0.47±20%

0.56±20%

0.68±20%

1.00±20%

1.20±20%

1.50±20%

2.20±20%

2.50±20%

3.30±20%

4.00±20%

4.70±20%

5.60±20%

6.80±20%

Rated

Current

43.0

35.0

33.0

31.0

30.0

29.0

28.0

25.0

22.0

18.0

17.0

16.0

12.0

11.5

11.0

10.2

10.0

9.0

8.5

Resistance

MAX.

mΩ

0.6

1.0

1.2

1.3

1.5

1.8

2.7

3.3

3.8

4.6

7.0

8.7

11.8

15.0

15.5

19.3

23.3

TYP.

mΩ

0.5

0.8

0.82

1.05

1.1

1.3

1.6

2.4

3.0

3.3

4.0

6.5

7.9

10.8

13.0

15.0

17.0

17.5

Saturation

Current

Max.

75.0

60.0

45.0

43.0

40.0

39.0

36.0

33.0

27.0

23.0

20.0

18.0

17.0

14.0

13.5

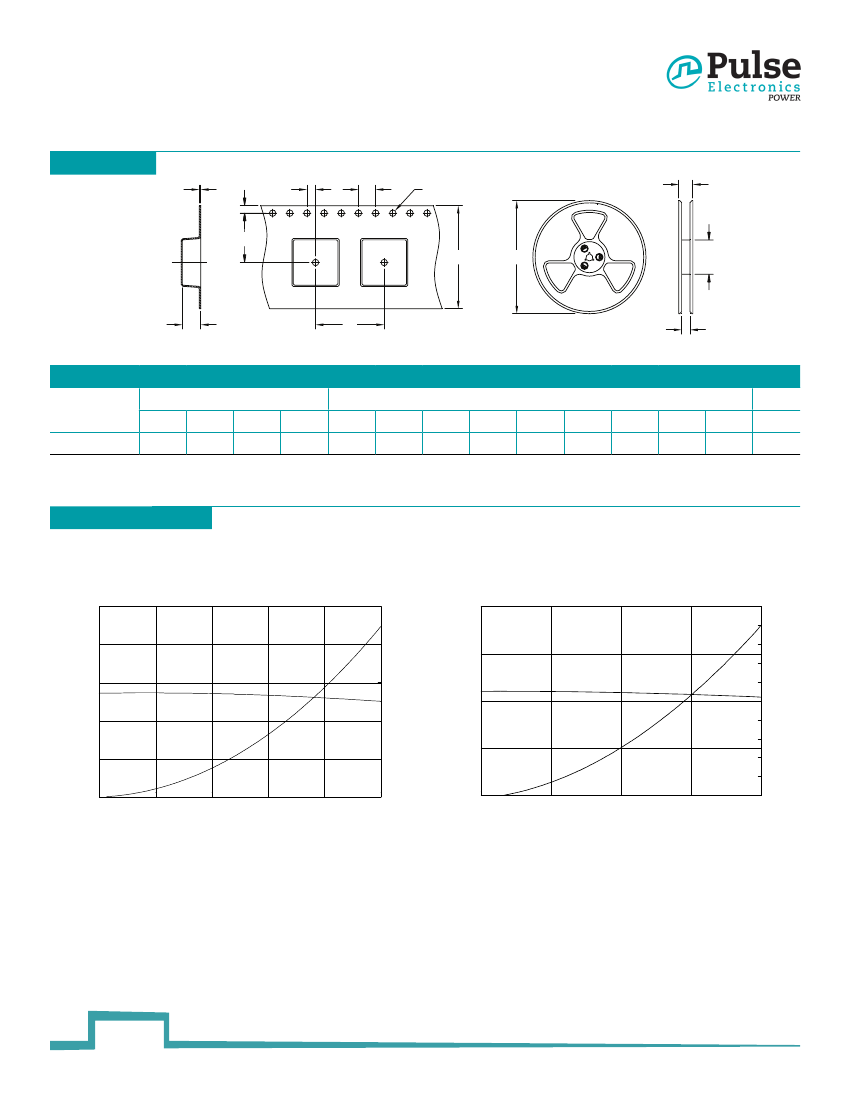

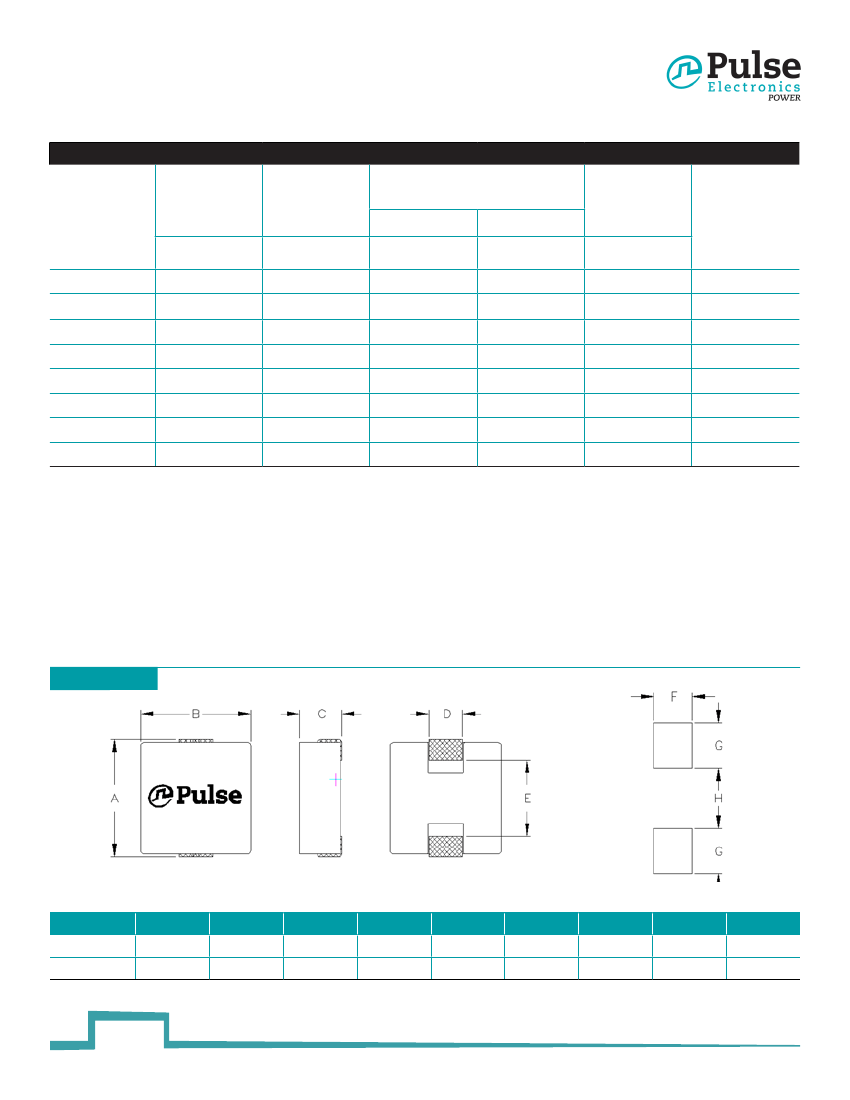

Mechanical

Footprint 1

Footprint 2

power.pulseelectronics.com

P769.H (11/17)

http://www.power.pulseelectronics.com/contact
