BD241B-S: DescriptionBipolar Transistors - BJT 80V 3A NPN; CategoryDiscrete semiconductor The transistor; File Size59KB，4 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BD241B-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD241B-S	-	-	View	Buy Now

BD241B-S Overview

Bipolar Transistors - BJT 80V 3A NPN

BD241B-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	40 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN SILVER COPPER
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

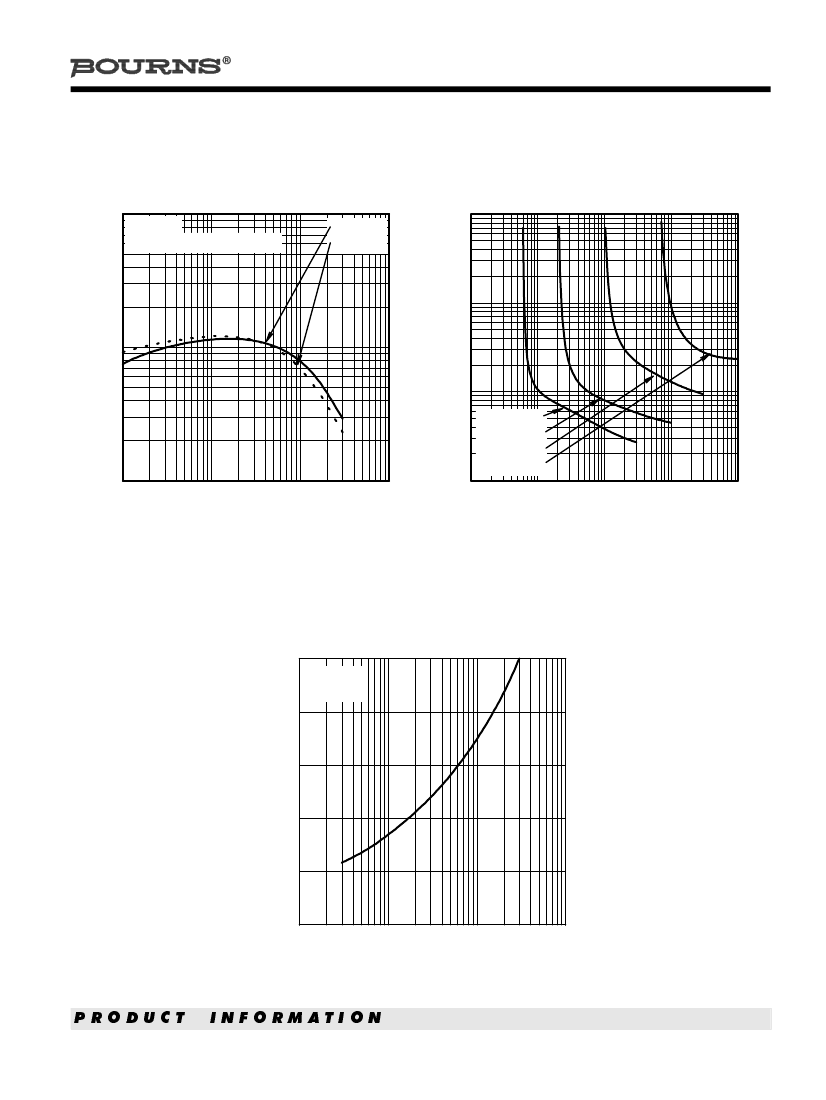

Preview

Download Datasheet

View All

BD241, BD241A, BD241B, BD241C

NPN SILICON POWER TRANSISTORS

●

Designed for Complementary Use with the

BD242 Series

40 W at 25°C Case Temperature

3 A Continuous Collector Current

5 A Peak Collector Current

Customer-Specified Selections Available

TO-220 PACKAGE

(TOP VIEW)

Pin 2 is in electrical contact with the mounting base.

MDTRACA

absolute maximum ratings at 25°C case temperature (unless otherwise noted)

RATING

BD241

Collector-emitter voltage (R

= 100

Ω)

BD241A

BD241B

BD241C

BD241

Collector-emitter voltage (I

= 30 mA)

BD241A

BD241B

BD241C

Emitter-base voltage

Continuous collector current

Peak collector current (see Note 1)

Continuous base current

Continuous device dissipation at (or below) 25°C case temperature (see Note 2)

Continuous device dissipation at (or below) 25°C free air temperature (see Note 3)

Unclamped inductive load energy (see Note 4)

Operating junction temperature range

Storage temperature range

Lead temperature 3.2 mm from case for 10 seconds

NOTES: 1.

EBO

tot

½LI

stg

CEO

CER

SYMBOL

VALUE

115

100

-65 to +150

250

°C

UNIT

This value applies for t

≤

0.3 ms, duty cycle

≤

10%.

Derate linearly to 150°C case temperature at the rate of 0.32 W/°C.

Derate linearly to 150°C free air temperature at the rate of 16 mW/°C.

This rating is based on the capability of the transistor to operate safely in a circuit of: L = 20 mH, I

B(on)

= 0.4 A, R

= 100

Ω,

BE(off)

= 0, R

= 0.1

Ω,

= 20 V.

JUNE 1973 - REVISED SEPTEMBER 2002

Specifications are subject to change without notice.

NOITAMROFNI

TCUDORP
