IH5051MJE: DescriptionAnalog Switch ICs Dual SPST, Low Charge Injection Analog Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

IH5051MJE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IH5051MJE	-	-	View	Buy Now

IH5051MJE Overview

Analog Switch ICs Dual SPST, Low Charge Injection Analog Switch

IH5051MJE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16
Nominal off-state isolation	54 dB
On-state resistance matching specifications	8 Ω
Maximum on-state resistance (Ron)	40 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	5,+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	200 ns
Maximum connection time	400 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	7.62 mm

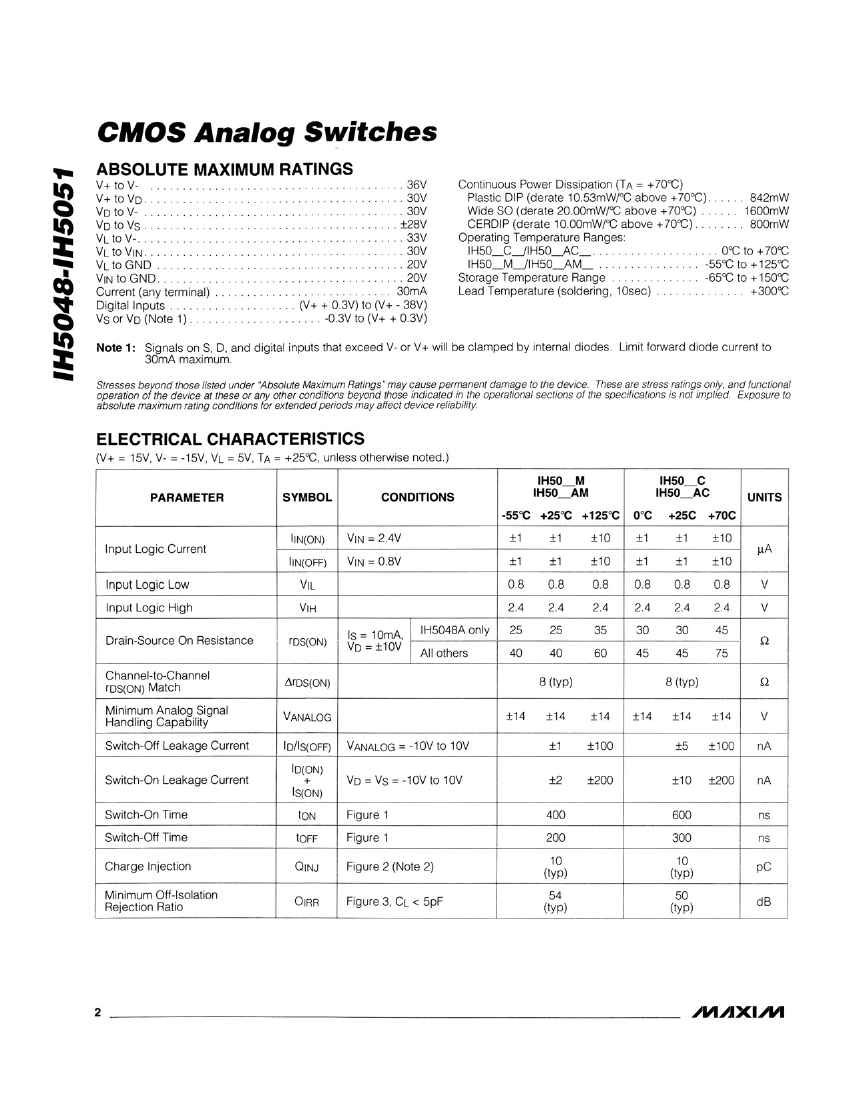

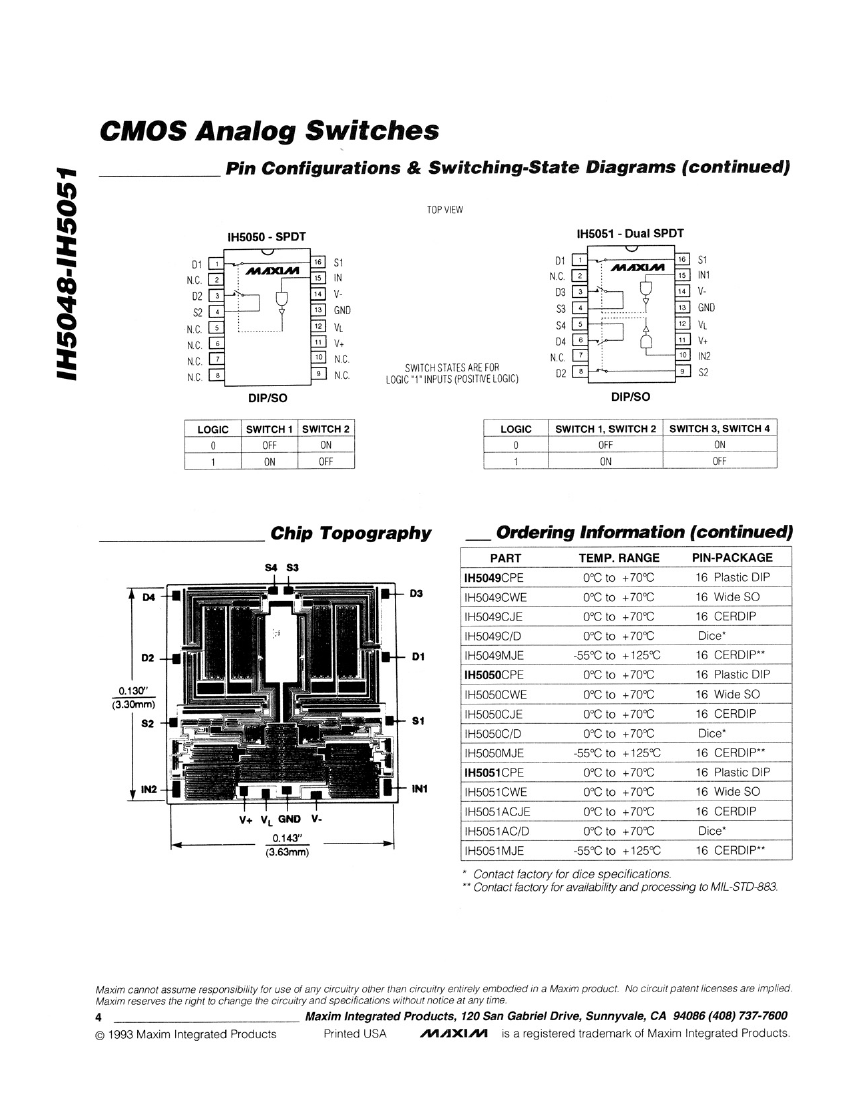

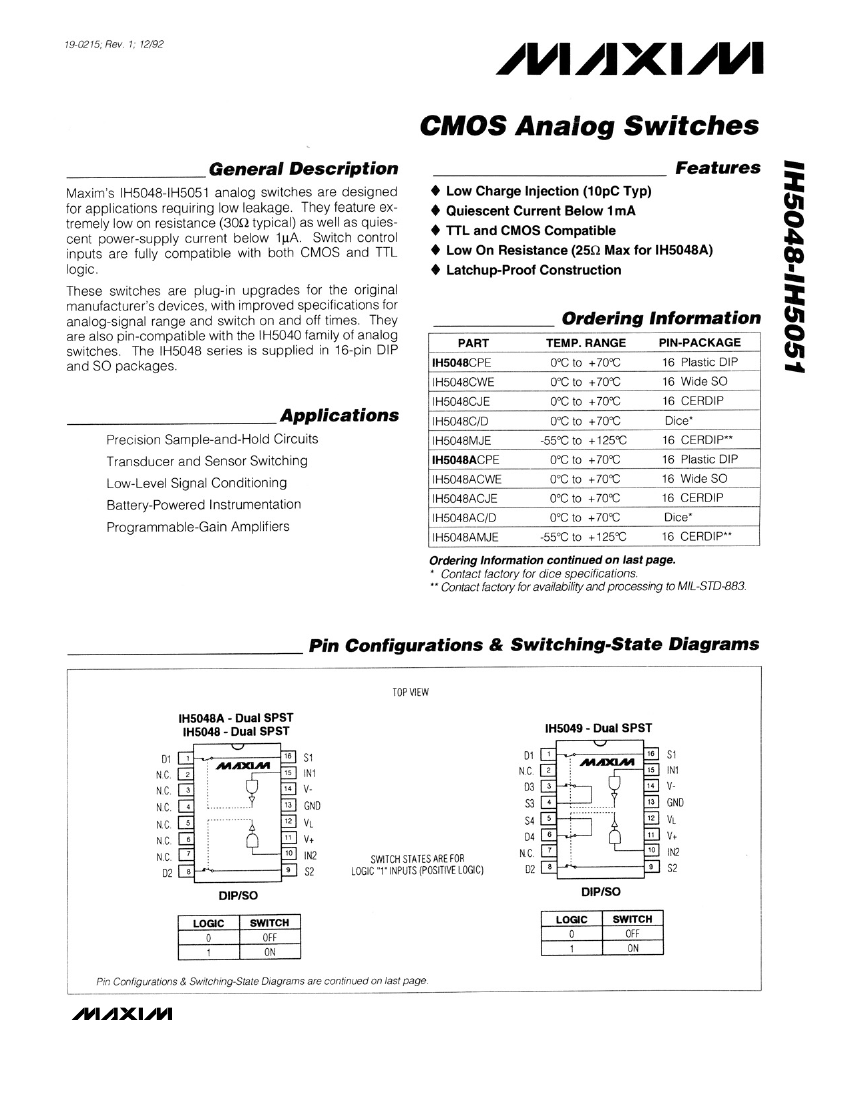

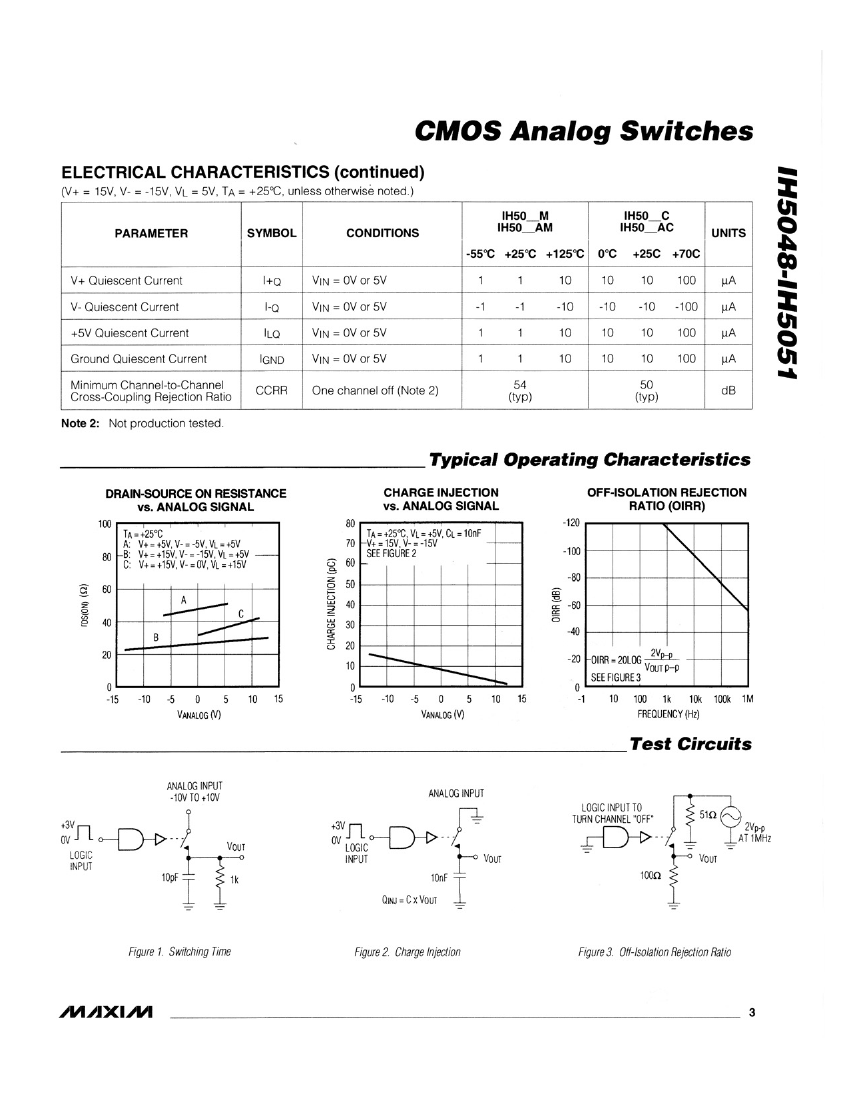

Preview

Download Datasheet

View All

___________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

IH5051MJE Related Products

	IH5051MJE	IH5049CPE-	IH5047C-D-	IH5050MJE-883B	IH5050C/D	IH5050CPE+	IH5051CJE	IH5048ACWE	IH5048CWE
Description	Analog Switch ICs Dual SPST, Low Charge Injection Analog Switch	Analog Switch ICs Dual SPST Low Charge Injection Normally O	Analog Switch ICs	Analog Switch ICs Low Charge Injection SPDT Analog Switch	Analog Switch ICs Low Charge Injection SPDT Analog Switch	Analog Switch ICs Low Charge Injection SPDT	Analog Switch ICs Low Charge Injection Dual SPDT Analog Switch	Analog to Digital Converters - ADC Low Charge Injection Dual SPST Normally Open Analog Switch	Switching Voltage Regulators Low Charge Injection Dual SPST Normally Open Analog Switch
Is it lead-free?	Contains lead	-	-	-	Contains lead	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	-	-	incompatible	conform to	incompatible	incompatible	incompatible
Maker	Maxim	-	-	-	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	-	-	-	DIE	-	DIP	SOIC	SOIC
package instruction	DIP, DIP16,.3	-	-	-	DIE-14	DIP, DIP16,.3	DIP, DIP16,.3	SO-16	SO-16
Contacts	16	-	-	-	14	-	16	16	16
Reach Compliance Code	not_compliant	-	-	-	not_compliant	compliant	not_compliant	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	SPDT	-	-	-	SPDT	SPDT	SPDT	SPST	SPST
JESD-30 code	R-GDIP-T16	-	-	-	R-XUUC-N14	R-PDIP-T16	R-GDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	-	-	-	e0	-	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-	-	-15 V	-	-15 V	-15 V	-15 V
Number of channels	1	-	-	-	1	-	1	1	1
Number of functions	2	-	-	-	1	1	2	2	2
Number of terminals	16	-	-	-	14	16	16	16	16
Nominal off-state isolation	54 dB	-	-	-	50 dB	-	50 dB	50 dB	50 dB
On-state resistance matching specifications	8 Ω	-	-	-	8 Ω	-	8 Ω	8 Ω	8 Ω
Maximum on-state resistance (Ron)	40 Ω	-	-	-	45 Ω	75 Ω	45 Ω	30 Ω	45 Ω
Maximum operating temperature	125 °C	-	-	-	70 °C	70 °C	70 °C	70 °C	70 °C
output	SEPARATE OUTPUT	-	-	-	-	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED	-	-	-	UNSPECIFIED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	-	-	DIE	DIP	DIP	SOP	SOP
Encapsulate equivalent code	DIP16,.3	-	-	-	DIE OR CHIP	DIP16,.3	DIP16,.3	SOP16,.4	SOP16,.4
Package shape	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	-	-	UNCASED CHIP	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	-	-	-	240	-	240	240	240
power supply	5,+-15 V	-	-	-	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	-	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	-	-	-	15 V	-	15 V	15 V	15 V
surface mount	NO	-	-	-	YES	NO	NO	YES	YES
Maximum disconnect time	200 ns	-	-	-	300 ns	-	300 ns	300 ns	300 ns
Maximum connection time	400 ns	-	-	-	600 ns	600 ns	600 ns	600 ns	600 ns
switch	BREAK-BEFORE-MAKE	-	-	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	-	-	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	-	-	-	TIN LEAD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE	-	-	-	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	-	-	-	-	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	-	-	-	UPPER	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	-	-	-	NOT SPECIFIED	-	20	20	20
