CMHZ4099 THRU CMHZ4125
SURFACE MOUNT
LOW NOISE SILICON ZENER DIODE
6.8 VOLTS THRU 47 VOLTS
500mW, 5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMHZ4099 Series
types are high quality Silicon Zener Diodes designed
for low leakage, low current and low noise applications.
MARKING CODE: SEE MARKING CODE ON
ELECTRICAL CHARACTERISTIC TABLE

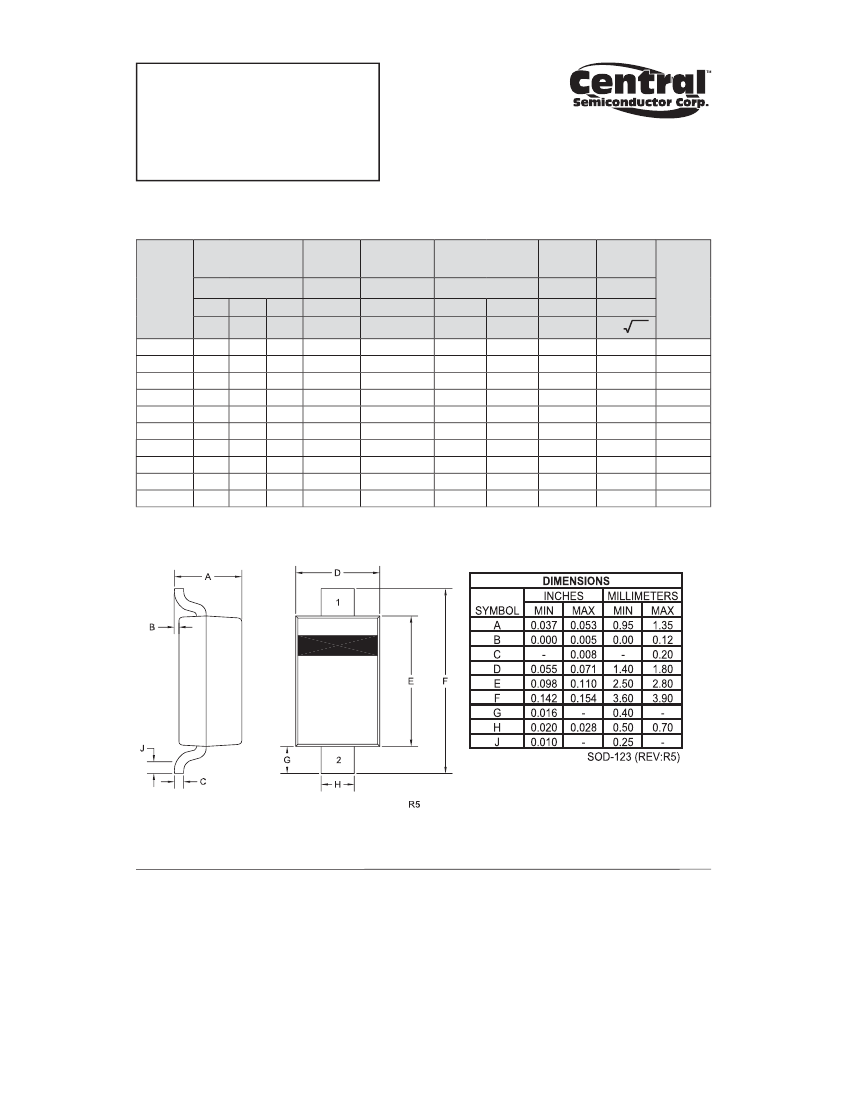

SOD-123 CASE
MAXIMUM RATINGS:
Power Dissipation (@TL=75°C)
Operating and Storage Junction Temperature
SYMBOL
PD
TJ, Tstg
UNIT
mW
°C
500
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TA=25°C) VF=1.5V MAX @ IF=100mA (for all types)
ZENER
VOLTAGE
TYPE
MIN
V
CMHZ4099 6.460
CMHZ4100 7.125
CMHZ4101 7.790
CMHZ4102 8.265
CMHZ4103 8.645
CMHZ4104 9.500
CMHZ4105 10.45
CMHZ4106 11.40
CMHZ4107 12.35
CMHZ4108 13.30
CMHZ4109 14.25
CMHZ4110 15.20
CMHZ4111 16.15
CMHZ4112 17.10
CMHZ4113 18.05
CMHZ4114 19.00
CMHZ4115 20.90
VZ @ IZT
NOM
V
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
MAX
V
7.140
7.865
8.610
9.135
9.555
10.50
11.55
12.60
13.65
14.70
15.75
16.80
17.85
18.90
19.95
21.00
23.10
μA
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Ω
200
200
200
200
200
200
200
200
200
200
100
100
100
100
150
150
150
μA
10
10
1.0
1.0
1.0
1.0
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.01
0.01
V
5.2
5.7
6.3
6.7
7.0
7.6
8.5
9.2
9.9
10.7
11.4
12.2
13.0
13.7
14.5
15.2
16.8
mA
35.0
31.8
29.0
27.4
26.2
24.8
21.6
20.4
19.0
17.5
16.3
15.4
14.5
13.2
12.5
11.9
10.8
μV/
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
Hz
CHX
CHY
CHZ
CJC
CJD
CJE
CJF
CJH
CJJ
CJK
CJM
CJN
CJP
CJT
CJU
CJV
CJA
TEST
CURRENT
IZT
MAXIMUM
ZENER
IMPEDANCE
ZZT @ IZT
MAX REVERSE
LEAKAGE
CURRENT
IR @ VR
MAXIMUM
ZENER
CURRENT
IZM
MAXIMUM
NOISE
DENSITY
ND @ IZT
MARKING
CODE
R5 (12-August 2010)
