NCP6925AFCT1G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> NCP6925AFCT1G

NCP6925AFCT1G: DescriptionPower Management Specialized - PMIC PMIC 2DCDC 5LDO; CategoryPower/power management The power supply circuit; File Size299KB，2 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

NCP6925AFCT1G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NCP6925AFCT1G	-	-	View	Buy Now

NCP6925AFCT1G Overview

Power Management Specialized - PMIC PMIC 2DCDC 5LDO

NCP6925AFCT1G Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
package instruction	VFBGA, BGA36,6X6,16
Manufacturer packaging code	567GW
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	VOUT 0.6 TO 3.3V OUTPUT
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
Nominal input voltage	3.6 V
JESD-30 code	S-PBGA-B36
length	2.36 mm
Number of functions	1
Number of terminals	36
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	1.9 A
Package body material	PLASTIC/EPOXY
encapsulated code	VFBGA
Encapsulate equivalent code	BGA36,6X6,16
Package shape	SQUARE
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
power supply	3.6 V
Certification status	Not Qualified
Maximum seat height	0.6 mm
Nominal supply voltage (Vsup)	3.6 V
surface mount	YES
Maximum switching frequency	3300 kHz
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.4 mm
Terminal location	BOTTOM
width	2.36 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Product Overview

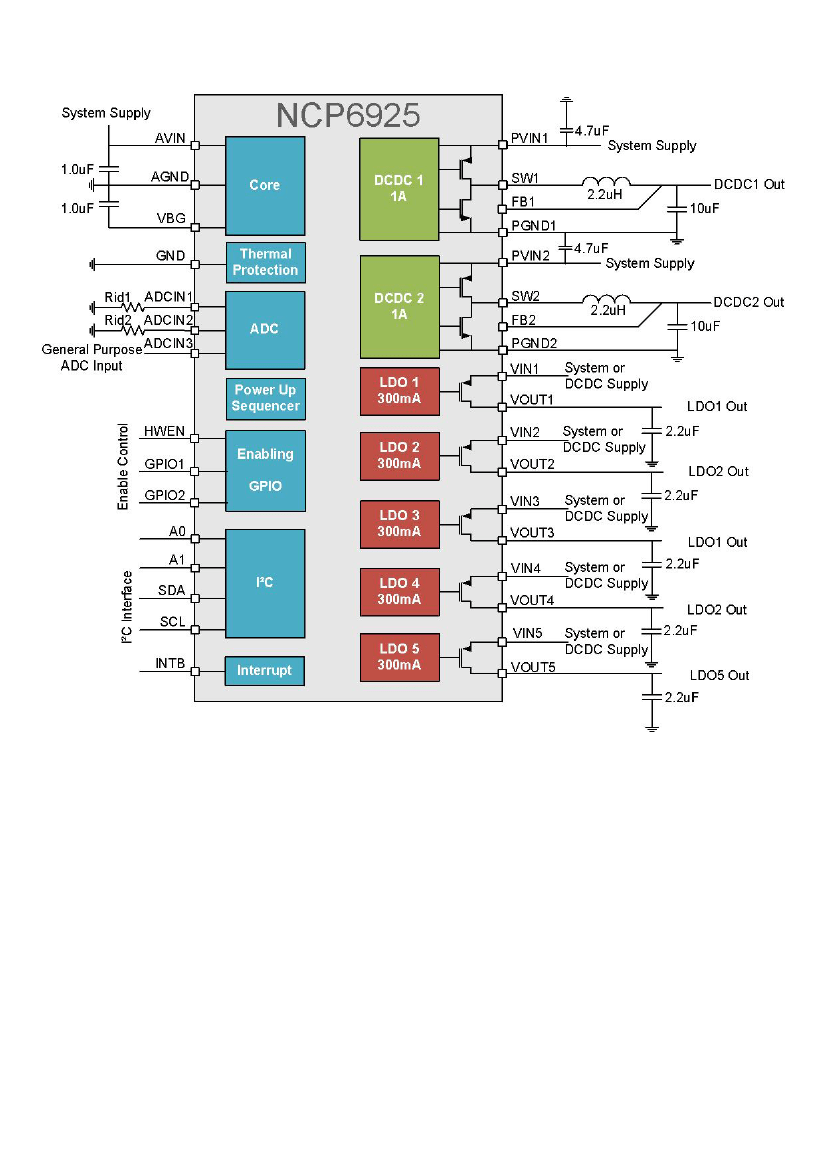

NCP6925: Power Management IC (PMIC), 7 Channels, with 2 DC-DC Converters

and 5 LDOs

For complete documentation, see the data sheet.

The NCP6925 is part of the ON Semiconductor mini-power management IC family. It is optimized to supply battery powered portable

application subsystems such as camera modules, microprocessors or any peripherals. This device integrates two high efficiency

1000 mA step-down DC to DC converter with DVS (Dynamic Voltage Scaling) and five low dropout (LDO) voltage regulators in

WLCSP-36 2.36 x 2.36 mm package.

Features

•

2.36 x 2.36 mm WLCSP 0.4 mm pitch

Ultra low quiescent current (140 µA typ)

Id detection capability

2 general purpose I/O pins

Benefits

•

Small Space Applications

Save battery life

Accessory detection

Can control internal or external regulators, or can be used as

internal sequences triggered inputs

• Two DC-DC converters, efficiency 95%, programmable

output voltage from 0.6 V to 3.3 V by 12.5 mV steps, 1000

mA output current capability

• Four low noise, low dropout regulators, programmable output

voltage from 0.8 V to 3.5 V by 25 mV steps, 300 mA output

current capability, 50 µVrms typical low output noise

• Flexible power up and down sequences programmable by I²C

• Triple inputs 10 bits ADC

• 2 DC-DC converters, 95 % efficiency, 1 A output current

capability, programmable output voltage from 0.6 V to 3.3 V

by 12.5 mV steps

• 5 low dropout regulators, 300 mA output current capability,

programmable output voltage from 0.8 V to 3.5 V by 25 mV

steps, 50 µVrms typical low output noise

For more features, see the data sheet

Applications

•

Cellular Phones

Battery powered applications power management

Tablets

Power supply for processor with low core voltage

Digital Cameras

End Products

•

Smartphones

Tablets

Wearable devices

MP3 players

Recommended Resources
