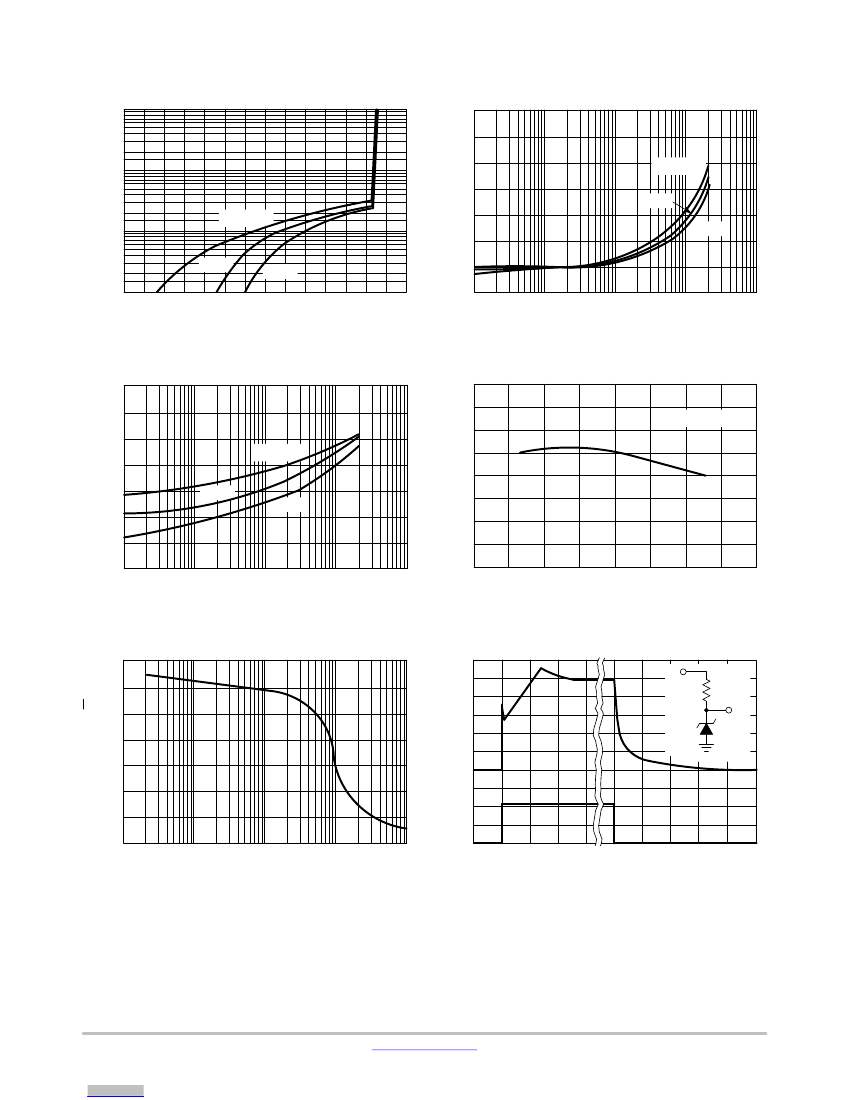

LM285, LM385B
Micropower Voltage
Reference Diodes
The LM285/LM385 series are micropower two−terminal bandgap
voltage regulator diodes. Designed to operate over a wide current
range of 10
mA
to 20 mA, these devices feature exceptionally low
dynamic impedance, low noise and stable operation over time and
temperature. Tight voltage tolerances are achieved by on−chip
trimming. The large dynamic operating range enables these devices to
be used in applications with widely varying supplies with excellent
regulation. Extremely low operating current make these devices ideal
for micropower circuitry like portable instrumentation, regulators and
other analog circuitry where extended battery life is required.
The LM285/LM385 series are packaged in a low cost TO−226
plastic case and are available in two voltage versions of 1.235 V and
2.500 V as denoted by the device suffix (see Ordering Information
table). The LM285 is specified over a −40°C to +85°C temperature
range while the LM385 is rated from 0°C to +70°C.
The LM385 is also available in a surface mount plastic package in
voltages of 1.235 V and 2.500 V.
Features
www.onsemi.com
MARKING
DIAGRAMS
8
8
1
SOIC−8
D SUFFIX
CASE 751
1
y85−z
ALYW
G
•
•
•
•
•
•
Operating Current from 10
mA
to 20 mA
1.0%, 1.5%, 2.0% and 3.0% Initial Tolerance Grades
Low Temperature Coefficient
1.0
W
Dynamic Impedance
Surface Mount Package Available
These Devices are Pb−Free and are RoHS Compliant
Cathode
N.C.
Cathode
Anode
TO−92
(TO−226)
Z SUFFIX
CASE 29
LMy85
Z−xxx
ALYWG
G
xxx
= 1.2 or 2.5
y
= 2 or 3
z
= 1 or 2
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
360 k
Open
for 1.235 V
10 k
(Bottom View)
1
2
3
N.C.
N.C.
N.C.
Anode
1
2
3
4
8
7
6
5
Cathode
N.C.
N.C.
N.C.
600 k
8.45 k
Standard Application
74.3 k
Open
for 2.5 V
600 k
425 k
1.5 V
Battery
+
-
3.3 k
1.235 V
LM385−1.2
600 k
500
W
100 k
Anode
ORDERING INFORMATION

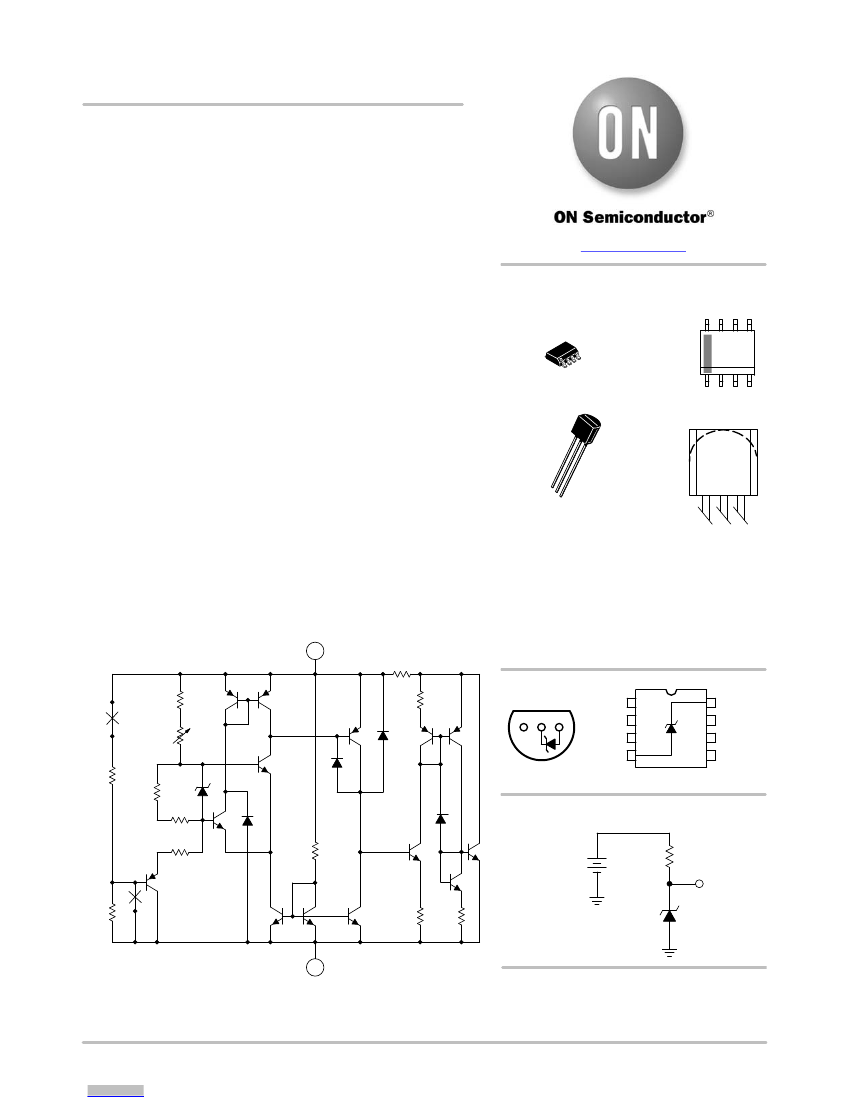

Figure 1. Representative Schematic Diagram
See detailed ordering and shipping information in the package
