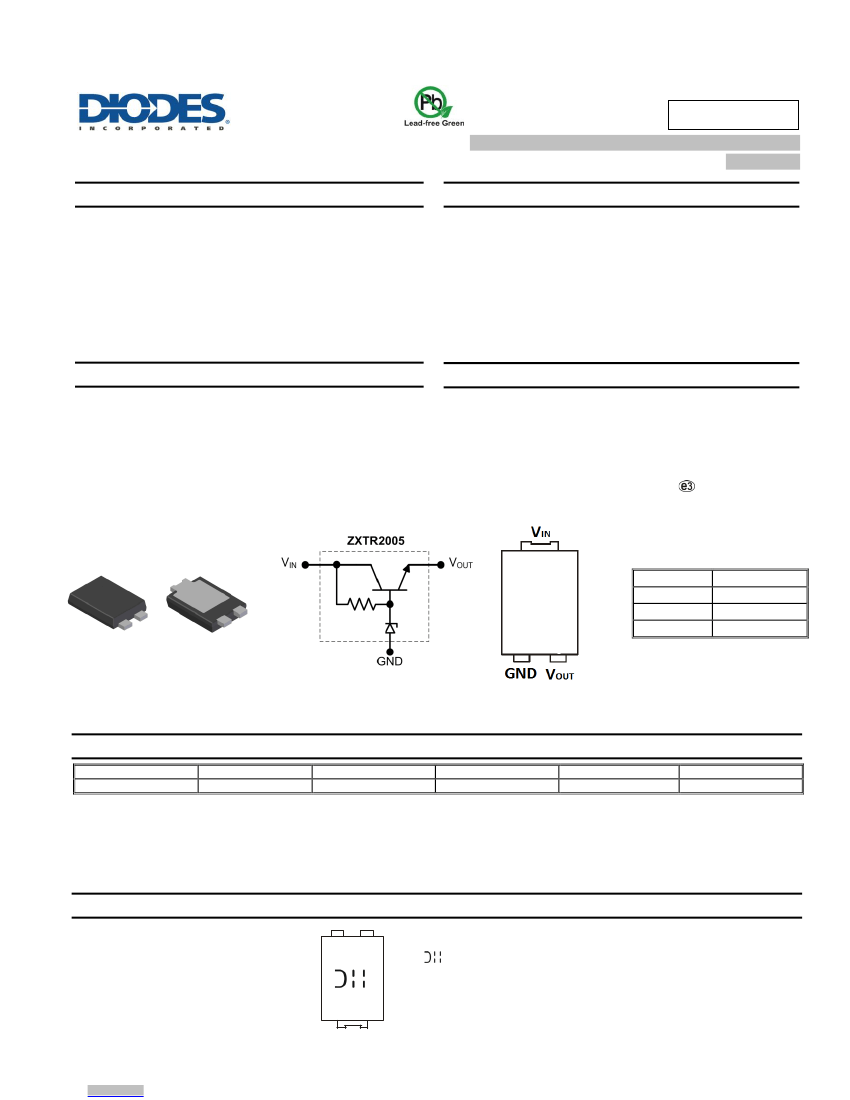

ZXTR2005P5
100V INPUT, 5V 40mA REGULATOR TRANSISTOR
POWERDI5
Description
The ZXTR2005P5 monolithically integrates a transistor, zener diode
and resistor to function as a high-voltage linear regulator. The device
regulates with a 5V nominal output at 15mA. It is designed for use in
high-voltage applications where standard linear regulators cannot be
used. This function is fully integrated into a PowerDI
®
5 package,
minimizing PCB area and reducing the number of components when
compared with a multi-chip discrete solution.
Features
Series Linear Regulator Using Emitter-Follower Stage
Input Voltage = 10V to 100V (For regulated output voltage)
Output Voltage = 5V ± 10%
150kΩ resistor to limit quiescent current
Fully integrated into a PowerDI5 package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 for High Reliability
Applications
Supply voltage regulation in:
Startup switch in DC-DC converters
Networking
Telecommunications
Power over Ethernet (PoE)
Mechanical Data
Case: PowerDI5
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads.
Solderable per MIL-STD-202, Method 208
Weight: 0.100 grams (Approximate)
POWERDI5
Pin Name
V
IN
GND
V
OUT
Pin Function
Input Supply
Power Ground
Voltage Output
150k
Top View
Bottom View
Internal Device
Schematic
Top View
Pin-Out
Ordering Information
(Note 4)
Product
ZXTR2005P5-13
Notes:
Package
PowerDI5
Marking
ZXTR2005
Reel size (inches)
13
Tape width (mm)
16
Quantity per reel
5,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
ZXTR2005
DXT790A
ZXTR2005 = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 17 for 2017)
WW = Week code (01 to 53)
YYWWK
POWERDI is a registered trademark of Diodes Incorporated
ZXTR2005P5
Document number: DS36332 Rev. 2– 2
1 of 7
www.diodes.com
April 2017
© Diodes Incorporated
ZXTR2005P5
Absolute Maximum Ratings
(Voltage relative to GND, @T
A
= +25°C, unless otherwise specified.)
Characteristic
Input Supply Voltage
Continuous Input & Output Current
Peak Pulsed Input & Output Current
Maximum Voltage applied to V
OUT
Symbol
V
IN
I
IN,
I
OUT
I
IM,
I
OM
V
OUT(max)
Value
-0.3 to 100
360
2
Smaller of V
IN
+5V or 11V
Unit
V
mA
A
V
Maximum Current at V
IN
= 48V
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Continuous Output Current
Pulsed Output Current
(Note 7)
(Note 8)
(Note 9)
Symbol
I
OUT
I
OM
Value
42
740
150
Unit
mA
mA
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Lead
Thermal Resistance, Junction to Case
(Note 5)
(Note 6)
(Note 5)
(Note 6)
(Note 10)
(Note 10)
Symbol
P
D
R
θJA
R
θJL
R
θJC
T
J
T
J
, T
STG
Value
1.82
0.94
55
107
20
17.8
-40 to +125
-65 to +150
Unit
W
°C/W
Recommended Operating Junction Temperature Range
Maximum Operating Junction and Storage Temperature Range
°C
ESD Ratings
(Note 11)
Characteristics
Electrostatic Discharge – Human Body Model
Electrostatic Discharge – Machine Model
Notes:
Symbols
ESD HBM
ESD MM
Value
4000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with the exposed V
IN
pad on 50mm x 50mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still
air conditions while operating in steady-state.
6. Same as Note 5, except mounted on 15mm x 15mm 1oz copper.
7. Same as Note 5, while operating at V
IN
= 48V. Refer to Safe Operating Area for other input voltages.
8. Same as Note 5, except measured with a single pulse width = 100µs and V
IN
= 48V.
9. Same as Note 5, except measured with a single pulse width = 10ms and V
IN
= 48V.
10.
R
θJL
= Thermal resistance from junction to solder-point (on the exposed V
IN
pad).
R
θJC
= Thermal resistance from junction to the top of case.
11. Refer to JEDEC specification JESD22-A114 and JESD22-A115
.
ZXTR2005P5
Document number: DS36332 Rev. 2– 2
2 of 7
www.diodes.com
April 2017
© Diodes Incorporated
ZXTR2005P5

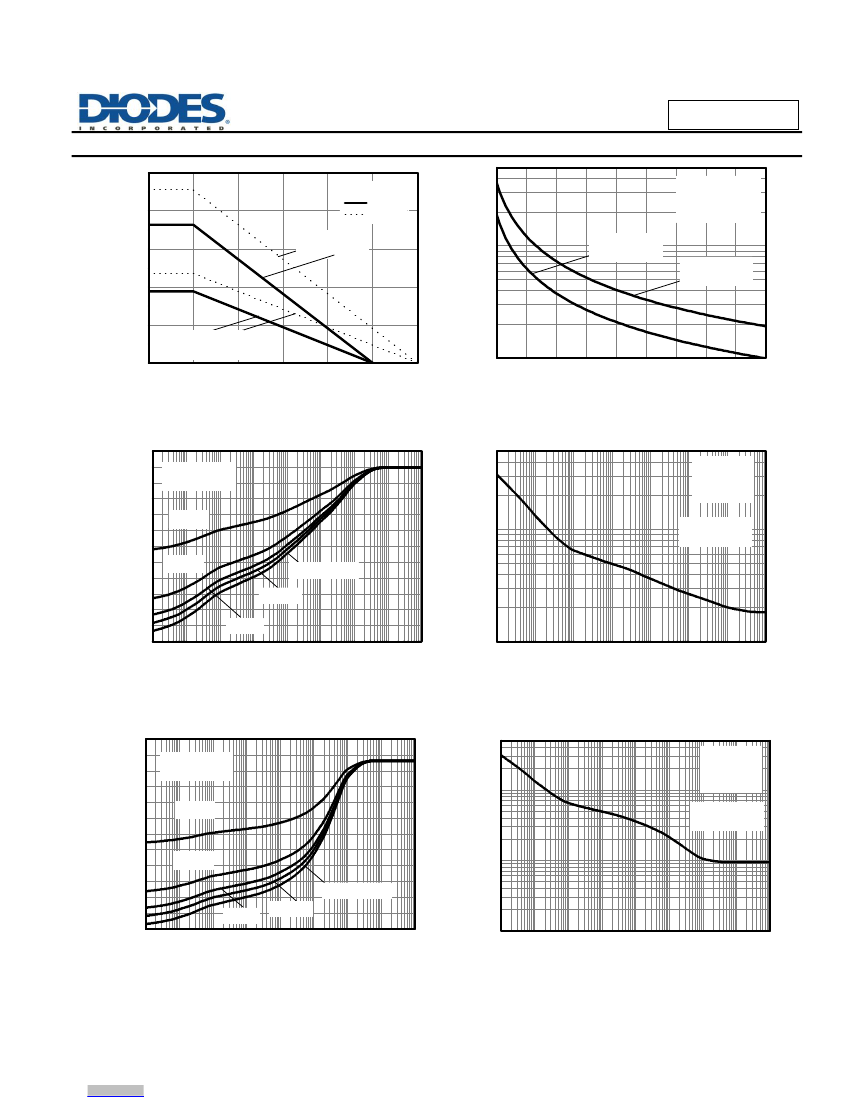

Thermal Characteristics and Derating Information
Continuous Output Current (mA)
Max Power Dissipation (W)
2.5
T
J
2.0
1.5
1.0
0.5
15mm x 15mm
1oz Cu
50mm x 50mm
1oz Cu
= 125°C
= 150°C
Steady state D.C.
T
A
= 25°C
T
J
125°C
100
15mm x 15mm
1oz Cu
50mm x 50mm
1oz Cu
0.0
0
25
50
75
100
125
150
10
10
20
30
40
50
60
70
80
90 100
Ambient temperature (°C)
Input Voltage (V)
Derating Curve
Thermal Resistance (°C/W)
Max Power Dissipation (W)
60
50
40
30
D=0.2
50mm x 50mm
1oz Cu
Safe Operating Area
50
Single Pulse
T
A
= 25°C
T
J
125°C
D=0.5
10
50mm x 50mm
1oz Cu
20
10
D=0.1
Single Pulse
D=0.05
0
100µ 1m 10m 100m
1
10
100
1k
10k
1
100µ
1m
10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Thermal Resistance (°C/W)
120
Pulse Power Dissipation
Max Power Dissipation (W)
50
Single Pulse
T
A
= 25°C
T
J
125°C
15mm x 15mm
1oz Cu
100
80
60
40
20
15mm x 15mm
1oz Cu
10
D=0.5
D=0.2
Single Pulse
D=0.1
D=0.05
1
0
100µ 1m 10m 100m
1
10
100
1k
10k
0.1
100µ 1m 10m 100m
1
10
100
1k
10k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Pulse Power Dissipation
ZXTR2005P5
Document number: DS36332 Rev. 2– 2
3 of 7
www.diodes.com
April 2017
© Diodes Incorporated
ZXTR2005P5
Electrical Characteristics
Characteristic
Output Voltage (Note 12)
Line Regulation (Notes 12 & 13)
Temperature Coefficient
Load Regulation (Notes 12 & 14)
Minimum Value of Input Voltage Required
to Maintain Line Regulation
Quiescent Current
Power Supply Rejection Ratio
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
OUT
∆V
OUT
∆V
OUT
/∆T
∆V
OUT
V
IN(MIN)
I
Q
∆V
IN
/∆V
OUT
Min
4.5
—
—
—
10
—
—
—
Typ
5.0
195
7.0
-185
-205
—
260
550
45
Max
5.5
300
—
-350
-400
—
500
900
—
Unit
V
mV
mV/°C
mV
V
µA
dB
Test Condition
V
IN
= 48V, I
OUT
= 15mA
V
IN
= 10 to 72V, I
OUT
= 15mA
T
J
= -40°C to +125°C
V
IN
= 48V, I
OUT
= 15mA
I
OUT
= 0.1 to 30mA, V
IN
= 48V
I
OUT
= 0.1 to 100mA, V
IN
= 48V
—
V
IN
= 48V, I
OUT
= 10µA
V
IN
= 100V, I
OUT
= 10µA
C
OUT
= 100nF, I
OUT
= 15mA,
V
OUT
= 5V, V
IN
= 10 to 100V, f = 100Hz
12. Measured under pulsed conditions. Pulse width ≤ 300μs. Duty cycle ≤ 2%
13. Line regulation
∆V
OUT
= V
OUT
(@ V
IN
= 72V) – V
OUT
(@ V
IN
= 15V)
14. Load regulation
∆V
OUT
= V
OUT
(@ I
OUT
= 30mA) – V
OUT
(@ I
OUT
= 0.1mA)
∆V
OUT
= V
OUT
(@ I
OUT
= 100mA) – V
OUT
(@ I
OUT
= 0.1mA)

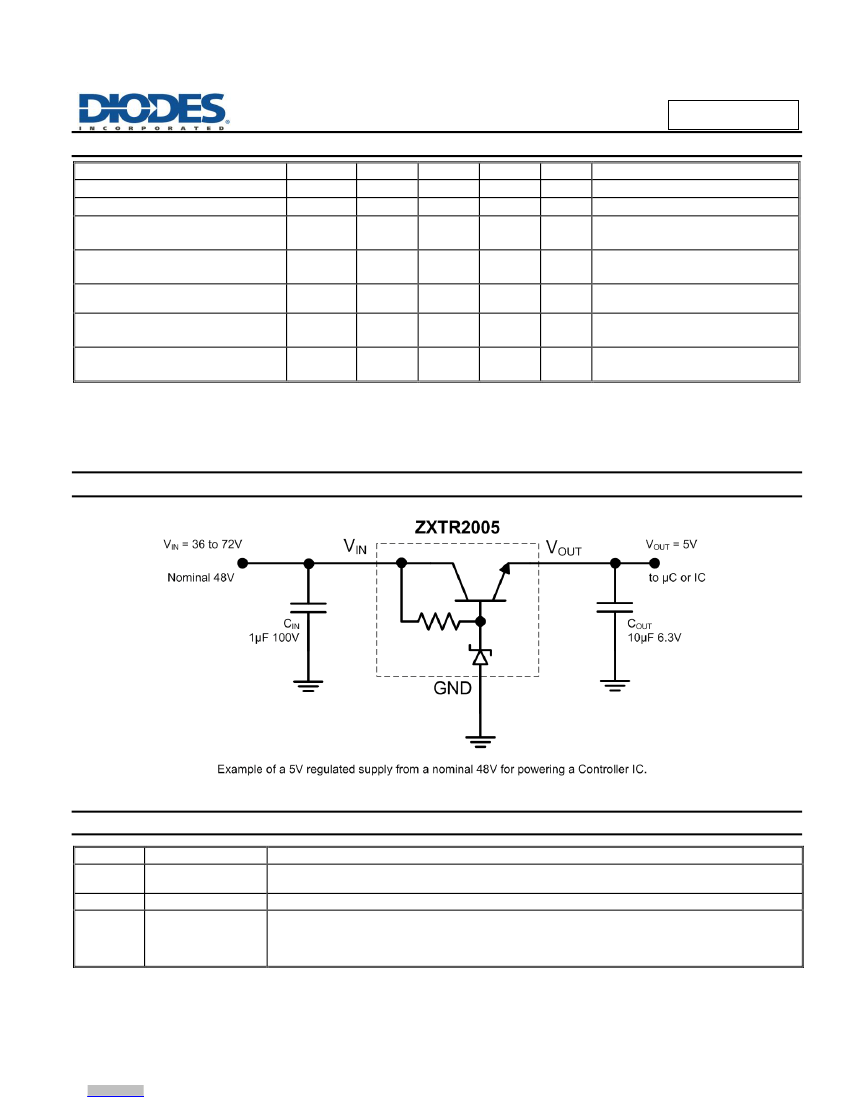

Typical Application Circuit
150k
Pin Functions
Pin Name
VIN
GND
VOUT
Pin Function
Input Supply
Power Ground
Voltage Output
Notes
Input voltage can vary from -0.3V to 100V with respect to GND; for VOUT regulated then 10V ≤ VIN ≤ 100V.
It is recommended to connect a 1µF capacitor to GND.
This pin should be tied to the system ground.
Outputs a regulated 5V when 10V ≤ VIN ≤ 100V. When VIN < 10V, then VOUT maximum = VIN – 1.5V.
The pin can be pulled high to a maximum of +11V with respect to GND, or +5V with respect to VIN,
whichever is lower. It is recommended to connect a 10µF capacitor to GND and a minimum of 10µA to be
drawn from VOUT to maintain regulation.
ZXTR2005P5
Document number: DS36332 Rev. 2– 2
4 of 7
www.diodes.com
April 2017
© Diodes Incorporated
ZXTR2005P5

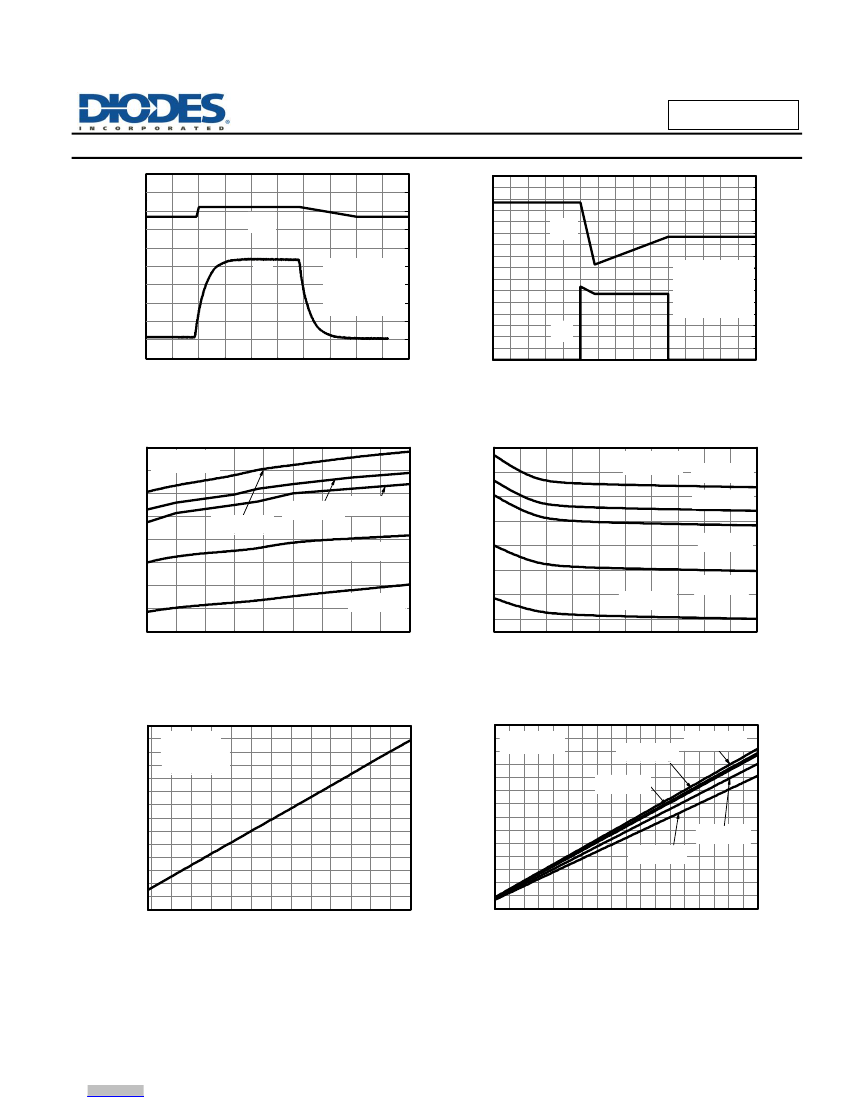

Typical Electrical Characteristics
80
70
60
50
40
30
20
10
-5µ
0
5µ
10µ
V
IN
V
OUT
(@T
A
= +25°C, unless otherwise specified.)
5.2
5.1
5.0
4.9
4.8
V
IN
=18 to 48V
4.7
I
OUT
= 15mA
4.6
Slew Rate=5V/
s
4.5
C
OUT
= 100nF
4.4
4.3
4.2
15µ
20µ
5.6
80
70
V
OUT
V
OUT
Output Voltage (V)
V
IN
Input Voltage (V)
5.4
5.2
5.0
4.8
4.6
4.4
4.2
4.0
-4µ
-2µ
0
2µ
4µ
6µ
8µ
I
OUT
I
OUT
= 0 to 30mA
Slew Rate=1A/
s
C
OUT
= 100nF
V
IN
=10V
60
50
40
30
20
10
0
10µ
Time (s)
Time (s)
Line transient response
1000
800
I
OUT
= 15mA
Load transient response
V
OUT
Output Voltage (mV)
V
IN
= 48V
V
OUT
Output Voltage (mV)
800
600
400
200
0
-200
-400
-600
10
600
400
200
0
-200
-400
-600
0.1
20
40
T
J
= 125°C
T
J
= 100°C
T
J
= 100°C
T
J
= 125°C
T
J
= 85°C
T
J
= 25°C
T
J
= 85°C
T
J
= 25°C
T
J
= -40°C
T
J
= -40°C
20
30
40
50
60
70
80
90 100
60
80
100
Line Regulation (Note 15)
800
700
V
IN
Input Voltage (V)
I
OUT
Output Current (mA)
Load Regulation (Note 16)
V
OUT
Output Voltage (mV)
600
400
200
0
-200
-400
I
Q
Quiescent Current (
A)
V
IN
= 48V
I
OUT
= 15mA
600
500
400
300
200
100
0
10
I
OUT
= 10µA
T
J
= 100°C
T
J
= 85°C
T
J
= 125°C
T
J
= 25°C
T
J
= -40°C
-600
-40 -25
0
25
50
75
100
125
20
30
40
50
60
70
80
90 100
Junction temperature (°C)
V
IN
Input Voltage (V)
Temperature Coefficient (Note 17)
Notes:
15. Line regulation ∆V
OUT
= V
OUT
– V
OUT
(@ V
IN
= 15V, I
OUT
= 15mA, T
J
= +25°C)
16. Load regulation ∆V
OUT
= V
OUT
– V
OUT
(@ V
IN
= 48V, I
OUT
= 0.1mA, T
J
= +25°C)
17. Temperature Coefficient ∆V
OUT
= V
OUT
– V
OUT
(@ V
IN
= 48V, I
OUT
= 15mA, T
J
= +25°C)
Quiescent Current
ZXTR2005P5
Document number: DS36332 Rev. 2– 2
5 of 7
www.diodes.com
April 2017
© Diodes Incorporated
I
OUT
Output Current (mA)
京公网安备 11010802033920号
EEWORLD
