SE5532N

Description
Operational Amplifiers - Op Amps 3-20V Dual Low Noise
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size134KB，10 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

SE5532N Online Shopping

Suppliers Part Number Price MOQ In stock
SE5532N - - View Buy Now

SE5532N Overview

Operational Amplifiers - Op Amps 3-20V Dual Low Noise

SE5532N Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Contains lead
Parts packaging codeDIP
package instructionPLASTIC, DIP-8
Contacts8
Manufacturer packaging code626-05
Reach Compliance Codenot_compliant
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.7 µA
Maximum bias current (IIB) at 25C0.4 µA
Nominal Common Mode Rejection Ratio100 dB
frequency compensationYES
Maximum input offset voltage3000 µV
JESD-30 codeR-PDIP-T8
JESD-609 codee0
length9.78 mm
low-dissonanceNO
Negative supply voltage upper limit-22 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions2
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP7/8,.3
Package shapeRECTANGULAR
Package formIN-LINE
method of packingRAIL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply+-15 V
Certification statusNot Qualified
Maximum seat height4.45 mm
Nominal slew rate9 V/us
Maximum slew rate13 mA
Supply voltage upper limit22 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal Uniform Gain Bandwidth10000 kHz
Minimum voltage gain20000
width7.62 mm
Base Number Matches1

Preview

Download Datasheet

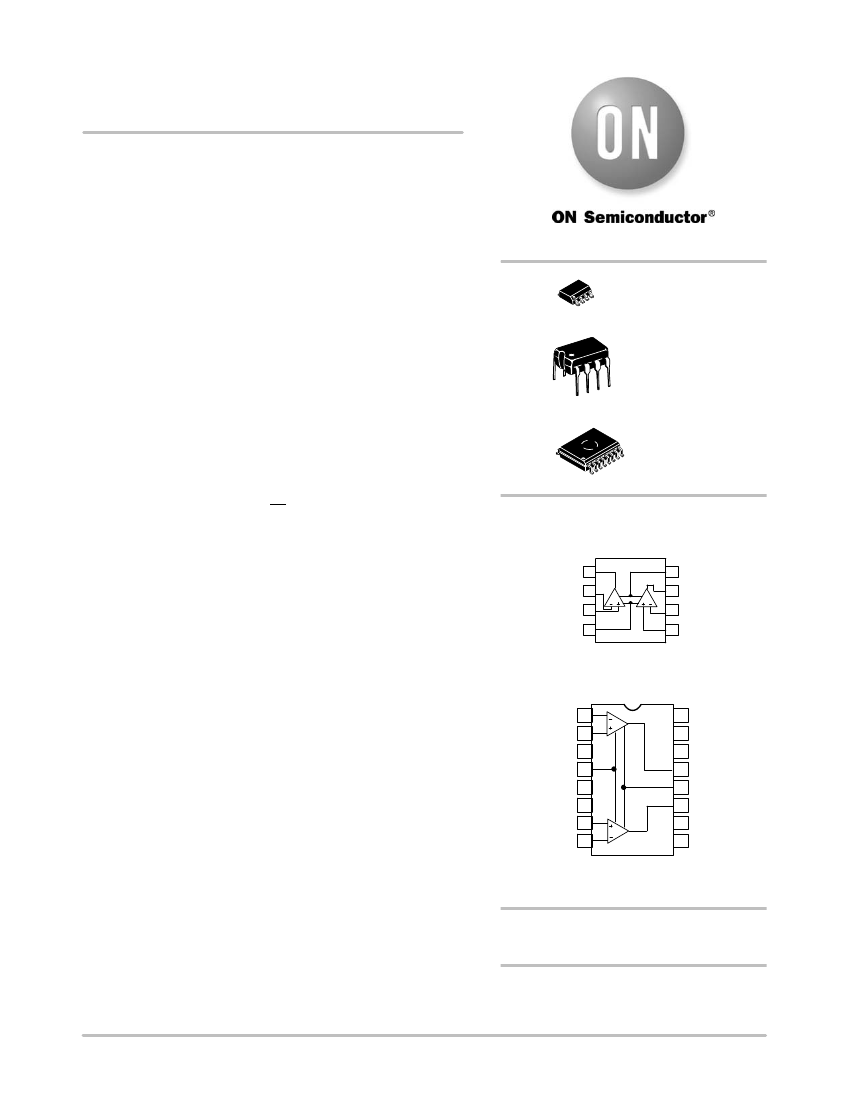

NE5532, SA5532, SE5532,
NE5532A, SE5532A
Internally Compensated
Dual Low Noise
Operational Amplifier
The 5532 is a dual high-performance low noise operational
amplifier. Compared to most of the standard operational amplifiers,
such as the 1458, it shows better noise performance, improved output
drive capability and considerably higher small-signal and power
bandwidths.
This makes the device especially suitable for application in
high-quality and professional audio equipment, instrumentation and
control circuits, and telephone channel amplifiers. The op amp is
internally compensated for gains equal to one. If very low noise is of
prime importance, it is recommended that the 5532A version be used
because it has guaranteed noise voltage specifications.
Features
8
1
http://onsemi.com
SOIC−8
D SUFFIX
CASE 751
8
1
PDIP−8
N SUFFIX
CASE 626
16
1
•
•
•
•
•
•
•
•
•
•
Small-Signal Bandwidth: 10 MHz
Output Drive Capability: 600
W,
10 V
RMS
Input Noise Voltage:
5.0 nV Hz
(Typical)
DC Voltage Gain: 50000
AC Voltage Gain: 2200 at 10 kHz
Power Bandwidth: 140 kHz
Slew Rate: 9.0 V/ms
Large Supply Voltage Range:
"3.0
to
"20
V
Compensated for Unity Gain
Pb−Free Packages are Available
SOIC−16 WB
D SUFFIX
CASE 751G
PIN CONNECTIONS
N, D8 Packages
OUT
A
−IN
A
+IN
A
V-
1
2
3
4
A
B
8 V+
7 OUT
B
6
−IN
B
5 +IN
B
Top View
D Package*
−IN
A
+IN
A
NC
V−
NC
NC
+IN
B
−IN
B
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
NC
NC
NC
OUT
A
V+
OUT
B
NC
NC
Top View
*SOL and non-standard pinout.
DEVICE MARKING INFORMATION
See general marking information in the device marking
section on page 6 of this data sheet.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
©
Semiconductor Components Industries, LLC, 2013
September, 2013
−
Rev. 2
1
Publication Order Number:
NE5532/D
