CMPZ4693 TR

Description
Zener Diodes 350mW Low Level Zen 7.13 to 7.875 31.8mA
Categorysemiconductor    Discrete semiconductor
File Size460KB，3 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

CMPZ4693 TR Overview

Zener Diodes 350mW Low Level Zen 7.13 to 7.875 31.8mA

CMPZ4693 TR Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerCentral Semiconductor
Product CategoryZener Diodes
RoHSDetails
Package / CaseSOT-23
PackagingReel
Factory Pack Quantity3000

Preview

Download Datasheet
CMPZ4614
THRU
CMPZ4627
SURFACE MOUNT
LOW NOISE
SILICON ZENER DIODE
350mW, 5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMPZ4614 Series
types are high quality silicon zener diodes designed for
low leakage, low current and low noise applications.
MARKING CODE: CONSULT FACTORY

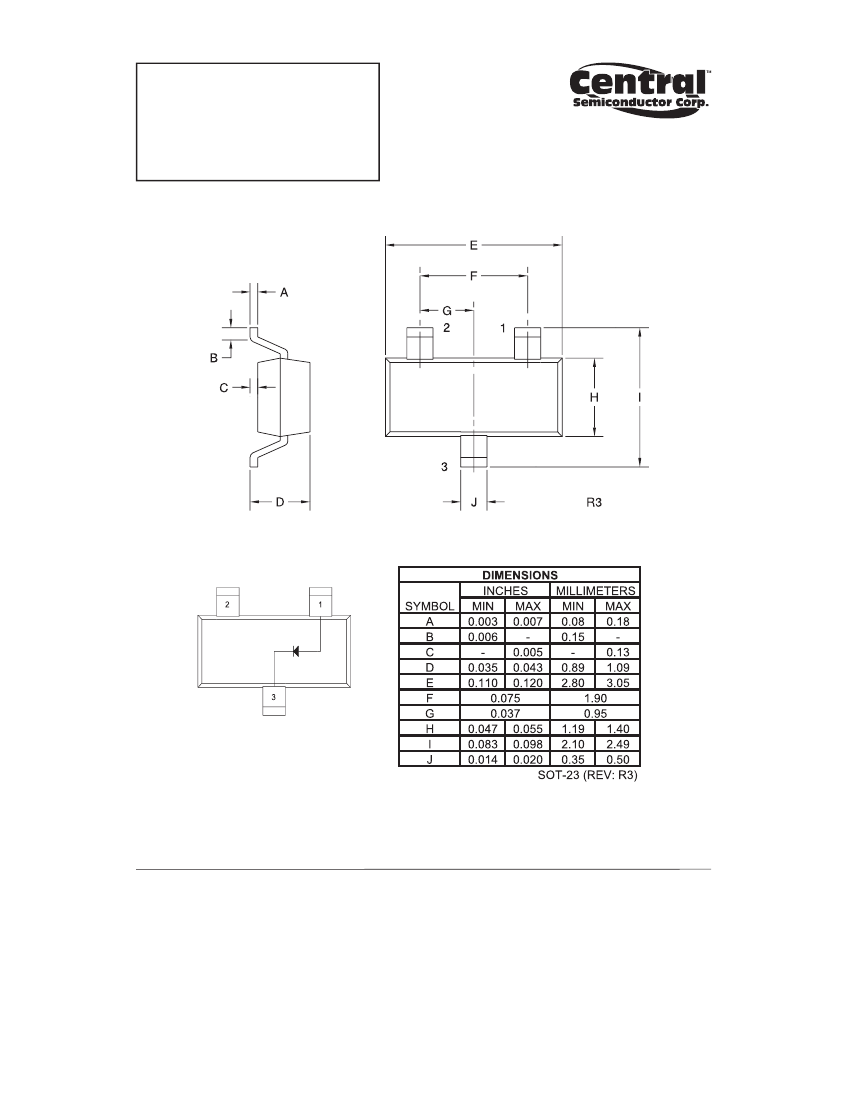

SOT-23 CASE
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Power Dissipation
Operating and Storage Junction Temperature
SYMBOL
PD
TJ, Tstg
UNITS
mW
°C
350
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted) VF=1.0V MAX @ IF=200mA (for all types)
NOMINAL
ZENER
VOLTAGE
VZ @ IZT
V
CMPZ4614
CMPZ4615
CMPZ4616
CMPZ4617
CMPZ4618
CMPZ4619
CMPZ4620
CMPZ4621
CMPZ4622
CMPZ4623
CMPZ4624
CMPZ4625
CMPZ4626
CMPZ4627
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
TEST
CURRENT
IZT
μA
250
250
250
250
250
250
250
250
250
250
250
250
250
250
TYPE
MAXIMUM MAXIMUM REVERSE
ZENER
LEAKAGE CURRENT
IMPEDANCE
ZZT @ IZT
IR
@
VR
Ω
1200
1250
1300
1400
1500
1600
1650
1700
1650
1600
1550
1500
1400
1200
MAXIMUM
ZENER
CURRENT
IZM
mA
120
110
100
95
90
85
80
75
70
65
60
55
50
45
MAXIMUM
NOISE DENSITY
ND @ IZT
μV/√Hz
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
4.0
5.0
μA
7.5
5.0
4.0
2.0
1.0
0.8
7.5
7.5
5.0
4.0
10
10
10
10
V
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.0
2.0
2.0
3.0
3.0
4.0
5.0
