SURFACE MOUNT DISPLAY
APSC56-21YWW
YELLOW
Features
!
0.56 INCH
!
LOW
Description
DIGIT HEIGHT.
CHARACTER APPEARANCE.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
CURRENT OPERATION.
!
EXCELLENT
!
EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
!
I.C. COMPATIBLE.
!
MECHANICALLY
!
STANDARD:
RUGGED.
WHITE FACE,WHITE SEGMENT.
!
PACKAGE: 500PCS/REEL.

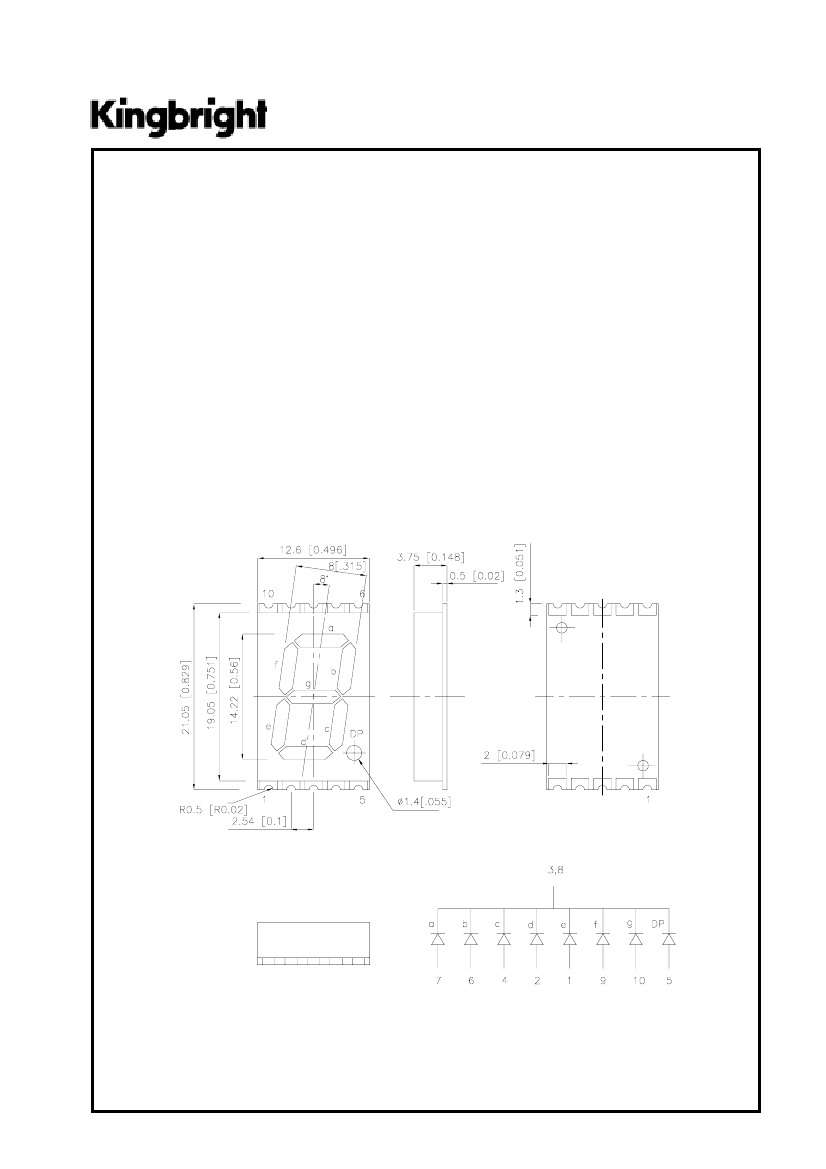

Package Dimensions
& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA7930
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE:JAN/18/2002
DRAWN: X.Q.ZHENG
PAGE: 1 OF 5
Selection Guide
Iv (m c d )
@ 10 m A
Min .
APSC56-21YWW
YELLOW (GaAsP/GaP)
WHITE DIFFUSED
3.0
Ty p .
4.9
Common Cathode,Rt. Hand Decimal
Par t No .
Dic e
L en s Ty p e
D es c r i p t i o n
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Halfwidth
Capacitance
Forward Voltage
Reverse Current
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
D ev i c e
Ty p .
590
588
35
20
2.1
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
°
Absolute Maximum Ratings at T
)
=25°C
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Yello w
105
30
140
5
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
SPEC NO: DSAA7930
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE:JAN/18/2002
DRAWN: X.Q.ZHENG
PAGE: 2 OF 5

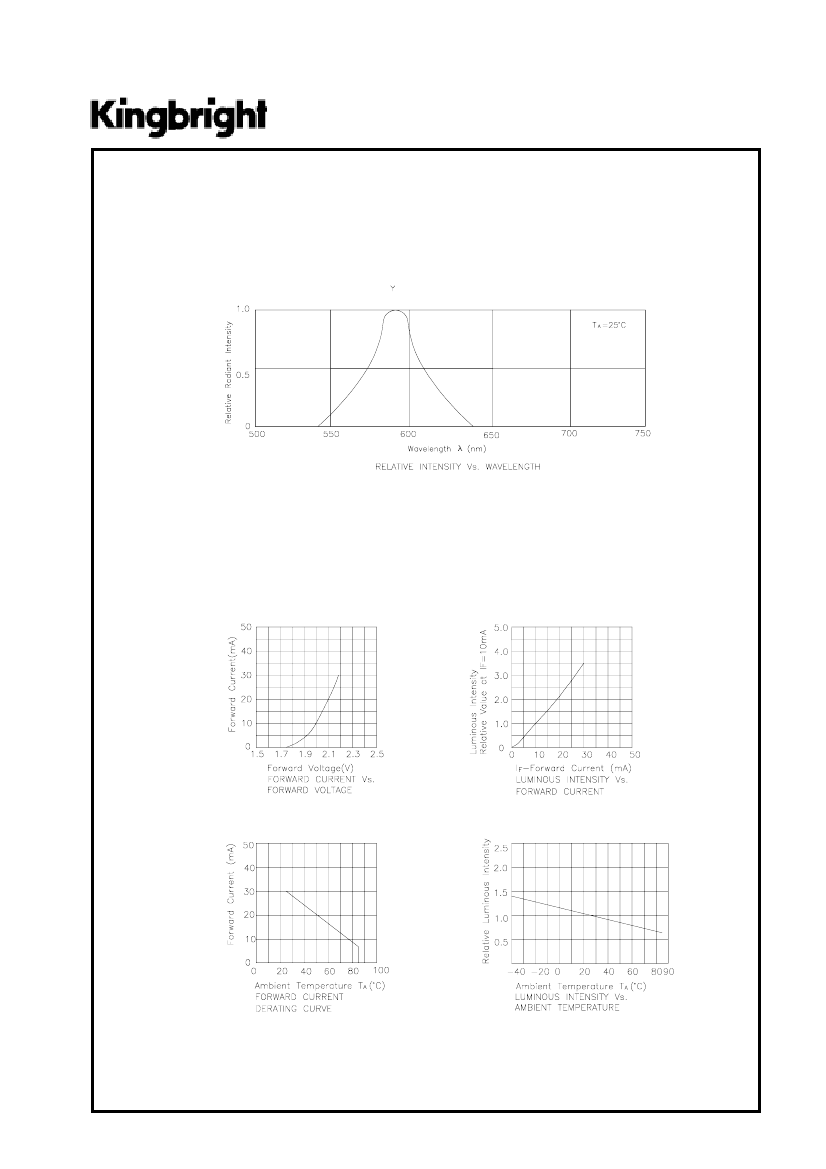

Yellow APSC56-21YWW
SPEC NO: DSAA7930
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE:JAN/18/2002
DRAWN: X.Q.ZHENG
PAGE: 3 OF 5
APSC56-21YWW
SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
SPEC NO: DSAA7930
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE:JAN/18/2002
DRAWN: X.Q.ZHENG
PAGE: 4 OF 5

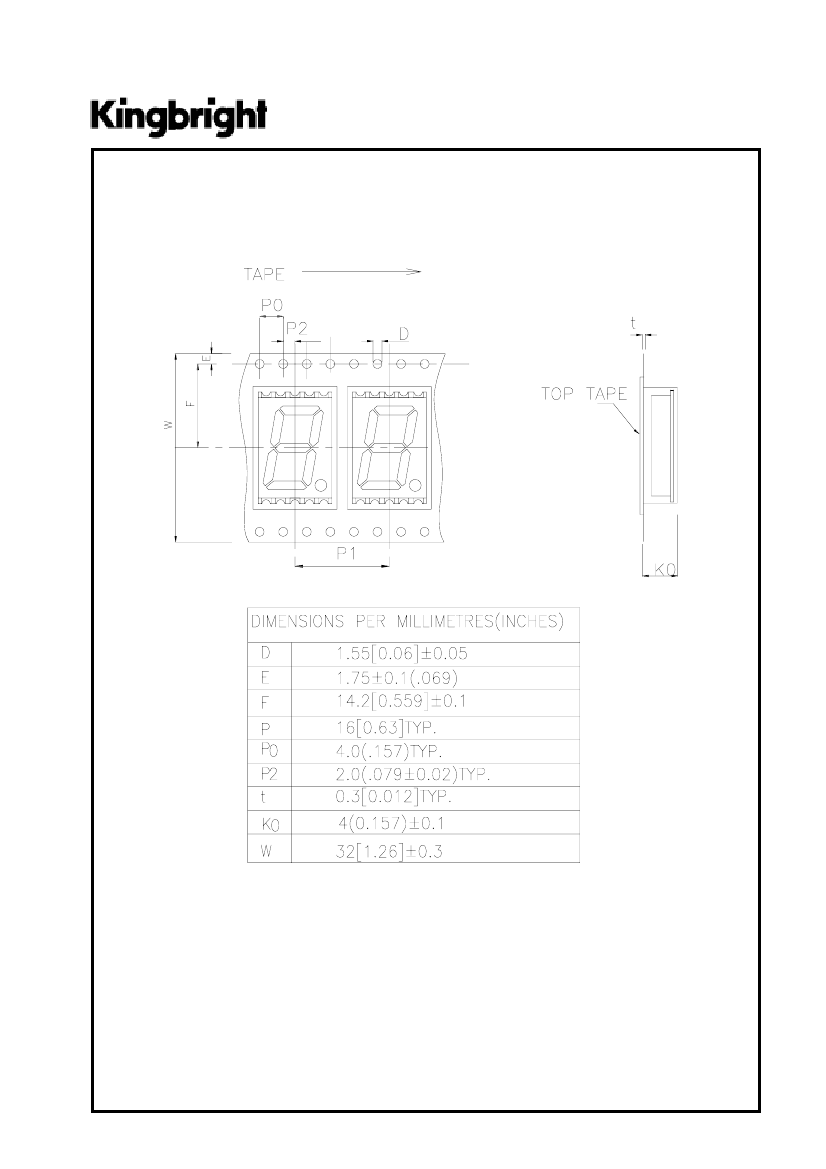

Tape Specification
(Units : mm)
SPEC NO: DSAA7930
APPROVED : J. Lu
REV NO: V.1
CHECKED :
DATE:JAN/18/2002
DRAWN: X.Q.ZHENG
PAGE: 5 OF 5
