D3SBA60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D3SBA60

D3SBA60: DescriptionBridge Rectifiers Bridge; CategoryDiscrete semiconductor diode; File Size427KB，4 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com; Environmental Compliance

Download Datasheet Parametric View All

D3SBA60 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D3SBA60	-	-	View	Buy Now

D3SBA60 Overview

Bridge Rectifiers Bridge

D3SBA60 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SHINDENGEN
Parts packaging code	SIP
package instruction	R-PSFM-T4
Contacts	4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	80 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	2.3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

Bridge Diode

シングルインライン型

Single In-line Package

D3SBA60

600V 4A

特長

• 薄型 S

P パッケージ

• UL E142422

■外観図　

OUTLINE

Package

：

Unit : mm

Weight : 3.9g typ.）

（

品名

Type No.

管理番号（例）

Control No.

ロッ

ト記号

（例）

Date code

4.6

D3SBA60

0264

＋

①

∼ ∼

② ③

−

④

Feature

• Thin-S

• UL E142422

∼

−

17.5

①

②

③

④

外½図については新電元 Web サイト又は〈半導½½品一覧表〉をご参照下

さい。捺印表示については捺印仕様をご確認下さい。

For details of outline dimensions, refer to our web site or the Semiconductor

Short Form Catalog. As for the marking, refer to the specification “Marking,

Terminal Connection”

■定格表

RATINGS

■定格表　

RATINGS

●絶対最大定格

Absolute Maximum Ratings（

指定のない場合

Tc=25℃／

unless otherwise specified

）

項目

Item

保存温度

Storage Temperature

接合部温度

Operation Junction Temperature

せん頭逆電圧

Maximum Reverse Voltage

出力電流

Average Rectified Forward Current

せん頭サージ順電流

Peak Surge Forward Current

電流二乗時間積

Current Squared Time

絶縁耐圧

Dielectric Strength

締め付けトルク

Mounting Torque

記号

条件

Symbol Conditions

stg

FSM

dis

TOR

品名

Type No.

D3SBA60

−40∼150

150

600

単½

Unit

℃

フィン付き

Tc = 108℃

With heatsink

フィンなし

Ta = 25℃

Without heatsink

50Hz 正弦波，非繰り返し１サイクルせん頭値， Tj = 25℃

50Hz sine wave, Non-repetitive 1cycle peak value, Tj = 25℃

1ms≦t＜10ms，Tj = 25℃，１素子½たりの規格値

per diode

一括端子・ケース間，AC１分間印加

Terminals to Case, AC 1 minute

（推奨値：0.5 N

・m）

(Recommended

torque : 0.5 N m)

・

50Hz 正弦波，抵抗負荷

50Hz sine wave,

Resistance load

2.3

0.8

N・m

●電気的・熱的特性 Electrical

Characteristics（

指定のない場合

Tc=25℃／

unless otherwise specified

）

順電圧

Forward Voltage

逆電流

Reverse Current

熱抵抗

Thermal Resistance

パルス測定，１素子½たりの規格値

Pulse measurement, per diode

R =

RM, パルス測定，１素子½たりの規格値

Pulse measurement, per diode

接合部・ケース間，フィン付き

Junction to Case, With heatsink

接合部・リード間，フィンなし

Junction to Lead, Without heatsink

接合部・周囲間，フィンなし

Junction to Ambient, Without heatsink

F =

2A,

MAX

1.05

5.5

μA

℃/W

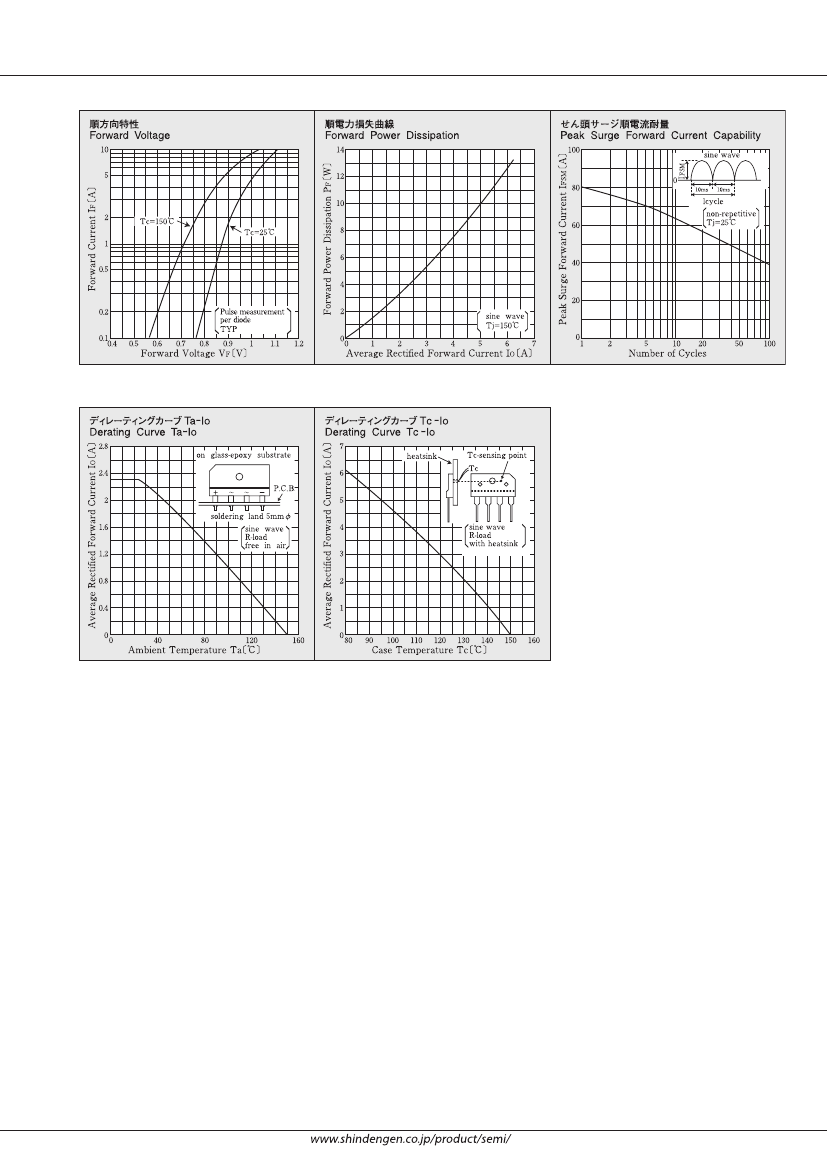

（J534-1）
